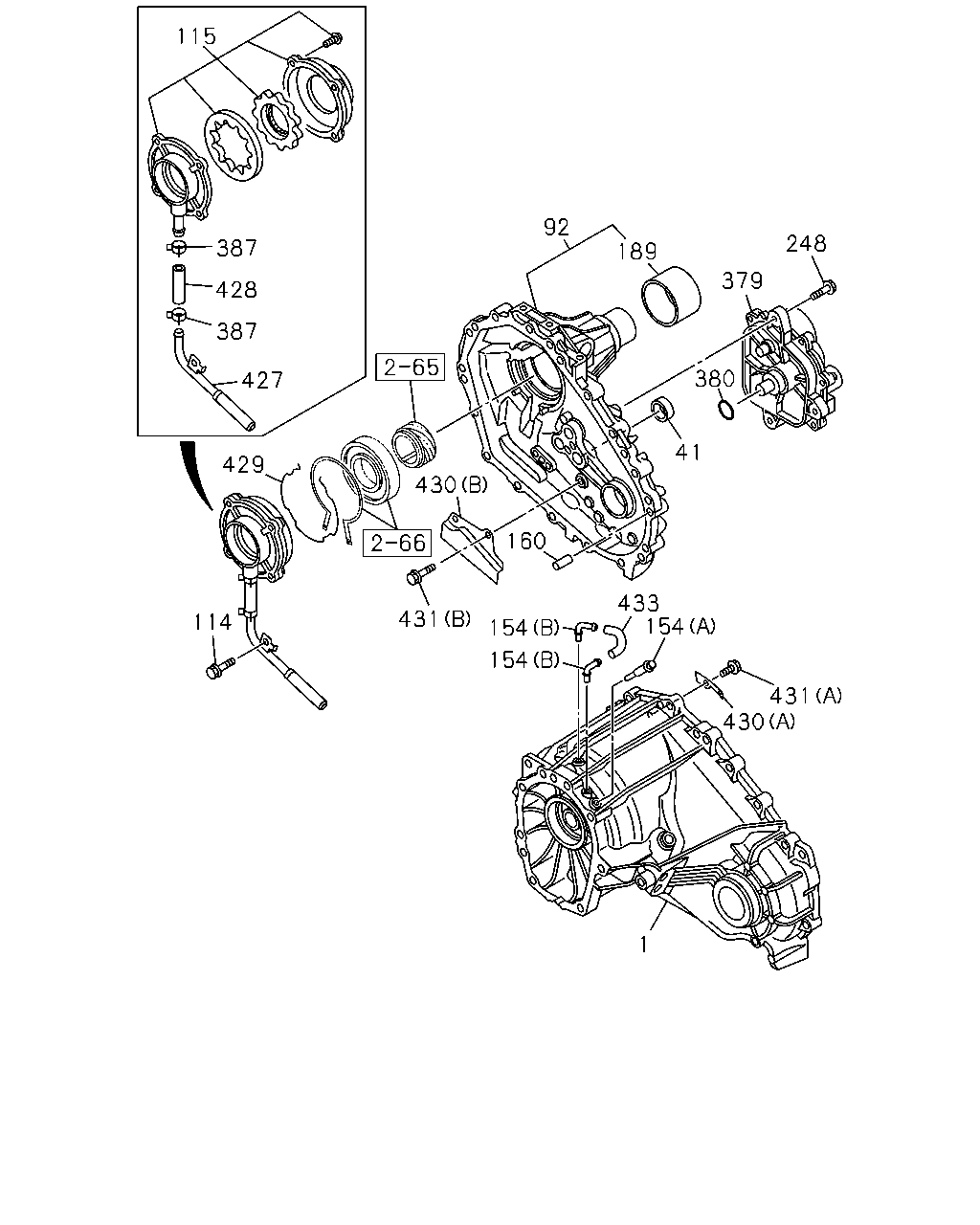

2-61 — TRANSFER CASE AND GEAR SHIFTER
(#145346) — 21 parça
248
379
189
92
380
41
431
430
154
433
154
154
431
160
430
429
114
427
387
428
387
115
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.510 CASE; TRANSFER
8-98177-505-0
01
1
1407-
41
04.515 SEAL; OIL,SHIFT ROD
8-97238-998-0
01
1
1407-
92
04.552 COVER; RR,TRANSFER
8-98118-921-0
01
1
1407-
114
04.200 BOLT; OIL PUMP,TRANSFER
01.531 M8X20 FLANGE
0-28650-820-0
01
1
1407-
115
04.200 PUMP ASM; OIL,TRANSFER
8-98029-157-0
01
1
1407-
154
04.510 PIPE; BREATHER
(B)
8-97358-318-0
02
1
1407-
154
04.510 PIPE; BREATHER
(A)
8-97358-319-0
01
1
1407-
160
04.107 PIN; KNOCK,SHIFT CASE
04.510 OD=10 L=20
8-97135-423-0
02
1
1407-
189
04.510 COVER; DUST,OIL SEAL
8-98173-748-0
01
1
1407-
248
04.105 BOLT
03.403 M8X30 FLANGE
0-28650-830-0
03
1
1407-
379
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
8-98196-415-0
01
1
1407-
380
04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7
8-97318-475-0
01
1
1407-
387
04.319 CLAMP; HOSE
01.097 ID=16
8-97329-628-0
02
1
1407-
427
04.510 SCREEN; OIL PUMP
8-98063-358-0
01
1
1407-
428
04.510 HOSE; OIL PUMP
L=50
8-98064-220-0
01
1
1407-
429
04.525 RING; SNAP,OIL PUMP
8-97240-666-0
01
1
1407-
430
04.500 PLATE; BAFFLE
(A)
8-97239-130-0
01
1
1407-
430
04.500 PLATE; BAFFLE
(B)
8-98063-360-0
01
1
1407-
431
04.200 BOLT; BAFFLE PLATE
02.343 (A) M6X16 FLANGE
0-28650-616-0
01
1
1407-
431
04.200 BOLT; BAFFLE PLATE
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1407-
433
04.510 HOSE; AIR,TRANSFER
8-97236-080-0
01
1
1407-
