4-55 — FRONT LEAF SPRING (#14534) — 13 parça

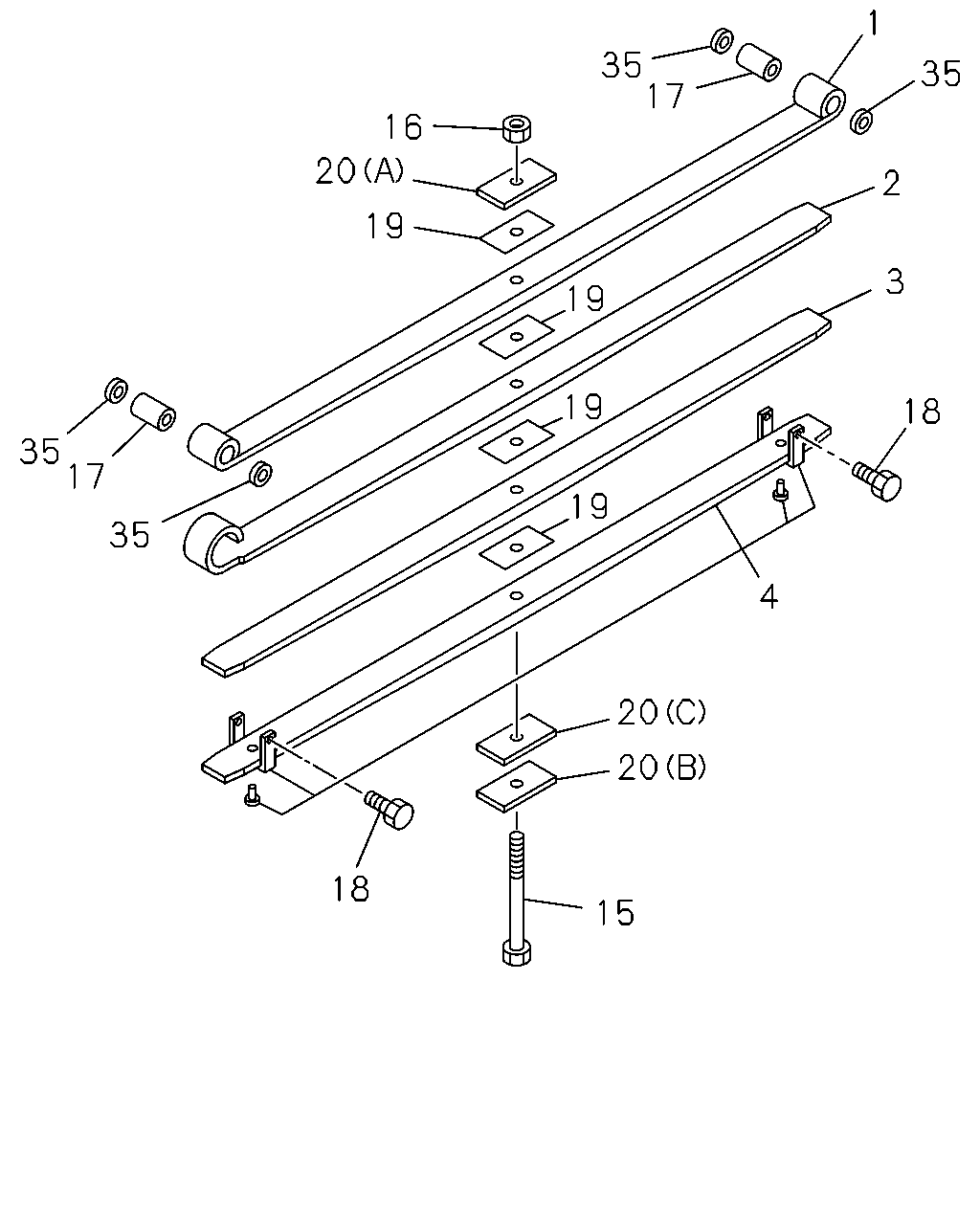

çizim 91538
1 35 17 35 16 20 2 19 3 19 19 18 35 17 19 35 4 20 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-893-0 		1-51131-849-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-893-0 		1-51132-849-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-893-0 		1-51133-893-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-893-0 		1-51134-893-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=155 ASM PART: A = 1-51130-893-0 		1-51156-344-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-893-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-893-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X102 ASM PART: A = 1-51130-893-0 		1-09000-759-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-893-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=11 ASM PART: A = 1-51130-893-0 		1-51177-340-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 1-51130-893-0 		1-51377-400-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 1-51130-893-0 		1-51377-402-0 01 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-893-0 		1-51177-321-0 04 1 -
