2-30 — GEAR SHIFTER AND QUADRANT BOX
(#145332) — 34 parça
◀

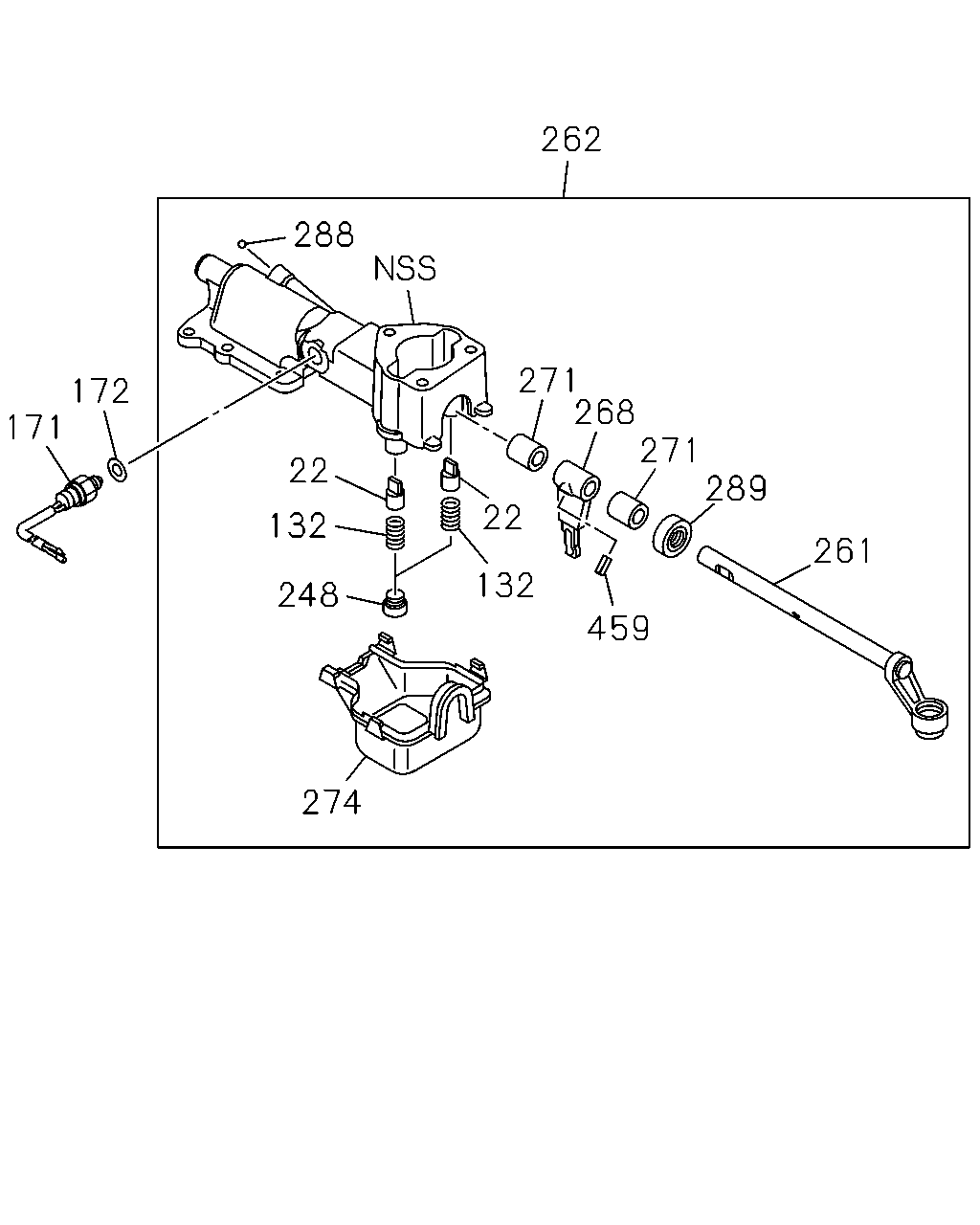

[230A] SHIFT CONTROL BOX (13 parça)

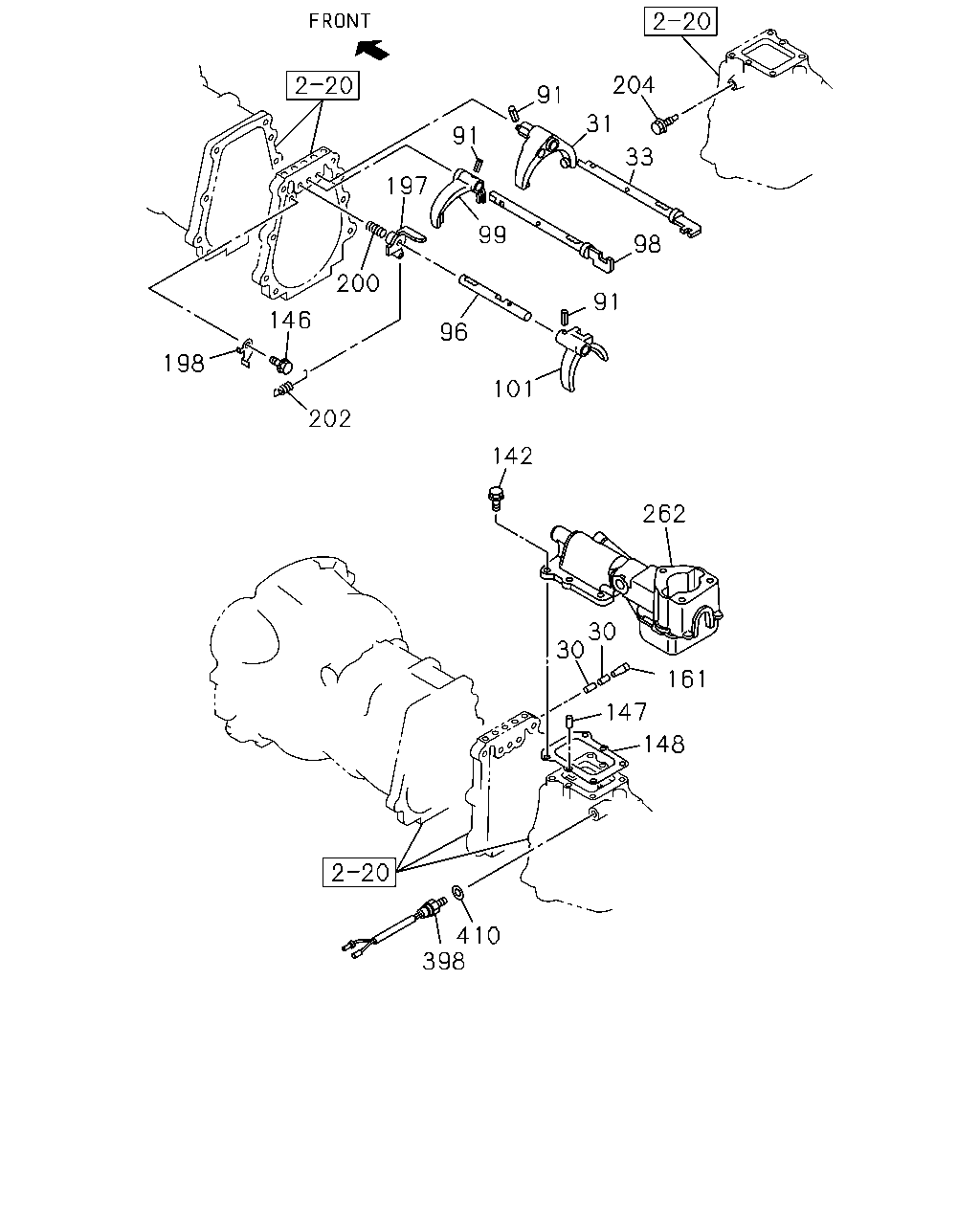

[230A] GEAR SHIFTER (21 parça)
▶
262
261
289
271
268
271
288
459
132
22
274
248
132
22
171
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
04.307 CAP; RETURN SPR,SHIFT BLOCK
8-97181-326-0
02
1
1407-
132
04.027 SPRING; SELECT STOP
8-97181-395-0
02
1
1407-
171
04.054 SWITCH; NEUTRAL
8-98103-743-0
01
1
1407-
172
04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2
8-94462-114-0
01
1
1407-
248
04.105 RETAINER; CONT BOX
8-98210-983-0
02
1
1407-
261
04.309 ROD; GEAR CONT
8-97257-909-0
01
1
1407-
262
04.105 BOX ASM; SHIFT CONT
8-98219-761-0
01
1
1407-
268
04.302 LEVER; CONT,INTERNAL
8-97184-895-0
01
1
1407-
271
04.105 BUSHING; QUAD BOX
ID=14 L=12
8-98017-908-0
02
1
1407-
274
04.105 COVER; SHAFT,QUAD BOX
8-97181-324-1
01
1
1407-
288
04.307 PLUG; AIR BREATHER
9-00097-517-0
01
1
1407-
289
04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
8-98017-744-0
01
1
1407-
459
04.302 PIN; SPR,ROD TO ARM
OD=5
8-97184-905-0
01
1
1407-
398
410
148
147
161
30
30
262
142
101
91
98
33
204
31
91
91
99
96
197
200
146
198
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
04.307 PIN; INTER LK
OD=5.5 L=10
5-33534-002-1
02
1
1407-
31
04.302 ARM; SHIFT,LOW & 2ND
8-94421-912-2
01
1
1407-
33
04.309 ROD; SHIFT,LOW & 2ND
8-97019-061-2
01
1
1407-
91
04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25
8-94171-541-0
03
1
1407-
96
04.309 ROD; SHIFT,5TH
8-94440-079-1
01
1
1407-
98
04.309 ROD; SHIFT,TOP & 3RD
8-97019-060-3
01
1
1407-
99
04.302 ARM; SHIFT,4TH & 3RD
8-94421-911-2
01
1
1407-
101
04.302 ARM; SHIFT,REV & 5TH
8-94448-755-2
01
1
1407-
142
04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE
8-97365-376-0
04
1
1407-
146
04.032 BOLT; REV INHIBITOR
04.338 M8X20 FLANGE
0-28050-820-0
01
1
1407-
147
04.020 PIN; KNOCK
04.510 OD=6 L=12
9-08150-612-0
02
1
1407-
148
04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
8-97083-599-0
01
1
1407-
161
04.307 PLUG; INTER LK HOLE
8-94239-543-1
01
1
1407-
197
04.309 INHIBITOR; REV SHIFT
8-94448-753-0
01
1
1407-
198
04.309 BRACKET; REV INHIBITOR
8-94448-199-0
01
1
1407-
200
04.309 SPRING; REV INHIBITOR,COMP
8-94448-807-0
01
1
1407-
202
04.309 SPRING; REV INHIBITOR,EXT
8-97017-500-0
01
1
1407-
204
04.309 STOPPER; REV INHIBITOR
8-98035-673-0
01
1
1407-
262
04.105 BOX ASM; SHIFT CONT
8-98219-761-0
01
1
1407-
398
02.698 SWITCH; REV LAMP
8-98103-750-0
01
1
1407-
410
04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0
9-09571-414-0
01
1
1407-
