Isuzu WW
▶
SUV
▶
UCR
▶
51519 - UCR/UCS(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#145330) — 21 parça
Tümü
A - M/T MUA 5 SPEED 5H
B - A/T 5 SPEED-AISIN
◀

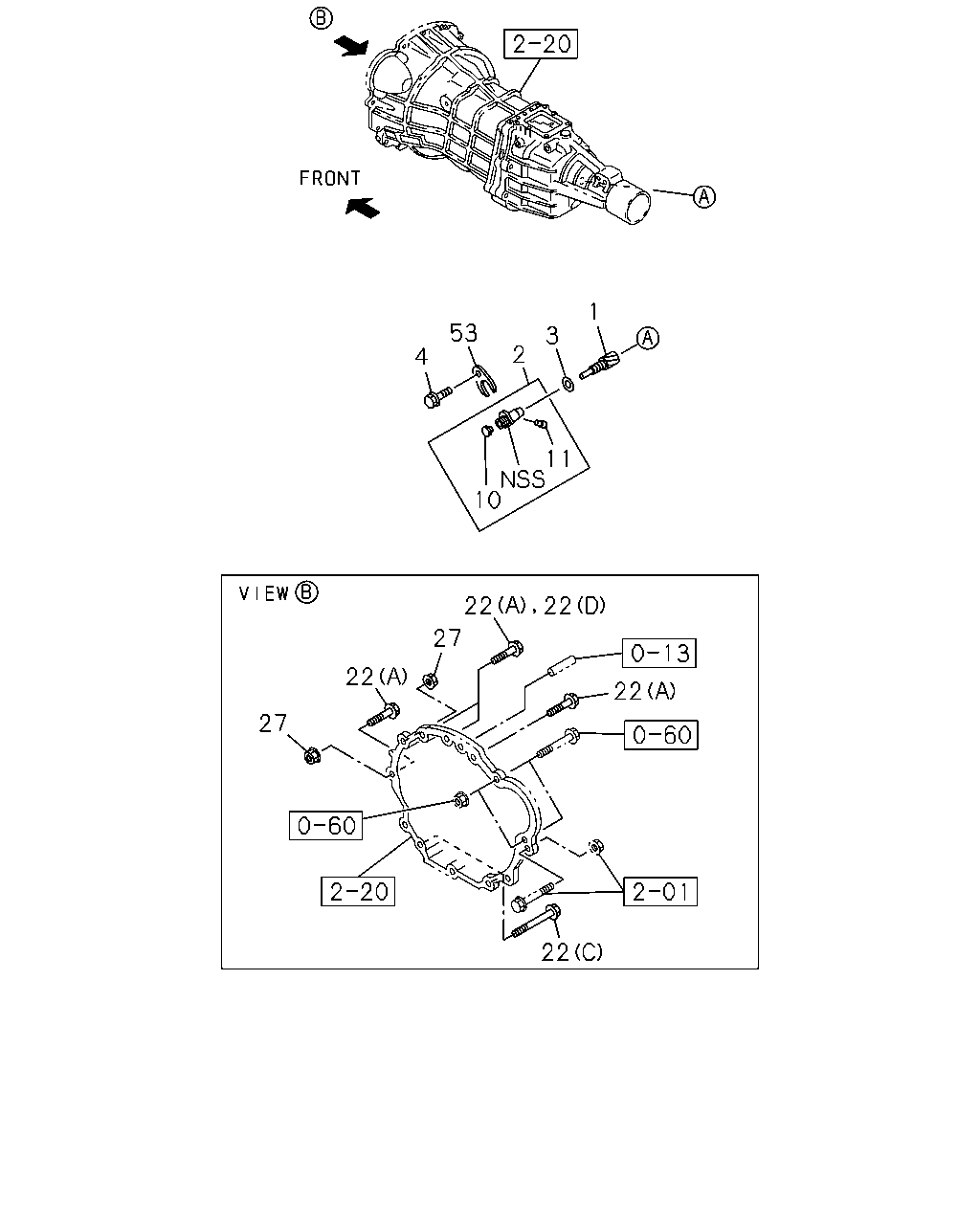

[225A] M/T (13 parça)

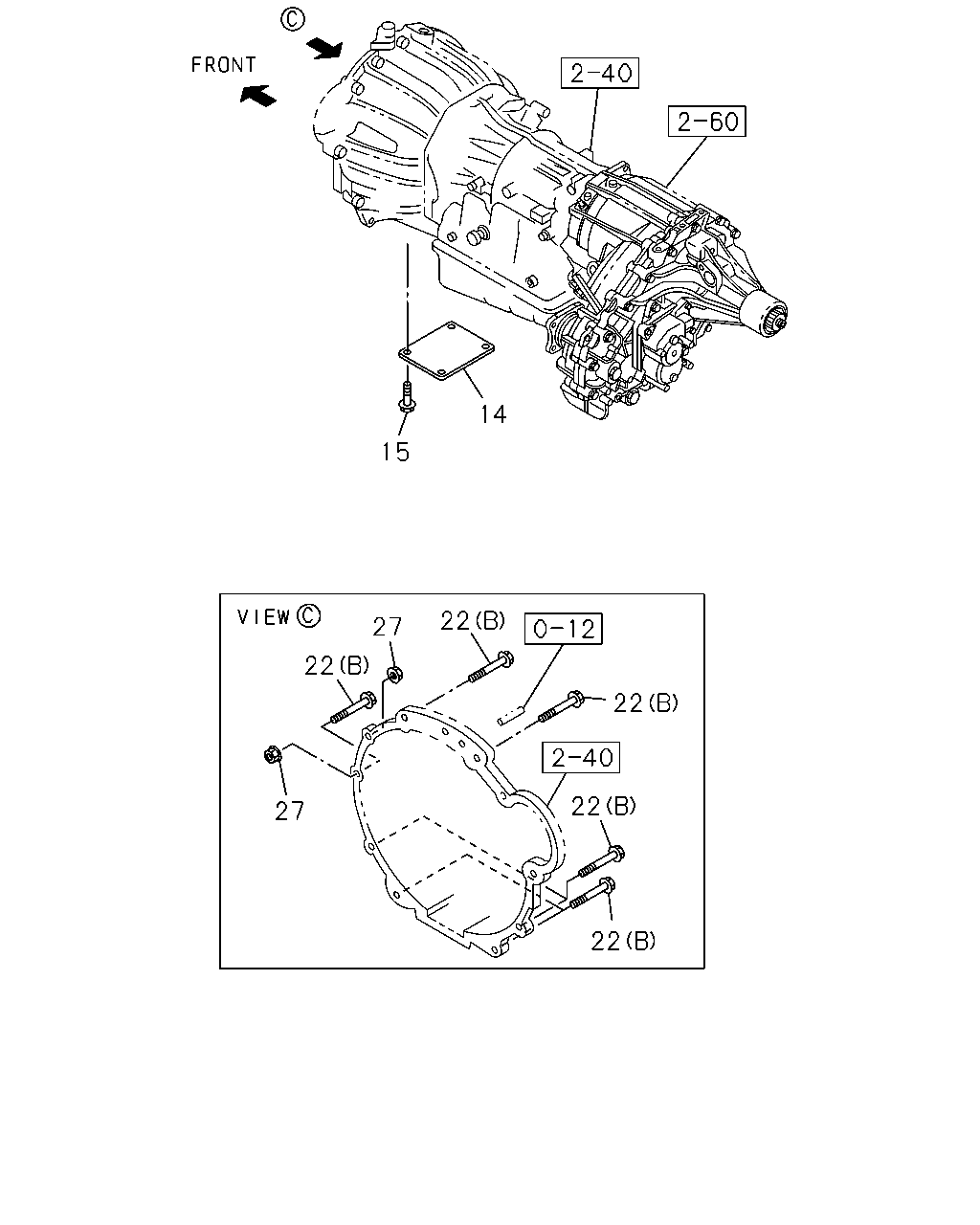

[225A] A/T (8 parça)
▶
1
3
2
53
4
10
11
22
22
27
22
27
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.337 GEAR; DRIVEN,SPD
Z=17
8-97238-583-0
01
1
1407-
●
2
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
8-97305-454-1
01
1
1407-
●
3
04.338 GASKET; BUSHING
ID=21.7 OD=28.7
9-09921-100-0
01
1
1407-
●
4
04.338 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE
0-28050-820-0
01
1
1407-
●
10
04.338 SEAL; OIL,DRIVE GEAR
NOK
8-97131-328-1
01
1
1407-
●
11
04.338 FILTER; BUSHING,SPEEDOMETER DRIV
8-94446-571-1
01
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
00.724 (B) M12X50 FLANGE
0-28051-250-0
08
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
(A) M10X40 FLANGE
0-28051-040-0
04
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
(C) M10X60 FLANGE
0-28051-060-0
02
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
(D) M12X40 FLANGE
0-28051-240-0
01
1
1407-
●
27
00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE
0-91180-112-0
02
1
1407-
●
27
00.685 NUT; CLU HSG TO TRANS
03.162 M10 FLANGE
0-91180-110-0
02
1
1407-
●
53
04.338 PLATE; LOCK,DRIVEN GEAR
8-98035-572-0
01
1
1407-
●
14
15
22
27
22
27
22
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
00.679 COVER; UNDER,TRANS
8-98049-857-0
01
1
1407-
●
15
00.685 BOLT; UNDER COVER TO TRANS
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
00.724 (B) M12X50 FLANGE
0-28051-250-0
08
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
(A) M10X40 FLANGE
0-28051-040-0
04
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
(C) M10X60 FLANGE
0-28051-060-0
02
1
1407-
●
22
00.685 BOLT; TRANS CASE TO ENG
(D) M12X40 FLANGE
0-28051-240-0
01
1
1407-
●
27
00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE
0-91180-112-0
02
1
1407-
●
27
00.685 NUT; CLU HSG TO TRANS
03.162 M10 FLANGE
0-91180-110-0
02
1
1407-
●
