2-20 — MANUAL TRANSMISSION ASM AND CASE (#145329) — 54 parça

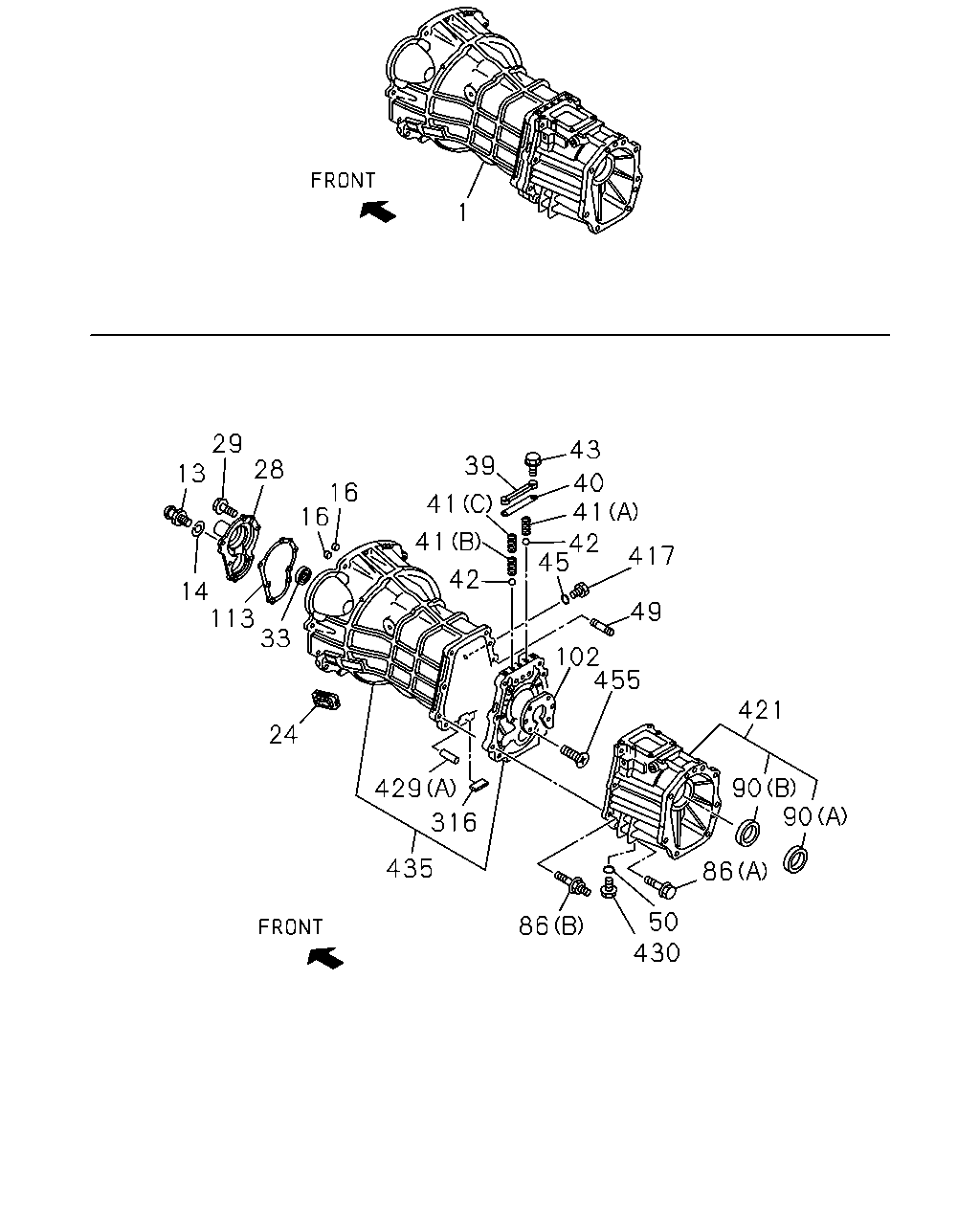

1 43 40 41 42 45 417 49 102 455 421 90 90 86 50 430 86 435 429 316 24 33 113 14 13 29 16 28 16 41 41 42 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL	8-98278-659-0	01	1	1407-
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1407-
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1407-
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1407-
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1407-
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	1407-
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1407-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1407-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1407-
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1407-
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1407-
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1407-
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1407-
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1407-
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1407-
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1407-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1407-
49	04.510 STUD; TRANSFER CASE M10X27 L=43.5	8-98035-677-0	01	1	1407-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1407-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1407-
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1407-
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1407-
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1407-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 04.510 (B) TKK	8-97046-700-0	01	1	1407-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 04.510 (B) NOK	8-97046-701-2	01	1	1407-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1407-
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1407-
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1407-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1407-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-
421	04.317 COVER; RR,TRANS	8-98277-853-0	01	1	1407-
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1407-
429	04.105 PIN; STRAIGHT 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1407-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-
435	04.103 CASE; TRANS	8-98277-968-0	01	1	1407-
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1407-

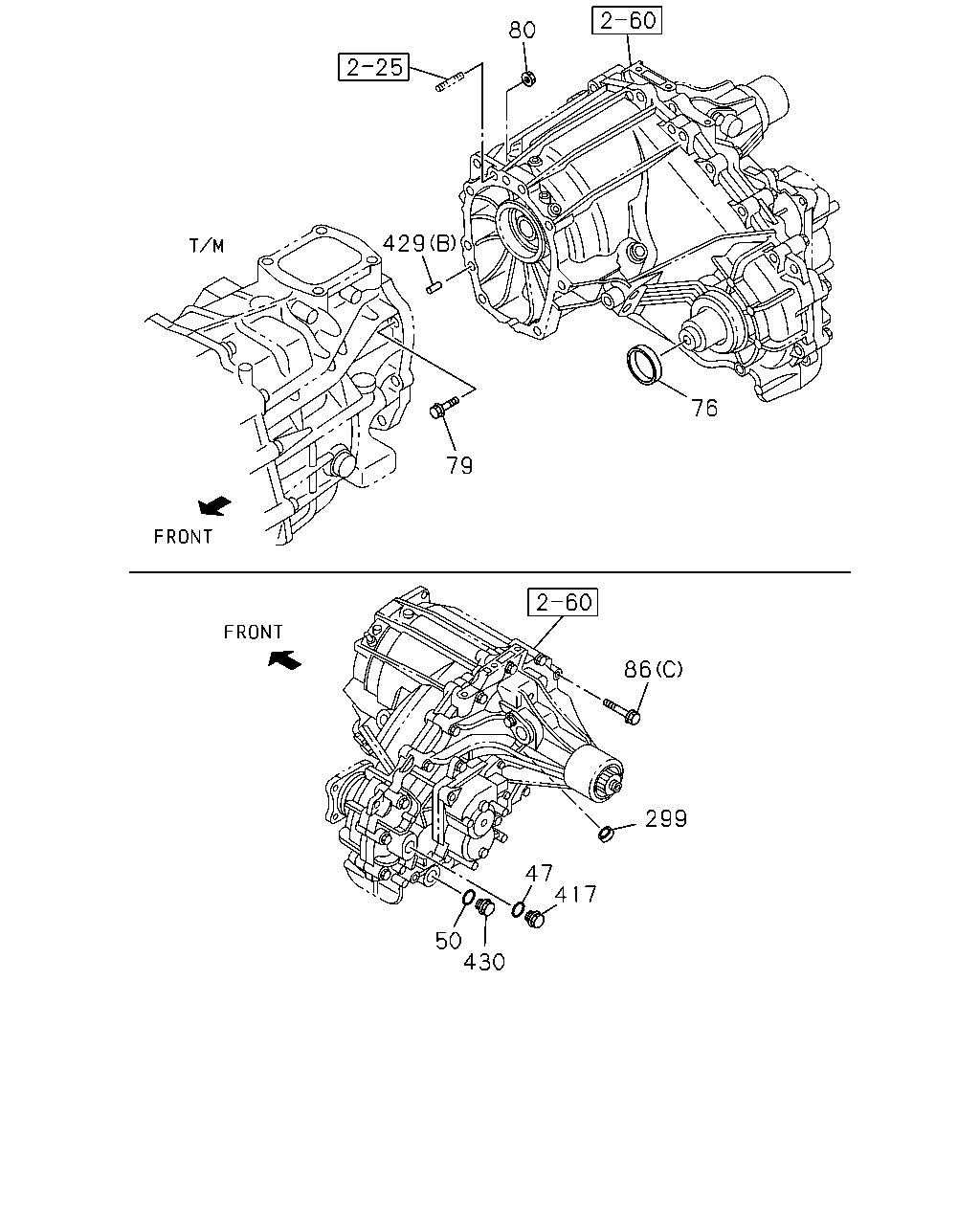

80 429 79 76 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17	8-97115-712-0	01	1	1407-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1407-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1407-
76	04.510 SEAL; OIL,TRANSFER CASE NOK	8-97238-999-0	01	1	1407-
79	04.510 BOLT; TRANSFER CASE M10X35 FLANGE	0-28051-035-0	06	1	1407-
80	04.510 NUT; TRANSFER CASE 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-
86	04.317 BOLT; RR COVER 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1407-
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1407-
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1407-
299	04.317 PLUG; SHIFTER ROD 00.034 OD=15.6	8-94173-641-0	02	1	1407-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1407-
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1407-
429	04.105 PIN; STRAIGHT 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1407-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1407-
