1-50 — EXHAUST PIPE AND SILENCER (#145322) — 49 parça

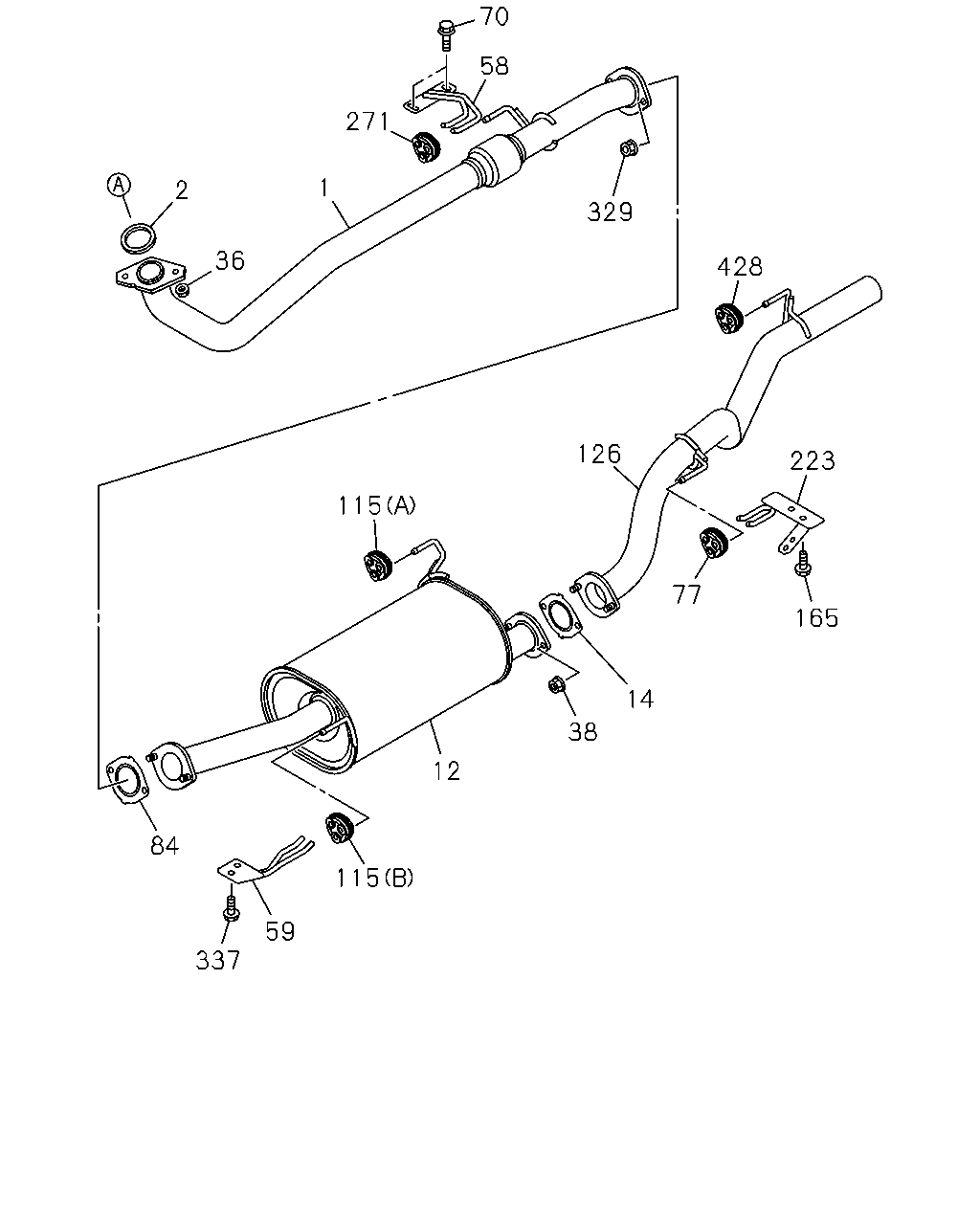

271 1 36 2 70 58 329 428 126 223 165 77 14 38 12 115 115 59 337 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH	8-98276-229-1	01	1	1407-1502	●
1	03.609 PIPE; EXH	8-98288-053-0	01	1	1503-1508	●
1	03.609 PIPE; EXH	8-98288-053-0	01	1	1509-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	1407-1508	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	1509-	●	●
12	03.701 SILENCER ASM; EXH	8-98302-092-0	01	1	1509-		●
12	03.701 SILENCER ASM; EXH	8-98196-223-0	01	1	1407-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97263-052-0	01	1	1407-1508	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97263-052-0	01	1	1509-	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1407-1508	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1509-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-1508		●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-	●	●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1407-1508	●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1509-	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-98196-903-0	01	1	1407-1508	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-98196-903-0	01	1	1509-	●	●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1407-1508	●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1509-	●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	1407-1508		●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	1509-	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1407-1508	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1509-	●	●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1407-1508	●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1509-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	01	1	1407-1508	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	01	1	1509-	●	●
126	03.705 PIPE; EXH,RR	8-98302-093-0	01	1	1509-		●
126	03.705 PIPE; EXH,RR	8-98196-454-0	01	1	1407-	●
165	03.706 BOLT; SUPPORT RUBBER 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1407-1508		●
165	03.706 BOLT; SUPPORT RUBBER 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1509-	●	●
223	03.706 BRACKET; EXH PIPE	8-98227-677-0	01	1	1407-1508		●
223	03.706 BRACKET; EXH PIPE	8-98227-677-0	01	1	1509-	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1407-1508	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1509-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-1508	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-	●	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1407-1508	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1509-	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1407-1508		●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1509-	●	●

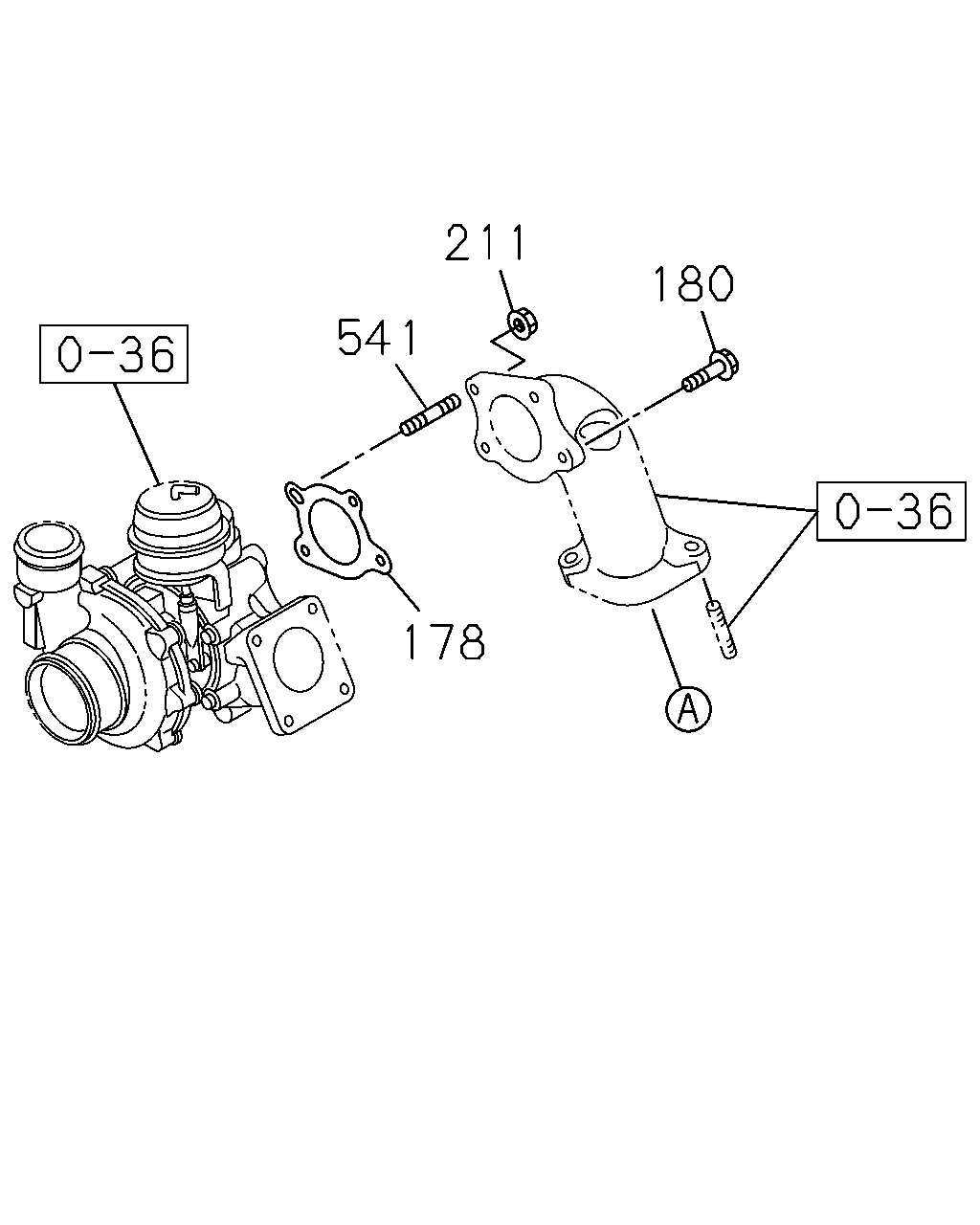

211 541 180 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	03.611 GASKET; CONV TO MANIF	8-98132-538-0	01	1	1407-1508	●
178	03.611 GASKET; CONV TO MANIF	8-98132-538-0	01	1	1509-	●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1407-1508	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1509-	●	●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1407-1508	●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1509-	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1407-1508	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1509-	●	●
