◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#145320) — 79 parça

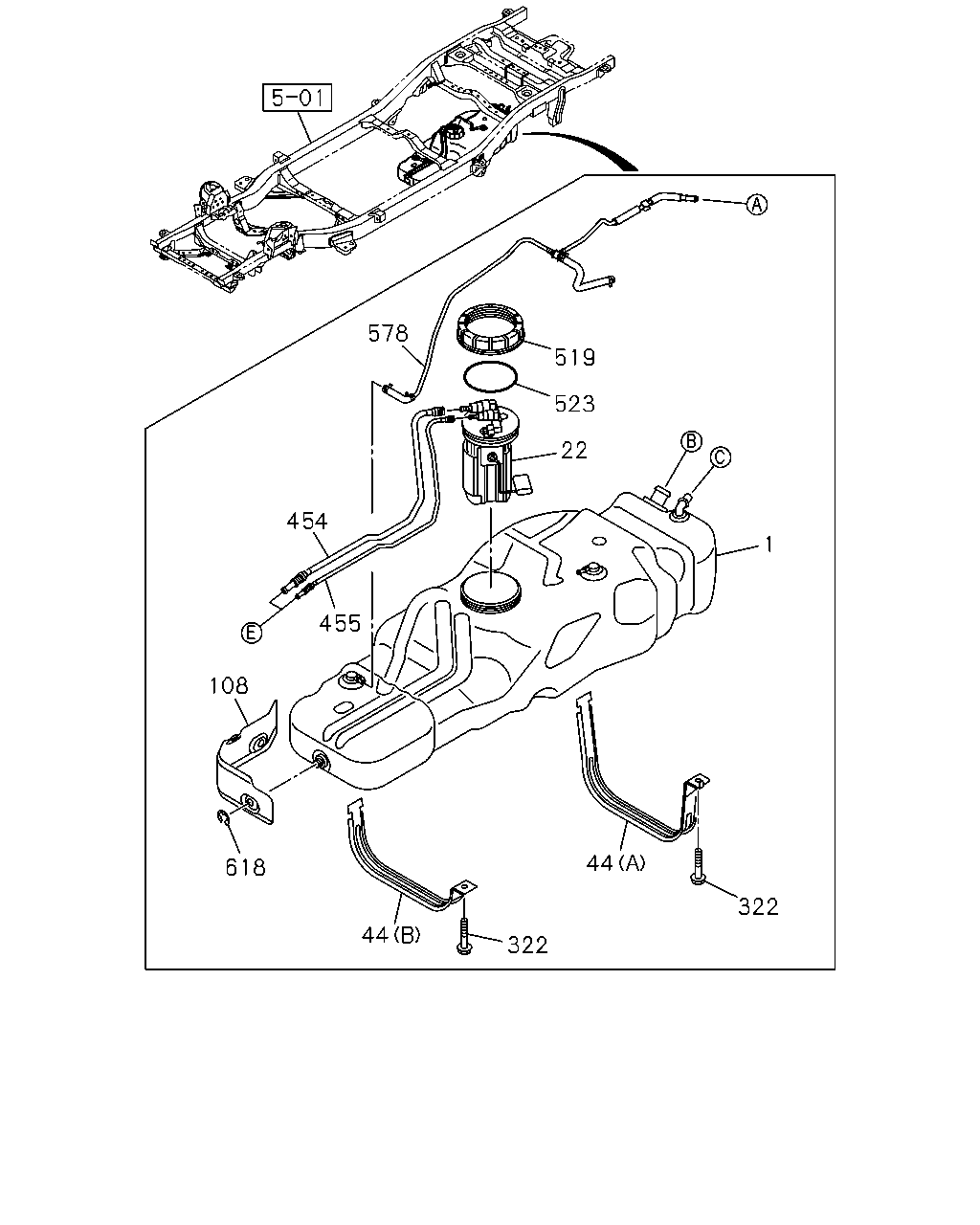

çizim 431347
578 519 523 22 1 454 455 108 618 44 322 322 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL 8-98212-990-1 01 1 1407-1508 ●
1 03.001 TANK; FUEL 8-98212-990-1 01 1 1509- ● ●
22 03.107 UNIT; FUEL TANK 8-98212-993-0 01 1 1407-1508 ●
22 03.107 UNIT; FUEL TANK 8-98212-993-0 01 1 1509- ● ●
44 03.023 BAND; FUEL TANK
(A) 		8-98204-957-0 01 1 1407-1508 ●
44 03.023 BAND; FUEL TANK
(A) 		8-98204-957-0 01 1 1509- ● ●
44 03.023 BAND; FUEL TANK
(B) 		8-98204-958-0 01 1 1407-1508 ●
44 03.023 BAND; FUEL TANK
(B) 		8-98204-958-0 01 1 1509- ● ●
108 03.015 PROTECTOR; FUEL TANK 8-98212-997-0 01 1 1407-1508 ●
108 03.015 PROTECTOR; FUEL TANK 8-98212-997-0 01 1 1509- ● ●
322 03.895 BOLT; BRKT FIX
03.023 M10X50 FLANGE 		8-97301-165-0 02 1 1407-1508 ●
322 03.895 BOLT; BRKT FIX
03.023 M10X50 FLANGE 		8-97301-165-0 02 1 1509- ● ●
454 03.163 PIPE; FUEL,DELIVERY 8-98212-991-0 01 1 1407-1508 ●
454 03.163 PIPE; FUEL,DELIVERY 8-98212-991-0 01 1 1509- ● ●
455 03.163 PIPE; FUEL,RETURN 8-98212-992-0 01 1 1407-1508 ●
455 03.163 PIPE; FUEL,RETURN 8-98212-992-0 01 1 1509- ● ●
519 03.107 RETAINER; FUEL PUMP 8-98212-995-0 01 1 1407-1508 ●
519 03.107 RETAINER; FUEL PUMP 8-98212-995-0 01 1 1509- ● ●
523 03.008 SEAL; FUEL SENSOR 8-98212-994-0 01 1 1407-1508 ●
523 03.008 SEAL; FUEL SENSOR 8-98212-994-0 01 1 1509- ● ●
578 03.001 TUBE; FUEL,EVAPO 8-98228-330-0 01 1 1407-1508 ●
578 03.001 TUBE; FUEL,EVAPO 8-98228-330-0 01 1 1509- ● ●
618 03.107 RETAINER; FUEL TANK 8-98212-998-0 03 1 1407-1508 ●
618 03.107 RETAINER; FUEL TANK 8-98212-998-0 03 1 1509- ● ●

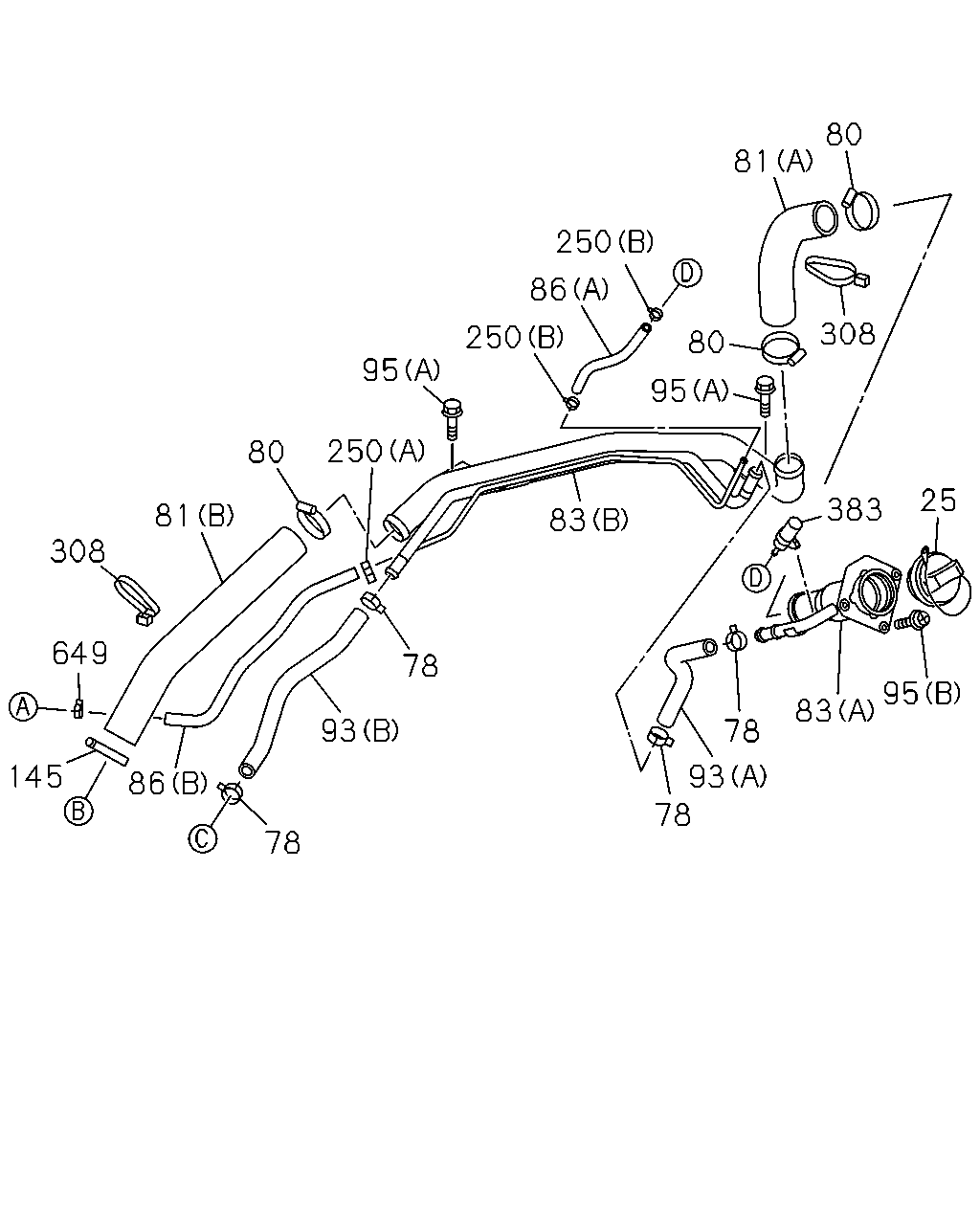

çizim 431427
308 649 145 86 78 93 78 83 250 80 81 95 250 86 250 81 80 80 95 308 383 25 95 83 78 93 78
BalonParca AdiParca NoAdetTipApplied Date A B
25 03.028 CAP; FILLER,FUEL TANK 8-98088-024-0 01 1 1407-1508 ●
25 03.028 CAP; FILLER,FUEL TANK 8-98088-024-0 01 1 1509-1510 ● ●
25 03.028 CAP; FILLER,FUEL TANK 8-98327-664-0 01 1 1511- ●
78 03.003 CLIP; BREATHER HOSE
08.846 ID=20.8 		8-97944-127-0 04 1 1407-1508 ●
78 03.003 CLIP; BREATHER HOSE
08.846 ID=20.8 		8-97944-127-0 04 1 1509- ● ●
80 03.008 CLIP; FILLER HOSE 8-98232-268-0 03 1 1407-1508 ●
80 03.008 CLIP; FILLER HOSE 8-98232-268-0 03 1 1509- ● ●
81 03.003 HOSE; FUEL FILLER
(A) 		8-98230-137-0 01 1 1407-1508 ●
81 03.003 HOSE; FUEL FILLER
(A) 		8-98230-137-0 01 1 1509- ● ●
81 03.003 HOSE; FUEL FILLER
(B) 		8-98230-139-0 01 1 1407-1508 ●
81 03.003 HOSE; FUEL FILLER
(B) 		8-98230-139-0 01 1 1509- ● ●
83 03.003 NECK; FUEL FILLER
(A) 		8-98230-128-0 01 1 1407-1508 ●
83 03.003 NECK; FUEL FILLER
(A) 		8-98230-128-0 01 1 1509- ● ●
83 03.003 NECK; FUEL FILLER
(B) 		8-98230-133-0 01 1 1407-1508 ●
83 03.003 NECK; FUEL FILLER
(B) 		8-98230-133-0 01 1 1509- ● ●
86 03.163 HOSE; EVAP
(A) 		8-98230-134-0 01 1 1407-1508 ●
86 03.163 HOSE; EVAP
(A) 		8-98230-134-0 01 1 1509- ● ●
86 03.163 HOSE; EVAP
(B) 		8-98230-135-0 01 1 1407-1508 ●
86 03.163 HOSE; EVAP
(B) 		8-98230-135-0 01 1 1509- ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
(A) 		8-98230-136-0 01 1 1407-1508 ●
93 03.003 HOSE; BREATHER,FUEL TANK
(A) 		8-98230-136-0 01 1 1509- ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
(B) 		8-98230-138-0 01 1 1407-1508 ●
93 03.003 HOSE; BREATHER,FUEL TANK
(B) 		8-98230-138-0 01 1 1509- ● ●
95 03.028 SCREW; FILLER NECK
02.277 (A) BOLT M8X20 FLANGE 		0-28660-820-0 02 1 1407-1508 ●
95 03.028 SCREW; FILLER NECK
02.277 (A) BOLT M8X20 FLANGE 		0-28660-820-0 02 1 1509- ● ●
95 03.028 SCREW; FILLER NECK
(B) 		8-98139-595-0 03 1 1407-1508 ●
95 03.028 SCREW; FILLER NECK
(B) 		8-98139-595-0 03 1 1509- ● ●
145 03.162 CLIP; HOSE,FILLER NECK
ID=30-45 		8-97947-244-0 01 1 1407-1508 ●
145 03.162 CLIP; HOSE,FILLER NECK
ID=30-45 		8-97947-244-0 01 1 1509- ● ●
250 03.162 CLIP; BAND,EVAP HOSE
03.330 (A) ID=11.5 		8-98051-892-0 01 1 1407-1508 ●
250 03.162 CLIP; BAND,EVAP HOSE
03.330 (A) ID=11.5 		8-98051-892-0 01 1 1509- ● ●
250 03.162 CLIP; BAND,EVAP HOSE
(B) 		8-98232-266-0 02 1 1407-1508 ●
250 03.162 CLIP; BAND,EVAP HOSE
(B) 		8-98232-266-0 02 1 1509- ● ●
308 03.163 CLIP; HOSE 8-98234-324-0 02 1 1407-1508 ●
308 03.163 CLIP; HOSE 8-98234-324-0 02 1 1509- ● ●
383 03.162 VALVE; 2 WAY 8-98230-130-0 01 1 1407-1508 ●
383 03.162 VALVE; 2 WAY 8-98230-130-0 01 1 1509- ● ●
649 03.003 CLAMP; FUEL PIPE
03.330 ID=11.5 		8-98051-892-0 01 1 1407-1508 ●
649 03.003 CLAMP; FUEL PIPE
03.330 ID=11.5 		8-98051-892-0 01 1 1509- ● ●

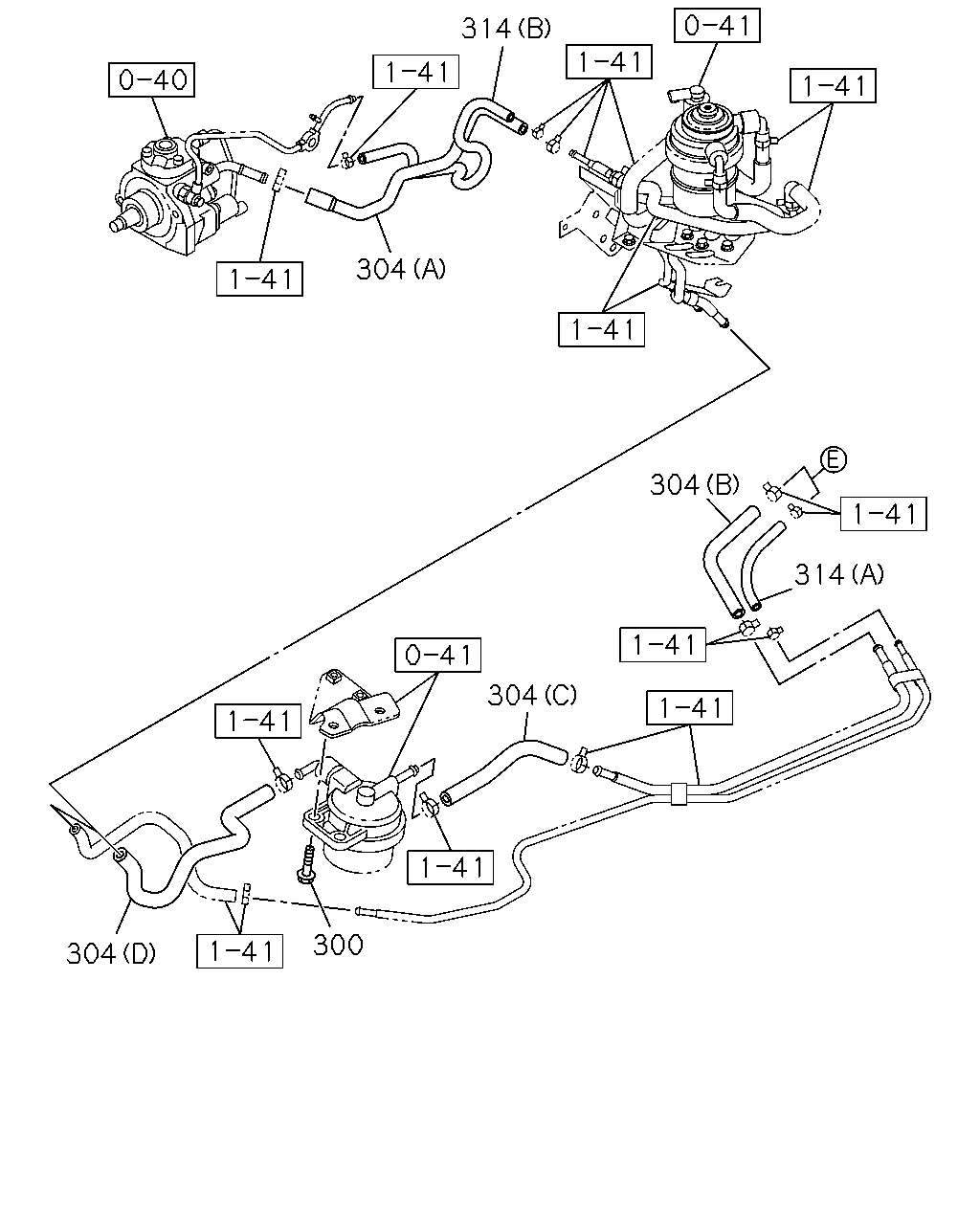

çizim 432012
314 304 304 314 304 300 304
BalonParca AdiParca NoAdetTipApplied Date A B
300 03.162 BOLT; BRKT TO BODY
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1407-1508 ●
300 03.162 BOLT; BRKT TO BODY
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1509- ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
4X2(UCB***) (C) 		8-98206-448-0 01 1 1407-1508 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
4X2(UCB***) (C) 		8-98206-448-0 01 1 1509- ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(C) 		8-98206-448-0 01 1 1509- ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(B) 		8-98217-428-0 01 1 1407-1508 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(B) 		8-98217-428-0 01 1 1509- ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(A) 		8-98222-044-1 01 1 1407-1508 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(A) 		8-98222-044-1 01 1 1509- ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(D) 		8-98248-708-0 01 1 1407-1508 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(D) 		8-98248-708-0 01 1 1509- ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
4X4(UCS***) (C) 		8-98206-449-0 01 1 1407- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
(A) 		8-98206-450-0 01 1 1407-1508 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
(A) 		8-98206-450-0 01 1 1509- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
(B) 		8-98222-041-0 01 1 1407-1508 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
(B) 		8-98222-041-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
