◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#145311) — 11 parça

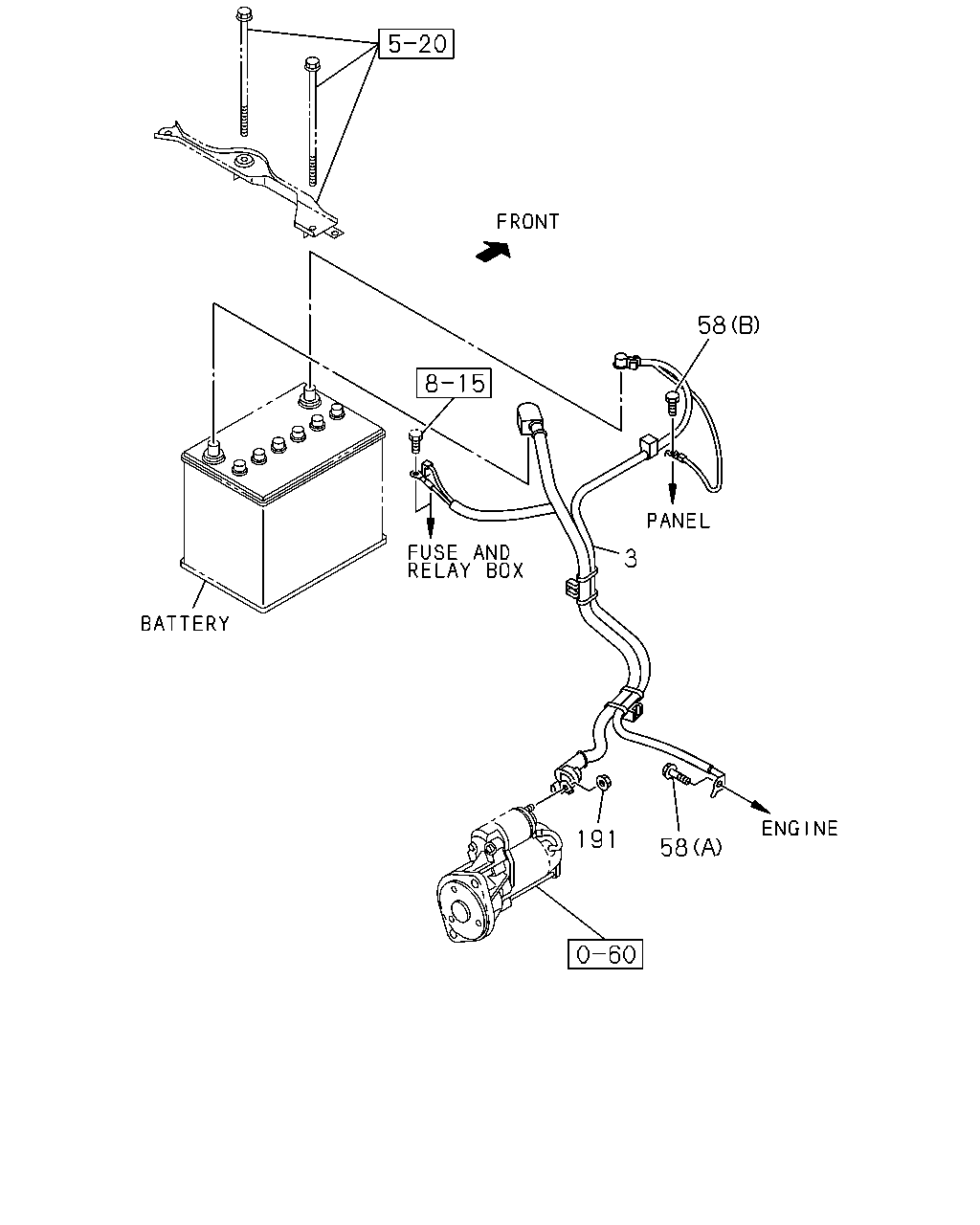

çizim 431337
3 58 191 58
BalonParca AdiParca NoAdetTipApplied Date A B
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) 		8-98238-380-2 01 1 1407-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) 		8-98238-380-2 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1407-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1509- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1407-1508 ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1509- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1407-1501 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1508 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1509- ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407-1508 ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
