◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#145305) — 30 parça

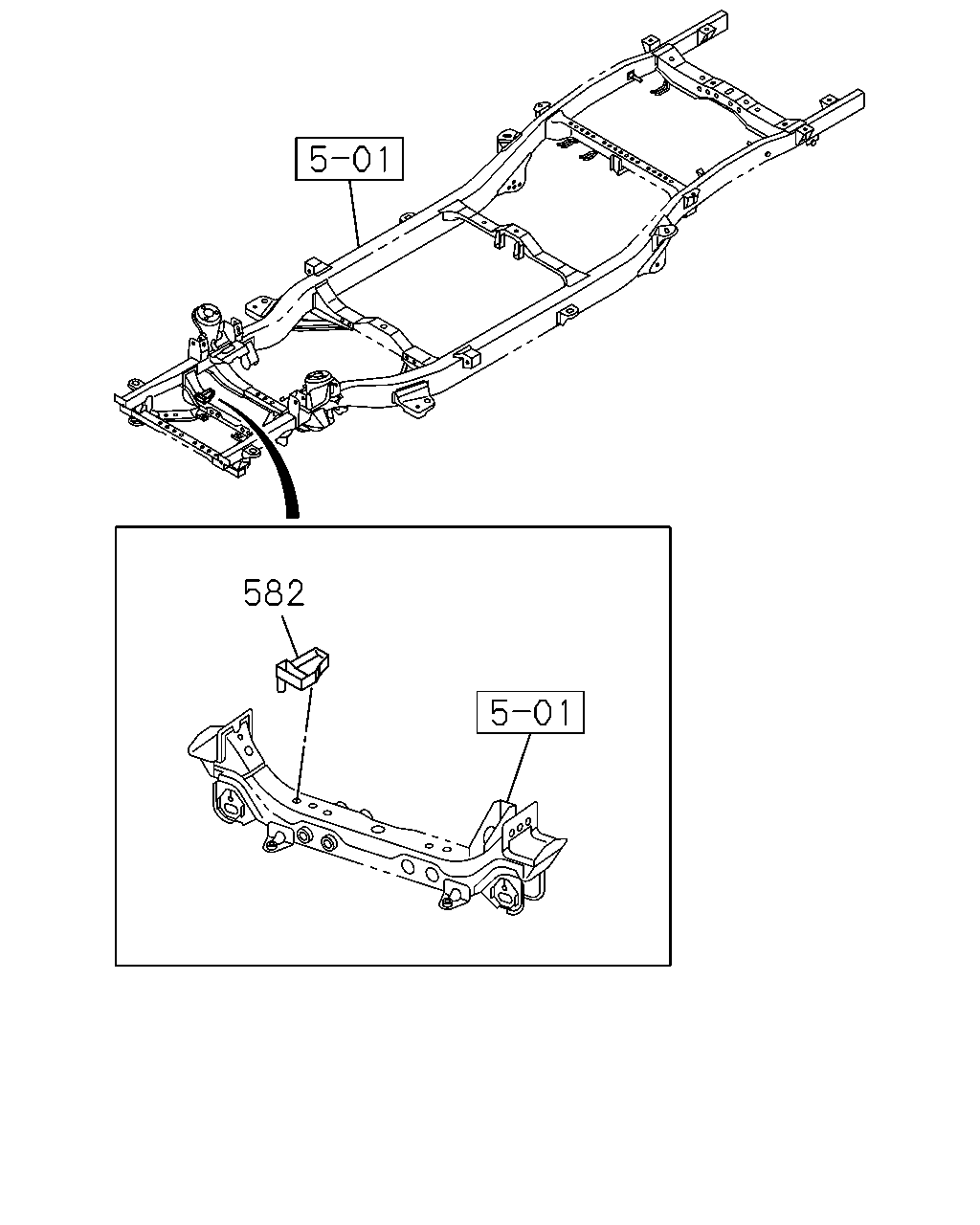

çizim 431303
582
BalonParca AdiParca NoAdetTipApplied Date A B
582 01.540 TRAY; OIL 8-98235-616-3 01 1 1407-1508 ●
582 01.540 TRAY; OIL 8-98235-616-3 01 1 1509- ● ●

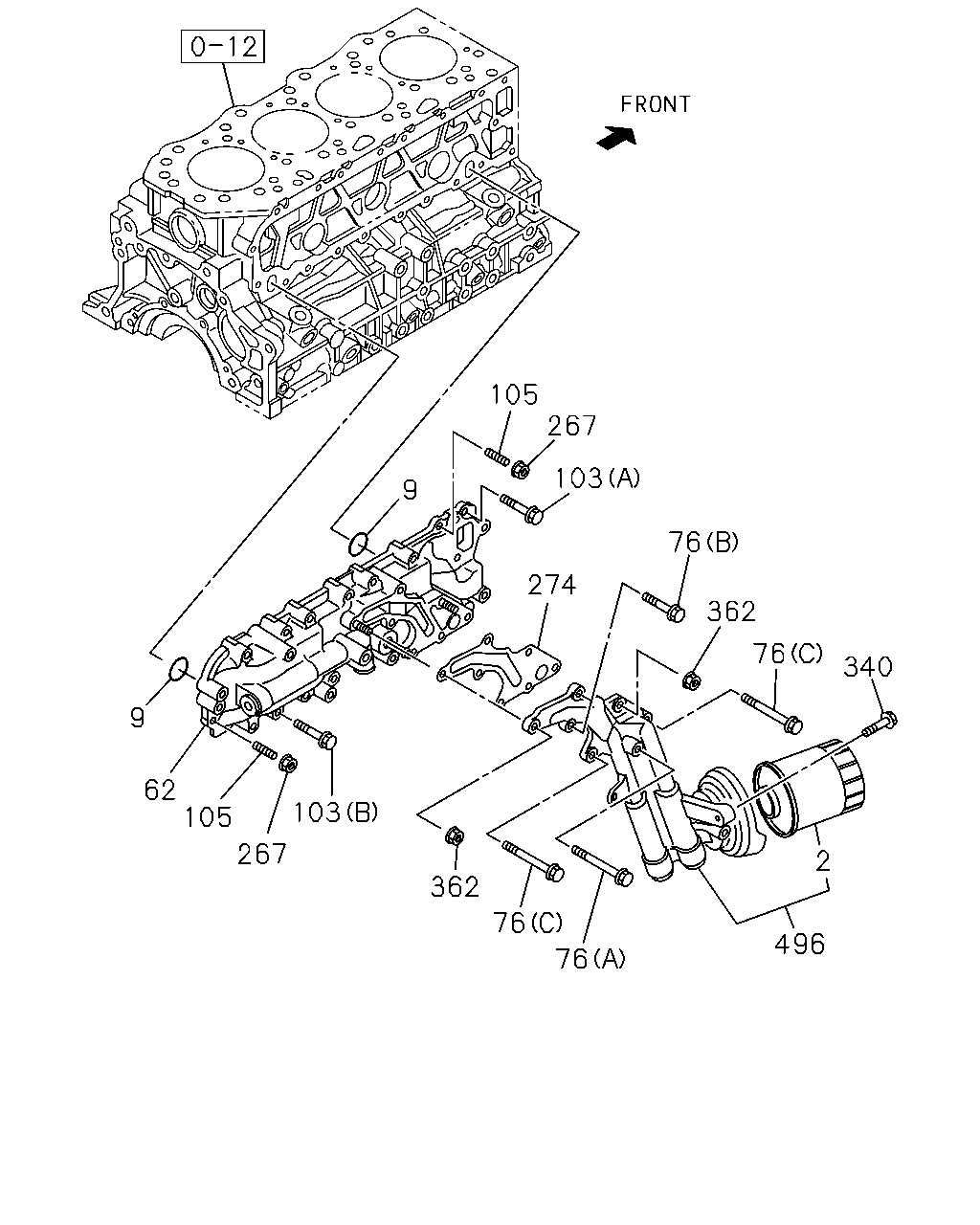

çizim 431314
362 103 105 62 267 9 9 105 103 267 274 76 362 76 76 76 496 2 340
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-98165-071-0 01 1 1407-1508 ●
2 01.836 ELEMENT; OIL FILTER 8-98165-071-0 01 1 1509- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 1407-1508 ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 1509- ● ●
62 01.540 COOLER ASM; OIL 8-98226-843-0 01 1 1407-1508 ●
62 01.540 COOLER ASM; OIL 8-98226-843-0 01 1 1509- ● ●
76 01.840 BOLT; OIL FILTER
00.386 (A) M8X100 FLANGE 		0-28050-800-0 01 1 1407-1508 ●
76 01.840 BOLT; OIL FILTER
00.386 (A) M8X100 FLANGE 		0-28050-800-0 01 1 1509- ● ●
76 01.840 BOLT; OIL FILTER
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 1407-1508 ●
76 01.840 BOLT; OIL FILTER
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 1509- ● ●
76 01.840 BOLT; OIL FILTER
01.252 (C) M8X80 FLANGE 		0-28050-880-0 02 1 1407-1508 ●
76 01.840 BOLT; OIL FILTER
01.252 (C) M8X80 FLANGE 		0-28050-880-0 02 1 1509- ● ●
103 01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 1407-1508 ●
103 01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 1509- ● ●
103 01.540 BOLT; OIL COOLER
09.173 (B) M8X45 FLANGE 		0-28050-845-0 13 1 1407-1508 ●
103 01.540 BOLT; OIL COOLER
09.173 (B) M8X45 FLANGE 		0-28050-845-0 13 1 1509- ● ●
105 01.540 STUD; OIL COOLER
02.510 M8X20 L=32 		0-41010-820-0 02 1 1407-1508 ●
105 01.540 STUD; OIL COOLER
02.510 M8X20 L=32 		0-41010-820-0 02 1 1509- ● ●
267 01.840 NUT; OIL COOLER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1407-1508 ●
267 01.840 NUT; OIL COOLER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1509- ● ●
274 01.844 GASKET; OIL FILTER 8-98226-841-0 01 1 1407-1508 ●
274 01.844 GASKET; OIL FILTER 8-98226-841-0 01 1 1509- ● ●
340 01.840 BOLT; BRKT
00.685 M8X40 FLANGE 		0-28650-840-0 01 1 1407-1508 ●
340 01.840 BOLT; BRKT
00.685 M8X40 FLANGE 		0-28650-840-0 01 1 1509- ● ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1407-1508 ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1509- ● ●
496 01.835 FILTER ASM; OIL 8-98226-423-1 01 1 1407-1508 ●
496 01.835 FILTER ASM; OIL 8-98226-423-1 01 1 1509- ● ●
