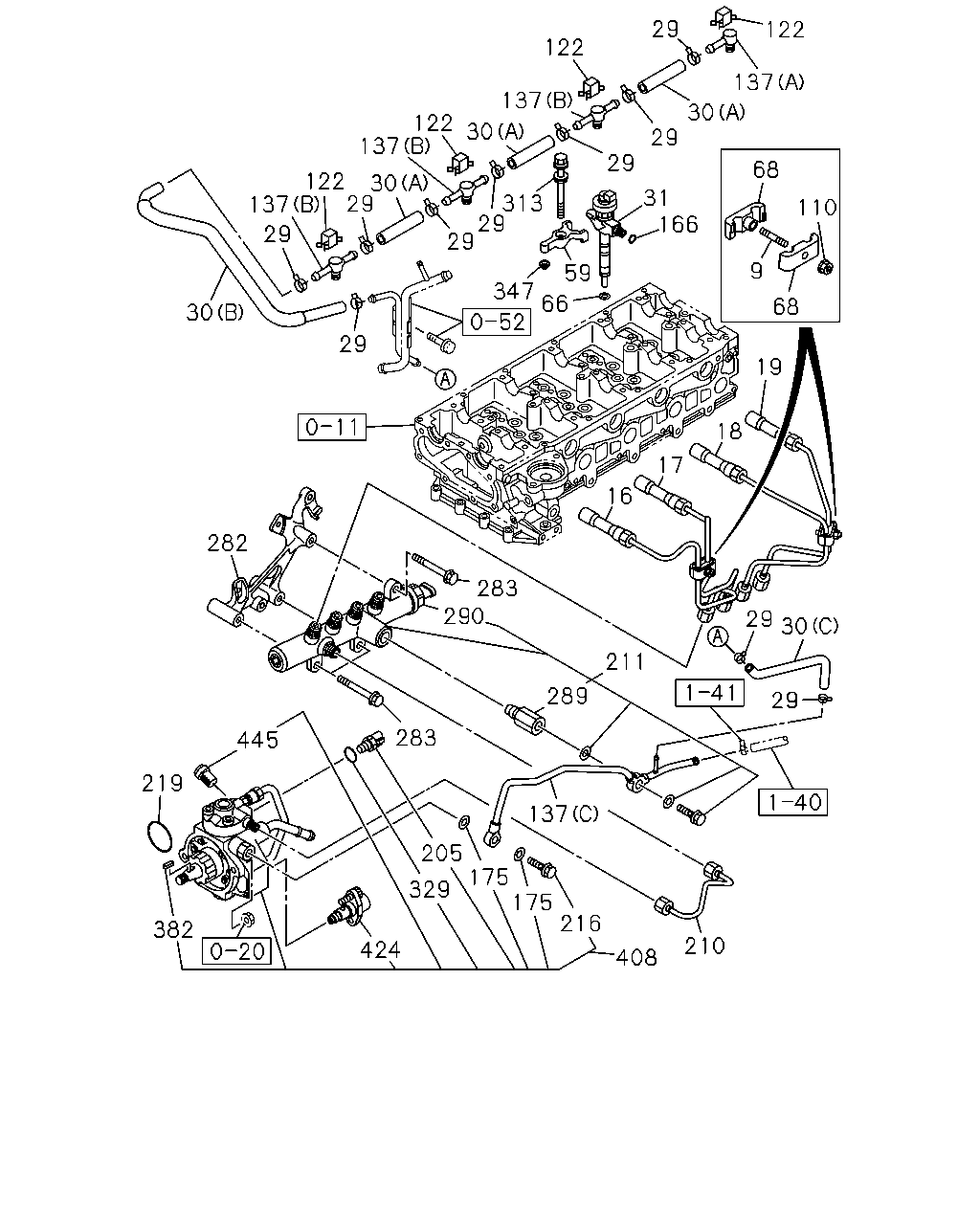

0-40 — FUEL INJECTION SYSTEM (#145303) — 74 parça

137 122 122 137 30 29 29 30 29 29 29 313 137 30 122 29 30 29 29 31 166 122 137 68 110 9 68 19 18 17 16 29 30 211 289 283 283 290 282 445 205 329 137 59 347 66 175 175 216 408 210 424 219 382 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1407-1508	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1509-	●	●
16	03.330 PIPE; INJ NO.1	8-98223-194-0	01	1	1407-1508	●
16	03.330 PIPE; INJ NO.1	8-98223-194-0	01	1	1509-	●	●
17	03.330 PIPE; INJ NO.2	8-98223-195-1	01	1	1407-1508	●
17	03.330 PIPE; INJ NO.2	8-98223-195-1	01	1	1509-	●	●
18	03.330 PIPE; INJ NO.3	8-98223-196-0	01	1	1407-1508	●
18	03.330 PIPE; INJ NO.3	8-98223-196-0	01	1	1509-	●	●
19	03.330 PIPE; INJ NO.4	8-98223-197-0	01	1	1407-1508	●
19	03.330 PIPE; INJ NO.4	8-98223-197-0	01	1	1509-	●	●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1407-1508	●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1509-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	03	1	1407-1508	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	03	1	1509-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98179-014-0	01	1	1407-1508	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98179-014-0	01	1	1509-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98189-998-0	01	1	1407-1508	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98189-998-0	01	1	1509-	●	●
31	03.332 NOZZLE ASM; INJ	8-98106-693-2	04	1	1509-		●
31	03.332 NOZZLE ASM; INJ	8-98246-130-0	04	1	1407-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1407-1508	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1509-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1407-1508	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1509-	●	●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	04	1	1407-1508	●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	04	1	1509-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-1508	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1407-1508	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1509-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98158-737-1	01	1	1407-1508	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98158-737-1	01	1	1509-	●	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98211-775-0	03	1	1407-1508	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98211-775-0	03	1	1509-	●	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98211-776-0	01	1	1407-1508	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98211-776-0	01	1	1509-	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1407-1508	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1509-	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1407-1505	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE	1-15619-508-0	02	1	1506-1508	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE	1-15619-508-0	02	1	1509-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1407-1508	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1509-	●	●
210	03.330 PIPE; INJ,C/R	8-98233-237-0	01	1	1407-1508	●
210	03.330 PIPE; INJ,C/R	8-98233-237-0	01	1	1509-	●	●
211	03.331 RAIL ASM; COMMON	8-98228-475-0	01	1	1407-1508	●
211	03.331 RAIL ASM; COMMON	8-98228-475-0	01	1	1509-	●	●
216	03.162 BOLT; EYE 03.280	9-88130-088-0	01	1	1407-1409	●
216	03.162 BOLT; EYE	8-98209-777-0	01	1	1410-1508	●
216	03.162 BOLT; EYE	8-98209-777-0	01	1	1509-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1407-1508	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1509-	●	●
282	03.163 BRACKET; COMMON RAIL	8-98205-942-0	01	1	1407-1508	●
282	03.163 BRACKET; COMMON RAIL	8-98205-942-0	01	1	1509-	●	●
283	03.330 BOLT; COMMON RAIL M8X66 FLANGE	8-98228-566-0	03	1	1407-1508	●
283	03.330 BOLT; COMMON RAIL M8X66 FLANGE	8-98228-566-0	03	1	1509-	●	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1407-1508	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1509-	●	●
290	03.331 SENSOR; PRESS	8-98181-616-0	01	1	1407-1508	●
290	03.331 SENSOR; PRESS	8-98181-616-0	01	1	1509-	●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98228-637-0	04	1	1407-1508	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X85 W/WASHER	8-98228-637-0	04	1	1509-	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1407-1409	●
347	03.332 PIN	8-98165-035-0	04	1	1407-1508	●
347	03.332 PIN	8-98165-035-0	04	1	1509-	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1407-1409	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1410-1508	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1509-	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-3	01	1	1407-1508	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-3	01	1	1509-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-1	01	1	1407-1508	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-1	01	1	1509-	●	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1407-1508	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1509-	●	●
