◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#1453) — 267 parça

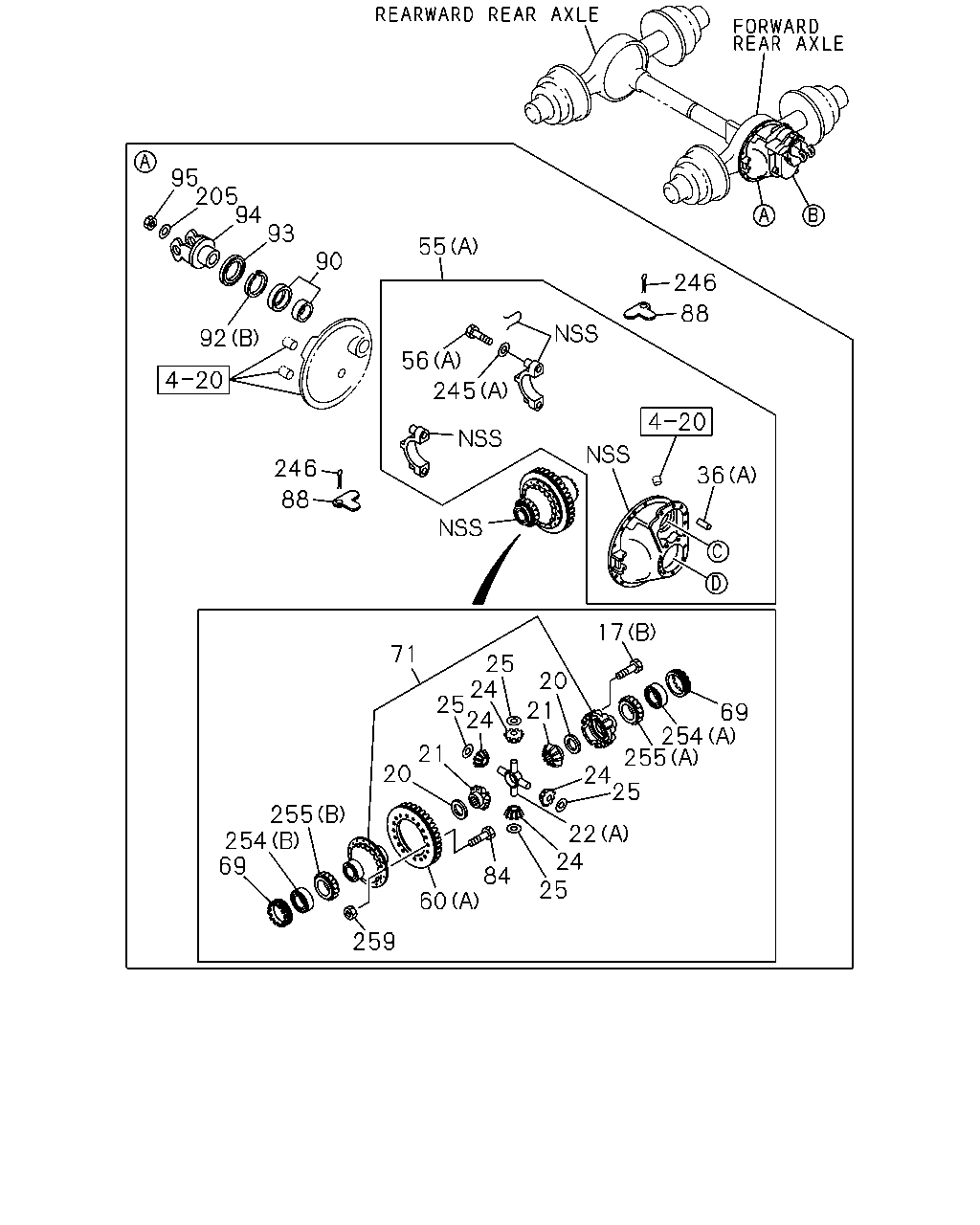

çizim 28823
95 205 94 93 55 90 246 88 92 56 245 246 36 88 17 71 25 24 25 24 20 21 69 254 255 21 20 24 25 255 254 69 22 24 25 84 60 259
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; DIFF CAGE SETTING
(A) 		1-87060-505-0 08 1 9203- ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-87060-514-0 24 1 9203- ● ●
20 WASHER; THRUST,SIDE GEAR 1-87060-603-0 04 1 9203- ● ●
21 GEAR; SIDE,DIFF 1-87061-645-0 04 1 9203- ● ●
22 PIN; CROSS,DIFF PINION
(A) 		1-87061-646-0 02 1 9203- ● ●
22 PIN; CROSS,DIFF PINION
(B) 		1-87061-719-0 01 1 9203- ● ●
24 GEAR; PINION,DIFF 1-87061-648-0 08 1 9203- ● ●
25 WASHER; THRUST,PINION 1-87060-615-0 08 1 9203- ● ●
36 PIN; STRAIGHT
(A) 		1-87061-650-0 02 1 9203- ● ●
36 PIN; STRAIGHT
(B) 		1-87061-715-0 02 1 9203- ● ●
55 CARRIER; DIFF
(A) 		1-87061-644-0 01 1 9203- ● ●
55 CARRIER; DIFF
(B) 		1-87061-743-0 01 1 9203- ● ●
56 BOLT; BRG CAP
(B) 		1-87061-746-0 04 1 9203- ● ●
56 BOLT; BRG CAP
(A) 		1-87061-759-0 04 1 9203- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-87061-753-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/9 		1-87061-754-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-87061-683-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-87061-742-0 01 1 9203- ●
69 NUT; ADJ,DIFF CAGE 1-87060-590-0 02 1 9203- ● ●
69 NUT; ADJ,DIFF CAGE 1-87061-652-0 02 1 9203- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-87061-647-0 02 1 9203- ● ●
84 BOLT; FINAL DRIVE GEAR 1-87061-662-0 32 1 9203- ● ●
88 PLATE; LK,ADJ NUT 1-87060-576-0 02 1 9203- ● ●
88 PLATE; LK,ADJ NUT 1-87061-651-0 02 1 9203- ● ●
90 BEARING; OUTPUT SHAFT 1-87061-640-0 01 1 9203- ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-87060-549-0 02 1 9203- ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(B) 		1-87061-638-0 01 1 9203- ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-87061-641-0 01 1 9203- ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-87061-637-0 01 1 9203- ● ●
95 NUT; OUTPUT SHAFT 1-87060-649-0 01 1 9203- ● ●
205 WASHER; PL 1-87060-647-0 01 1 9203- ● ●
245 WASHER; PL,BRG CAP
(B) 		1-87061-747-0 04 1 9203- ● ●
245 WASHER; PL,BRG CAP
(A) 		1-87061-760-0 04 1 9203- ● ●
246 PIN; COTTER,LOCK PLATE 1-87060-577-0 02 1 9203- ● ●
246 PIN; COTTER,LOCK PLATE 1-87061-660-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(A) 		1-87060-592-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(B) 		1-87061-661-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(C) 		1-87061-685-0 01 1 9203- ● ●
255 CONE; DIFF BRG
(A) 		1-87060-594-0 02 1 9203- ● ●
255 CONE; DIFF BRG
(B) 		1-87061-649-0 02 1 9203- ● ●
255 CONE; DIFF BRG
(C) 		1-87061-713-0 01 1 9203- ● ●
255 CONE; DIFF BRG
(D) 		1-87061-739-0 01 1 9203- ● ●
259 NUT 1-87061-383-0 32 1 9203- ● ●

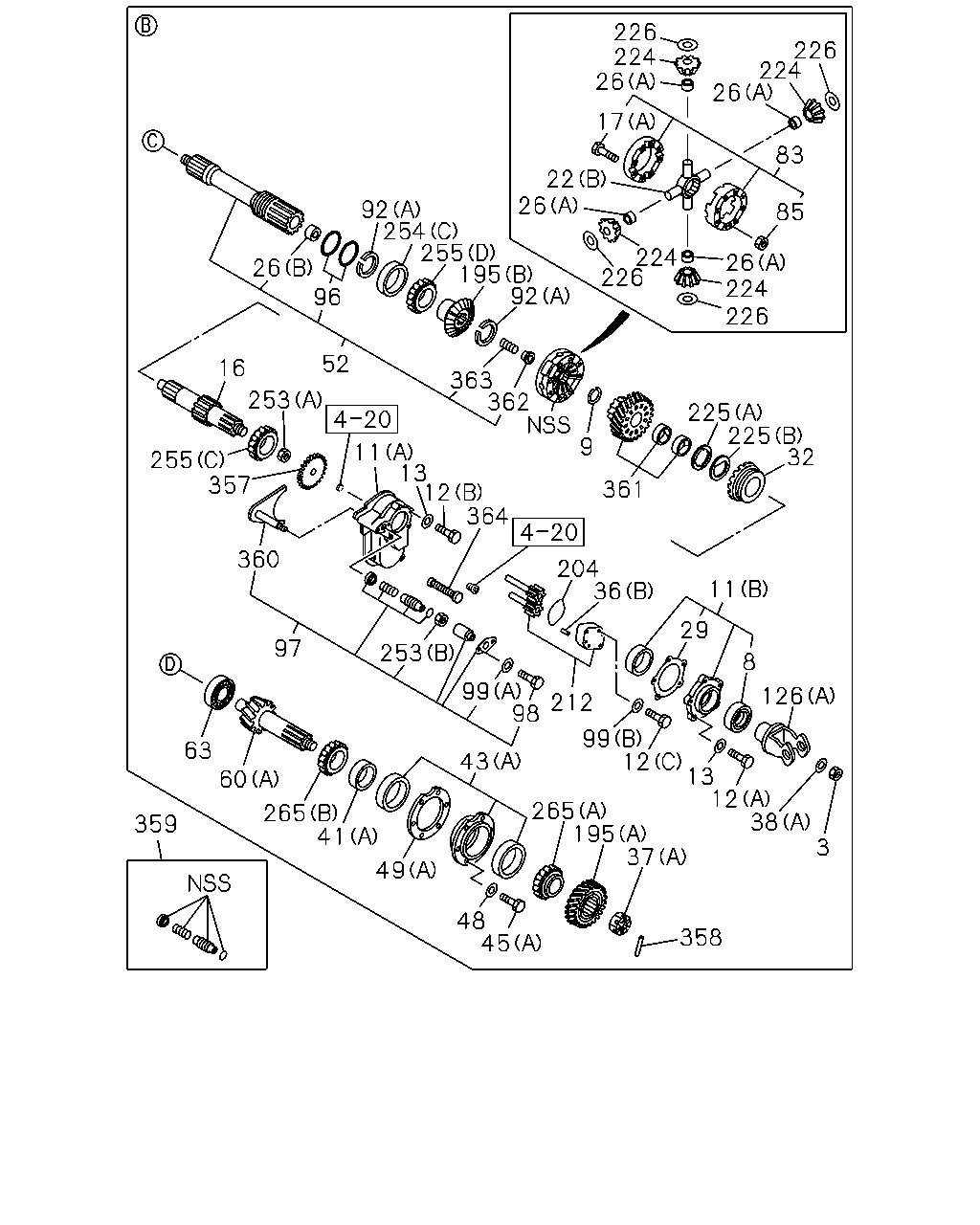

çizim 29143
226 224 26 226 224 26 17 83 22 26 92 254 255 195 92 85 26 224 226 224 226 26 96 52 16 363 362 9 253 225 225 32 11 13 12 364 255 357 361 360 204 36 11 29 97 253 8 99 98 126 212 99 12 13 12 38 63 60 43 265 195 37 265 41 3 359 49 48 45 358
BalonParca AdiParca NoAdetTipApplied Date A B
3 NUT; INPUT SHAFT 1-87060-541-0 01 1 9203- ● ●
8 SEAL; OIL,INPUT SHAFT 1-87061-699-0 01 1 9203- ● ●
9 RING; SNAP,BRG,INPUT 1-87060-533-0 01 1 9203- ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-87061-718-0 01 1 9203- ● ●
11 COVER; INTER AXLE DIFF
(B) 		1-87061-722-0 01 1 9203- ● ●
12 BOLT; COVER TO CASE
(A) 		1-87061-690-0 05 1 9203- ● ●
12 BOLT; COVER TO CASE
(B) LONG 		1-87061-702-0 04 1 9203- ● ●
12 BOLT; COVER TO CASE
(B) SHORT 		1-87061-710-0 05 1 9203- ● ●
12 BOLT; COVER TO CASE
(C) 		1-87061-716-0 04 1 9203- ● ●
13 WASHER; COVER TO CASE 1-87061-711-0 09 1 9203- ● ●
16 SHAFT ASM; INPUT 1-87061-721-0 01 1 9203- ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		1-87060-505-0 08 1 9203- ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-87060-514-0 24 1 9203- ● ●
22 PIN; CROSS,DIFF PINION
(A) 		1-87061-646-0 02 1 9203- ● ●
22 PIN; CROSS,DIFF PINION
(B) 		1-87061-719-0 01 1 9203- ● ●
26 BUSHING; DIFF CAGE
(A) 		1-87060-547-0 04 1 9203- ● ●
26 BUSHING; DIFF CAGE
(B) 		1-87061-737-0 01 1 9203- ● ●
29 SHIM; BRG RET
T=0.003" 		1-87061-704-0 AR 1 9203- ● ●
29 SHIM; BRG RET
T=0.005" 		1-87061-705-0 AR 1 9203- ● ●
29 SHIM; BRG RET
T=0.010" 		1-87061-706-0 AR 1 9203- ● ●
29 SHIM; BRG RET
T=0.020" 		1-87061-707-0 AR 1 9203- ● ●
32 SLEEVE; CLU,DIFF LK 1-87061-700-0 01 1 9203- ● ●
36 PIN; STRAIGHT
(A) 		1-87061-650-0 02 1 9203- ● ●
36 PIN; STRAIGHT
(B) 		1-87061-715-0 02 1 9203- ● ●
37 NUT; DRIVING PINION
(B) 		1-87060-650-0 01 1 9203- ● ●
37 NUT; DRIVING PINION
(A) 		1-87061-691-0 01 1 9203- ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-87060-542-0 01 1 9203- ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-87060-648-0 01 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.630" 		1-87060-523-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.632" 		1-87060-524-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.634" 		1-87060-525-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.636" 		1-87060-526-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.638" 		1-87060-527-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.640" 		1-87060-528-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.635" 		1-87060-626-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.637" 		1-87060-628-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.639" 		1-87060-630-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.641" 		1-87060-632-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.642" 		1-87060-633-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.643" 		1-87060-634-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.629" 		1-87061-106-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.631" 		1-87061-107-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.633" 		1-87061-108-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.644" 		1-87061-109-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.645" 		1-87061-110-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.646" 		1-87061-111-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.482" 		1-87061-663-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.483" 		1-87061-664-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.484" 		1-87061-665-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.485" 		1-87061-666-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.486" 		1-87061-667-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.487" 		1-87061-668-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.488" 		1-87061-669-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.489" 		1-87061-670-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.490" 		1-87061-671-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.491" 		1-87061-672-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.492" 		1-87061-673-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.493" 		1-87061-674-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.494" 		1-87061-675-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.495" 		1-87061-676-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.496" 		1-87061-677-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.497" 		1-87061-678-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.498" 		1-87061-679-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.499" 		1-87061-680-0 AR 1 9203- ● ●
43 CAGE; FINAL PINION
(B) 		1-87060-623-0 01 1 9203- ● ●
43 CAGE; FINAL PINION
(A) 		1-87061-643-0 01 1 9203- ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-87060-645-0 06 1 9203- ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-87061-658-0 06 1 9203- ● ●
48 WASHER; LK,FINAL PINION 1-87060-530-0 06 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.005" 		1-87060-638-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.010" 		1-87060-640-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.020" 		1-87060-642-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.030" 		1-87060-644-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.003" 		1-87060-975-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.003" 		1-87061-653-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.005" 		1-87061-654-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.010" 		1-87061-655-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.020" 		1-87061-656-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.030" 		1-87061-657-0 AR 1 9203- ● ●
52 SHAFT; OUTPUT 1-87061-686-0 01 1 9203- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-87061-753-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/9 		1-87061-754-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-87061-683-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-87061-742-0 01 1 9203- ●
63 BEARING; PINION PILOT 1-87061-682-0 02 1 9203- ● ●
83 CAGE ASM; DIFF 1-87060-545-0 01 1 9203- ● ●
85 NUT; DIFF CAGE SETTING 1-87060-506-0 08 1 9203- ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-87060-549-0 02 1 9203- ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(B) 		1-87061-638-0 01 1 9203- ● ●
96 GASKET; SHAFT,OUTPUT 1-87061-738-0 02 1 9203- ● ●
97 SHIFT UNIT; DIFF LOCK 1-87061-693-0 01 1 9203- ● ●
98 BOLT; SHIFT UNIT TO CARRIER 1-87061-697-0 02 1 9203- ● ●
99 WASHER; LK
(A) 		1-87061-698-0 02 1 9203- ● ●
99 WASHER; LK
(B) 		1-87061-712-0 04 1 9203- ● ●
126 COUPLING; DRIVING PINION
(A) 		1-87061-684-0 01 1 9203- ● ●
126 COUPLING; DRIVING PINION
(B) 		1-87061-745-0 01 1 9203- ● ●
195 GEAR; DRIVEN
(A) 		1-87061-687-0 01 1 9203- ● ●
195 GEAR; DRIVEN
(B) 		1-87061-740-0 01 1 9203- ● ●
204 GASKET; COVER TO CASE 1-87061-717-0 01 1 9203- ● ●
212 COVER 1-87061-714-0 01 1 9203- ● ●
224 PINION; DIFF 1-87061-720-0 04 1 9203- ● ●
225 WASHER; THRUST
(A) 		1-87060-534-0 01 1 9203- ● ●
225 WASHER; THRUST
(B) 		1-87061-703-0 01 1 9203- ● ●
226 WASHER; THRUST 1-87060-548-0 04 1 9203- ● ●
253 NUT
(A) 		1-87061-689-0 01 1 9203- ● ●
253 NUT
(B) 		1-87061-696-0 01 1 9203- ● ●
254 CUP; DIFF BRG
(A) 		1-87060-592-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(B) 		1-87061-661-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(C) 		1-87061-685-0 01 1 9203- ● ●
255 CONE; DIFF BRG
(A) 		1-87060-594-0 02 1 9203- ● ●
255 CONE; DIFF BRG
(B) 		1-87061-649-0 02 1 9203- ● ●
255 CONE; DIFF BRG
(C) 		1-87061-713-0 01 1 9203- ● ●
255 CONE; DIFF BRG
(D) 		1-87061-739-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-87060-522-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-87060-618-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-87060-619-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-87061-681-0 01 1 9203- ● ●
357 GEAR; DRIVE,OIL PUMP 1-87061-688-0 01 1 9203- ● ●
358 PIN; SPR 1-87061-692-0 01 1 9203- ● ●
359 REPAIR KIT; SHIFT UNIT 1-87061-694-0 01 1 9203- ● ●
360 FORK; SHIFT 1-87061-695-0 01 1 9203- ● ●
361 GEAR; DRIVE 1-87061-701-0 01 1 9203- ● ●
362 BEARING; THRUST 1-87061-708-0 01 1 9203- ● ●
363 SPRING; COMP 1-87061-709-0 01 1 9203- ● ●
364 FILTER; OIL PUMP 1-87061-781-0 01 1 9203- ● ●

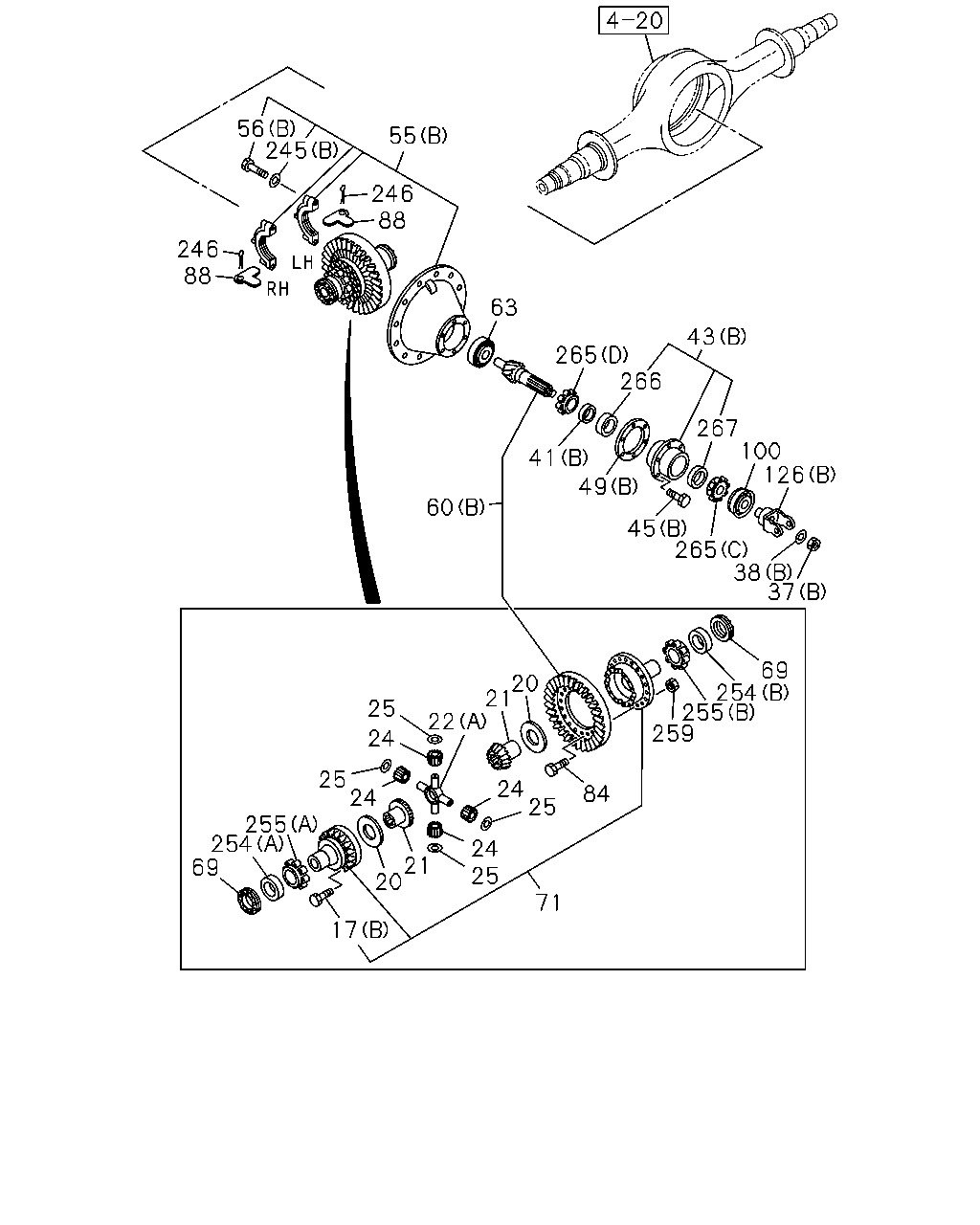

çizim 29860
56 245 55 246 8 246 88 63 43 265 266 267 100 126 41 49 60 45 265 38 37 69 254 255 259 20 21 25 22 24 25 24 24 25 84 255 254 69 24 25 21 20 71 17
BalonParca AdiParca NoAdetTipApplied Date A B
8 SEAL; OIL,INPUT SHAFT 1-87061-699-0 01 1 9203- ● ●
17 BOLT; DIFF CAGE SETTING
(A) 		1-87060-505-0 08 1 9203- ● ●
17 BOLT; DIFF CAGE SETTING
(B) 		1-87060-514-0 24 1 9203- ● ●
20 WASHER; THRUST,SIDE GEAR 1-87060-603-0 04 1 9203- ● ●
21 GEAR; SIDE,DIFF 1-87061-645-0 04 1 9203- ● ●
22 PIN; CROSS,DIFF PINION
(A) 		1-87061-646-0 02 1 9203- ● ●
22 PIN; CROSS,DIFF PINION
(B) 		1-87061-719-0 01 1 9203- ● ●
24 GEAR; PINION,DIFF 1-87061-648-0 08 1 9203- ● ●
25 WASHER; THRUST,PINION 1-87060-615-0 08 1 9203- ● ●
37 NUT; DRIVING PINION
(B) 		1-87060-650-0 01 1 9203- ● ●
37 NUT; DRIVING PINION
(A) 		1-87061-691-0 01 1 9203- ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-87060-542-0 01 1 9203- ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-87060-648-0 01 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.630" 		1-87060-523-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.632" 		1-87060-524-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.634" 		1-87060-525-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.636" 		1-87060-526-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.638" 		1-87060-527-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.640" 		1-87060-528-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.635" 		1-87060-626-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.637" 		1-87060-628-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.639" 		1-87060-630-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.641" 		1-87060-632-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.642" 		1-87060-633-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.643" 		1-87060-634-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.629" 		1-87061-106-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.631" 		1-87061-107-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.633" 		1-87061-108-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.644" 		1-87061-109-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.645" 		1-87061-110-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=0.646" 		1-87061-111-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.482" 		1-87061-663-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.483" 		1-87061-664-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.484" 		1-87061-665-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.485" 		1-87061-666-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.486" 		1-87061-667-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.487" 		1-87061-668-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.488" 		1-87061-669-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.489" 		1-87061-670-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.490" 		1-87061-671-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.491" 		1-87061-672-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.492" 		1-87061-673-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.493" 		1-87061-674-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.494" 		1-87061-675-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.495" 		1-87061-676-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.496" 		1-87061-677-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.497" 		1-87061-678-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.498" 		1-87061-679-0 AR 1 9203- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=0.499" 		1-87061-680-0 AR 1 9203- ● ●
43 CAGE; FINAL PINION
(B) 		1-87060-623-0 01 1 9203- ● ●
43 CAGE; FINAL PINION
(A) 		1-87061-643-0 01 1 9203- ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-87060-645-0 06 1 9203- ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-87061-658-0 06 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.005" 		1-87060-638-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.010" 		1-87060-640-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.020" 		1-87060-642-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.030" 		1-87060-644-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.003" 		1-87060-975-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.003" 		1-87061-653-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.005" 		1-87061-654-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.010" 		1-87061-655-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.020" 		1-87061-656-0 AR 1 9203- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.030" 		1-87061-657-0 AR 1 9203- ● ●
55 CARRIER; DIFF
(A) 		1-87061-644-0 01 1 9203- ● ●
55 CARRIER; DIFF
(B) 		1-87061-743-0 01 1 9203- ● ●
56 BOLT; BRG CAP
(B) 		1-87061-746-0 04 1 9203- ● ●
56 BOLT; BRG CAP
(A) 		1-87061-759-0 04 1 9203- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/9 		1-87061-753-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/9 		1-87061-754-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-87061-683-0 01 1 9203- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-87061-742-0 01 1 9203- ●
63 BEARING; PINION PILOT 1-87061-682-0 02 1 9203- ● ●
69 NUT; ADJ,DIFF CAGE 1-87060-590-0 02 1 9203- ● ●
69 NUT; ADJ,DIFF CAGE 1-87061-652-0 02 1 9203- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-87061-647-0 02 1 9203- ● ●
84 BOLT; FINAL DRIVE GEAR 1-87061-662-0 32 1 9203- ● ●
88 PLATE; LK,ADJ NUT 1-87060-576-0 02 1 9203- ● ●
88 PLATE; LK,ADJ NUT 1-87061-651-0 02 1 9203- ● ●
100 SEAL; OIL,FINAL PINION 1-87061-744-0 01 1 9203- ● ●
126 COUPLING; DRIVING PINION
(A) 		1-87061-684-0 01 1 9203- ● ●
126 COUPLING; DRIVING PINION
(B) 		1-87061-745-0 01 1 9203- ● ●
245 WASHER; PL,BRG CAP
(B) 		1-87061-747-0 04 1 9203- ● ●
245 WASHER; PL,BRG CAP
(A) 		1-87061-760-0 04 1 9203- ● ●
246 PIN; COTTER,LOCK PLATE 1-87060-577-0 02 1 9203- ● ●
246 PIN; COTTER,LOCK PLATE 1-87061-660-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(A) 		1-87060-592-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(B) 		1-87061-661-0 02 1 9203- ● ●
254 CUP; DIFF BRG
(C) 		1-87061-685-0 01 1 9203- ● ●
255 CONE; DIFF BRG
(A) 		1-87060-594-0 02 1 9203- ● ●
255 CONE; DIFF BRG
(B) 		1-87061-649-0 02 1 9203- ● ●
255 CONE; DIFF BRG
(C) 		1-87061-713-0 01 1 9203- ● ●
255 CONE; DIFF BRG
(D) 		1-87061-739-0 01 1 9203- ● ●
259 NUT 1-87061-383-0 32 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-87060-522-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-87060-618-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-87060-619-0 01 1 9203- ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-87061-681-0 01 1 9203- ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-87060-974-0 01 1 9203- ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-87060-620-0 01 1 9203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
