◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#145299) — 9 parça

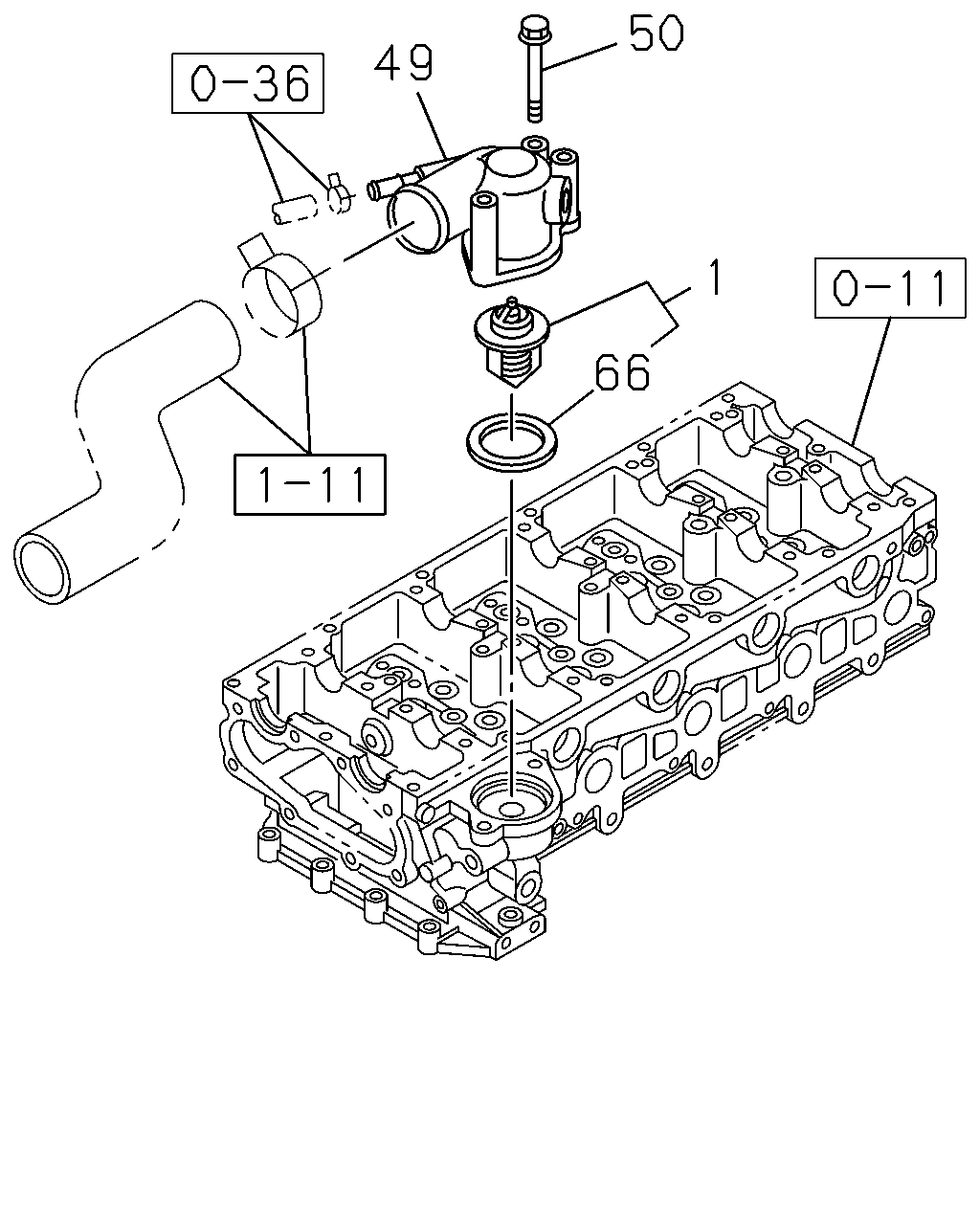

çizim 432121
50 1 66 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1407-1508 ●
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1509- ● ●
49 01.153 PIPE; WATER OUTLET 8-98120-945-0 01 1 1407-1412 ●
49 01.153 PIPE; WATER OUTLET 8-97355-456-7 01 1 1501-1508 ●
49 01.153 PIPE; WATER OUTLET 8-97355-456-7 01 1 1509- ● ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1407-1508 ●
50 01.252 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 1509- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1407-1508 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
