0-22 — ENGINE MOUNTING (#145295) — 57 parça
çizim 431111
52 10 20 78 20 52 10 20
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1407-1508 ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1509- ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1407-1508 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) (F) M10X25 FLANGE 		0-28651-025-0 04 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) (F) M10X25 FLANGE 		0-28651-025-0 04 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
4X4(UCS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1407- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(UCB***) (A) 		8-98238-914-0 01 1 1509- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(UCB***) (A) 		8-98270-987-0 01 1 1407- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(UCS***) (B) 		8-98270-985-0 01 1 1407- ●
78 00.029 BRACKET; ENG MTG,RR
4X2(UCB***) 		8-98164-580-2 01 1 1407-1508 ●
78 00.029 BRACKET; ENG MTG,RR
4X2(UCB***) 		8-98164-580-2 01 1 1509- ● ●

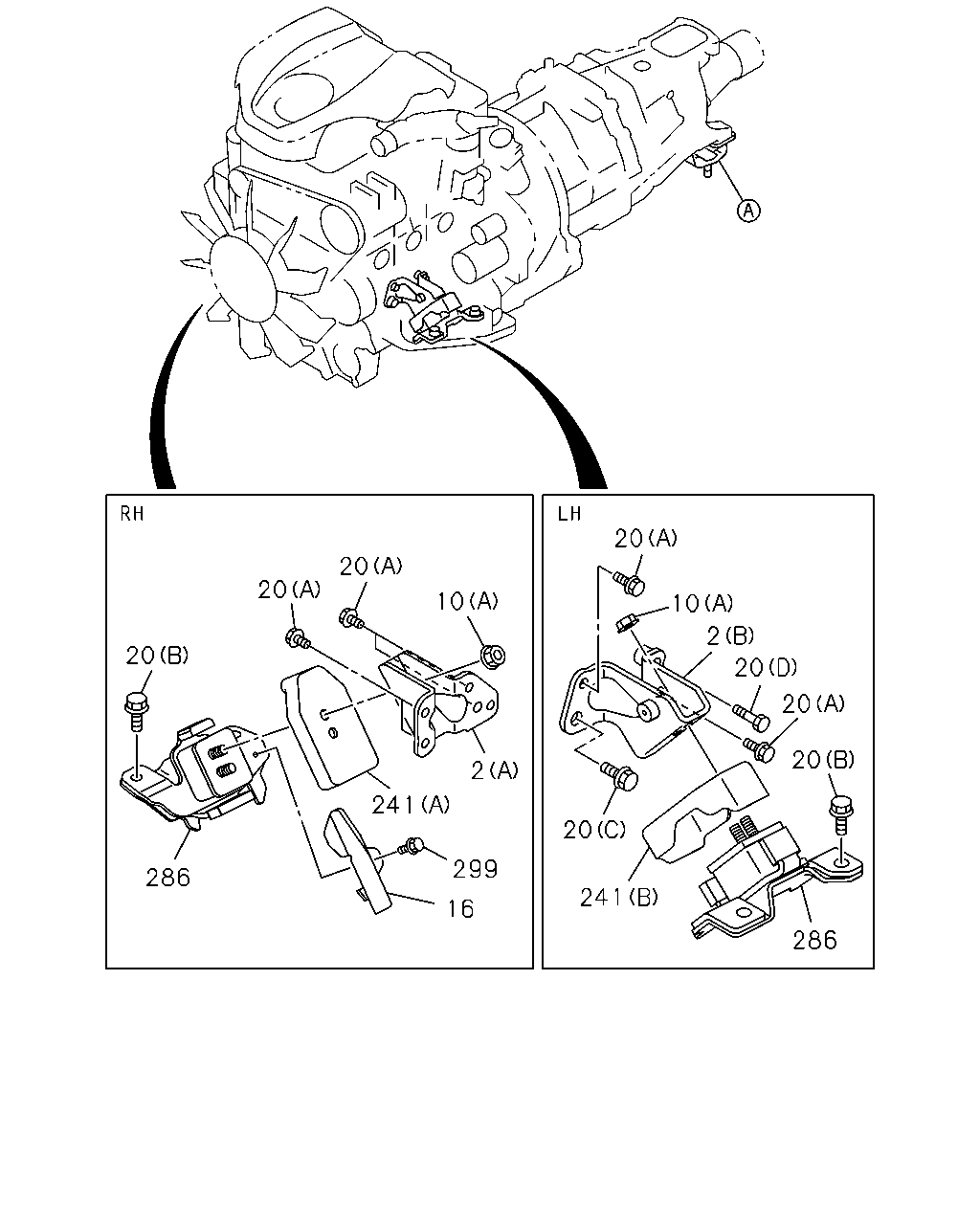

çizim 431143
20 10 2 20 20 20 286 241 20 16 299 241 2 10 20 20 20 286
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1407-1508 ●
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1509- ● ●
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1407-1508 ●
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1509- ● ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1407-1508 ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1509- ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1407-1508 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1509- ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1407-1508 ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) (F) M10X25 FLANGE 		0-28651-025-0 04 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) (F) M10X25 FLANGE 		0-28651-025-0 04 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
4X2(UCB***) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1407-1508 ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1509- ● ●
20 00.029 BOLT; ENG FOOT
4X4(UCS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1407- ●
241 00.027 COVER; ENG MTG
4X2(UCB***) (A) 		8-98194-507-1 01 1 1407-1508 ●
241 00.027 COVER; ENG MTG
4X2(UCB***) (A) 		8-98194-507-1 01 1 1509- ● ●
241 00.027 COVER; ENG MTG
4X2(UCB***) (B) 		8-98194-508-1 01 1 1407-1508 ●
241 00.027 COVER; ENG MTG
4X2(UCB***) (B) 		8-98194-508-1 01 1 1509- ● ●
241 00.027 COVER; ENG MTG
4X4(UCS***) (A) 		8-98101-956-2 01 1 1407- ●
241 00.027 COVER; ENG MTG
4X4(UCS***) (B) 		8-98101-957-1 01 1 1407- ●
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1407-1508 ●
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1509- ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1407-1508 ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1509- ● ●
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1407-1508 ●
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1509- ● ●
