0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#145293) — 82 parça

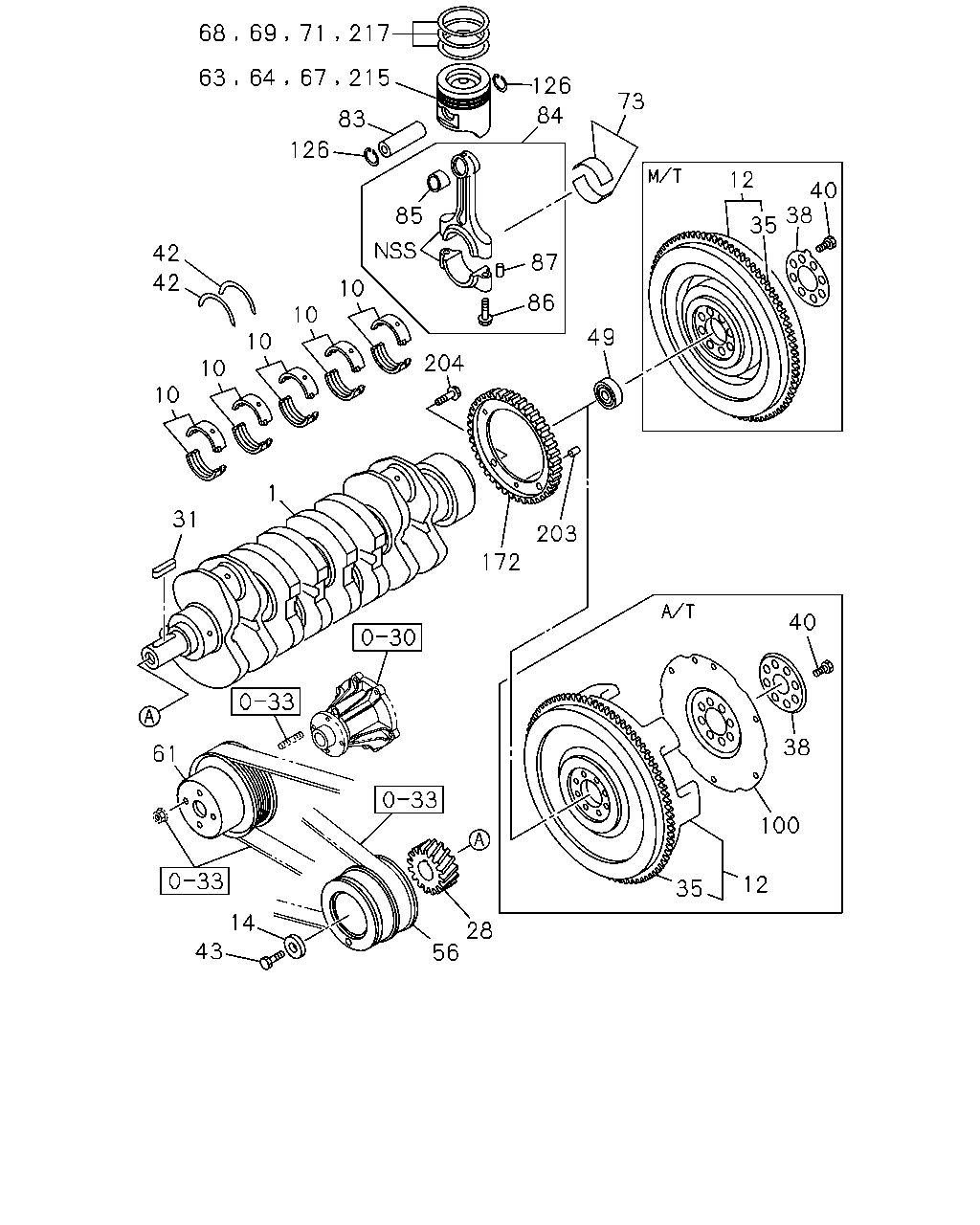

çizim 431998
40 38 35 12 73 126 84 217 71 69 68 215 67 64 63 83 126 42 42 10 10 10 10 10 31 1 61 203 172 85 49 86 87 40 38 100 12 35 28 56 14 43 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1509- ●
1 00.646 CRANKSHAFT 8-98131-999-1 01 1 1407- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97388-502-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97388-502-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97388-503-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97388-503-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97388-504-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97388-504-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-97388-505-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-97388-505-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
RED 		8-97388-506-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
RED 		8-97388-506-0 05 1 1509- ● ●
12 00.666 FLYWHEEL
4X2(UCB***) 		8-98132-505-0 01 1 1407-1508 ●
12 00.666 FLYWHEEL
4X2(UCB***) 		8-98132-505-0 01 1 1509- ● ●
12 00.666 FLYWHEEL
4X4(UCS***) 		8-98077-180-0 01 1 1407- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1407-1508 ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1509- ● ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1407-1508 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1509- ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 1407-1508 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 1509- ● ●
35 00.673 GEAR; RING
4X2(UCB***) Z=122 		8-94364-395-1 01 1 1407-1508 ●
35 00.673 GEAR; RING
4X2(UCB***) Z=122 		8-94364-395-1 01 1 1509- ● ●
35 00.673 GEAR; RING
4X4(UCS***) Z=108 		8-97912-516-1 01 1 1407- ●
38 00.862 WASHER; FLYWHEEL
4X2(UCB***) 		8-98195-090-0 01 1 1407-1508 ●
38 00.862 WASHER; FLYWHEEL
4X2(UCB***) 		8-98195-090-0 01 1 1509- ● ●
38 00.862 WASHER; FLYWHEEL
4X4(UCS***) 00.669 		8-94133-970-1 01 1 1407- ●
40 00.669 BOLT; FLYWHEEL
4X2(UCB***) M13X78 		8-97080-561-1 08 1 1407-1508 ●
40 00.669 BOLT; FLYWHEEL
4X2(UCB***) M13X78 		8-97080-561-1 08 1 1509- ● ●
40 00.669 BOLT; FLYWHEEL
4X4(UCS***) M13X36 		8-97941-069-0 08 1 1407- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1407-1508 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1509- ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1407-1508 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1509- ● ●
49 00.669 BEARING; PILOT
4X4(UCS***) 00.096 NSK 		8-97920-344-2 01 1 1407- ●
49 00.669 BEARING; PILOT
4X4(UCS***) NACHI 		8-97922-552-1 01 1 1407- ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98183-902-0 01 1 1407-1508 ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98183-902-0 01 1 1509- ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-98131-628-0 01 1 1407-1508 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-98131-628-0 01 1 1509- ● ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1509- ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1509- ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1509- ●
63 00.629 PISTON
GRADE=A 		8-98132-548-1 04 1 1407- ●
63 00.629 PISTON
GRADE=B 		8-98132-549-1 04 1 1407- ●
63 00.629 PISTON
GRADE=C 		8-98132-550-1 04 1 1407- ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1509- ●
64 00.629 PISTON; O/S=0.50 8-98132-708-1 04 1 1407- ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1509- ●
67 00.629 PISTON; O/S=0.25 8-98132-707-1 04 1 1407- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1509- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-040-0 04 1 1407- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1509- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-042-0 04 1 1407- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-045-0 04 1 1509- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-041-0 04 1 1407- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1407-1508 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1509- ● ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 1407-1508 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 1509- ● ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1407-1508 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1509- ● ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1407-1508 ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1509- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1407-1508 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1509- ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1407-1508 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1509- ● ●
100 00.666 PLATE; FLEX
4X2(UCB***) 		8-98192-379-0 01 1 1407-1508 ●
100 00.666 PLATE; FLEX
4X2(UCB***) 		8-98192-379-0 01 1 1509- ● ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1407-1508 ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1509- ● ●
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1407-1508 ●
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1509- ● ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1407-1508 ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1509- ● ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 1407-1508 ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 1509- ● ●
215 00.629 PISTON; O/S=0.75 8-98132-712-1 04 1 1509- ●
215 00.629 PISTON; O/S=0.75 8-98132-709-1 04 1 1407- ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98171-047-0 04 1 1509- ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98171-043-0 04 1 1407- ●
