0-13 — OIL PAN AND LEVEL GAUGE (#145291) — 64 parça

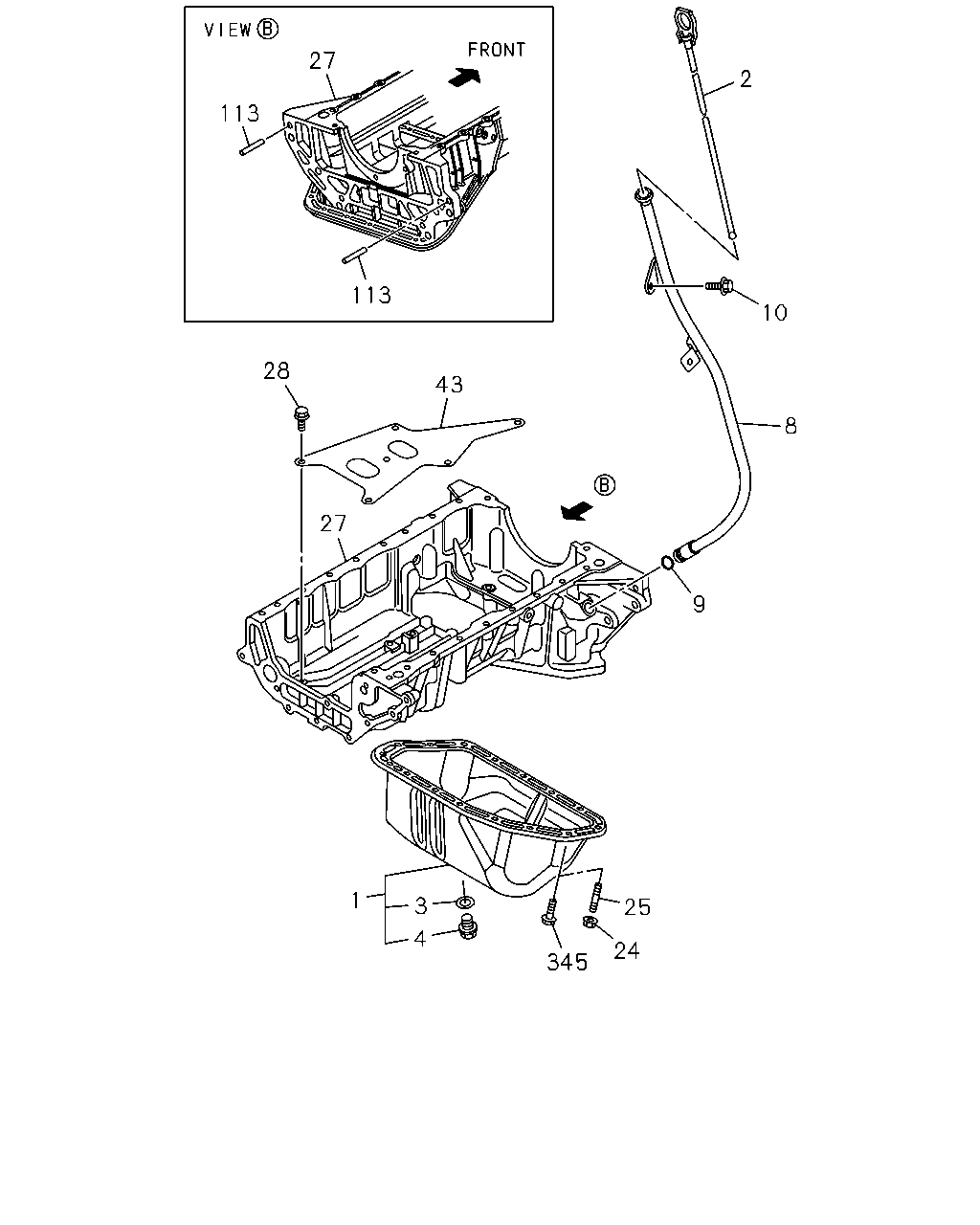

27 113 113 28 27 43 9 8 10 2 1 3 4 345 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL 4X2(UCB***)	8-98156-371-0	01	1	1407-1508	●
1	01.426 PAN ASM; OIL 4X2(UCB***)	8-98156-371-0	01	1	1509-	●	●
1	01.426 PAN ASM; OIL 4X4(UCS***)	8-98132-001-2	01	1	1407-	●
2	01.516 GAUGE; OIL LEVEL 4X2(UCB***)	8-98228-327-2	01	1	1407-1508	●
2	01.516 GAUGE; OIL LEVEL 4X2(UCB***)	8-98228-327-2	01	1	1509-	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(UCS***)	8-98228-328-2	01	1	1407-	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1407-1508	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1509-	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1407-1508	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1509-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98228-277-2	01	1	1407-1508	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98228-277-2	01	1	1509-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1407-1508	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1509-	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1407-1508	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1407-1508	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1407-1508	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1509-	●	●
27	01.426 CRANKCASE 4X2(UCB***)	8-98225-709-3	01	1	1407-1508	●
27	01.426 CRANKCASE 4X2(UCB***)	8-98225-709-3	01	1	1509-	●	●
27	01.426 CRANKCASE 4X4(UCS***)	8-98225-708-2	01	1	1407-	●
28	01.780 BOLT; CRANKCASE TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	06	1	1407-1508	●
28	01.780 BOLT; CRANKCASE TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	06	1	1509-	●	●
43	01.780 PLATE; CRANKCASE	8-98225-711-0	01	1	1407-1508	●
43	01.780 PLATE; CRANKCASE	8-98225-711-0	01	1	1509-	●	●
113	01.453 PIN; STRAIGHT 4X2(UCB***) 08.939 OD=10 L=32	9-08161-032-0	02	1	1407-1508	●
113	01.453 PIN; STRAIGHT 4X2(UCB***) 08.939 OD=10 L=32	9-08161-032-0	02	1	1509-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(UCB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1407-1508	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(UCB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1509-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(UCS***) 02.343 M8X12 FLANGE	0-28050-812-0	14	1	1407-	●

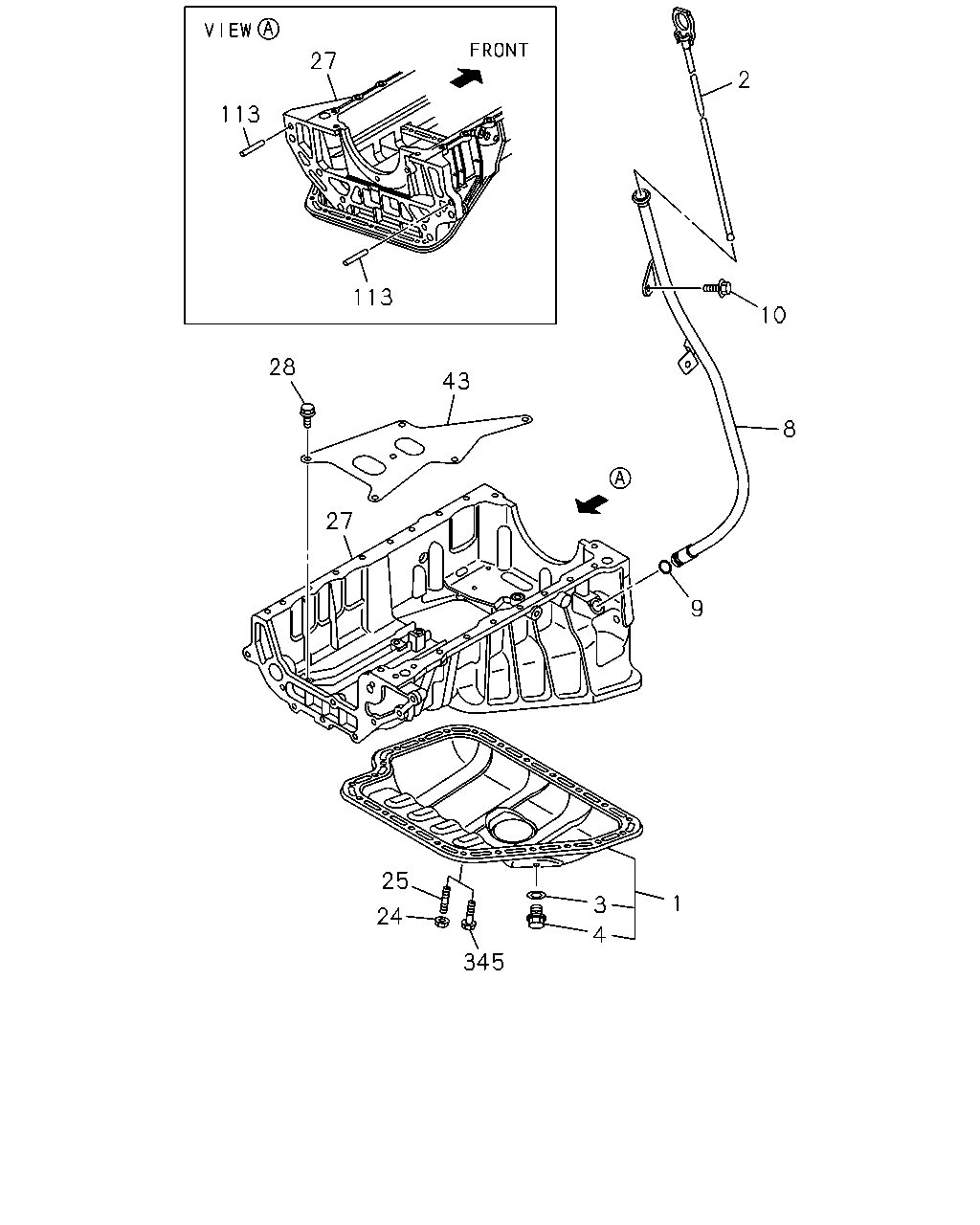

27 113 113 43 10 2 8 9 27 28 3 4 1 25 24 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL 4X2(UCB***)	8-98156-371-0	01	1	1407-1508	●
1	01.426 PAN ASM; OIL 4X2(UCB***)	8-98156-371-0	01	1	1509-	●	●
1	01.426 PAN ASM; OIL 4X4(UCS***)	8-98132-001-2	01	1	1407-	●
2	01.516 GAUGE; OIL LEVEL 4X2(UCB***)	8-98228-327-2	01	1	1407-1508	●
2	01.516 GAUGE; OIL LEVEL 4X2(UCB***)	8-98228-327-2	01	1	1509-	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(UCS***)	8-98228-328-2	01	1	1407-	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1407-1508	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1509-	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1407-1508	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1509-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98228-277-2	01	1	1407-1508	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98228-277-2	01	1	1509-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1407-1508	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1509-	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1407-1508	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1407-1508	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1407-1508	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1509-	●	●
27	01.426 CRANKCASE 4X2(UCB***)	8-98225-709-3	01	1	1407-1508	●
27	01.426 CRANKCASE 4X2(UCB***)	8-98225-709-3	01	1	1509-	●	●
27	01.426 CRANKCASE 4X4(UCS***)	8-98225-708-2	01	1	1407-	●
28	01.780 BOLT; CRANKCASE TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	06	1	1407-1508	●
28	01.780 BOLT; CRANKCASE TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	06	1	1509-	●	●
43	01.780 PLATE; CRANKCASE	8-98225-711-0	01	1	1407-1508	●
43	01.780 PLATE; CRANKCASE	8-98225-711-0	01	1	1509-	●	●
113	01.453 PIN; STRAIGHT 4X2(UCB***) 08.939 OD=10 L=32	9-08161-032-0	02	1	1407-1508	●
113	01.453 PIN; STRAIGHT 4X2(UCB***) 08.939 OD=10 L=32	9-08161-032-0	02	1	1509-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(UCB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1407-1508	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(UCB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1509-	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(UCS***) 02.343 M8X12 FLANGE	0-28050-812-0	14	1	1407-	●
