◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#145288) — 28 parça

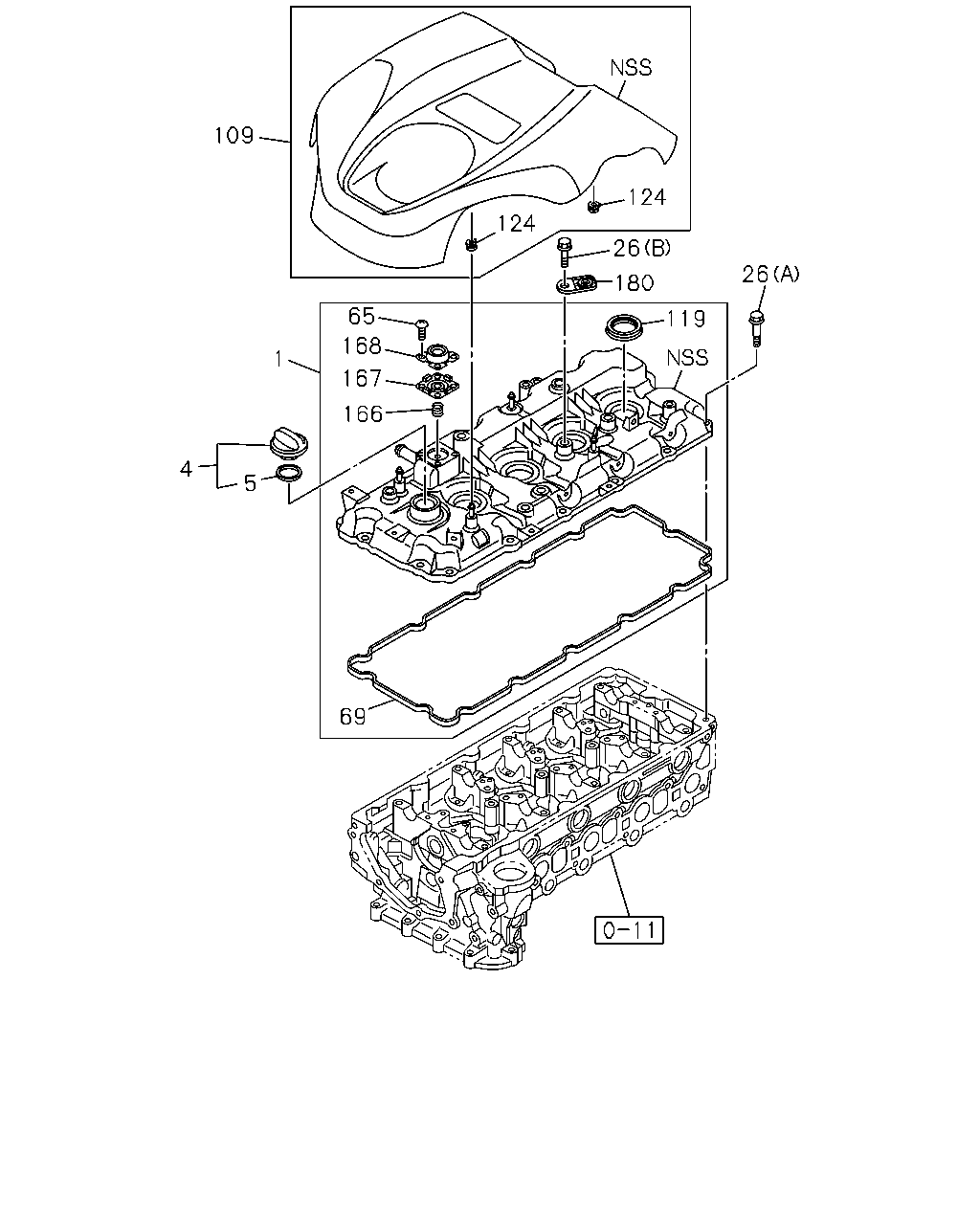

çizim 431030
119 26 180 26 124 124 65 166 167 168 1 5 4 109 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-98228-367-4 01 1 1407-1508 ●
1 00.386 COVER; CYL HD 8-98228-367-4 01 1 1509- ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1407-1508 ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1509- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 1407-1508 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 1509- ● ●
26 08.900 BOLT; CYL HD COVER
04.338 (B) M8X20 FLANGE 		0-28050-820-0 01 1 1407-1508 ●
26 08.900 BOLT; CYL HD COVER
04.338 (B) M8X20 FLANGE 		0-28050-820-0 01 1 1509- ● ●
26 08.900 BOLT; CYL HD COVER
(A) M6X25.7 FLANGE 		8-98228-370-0 15 1 1407-1508 ●
26 08.900 BOLT; CYL HD COVER
(A) M6X25.7 FLANGE 		8-98228-370-0 15 1 1509- ● ●
65 00.413 SCREW; ADAPTER
M4X10 		8-98209-387-0 04 1 1407-1508 ●
65 00.413 SCREW; ADAPTER
M4X10 		8-98209-387-0 04 1 1509- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98228-369-0 01 1 1407-1508 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98228-369-0 01 1 1509- ● ●
109 00.386 COVER; ENG 8-98147-402-0 01 1 1407-1508 ●
109 00.386 COVER; ENG 8-98147-402-0 01 1 1509- ● ●
119 00.386 COVER; SEAL,NOZZLE 8-98228-371-0 04 1 1407-1508 ●
119 00.386 COVER; SEAL,NOZZLE 8-98228-371-0 04 1 1509- ● ●
124 00.413 RUBBER; MTG,COVER 8-98269-869-0 04 1 1407-1508 ●
124 00.413 RUBBER; MTG,COVER 8-98269-869-0 04 1 1509- ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97088-445-0 01 1 1407-1508 ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97088-445-0 01 1 1509- ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1407-1508 ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1509- ● ●
168 00.283 COVER; VENTILATOR 8-98234-092-0 01 1 1407-1508 ●
168 00.283 COVER; VENTILATOR 8-98234-092-0 01 1 1509- ● ●
180 00.413 DAMPENER; CYL HEAD 8-98244-154-0 01 1 1407-1508 ●
180 00.413 DAMPENER; CYL HEAD 8-98244-154-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
