◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51519 - UCR/UCS(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#145287) — 18 parça

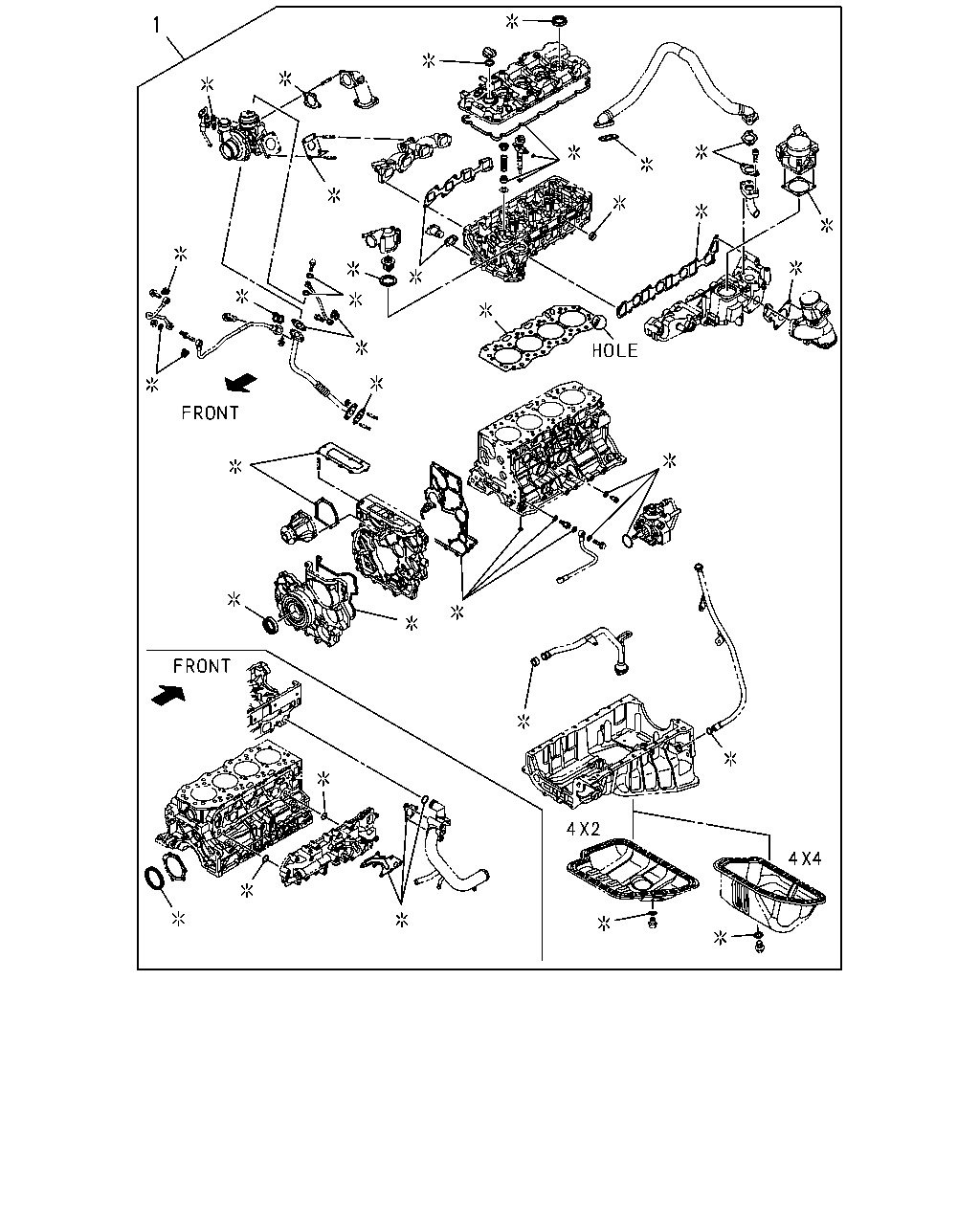

çizim 431899
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.11 1-HOLE 		5-87817-270-0 01 1 1407-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-455-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-455-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.16 2-HOLE 		5-87817-271-0 01 1 1407-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-456-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-456-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.21 3-HOLE 		5-87817-272-0 01 1 1407-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-457-0 01 1 1410-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-457-0 01 1 1509- ● ●

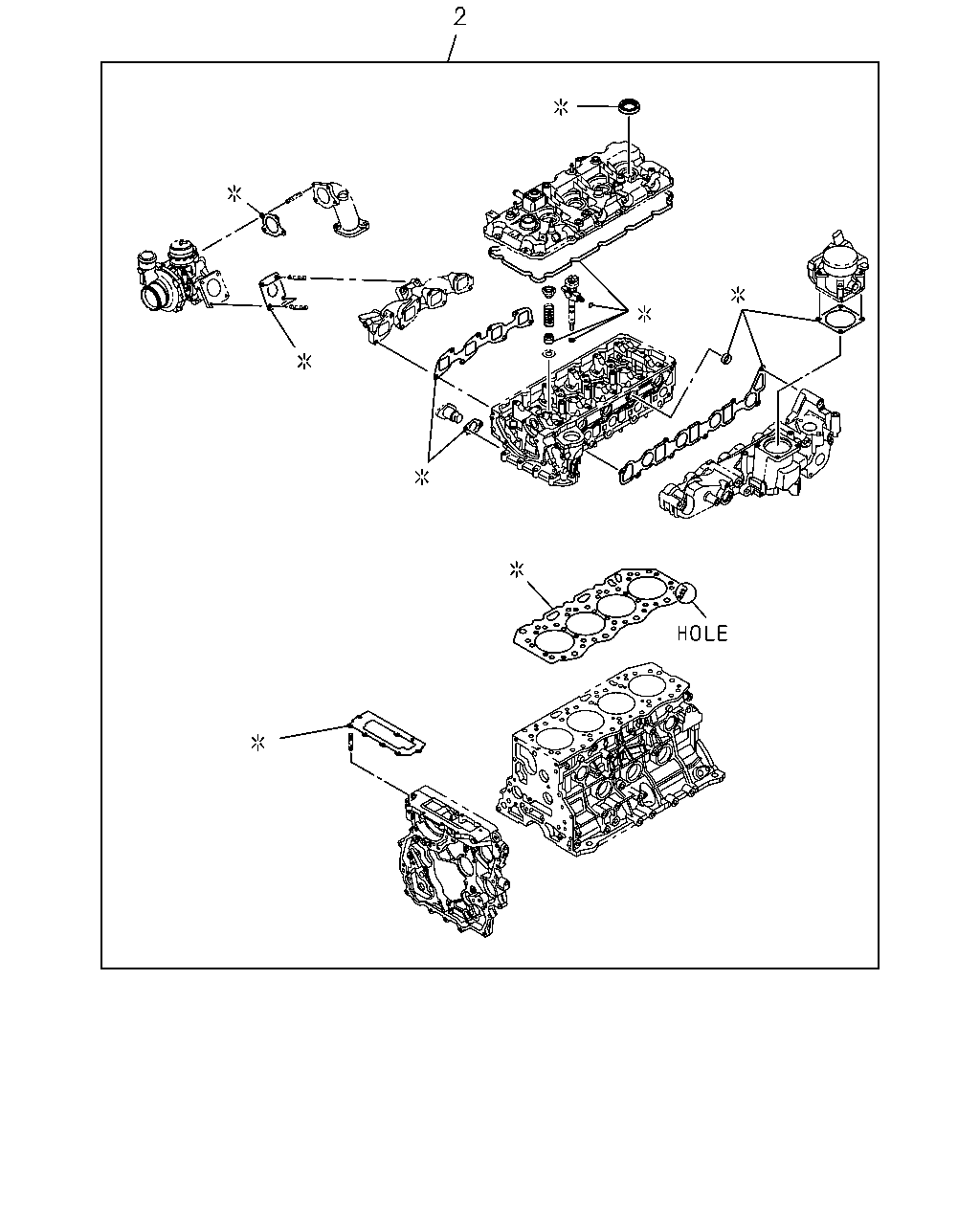

çizim 432737
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE 		5-87817-264-0 01 1 1407-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE 		5-87817-265-0 01 1 1407-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE 		5-87817-266-0 01 1 1407-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1410-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
