◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#145281) — 18 parça

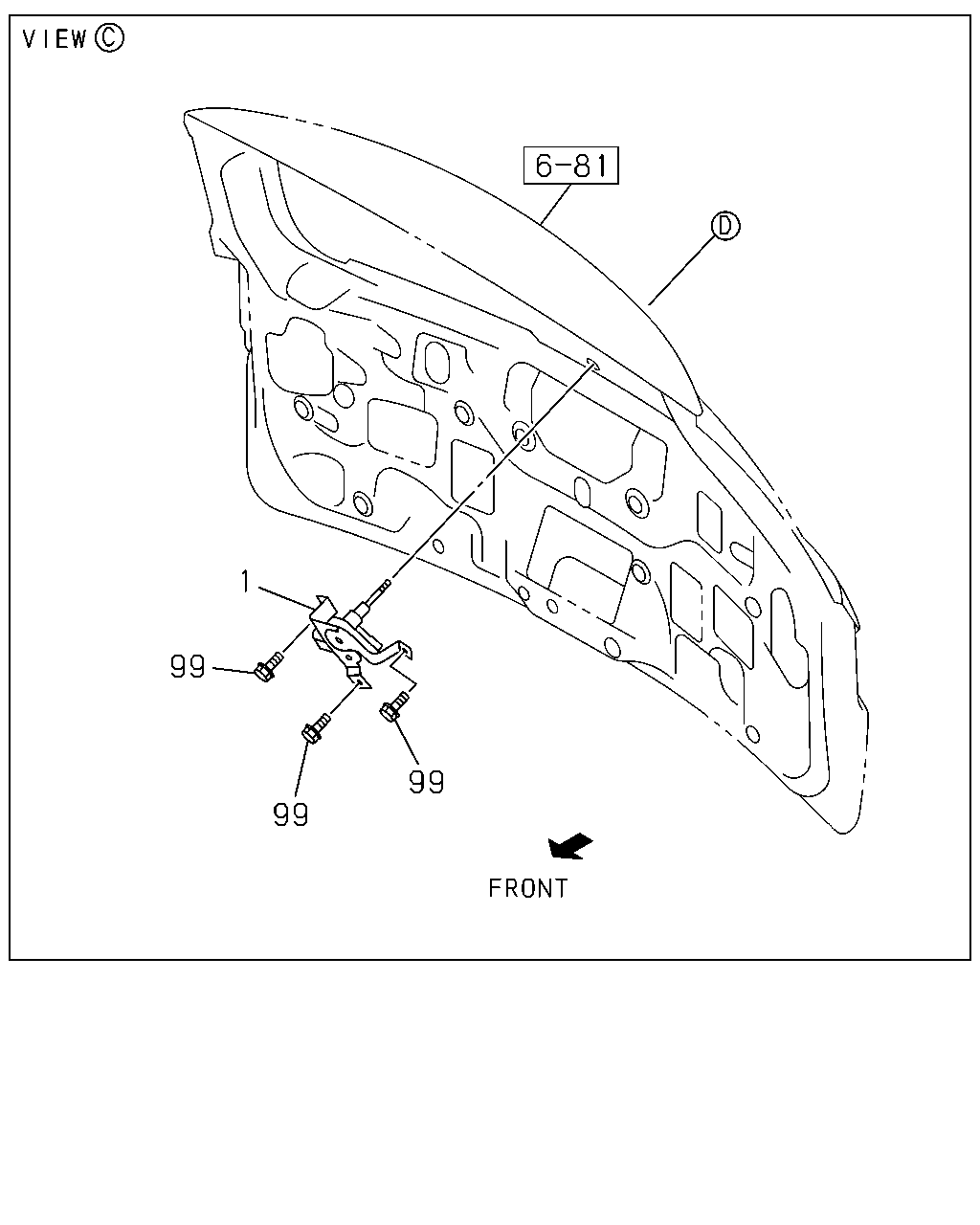

çizim 432806
1 99 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER 8-98187-251-0 01 1 1407- ●
1 MOTOR ASM; RR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98187-251-0 01 1 1407- ●
99 BOLT; WIPER MOTOR
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 03 1 1407- ●
99 BOLT; WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 03 1 1407- ●

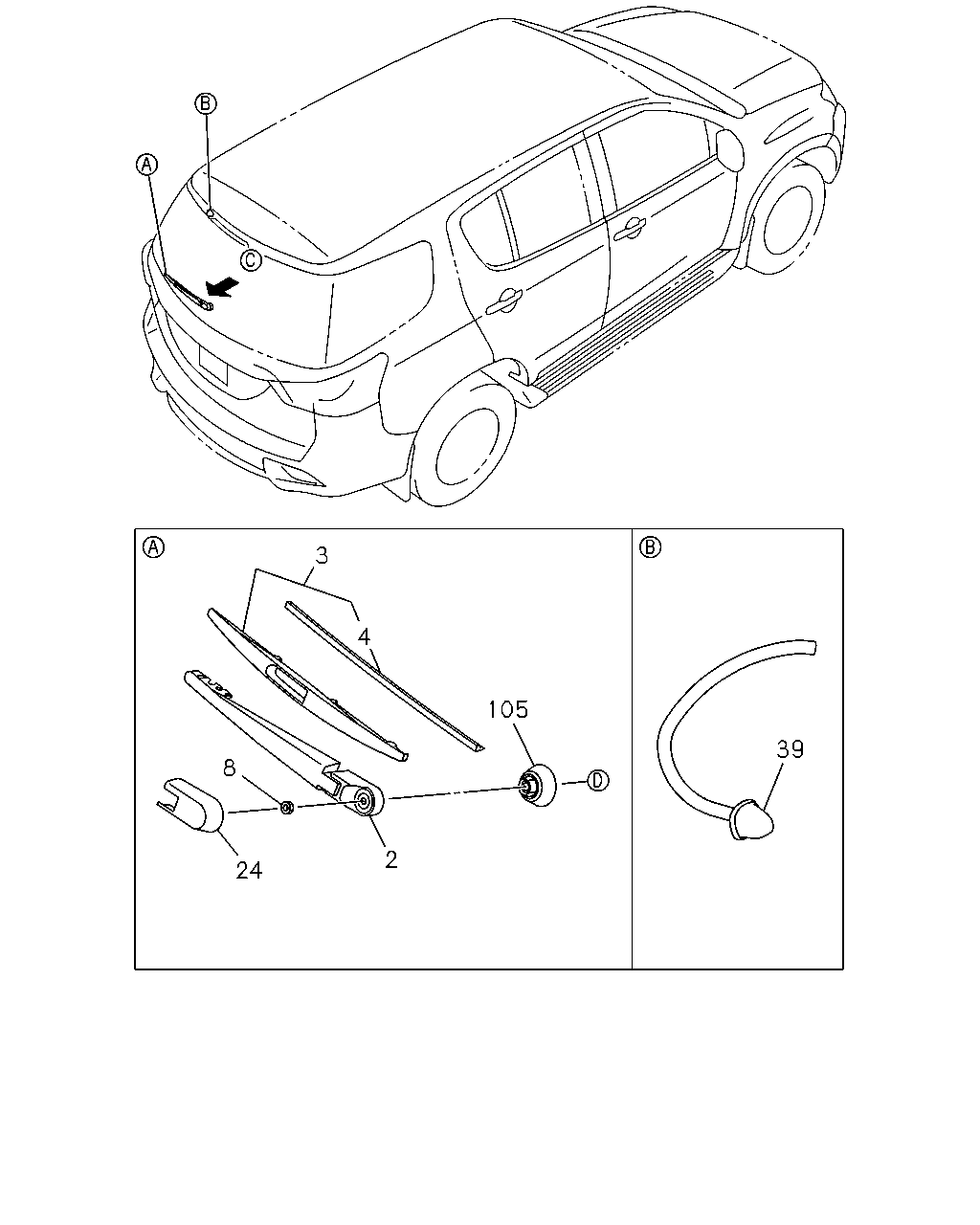

çizim 434257
3 4 105 2 24 8 39
BalonParca AdiParca NoAdetTipApplied Date A B
2 ARM ASM; REAR WIPER 8-98222-258-0 01 1 1407- ●
2 ARM ASM; REAR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98222-258-0 01 1 1407- ●
3 BLADE ASM; REAR WIPER 8-98222-259-0 01 1 1407- ●
3 BLADE ASM; REAR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98222-259-0 01 1 1407- ●
4 RUBBER; BLADE,RR WIPER 8-98253-585-0 01 1 1407- ●
4 RUBBER; BLADE,RR WIPER
CONTINUOUS REAR WIPER<CD6> 		8-98253-585-0 01 1 1407- ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
M6 		0-91111-506-0 01 1 1407- ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> M6 		0-91111-506-0 01 1 1407- ●
24 CAP; WASHER TANK,RR 8-98210-717-0 01 1 1407- ●
24 CAP; WASHER TANK,RR
CONTINUOUS REAR WIPER<CD6> 		8-98210-717-0 01 1 1407- ●
39 NOZZLE; RR WINDSHIELD,WASHER 8-98201-496-1 01 1 1407- ●
39 NOZZLE; RR WINDSHIELD,WASHER
CONTINUOUS REAR WIPER<CD6> 		8-98201-496-1 01 1 1407- ●
105 GROMMET; RR WIPER MOTOR 8-98210-508-0 01 1 1407- ●
105 GROMMET; RR WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> 		8-98210-508-0 01 1 1407- ●
