◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#145278) — 77 parça

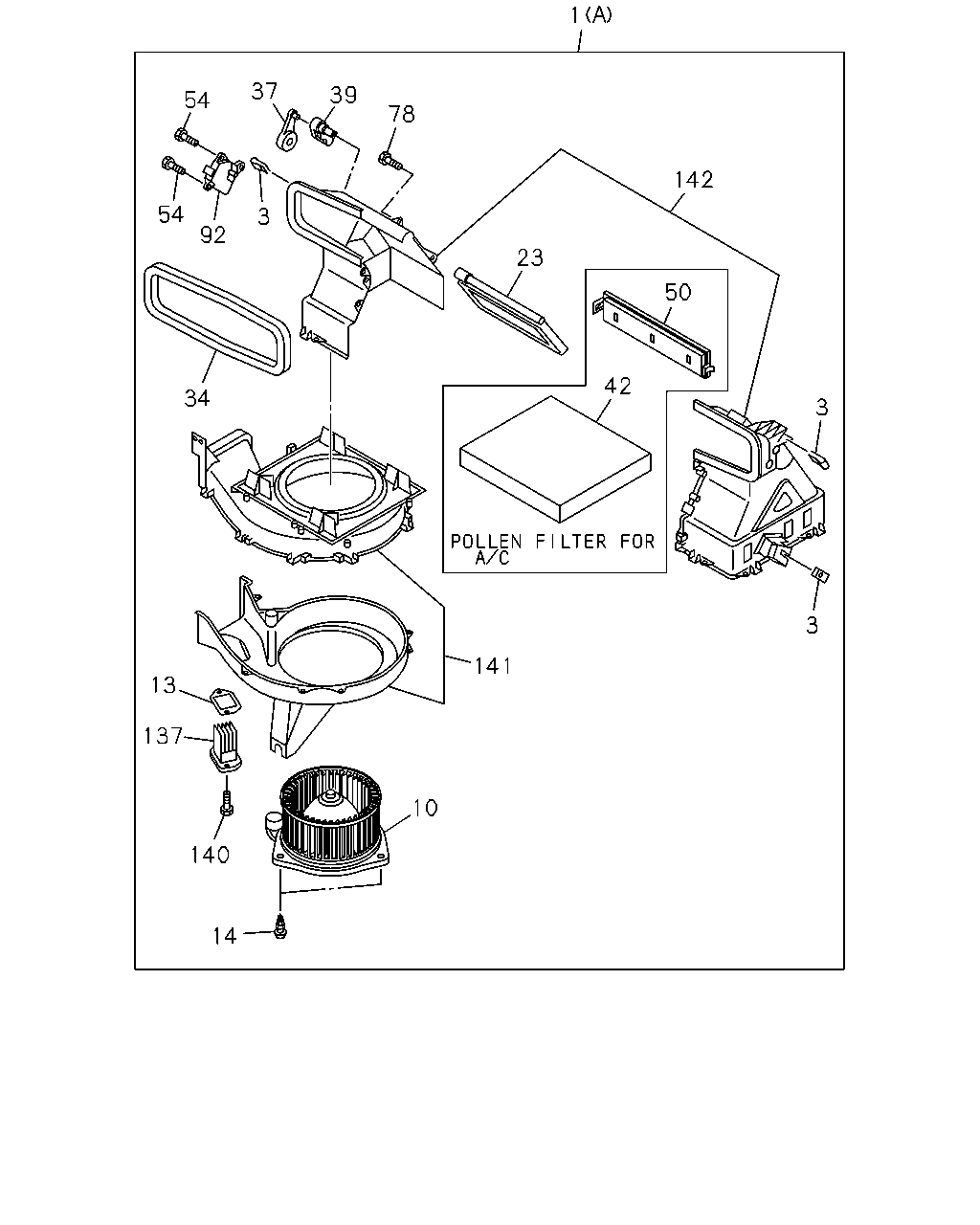

çizim 434217
1 142 50 42 3 3 141 10 14 140 137 13 34 92 3 54 54 37 39 78 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1407- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1407- ●
3 NUT; CASE 8-98139-394-1 03 1 1407- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1407- ● ●
13 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98157-116-1 01 1 1407- ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1407- ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1407-1410 ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98294-586-0 01 1 1411- ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1407- ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2) 		8-98195-045-0 01 1 1407- ● ●
37 LEVER; MODE LEVER
COOLER W/FRESH AIR(C65) 		8-98139-417-0 01 1 1407- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-416-0 01 1 1407- ● ●
42 FILTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1407- ● ●
50 COVER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1407- ● ●
54 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2) 		8-98139-395-1 02 1 1407- ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1407- ● ●
92 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-424-0 01 1 1407- ● ●
137 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2) 		8-98139-431-1 01 1 1407- ● ●
140 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2) 		8-98139-421-0 02 1 1407- ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-641-0 01 1 1407- ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-640-0 01 1 1407- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1407- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1407- ● ●
142 CASE ASM
COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1407- ● ●
142 CASE ASM
COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1407- ● ●
142 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1407- ●

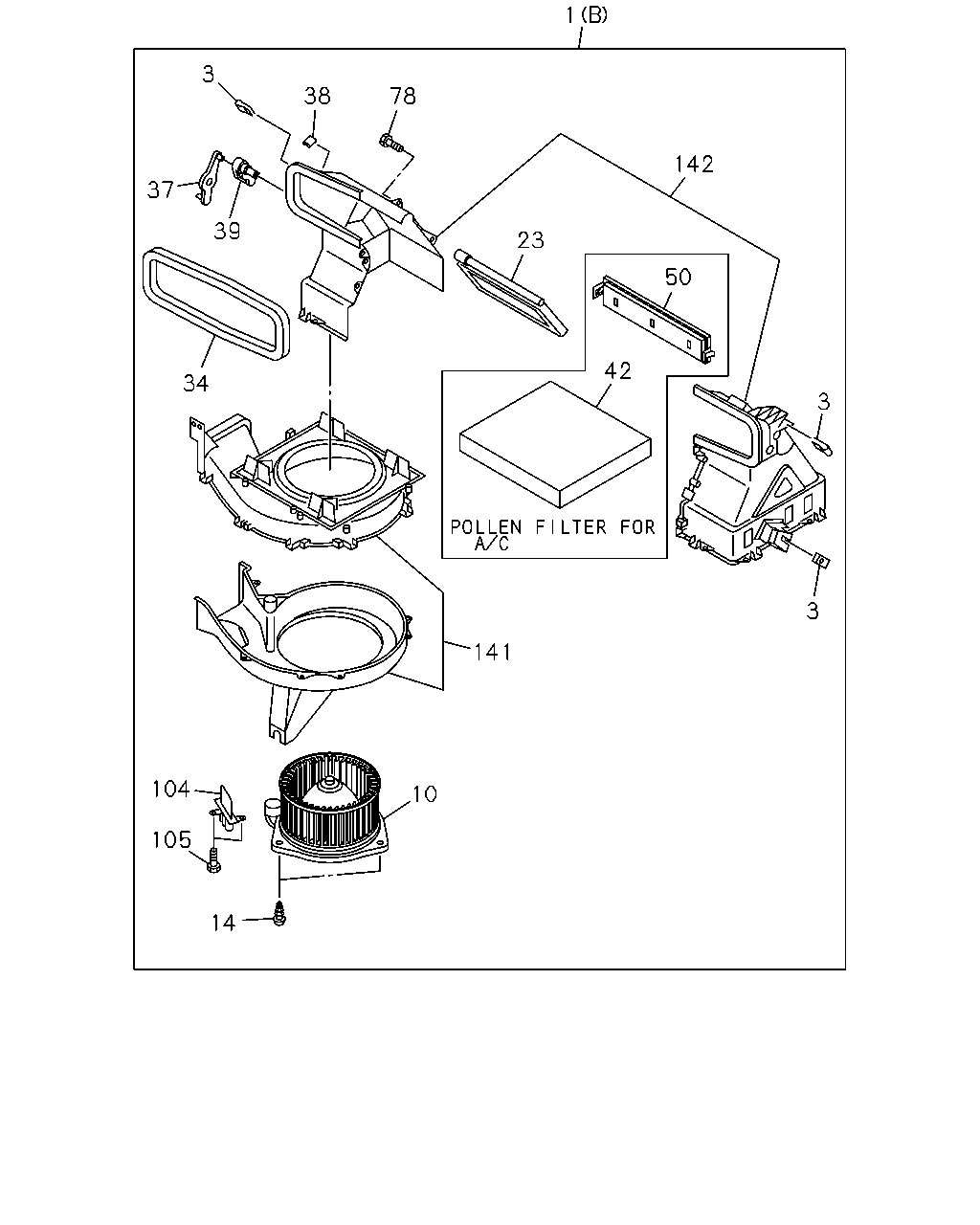

çizim 434254
3 3 50 42 142 1 23 141 10 14 105 104 34 39 37 3 38 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1407- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1407- ●
3 NUT; CASE 8-98139-394-1 03 1 1407- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1407- ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1407- ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1407-1410 ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98294-586-0 01 1 1411- ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1407- ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2) 		8-98195-045-0 01 1 1407- ● ●
37 LEVER; MODE LEVER
COOLER W/FRESH AIR(C65) 		8-98139-417-0 01 1 1407- ● ●
38 CLIP; BLOWER UNIT
COOLER W/FRESH AIR(C65) 		8-98139-422-1 01 1 1407- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-416-0 01 1 1407- ● ●
42 FILTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1407- ● ●
50 COVER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1407- ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1407- ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98183-234-0 01 1 1407- ● ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98139-395-1 02 1 1407- ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-641-0 01 1 1407- ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-640-0 01 1 1407- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1407- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1407- ● ●
142 CASE ASM
COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1407- ● ●
142 CASE ASM
COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1407- ● ●
142 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1407- ●

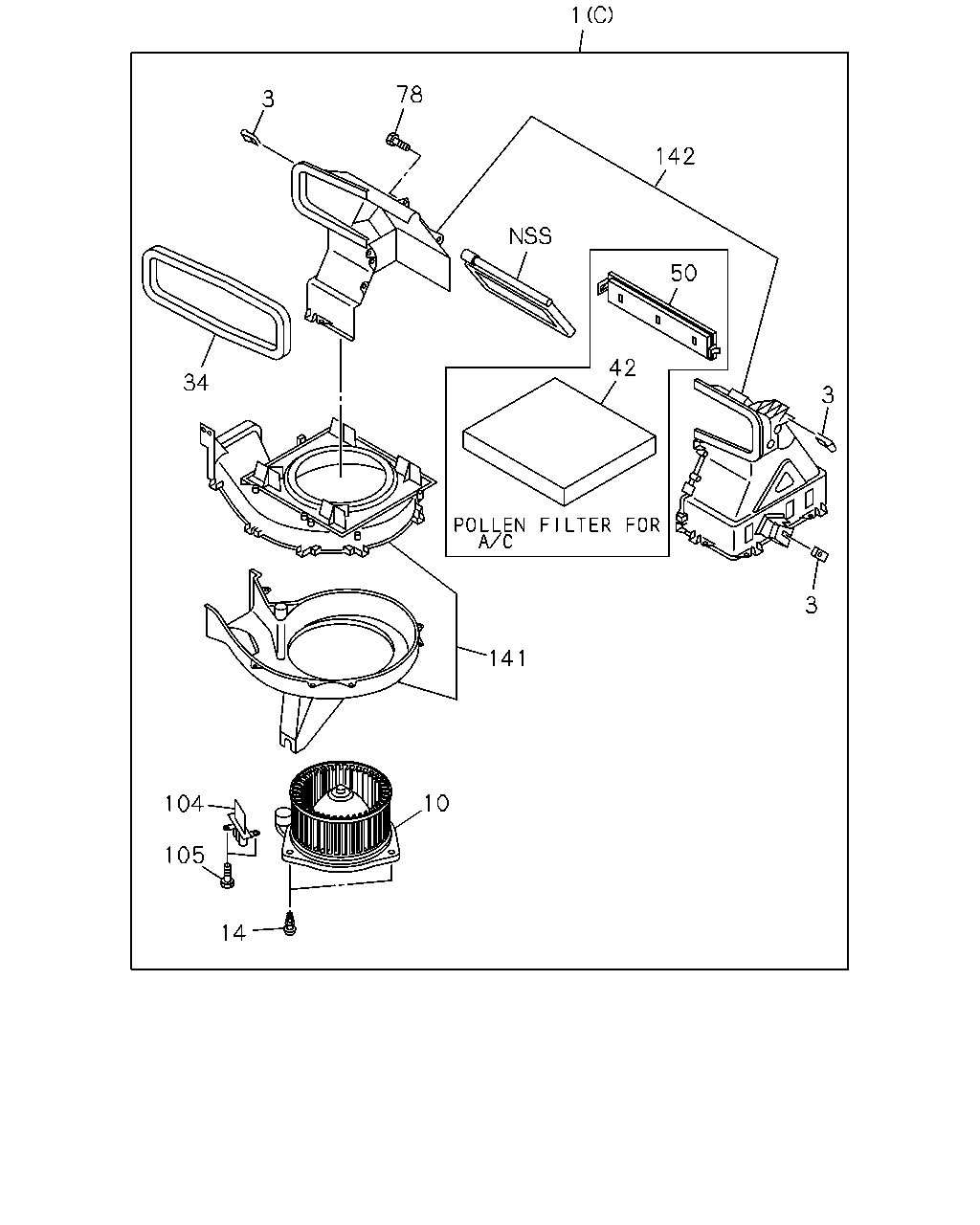

çizim 434291
3 3 50 142 1 42 141 10 14 105 104 34 3 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1407- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1407- ● ●
1 BLOWER ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1407- ●
3 NUT; CASE 8-98139-394-1 03 1 1407- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1407- ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1407- ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1407- ● ●
42 FILTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1407- ● ●
50 COVER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1407- ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1407- ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98183-234-0 01 1 1407- ● ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98139-395-1 02 1 1407- ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-641-0 01 1 1407- ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98233-640-0 01 1 1407- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1407- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1407- ● ●
142 CASE ASM
COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1407- ● ●
142 CASE ASM
COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1407- ● ●
142 CASE ASM
COOLER WO/FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
