◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-72 - COOLER UNIT ▶
8-72 — COOLER UNIT (#145277) — 58 parça

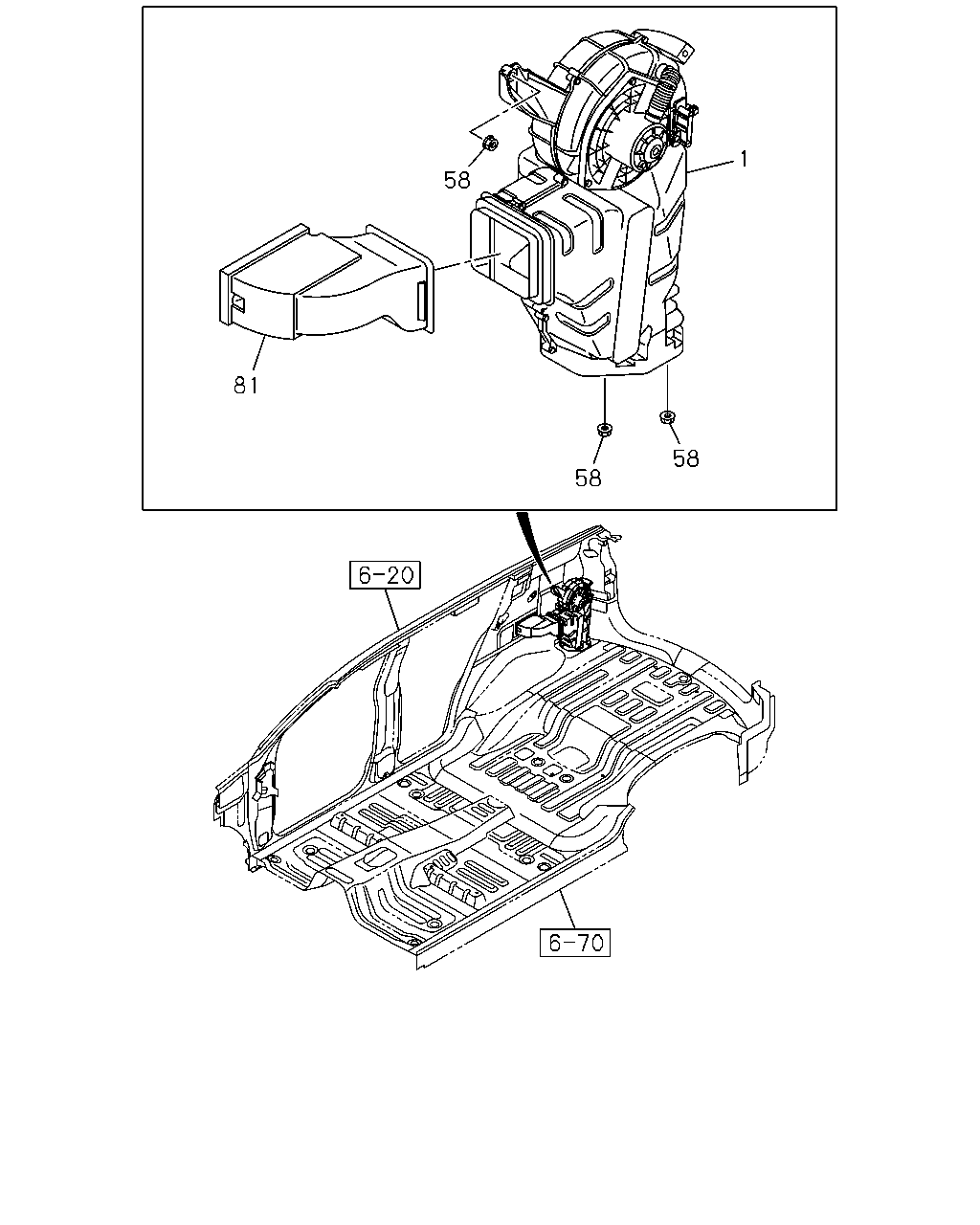

çizim 431788
58 1 58 58 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98192-297-3 01 1 1407- ●
1 COOLING UNIT; RR
REAR COOLER WO/HEATER<C69> 		8-98192-297-3 01 1 1407- ●
58 NUT; CASE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6 FLANGE 		8-98055-704-0 03 1 1407- ●
58 NUT; CASE
REAR COOLER WO/HEATER<C69> M6 FLANGE 		8-98055-704-0 03 1 1407- ●
81 DUCT; RR COOLER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98192-306-1 01 1 1407- ●
81 DUCT; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98192-306-1 01 1 1407- ●

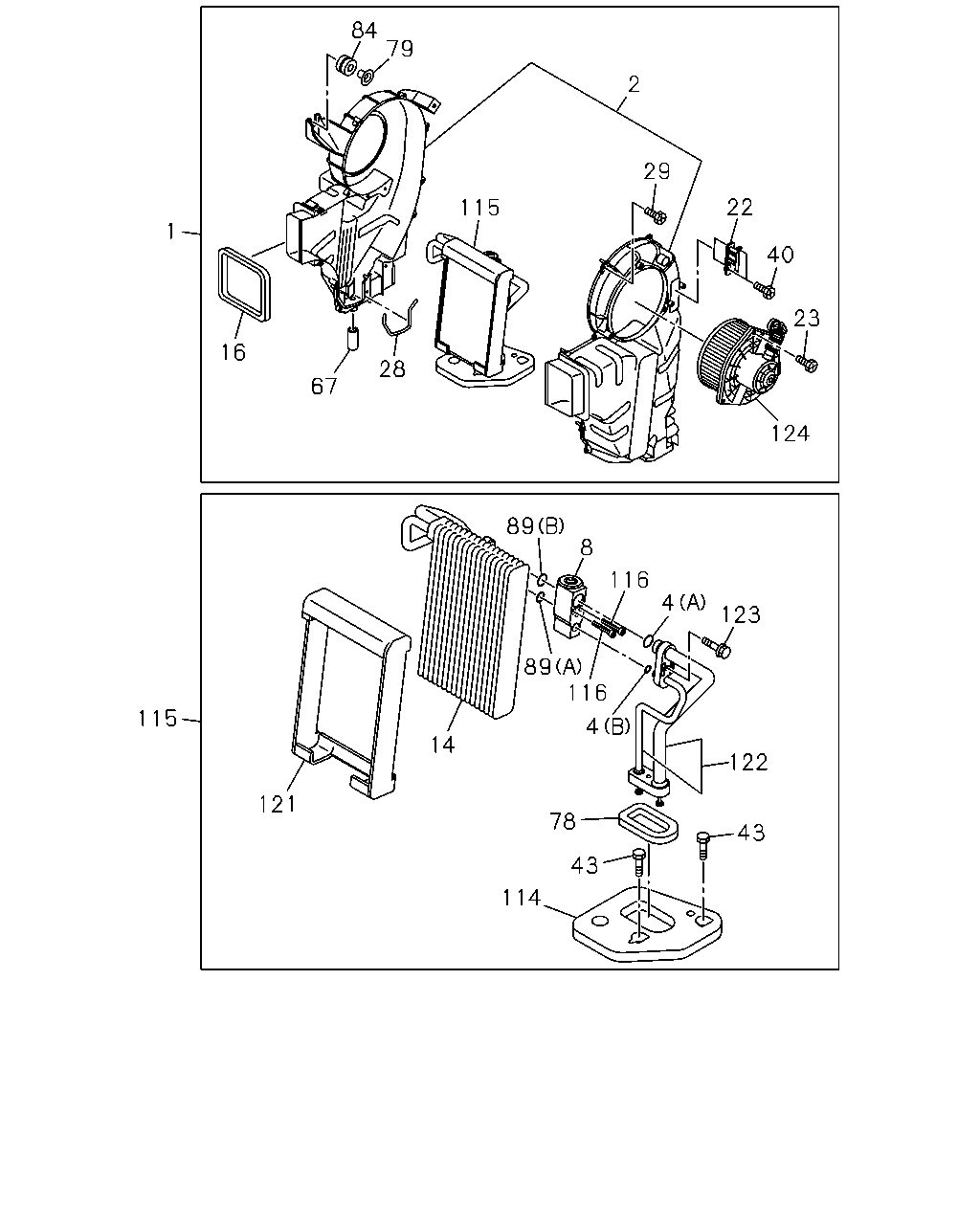

çizim 434028
115 121 14 78 114 43 43 122 4 123 4 116 116 8 89 89 2 22 29 40 23 124 28 67 16 1 84 79 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98192-297-3 01 1 1407- ●
1 COOLING UNIT; RR
REAR COOLER WO/HEATER<C69> 		8-98192-297-3 01 1 1407- ●
2 CASE; RR COOLER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-810-0 01 1 1407- ●
2 CASE; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98249-810-0 01 1 1407- ●
4 GASKET; VLV TO PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) ID=13.6 		8-98249-825-0 01 1 1407- ●
4 GASKET; VLV TO PIPE
REAR COOLER WO/HEATER<C69> (A) ID=13.6 		8-98249-825-0 01 1 1407- ●
4 GASKET; VLV TO PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) ID=6.8 		8-98249-826-0 01 1 1407- ●
4 GASKET; VLV TO PIPE
REAR COOLER WO/HEATER<C69> (B) ID=6.8 		8-98249-826-0 01 1 1407- ●
8 VALVE; EXPANSION
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-821-0 01 1 1407- ●
8 VALVE; EXPANSION
REAR COOLER WO/HEATER<C69> 		8-98249-821-0 01 1 1407- ●
14 EVAPORATOR; RR COOLER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-820-0 01 1 1407- ●
14 EVAPORATOR; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98249-820-0 01 1 1407- ●
16 LINING; CASE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-817-0 01 1 1407- ●
16 LINING; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-817-0 01 1 1407- ●
22 RESISTOR; RR COOLER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-97321-273-0 01 1 1407- ●
22 RESISTOR; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-97321-273-0 01 1 1407- ●
23 SCREW; CASE TO MOTOR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-818-0 03 1 1407- ●
23 SCREW; CASE TO MOTOR
REAR COOLER WO/HEATER<C69> 		8-98249-818-0 03 1 1407- ●
28 LINING; CASE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-815-0 01 1 1407- ●
28 LINING; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-815-0 01 1 1407- ●
29 SCREW; CASE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-818-0 13 1 1407- ●
29 SCREW; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-818-0 13 1 1407- ●
40 SCREW; RESISTOR FIX,COOLER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-818-0 02 1 1407- ●
40 SCREW; RESISTOR FIX,COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-818-0 02 1 1407- ●
43 BOLT; COOLER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-830-0 02 1 1407- ●
43 BOLT; COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-830-0 02 1 1407- ●
67 HOSE; DRAIN
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-814-0 01 1 1407- ●
67 HOSE; DRAIN
REAR COOLER WO/HEATER<C69> 		8-98249-814-0 01 1 1407- ●
78 GROMMET; COOLER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-827-0 01 1 1407- ●
78 GROMMET; COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-827-0 01 1 1407- ●
79 COLLAR; COOLER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-813-0 01 1 1407- ●
79 COLLAR; COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-813-0 01 1 1407- ●
84 RUBBER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-812-0 01 1 1407- ●
84 RUBBER
REAR COOLER WO/HEATER<C69> 		8-98249-812-0 01 1 1407- ●
89 GASKET; EVAP TO VLV
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) ID=10.7 		8-98249-823-0 01 1 1407- ●
89 GASKET; EVAP TO VLV
REAR COOLER WO/HEATER<C69> (A) ID=10.7 		8-98249-823-0 01 1 1407- ●
89 GASKET; EVAP TO VLV
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) ID=14.3 		8-98249-824-0 01 1 1407- ●
89 GASKET; EVAP TO VLV
REAR COOLER WO/HEATER<C69> (B) ID=14.3 		8-98249-824-0 01 1 1407- ●
114 SEAL; CASE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-816-0 01 1 1407- ●
114 SEAL; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-816-0 01 1 1407- ●
115 EVAPORATOR ASM; COOLING UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-819-0 01 1 1407- ●
115 EVAPORATOR ASM; COOLING UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-819-0 01 1 1407- ●
116 BOLT; EXPANSION VALVE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-822-0 02 1 1407- ●
116 BOLT; EXPANSION VALVE
REAR COOLER WO/HEATER<C69> 		8-98249-822-0 02 1 1407- ●
121 INSULATOR; EVAP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98251-842-0 01 1 1407- ●
121 INSULATOR; EVAP
REAR COOLER WO/HEATER<C69> 		8-98251-842-0 01 1 1407- ●
122 PIPE ASM; EVAP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98251-843-0 01 1 1407- ●
122 PIPE ASM; EVAP
REAR COOLER WO/HEATER<C69> 		8-98251-843-0 01 1 1407- ●
123 SCREW
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-828-0 01 1 1407- ●
123 SCREW
REAR COOLER WO/HEATER<C69> 		8-98249-828-0 01 1 1407- ●
124 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98249-829-0 01 1 1407- ●
124 BLOWER ASM
REAR COOLER WO/HEATER<C69> 		8-98249-829-0 01 1 1407- ●
