8-60 — HEATER UNIT; FRONT (#145274) — 120 parça

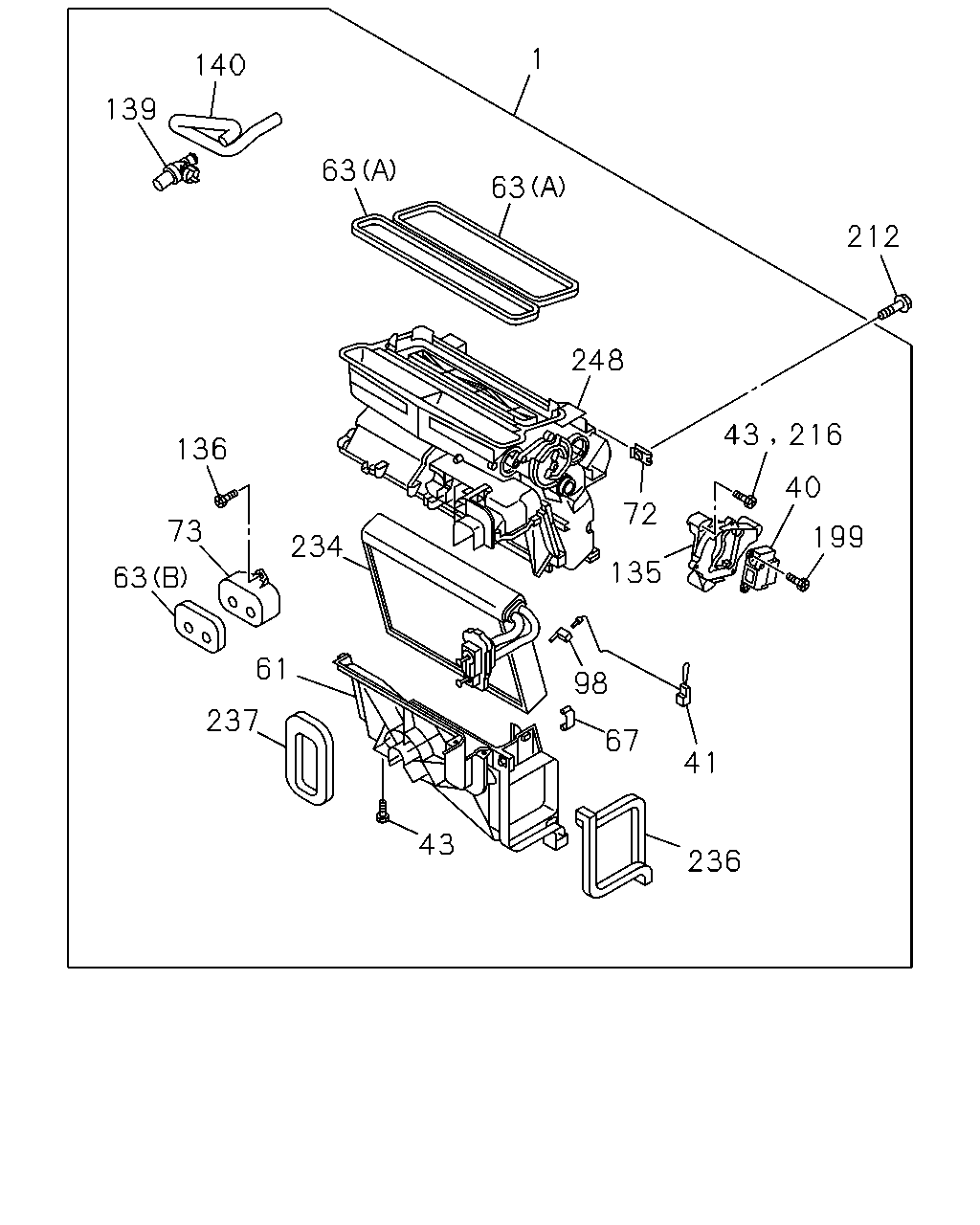

çizim 434026
212 1 140 139 63 63 248 41 67 98 135 199 40 216 43 72 61 234 136 73 63 237 236 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98274-149-1 01 1 1407- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98233-025-1 01 1 1407- ● ●
1 HEATER UNIT
COOLER WO/FRESH AIR(8NF) 		8-98233-024-1 01 1 1407- ●
40 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-385-0 01 1 1407- ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-382-0 01 1 1407- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1407- ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1407- ●
43 SCREW; CASE,HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 15 1 1407- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1407- ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-572-0 01 1 1407- ●
61 CASE; HTR UNIT 8-98233-572-0 01 1 1407- ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2) (A) 		8-98139-358-0 02 1 1407- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-0 01 1 1407- ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1407- ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1407- ●
63 LINING; HTR UNIT
(B) 		8-98157-118-1 01 1 1407- ●
67 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1407- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1407- ●
72 NUT; CASE,HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-394-1 03 1 1407- ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1407- ●
73 PLATE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-591-0 01 1 1407- ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1407- ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98157-122-0 01 1 1407- ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1407- ●
135 COVER; HTR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1407- ● ●
136 SCREW; PLATE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 02 1 1407- ●
136 SCREW; PLATE 8-98233-593-0 02 1 1407- ●
139 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-392-1 01 1 1407- ● ●
140 HOSE; AIR
AUTO COOLER SYSTEM(CJ2) 		8-98274-187-0 01 1 1407- ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) 		8-98233-593-0 02 1 1407- ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 		8-98233-593-0 03 1 1407- ● ●
212 BOLT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 05 1 1407- ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1407- ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 03 1 1407- ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-376-1 01 1 1407- ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1407- ●
236 GASKET; HEATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1407- ●
236 GASKET; HEATER 8-98139-357-0 01 1 1407- ●
237 INSULATOR; EVAPORATOR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-360-1 01 1 1407- ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1407- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-570-0 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-564-0 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1407- ●

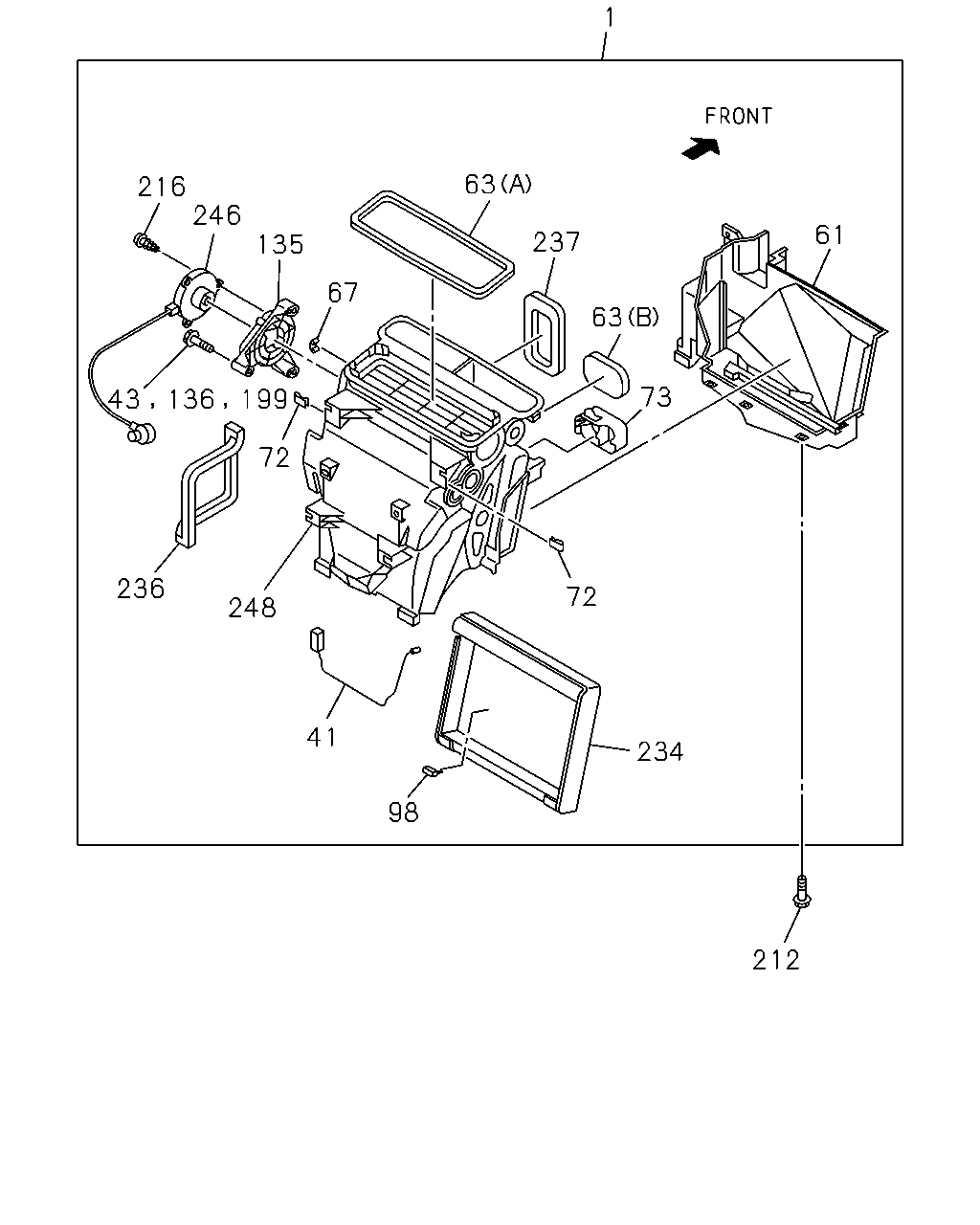

çizim 434055
1 63 237 63 73 61 72 98 234 212 41 248 236 43 216 135 246 67 136 199 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98274-149-1 01 1 1407- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98233-025-1 01 1 1407- ● ●
1 HEATER UNIT
COOLER WO/FRESH AIR(8NF) 		8-98233-024-1 01 1 1407- ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-382-0 01 1 1407- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1407- ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1407- ●
43 SCREW; CASE,HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 15 1 1407- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1407- ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-572-0 01 1 1407- ●
61 CASE; HTR UNIT 8-98233-572-0 01 1 1407- ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2) (A) 		8-98139-358-0 02 1 1407- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-0 01 1 1407- ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1407- ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1407- ●
63 LINING; HTR UNIT
(B) 		8-98157-118-1 01 1 1407- ●
67 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1407- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1407- ●
72 NUT; CASE,HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-394-1 03 1 1407- ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1407- ●
73 PLATE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-591-0 01 1 1407- ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1407- ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98157-122-0 01 1 1407- ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1407- ●
135 COVER; HTR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1407- ● ●
136 SCREW; PLATE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 02 1 1407- ●
136 SCREW; PLATE 8-98233-593-0 02 1 1407- ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) 		8-98233-593-0 02 1 1407- ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 		8-98233-593-0 03 1 1407- ● ●
212 BOLT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 05 1 1407- ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1407- ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 03 1 1407- ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-376-1 01 1 1407- ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1407- ●
236 GASKET; HEATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1407- ●
236 GASKET; HEATER 8-98139-357-0 01 1 1407- ●
237 INSULATOR; EVAPORATOR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-360-1 01 1 1407- ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1407- ●
246 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-570-0 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-564-0 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1407- ●

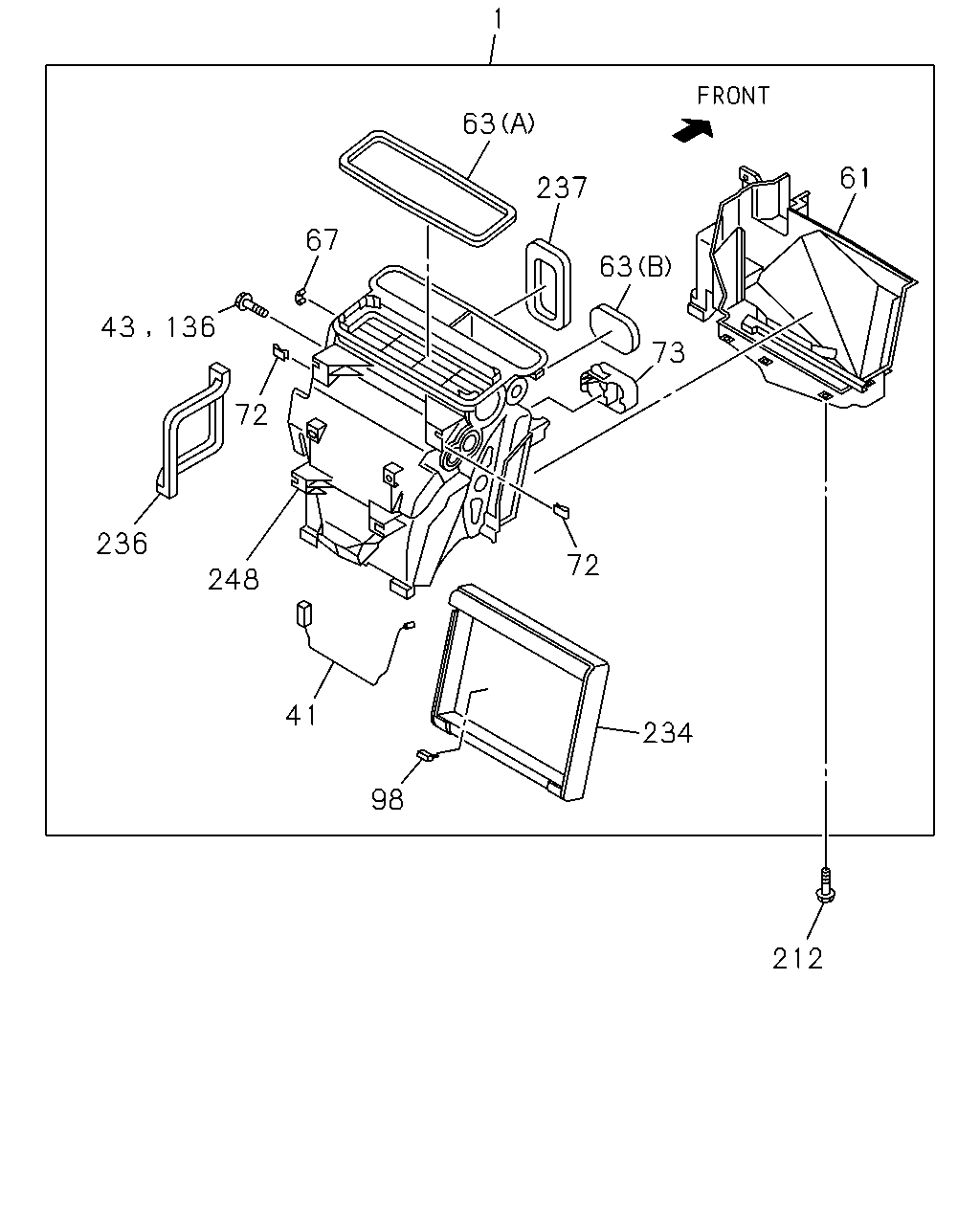

çizim 434216
212 234 72 98 41 248 236 43 136 72 67 63 1 237 63 73 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98274-149-1 01 1 1407- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98233-025-1 01 1 1407- ● ●
1 HEATER UNIT
COOLER WO/FRESH AIR(8NF) 		8-98233-024-1 01 1 1407- ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-382-0 01 1 1407- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1407- ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98157-121-0 01 1 1407- ●
43 SCREW; CASE,HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 15 1 1407- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1407- ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-572-0 01 1 1407- ●
61 CASE; HTR UNIT 8-98233-572-0 01 1 1407- ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2) (A) 		8-98139-358-0 02 1 1407- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-0 01 1 1407- ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1407- ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1407- ●
63 LINING; HTR UNIT
(B) 		8-98157-118-1 01 1 1407- ●
67 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1407- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1407- ●
72 NUT; CASE,HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-394-1 03 1 1407- ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1407- ●
73 PLATE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-591-0 01 1 1407- ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1407- ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98157-122-0 01 1 1407- ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1407- ●
136 SCREW; PLATE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98233-593-0 02 1 1407- ●
136 SCREW; PLATE 8-98233-593-0 02 1 1407- ●
212 BOLT; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 05 1 1407- ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1407- ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-376-1 01 1 1407- ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1407- ●
236 GASKET; HEATER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1407- ●
236 GASKET; HEATER 8-98139-357-0 01 1 1407- ●
237 INSULATOR; EVAPORATOR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98139-360-1 01 1 1407- ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1407- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-570-0 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-564-0 01 1 1407- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR(8NF) 		8-98233-563-0 01 1 1407- ●
