◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#145273) — 111 parça

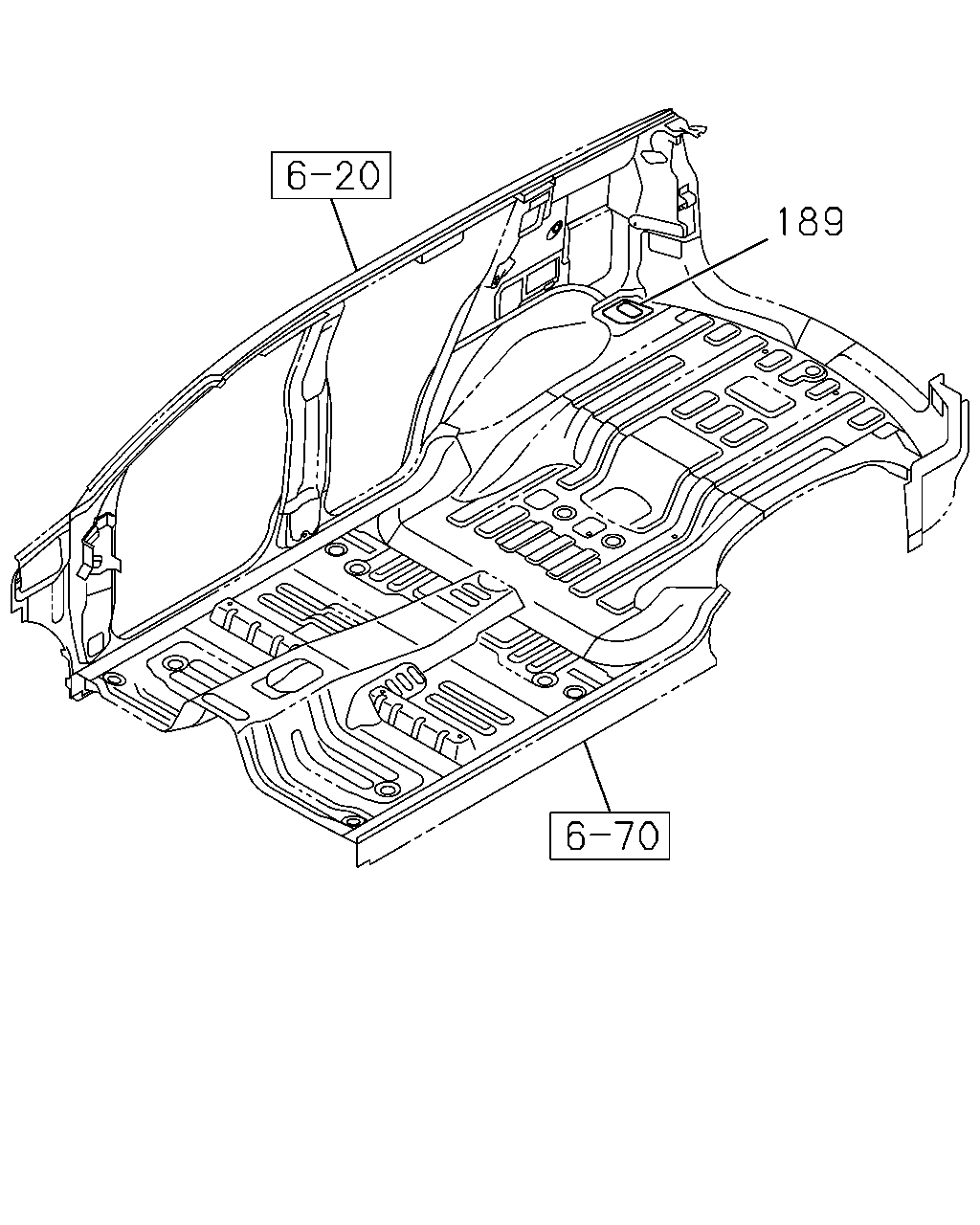

çizim 432522
189
BalonParca AdiParca NoAdetTipApplied Date A B
189 GROMMET
EXC. REAR COOLER WO/HEATER<C69> 		8-98192-298-0 01 1 1407- ●

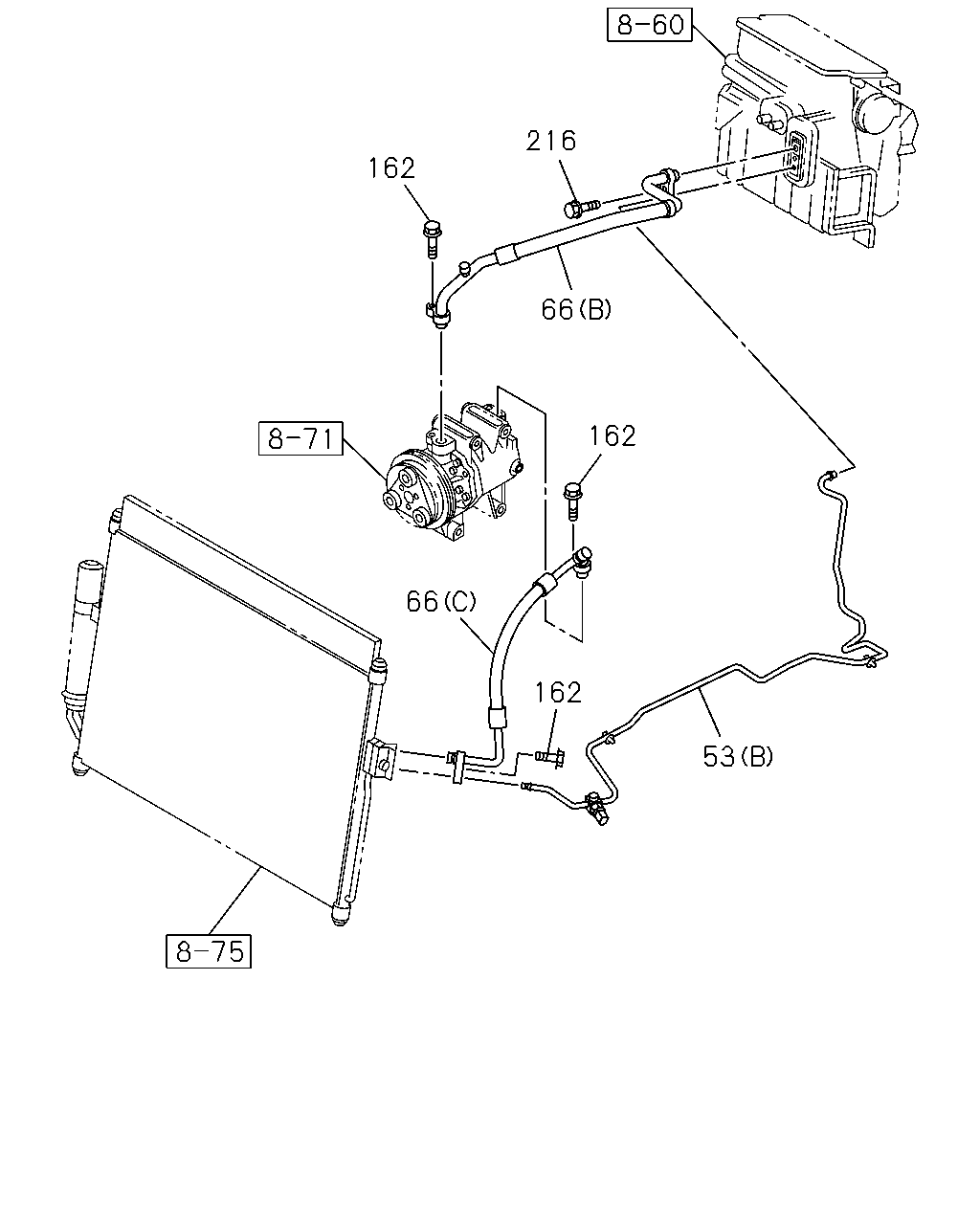

çizim 434179
216 162 66 162 66 162 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE 		8-98129-150-4 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
(C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE 		8-98102-233-3 01 1 1407- ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M8X25 FLANGE 		0-28650-825-0 03 1 1407- ●
162 BOLT; FLEX HOSE
M8X25 FLANGE 		0-28650-825-0 03 1 1407- ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 01 1 1407- ●
216 BOLT; HOSE FIX
M6X20 FLANGE 		0-28650-620-0 01 1 1407- ●
çizim 434350
53 66 66 123 123 146 122 202 146 147 67 67 67 67 147
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE 		8-98129-150-4 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
(C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE 		8-98102-233-3 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (D) SCAL 		8-97919-270-0 01 1 1407- ●
67 GASKET; FLEX HOSE
REAR COOLER WO/HEATER<C69> (D) SCAL 		8-97919-270-0 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98164-687-0 01 1 1407- ●
67 GASKET; FLEX HOSE
(B) 		8-98164-687-0 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) 		8-98164-688-0 01 1 1407- ●
67 GASKET; FLEX HOSE
(C) 		8-98164-688-0 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98193-624-0 02 1 1407- ●
67 GASKET; FLEX HOSE
(A) 		8-98193-624-0 02 1 1407- ●
122 GASKET
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98164-690-0 01 1 1407- ●
122 GASKET 8-98164-690-0 01 1 1407- ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98164-689-0 03 1 1407- ●
123 GASKET; RECEIVER PIPE
REAR COOLER WO/HEATER<C69> 		8-98164-689-0 03 1 1407- ●
123 GASKET; RECEIVER PIPE
EXC. REAR COOLER WO/HEATER<C69> 		8-98164-689-0 02 1 1407- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-97370-357-0 01 1 1407- ●
146 CLIP; RECEIVER PIPE
REAR COOLER WO/HEATER<C69> (A) 		8-97370-357-0 01 1 1407- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98193-622-0 02 1 1407- ●
146 CLIP; RECEIVER PIPE
(B) 		8-98193-622-0 02 1 1407- ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98193-623-0 01 1 1407- ●
147 CAP; FLEX HOSE
(A) 		8-98193-623-0 01 1 1407- ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98193-625-0 01 1 1407- ●
147 CAP; FLEX HOSE
(B) 		8-98193-625-0 01 1 1407- ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98164-691-0 01 1 1407- ●
202 SWITCH; PRESSURE 8-98164-691-0 01 1 1407- ●

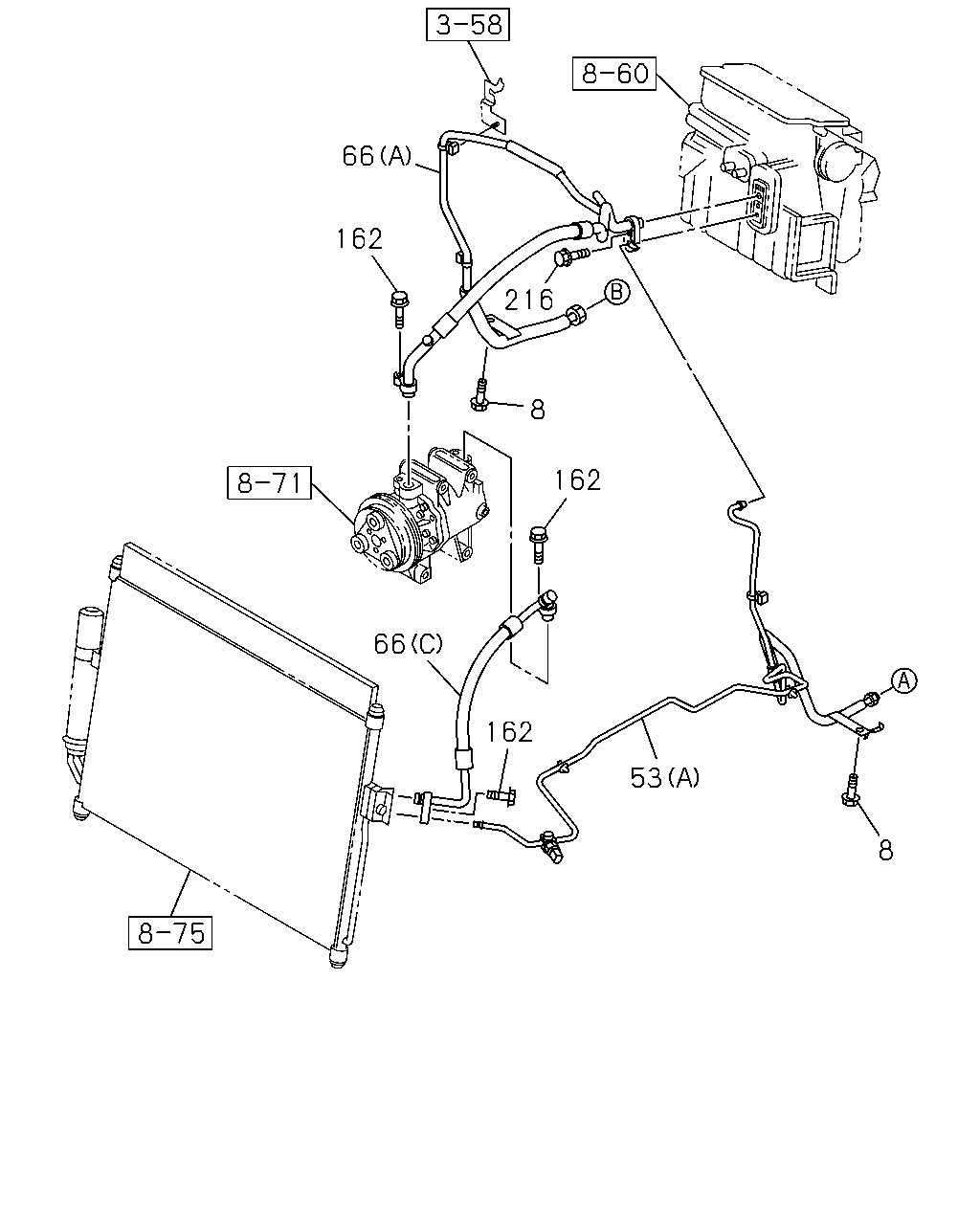

çizim 434382
8 53 162 66 162 8 162 66 216
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 10 1 1407- ●
8 BOLT; CLIP
REAR COOLER WO/HEATER<C69> M6X20 FLANGE 		0-28650-620-0 10 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE 		8-98129-150-4 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
(C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE 		8-98102-233-3 01 1 1407- ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M8X25 FLANGE 		0-28650-825-0 03 1 1407- ●
162 BOLT; FLEX HOSE
M8X25 FLANGE 		0-28650-825-0 03 1 1407- ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 01 1 1407- ●
216 BOLT; HOSE FIX
M6X20 FLANGE 		0-28650-620-0 01 1 1407- ●
çizim 434408
8 8 8 8 8 8 8 8 8 185 185 109
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) M6X20 FLANGE 		0-28650-620-0 10 1 1407- ●
8 BOLT; CLIP
REAR COOLER WO/HEATER<C69> M6X20 FLANGE 		0-28650-620-0 10 1 1407- ●
109 PIPE; PIPE TO PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98197-727-0 01 1 1407- ●
109 PIPE; PIPE TO PIPE
REAR COOLER WO/HEATER<C69> 		8-98197-727-0 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98197-725-1 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (A) 		8-98197-725-1 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98197-726-1 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (B) 		8-98197-726-1 01 1 1407- ●
çizim 434431
53 66 66 67 67 147 67 147 67 67 150 150 123 202 122 146 146 123 123 146
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE 		8-98197-724-1 01 1 1407- ●
53 PIPE; RECEIVER TANK TO EVAP
EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE 		8-98129-150-4 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE 		8-98197-721-1 01 1 1407- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
(C) HIGH PRESSURE 		8-98129-345-1 01 1 1407- ●
66 HOSE; FLEX,A/C
EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE 		8-98102-233-3 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (D) SCAL 		8-97919-270-0 01 1 1407- ●
67 GASKET; FLEX HOSE
REAR COOLER WO/HEATER<C69> (D) SCAL 		8-97919-270-0 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98164-687-0 01 1 1407- ●
67 GASKET; FLEX HOSE
(B) 		8-98164-687-0 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) 		8-98164-688-0 01 1 1407- ●
67 GASKET; FLEX HOSE
(C) 		8-98164-688-0 01 1 1407- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98193-624-0 02 1 1407- ●
67 GASKET; FLEX HOSE
(A) 		8-98193-624-0 02 1 1407- ●
122 GASKET
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98164-690-0 01 1 1407- ●
122 GASKET 8-98164-690-0 01 1 1407- ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98164-689-0 03 1 1407- ●
123 GASKET; RECEIVER PIPE
REAR COOLER WO/HEATER<C69> 		8-98164-689-0 03 1 1407- ●
123 GASKET; RECEIVER PIPE
EXC. REAR COOLER WO/HEATER<C69> 		8-98164-689-0 02 1 1407- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-97370-357-0 01 1 1407- ●
146 CLIP; RECEIVER PIPE
REAR COOLER WO/HEATER<C69> (A) 		8-97370-357-0 01 1 1407- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98193-622-0 02 1 1407- ●
146 CLIP; RECEIVER PIPE
(B) 		8-98193-622-0 02 1 1407- ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98193-623-0 01 1 1407- ●
147 CAP; FLEX HOSE
(A) 		8-98193-623-0 01 1 1407- ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98193-625-0 01 1 1407- ●
147 CAP; FLEX HOSE
(B) 		8-98193-625-0 01 1 1407- ●
150 CLIP; HOSE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-97370-357-0 02 1 1407- ●
150 CLIP; HOSE
REAR COOLER WO/HEATER<C69> 		8-97370-357-0 02 1 1407- ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98164-691-0 01 1 1407- ●
202 SWITCH; PRESSURE 8-98164-691-0 01 1 1407- ●
çizim 434464
109 185 185 116 116 116 116 116 116 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
109 PIPE; PIPE TO PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98197-727-0 01 1 1407- ●
109 PIPE; PIPE TO PIPE
REAR COOLER WO/HEATER<C69> 		8-98197-727-0 01 1 1407- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-97321-351-0 01 1 1407- ●
116 GASKET; PIPE
REAR COOLER WO/HEATER<C69> (A) 		8-97321-351-0 01 1 1407- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-97321-353-0 03 1 1407- ●
116 GASKET; PIPE
REAR COOLER WO/HEATER<C69> (B) 		8-97321-353-0 03 1 1407- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (C) SCAL 		8-97919-270-0 04 1 1407- ●
116 GASKET; PIPE
REAR COOLER WO/HEATER<C69> (C) SCAL 		8-97919-270-0 04 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (A) 		8-98197-725-1 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (A) 		8-98197-725-1 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) 		8-98197-726-1 01 1 1407- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
REAR COOLER WO/HEATER<C69> (B) 		8-98197-726-1 01 1 1407- ●
