51518 - UCR/UCS(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#145269) — 38 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

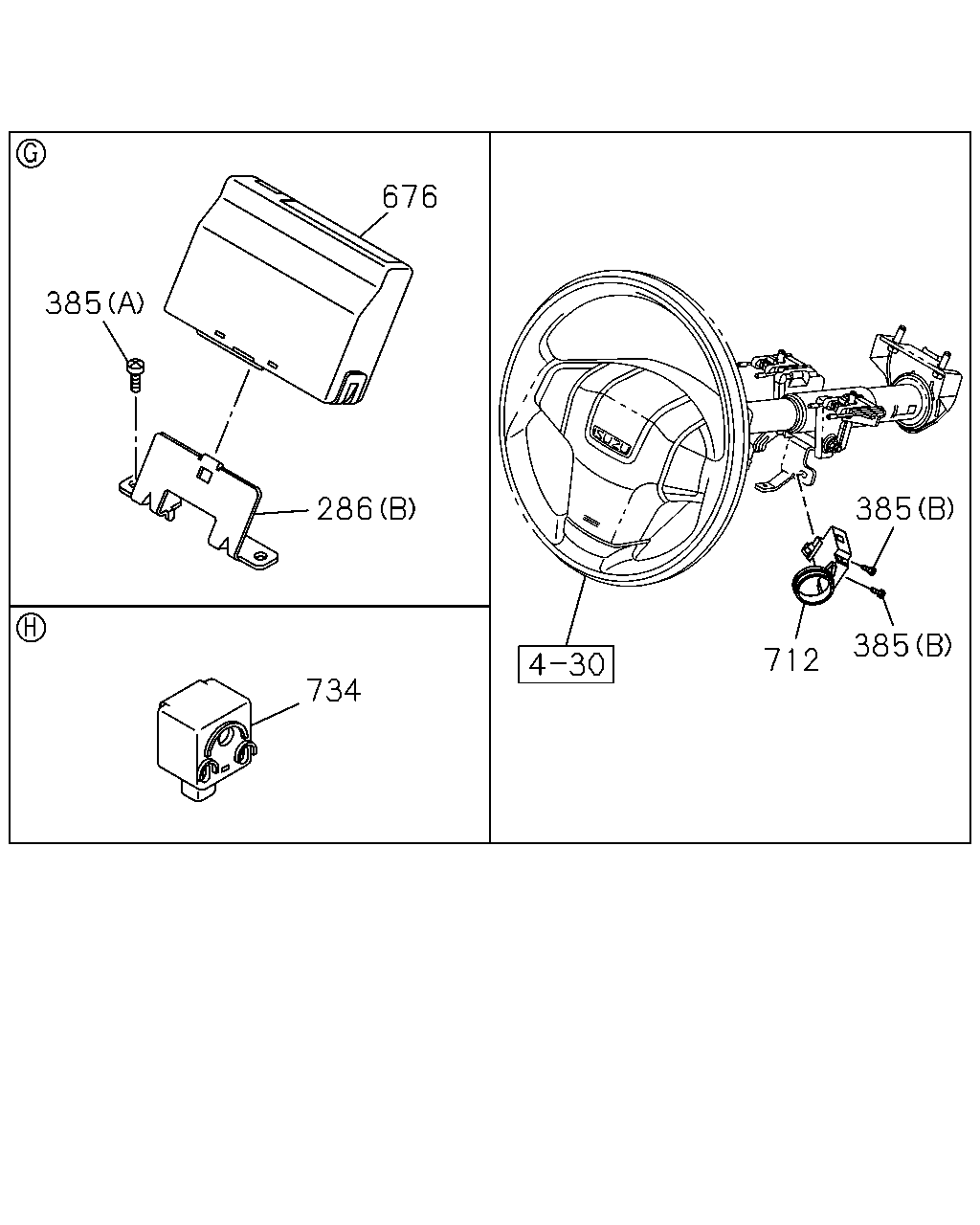

[828A] CONTROL UNIT (12 parça)

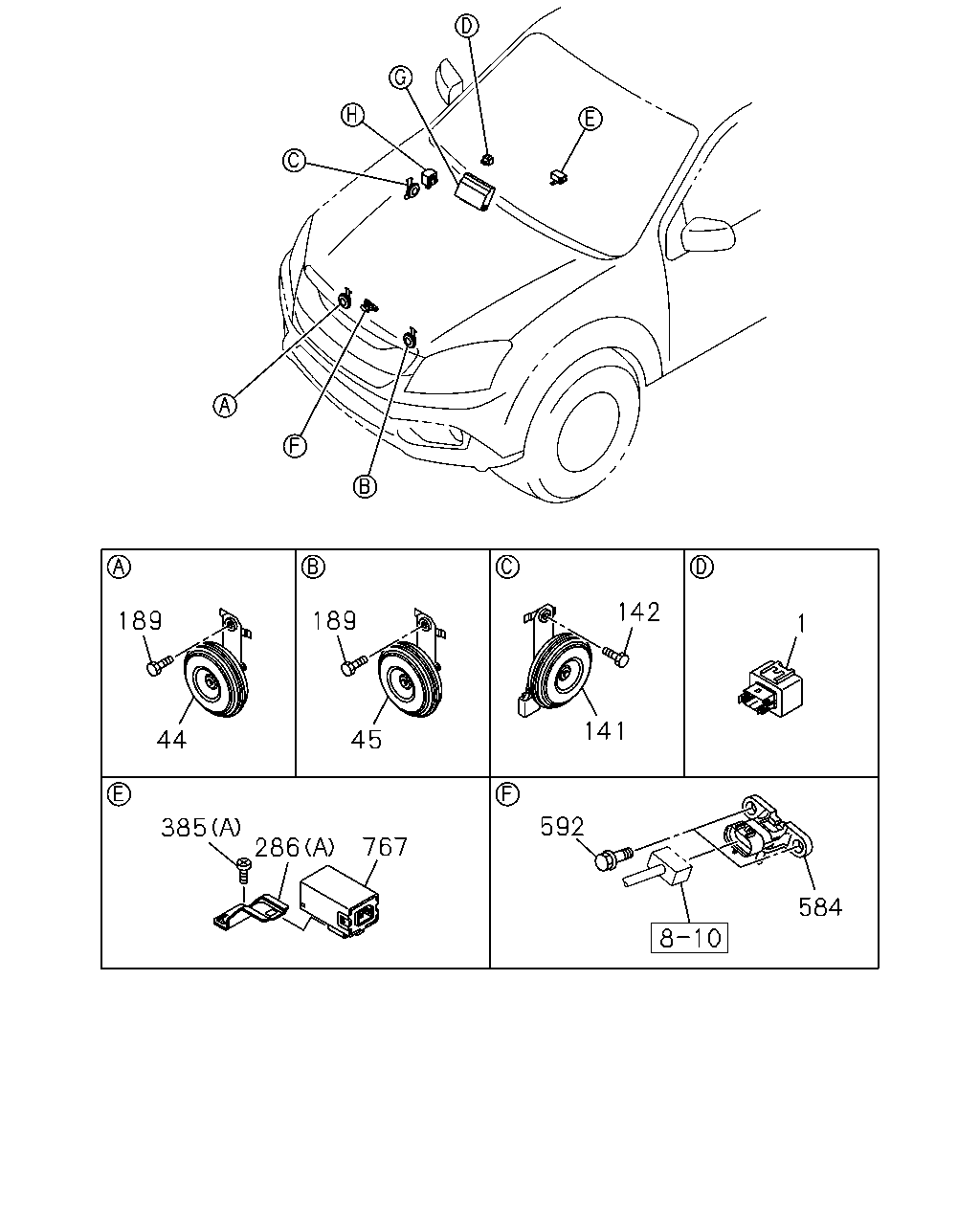

[828A] HORN (26 parça)
▶
676
286
734
712
385
385
385
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
286
BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98102-502-2
01
1
1407-1408
●
●
286
BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)
8-98102-503-0
01
1
1407-1407
●
●
286
BRACKET
REMOTE CONT DOOR LOCK<AP5> (A)
8-98102-503-0
01
1
1408-
●
●
385
BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING
8-98167-449-0
02
1
1407-1408
●
●
385
BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M5X16 TAPPING
8-98167-449-0
01
1
1407-1407
●
●
385
BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> (A) M5X16 TAPPING
8-98167-449-0
01
1
1408-
●
●
385
BOLT; CONT UNIT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1407-1408
●
●
385
BOLT; CONT UNIT
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1409-
●
●
676
CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3>
8-98243-994-1
01
1
1407-1408
●
●
712
CONTROL UNIT; ANTI THEFT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98226-205-0
01
1
1407-1408
●
●
712
CONTROL UNIT; ANTI THEFT
8-98226-205-0
01
1
1409-
●
●
734
ALARM; MULTI
PASSIVE ENTRY AND START SYSTEM<AP3>
8-98192-897-0
01
1
1407-1408
●
●
1
142
141
592
584
767
286
385
45
189
44
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
8-98080-978-0
01
1
1407-
●
●
44
HORN; HIGH NOTE
8-98219-100-0
01
1
1407-
●
44
HORN; HIGH NOTE
DUAL TONE HORN<U05>
8-98219-100-0
01
1
1407-
●
45
HORN; LOW NOTE
8-98219-102-1
01
1
1407-
●
●
141
HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98164-588-0
01
1
1407-
●
●
142
BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER
8-97086-822-0
01
1
1407-1501
●
●
142
BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
●
●
189
BOLT; HORN
M6X14 W/LK&PL WASHER
8-97086-822-0
01
1
1407-1501
●
●
189
BOLT; HORN
M6X14 W/LK&PL WASHER
8-97086-822-0
01
1
1407-1501
●
189
BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/LK&PL WASHER
8-97086-822-0
01
1
1407-1501
●
189
BOLT; HORN
M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
●
●
189
BOLT; HORN
M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
●
189
BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
●
286
BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98102-502-2
01
1
1407-1408
●
●
286
BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)
8-98102-503-0
01
1
1407-1407
●
●
286
BRACKET
REMOTE CONT DOOR LOCK<AP5> (A)
8-98102-503-0
01
1
1408-
●
●
385
BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING
8-98167-449-0
02
1
1407-1408
●
●
385
BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M5X16 TAPPING
8-98167-449-0
01
1
1407-1407
●
●
385
BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> (A) M5X16 TAPPING
8-98167-449-0
01
1
1408-
●
●
385
BOLT; CONT UNIT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1407-1408
●
●
385
BOLT; CONT UNIT
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1409-
●
●
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1407-
●
●
592
BOLT; SENSOR
M6X16 FLANGE
0-28650-616-0
02
1
1407-
●
●
767
RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3>
8-98250-499-0
01
1
1407-1407
●
●
767
RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5>
8-98226-196-0
01
1
1407-1509
●
●
767
RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5>
8-98076-338-1
01
1
1510-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
