◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#145267) — 38 parça

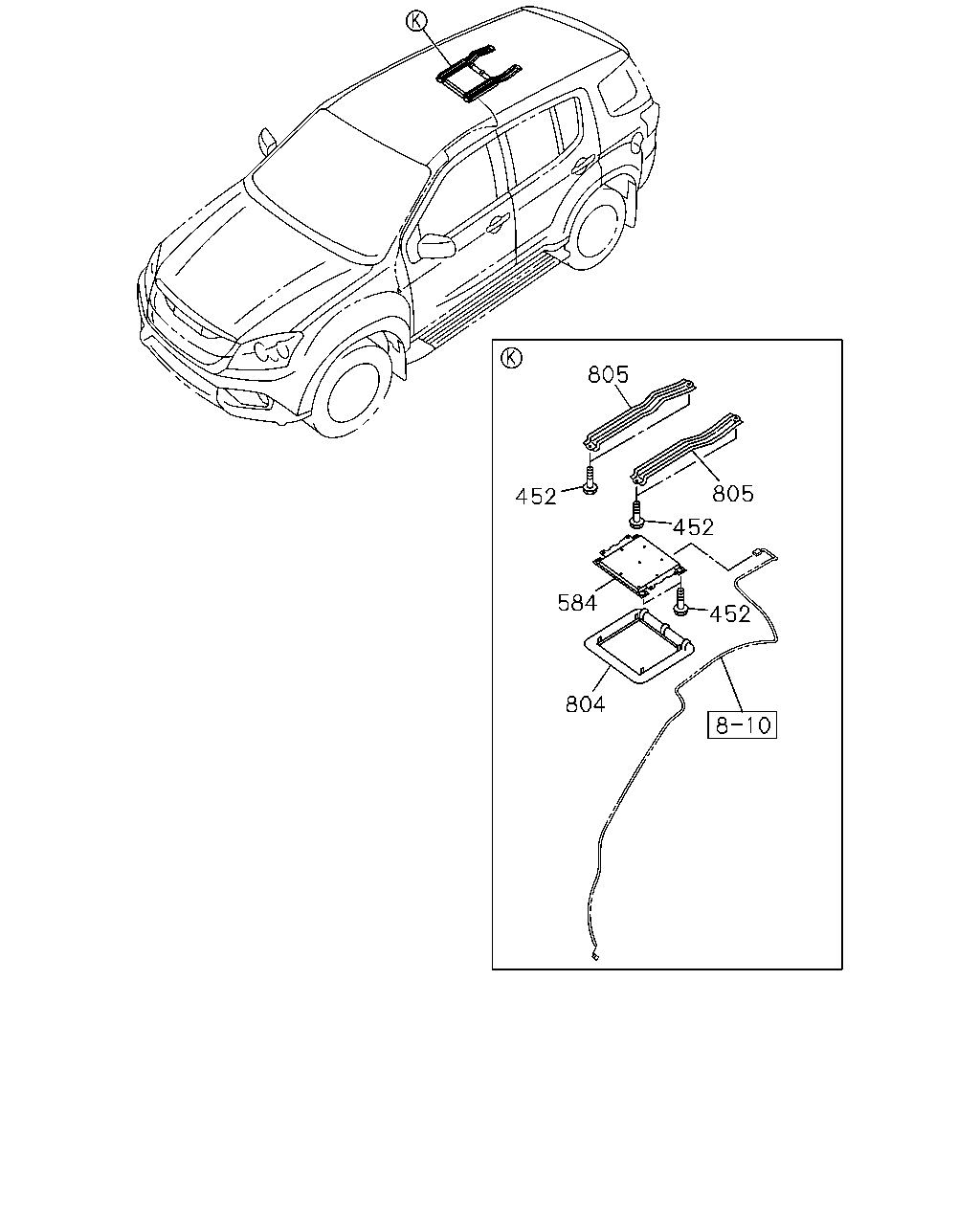

çizim 432082
805 805 452 804 584 452 452
BalonParca AdiParca NoAdetTipApplied Date A B
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1407- ● ●
452 BOLT; BRKT
2ND SEAT DVD MONITOR<U48> M6X16 FLANGE 		0-28650-616-0 04 1 1407- ● ●
584 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-955-2 01 1 1407-1409 ● ●
584 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98291-255-0 01 1 1410- ● ●
804 BEZEL; DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-957-1 01 1 1407- ● ●
805 BRACKET; DISPLAY 8-98197-956-1 01 1 1407- ● ●
805 BRACKET; DISPLAY 8-98211-399-1 01 1 1407- ● ●

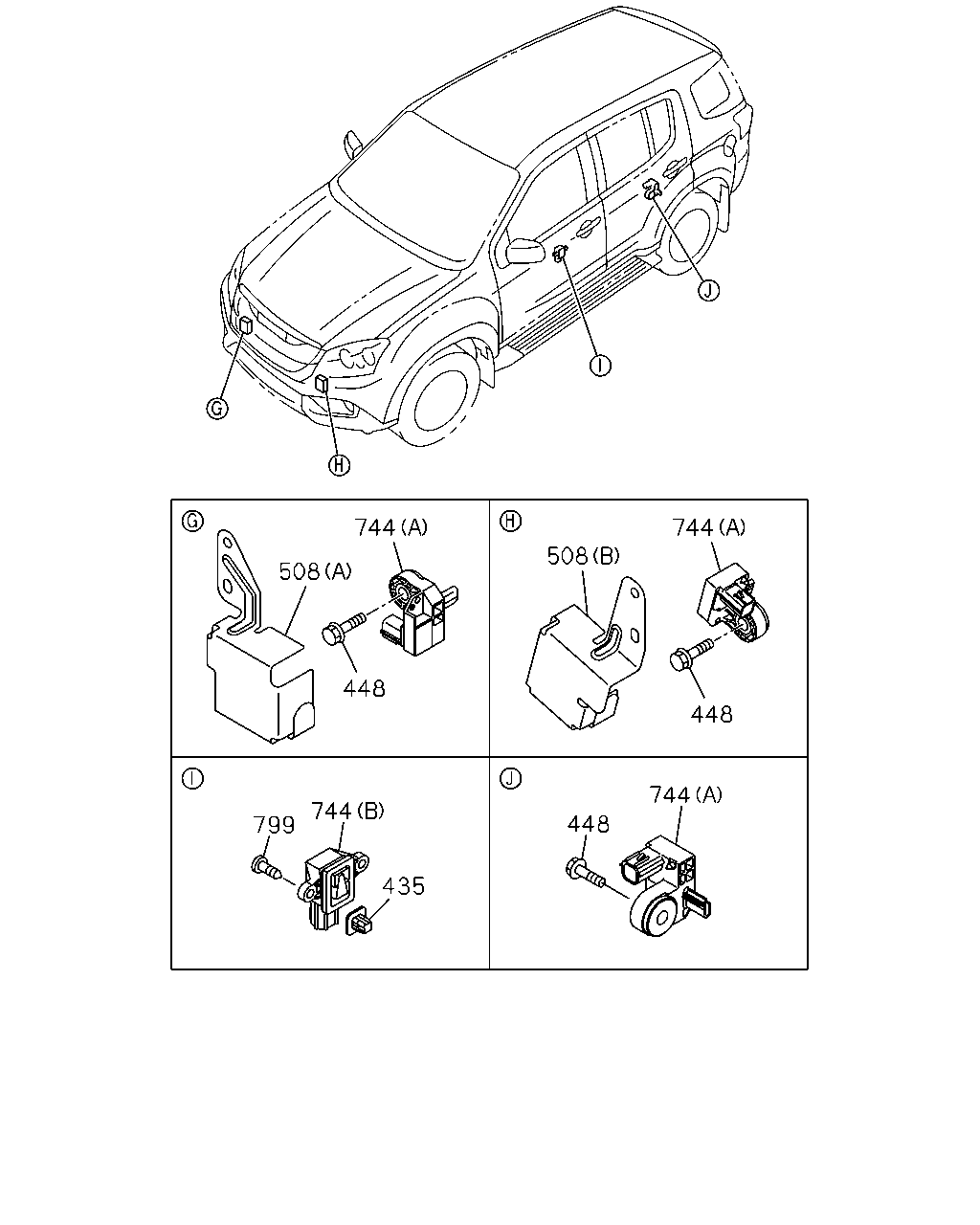

çizim 432847
508 744 508 744 448 744 448 799 744 435 448
BalonParca AdiParca NoAdetTipApplied Date A B
435 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1407- ● ●
448 BOLT; SENSOR
M6X25 FLANGE 		0-28650-625-0 02 1 1407- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X25 FLANGE 		0-28650-625-0 02 1 1407- ● ●
508 PROTECTOR
(A) 		8-98165-179-0 01 1 1407- ● ●
508 PROTECTOR
(B) 		8-98165-180-0 01 1 1407- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98059-533-2 02 1 1407- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) 		8-98146-939-1 02 1 1407- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) 		8-98156-002-0 04 1 1407- ● ●
799 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M5X16 TAPPING 		8-98167-449-0 04 1 1407- ● ●

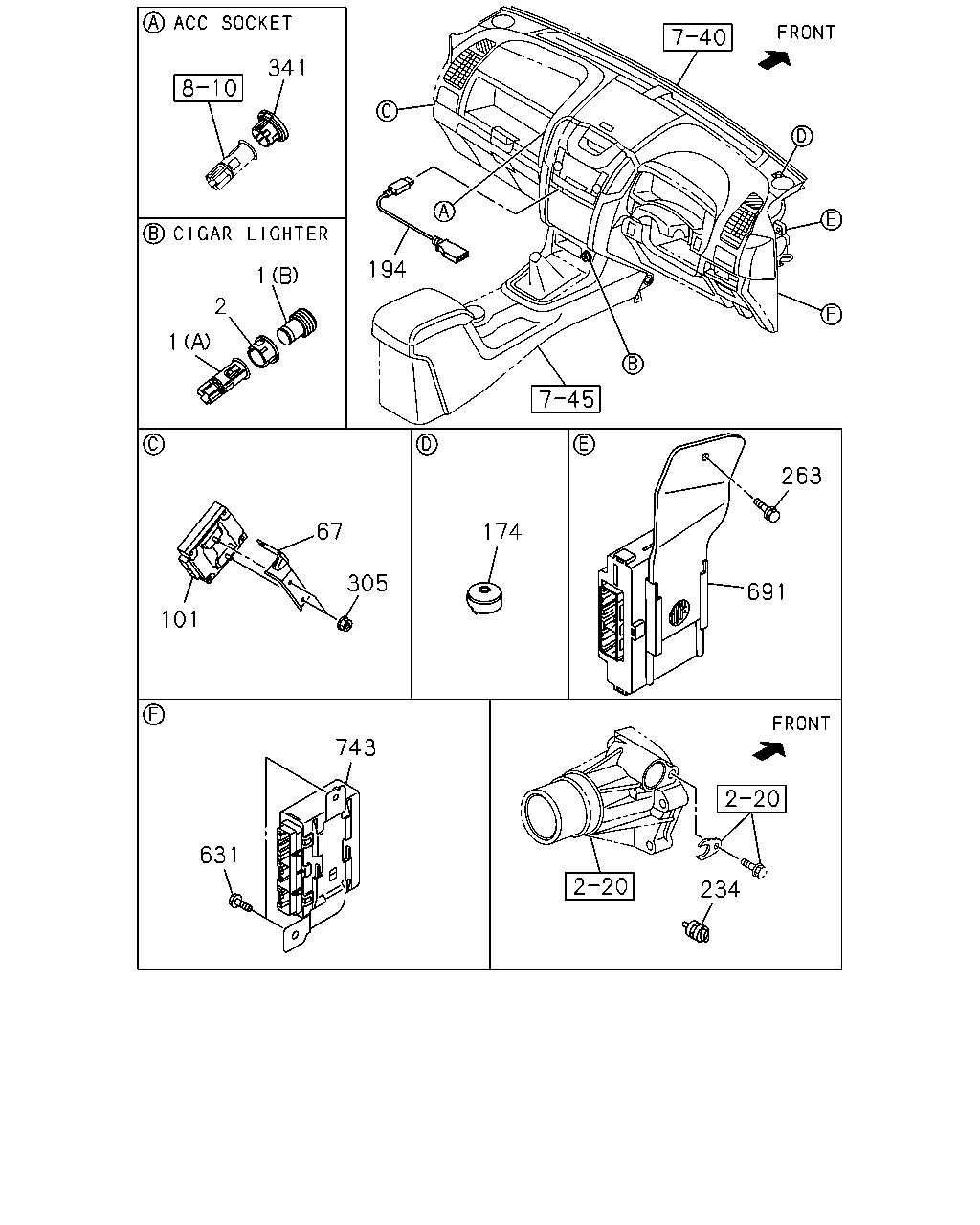

çizim 434017
631 743 234 101 67 305 174 263 691 1 2 1 341 194
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1407- ● ●
1 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1407- ● ●
2 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1407- ● ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1407- ● ●
101 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) 		8-98239-695-0 01 1 1407- ● ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1407- ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98193-631-0 01 1 1407- ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) EXC. ABS W/EBD BRAKE ASSIST<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1407- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1407- ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) M6 FLANGE 		0-91180-106-0 02 1 1407- ● ●
341 COVER ASM 8-98123-123-0 01 1 1407- ●
341 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1407- ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1407- ●
631 BOLT; CONT UNIT
M6X16 FLANGE 		0-28450-616-0 02 1 1407- ● ●
691 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1407- ●
743 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-502-1 01 1 1407-1408 ● ●
743 CONTROL UNIT; BCM
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-500-1 01 1 1407-1408 ● ●
743 CONTROL UNIT; BCM 8-98190-500-1 01 1 1409- ● ●
çizim 434112
580 501 587 803 501 587
BalonParca AdiParca NoAdetTipApplied Date A B
501 GROMMET; SCREW 8-98163-895-0 01 1 1407- ● ●
580 CAMERA; REAR
2ND SEAT DVD MONITOR<U48> 		8-98210-822-0 01 1 1407- ● ●
587 SCREW; CAMERA
M5X14 		8-94152-495-0 01 1 1407- ● ●
803 COVER; CAMERA
EXC. 2ND SEAT DVD MONITOR<U48> 		8-98210-821-0 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
