◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#145266) — 36 parça

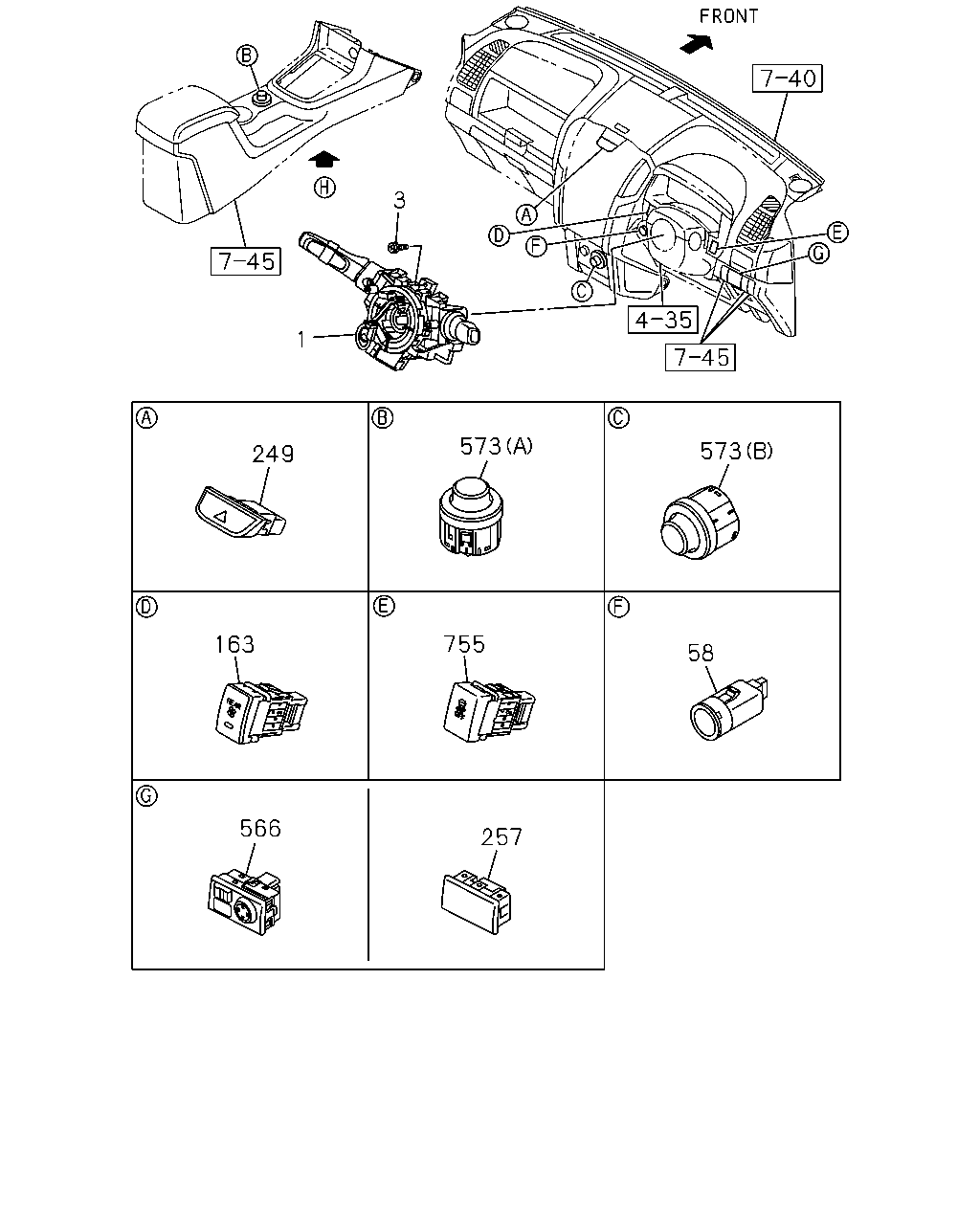

çizim 431975
1 3 249 573 573 58 755 163 257 566
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
FOG LAMP<T96> 		8-98191-735-1 01 1 1407- ●
1 SWITCH; COMB
VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> CONTINUOUS REAR WIPER<CD6> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98191-735-1 01 1 1407- ●
1 SWITCH; COMB
EXC. FOG LAMP<T96> 		8-98248-656-0 01 1 1407- ●
1 SWITCH; COMB
VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> CONTINUOUS REAR WIPER<CD6> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. FOG LAMP<T96> 		8-98248-656-0 01 1 1407- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. CONTINUOUS REAR WIPER<CD6>,FOG LAMP<T96>, ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-141-1 01 1 1407- ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1407- ● ●
58 SWITCH; IGNITION
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-271-1 01 1 1407-1408 ●
58 SWITCH; IGNITION
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-271-1 01 1 1407-1408 ●
163 SWITCH; RR COOLER 8-98196-980-0 01 1 1407- ●
163 SWITCH; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98196-980-0 01 1 1407- ●
249 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1407- ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL MATERIAL BLACK<RT9> 		8-98106-389-2 01 1 1407- ●
566 SWITCH; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> 		8-98058-078-1 01 1 1407- ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98106-392-1 01 1 1407- ● ●
573 SWITCH; 4WD
INTERIOR BASIC(RBA) FLOOR CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1407- ●
573 SWITCH; 4WD
INTERIOR CUSTOM(RBD) FLOOR CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1407- ●
755 SWITCH; ESC OFF 8-98058-081-1 01 1 1407- ● ●
çizim 432164
99
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
FOG LAMP<T96> 12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●

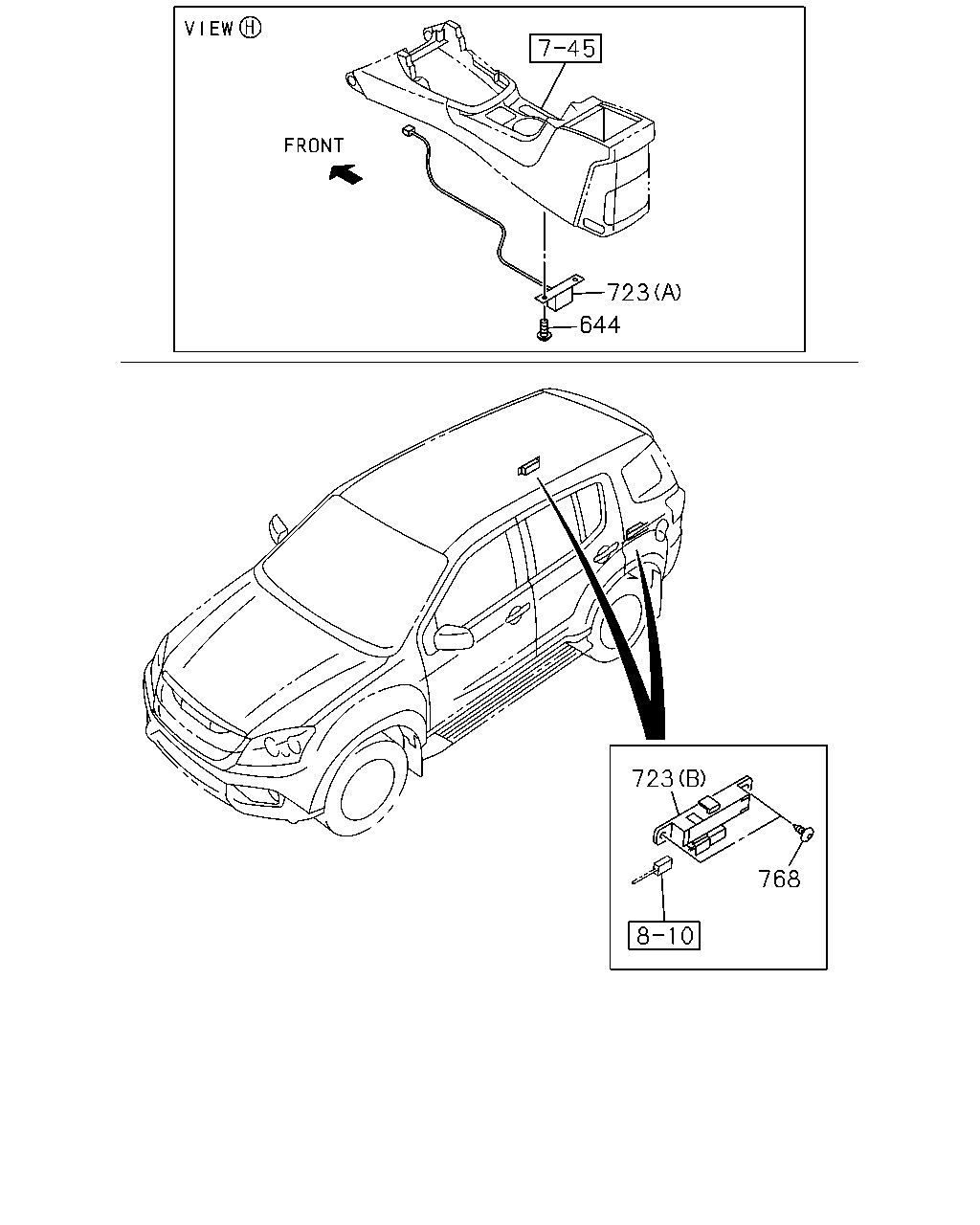

çizim 434239
723 644 723 768
BalonParca AdiParca NoAdetTipApplied Date A B
644 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> M5X16 TAPPING 		8-98167-449-0 02 1 1407-1408 ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98076-332-1 01 1 1407-1408 ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98190-525-0 02 1 1407-1408 ● ●
768 FASTENER
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-97326-594-0 04 1 1407-1408 ● ●

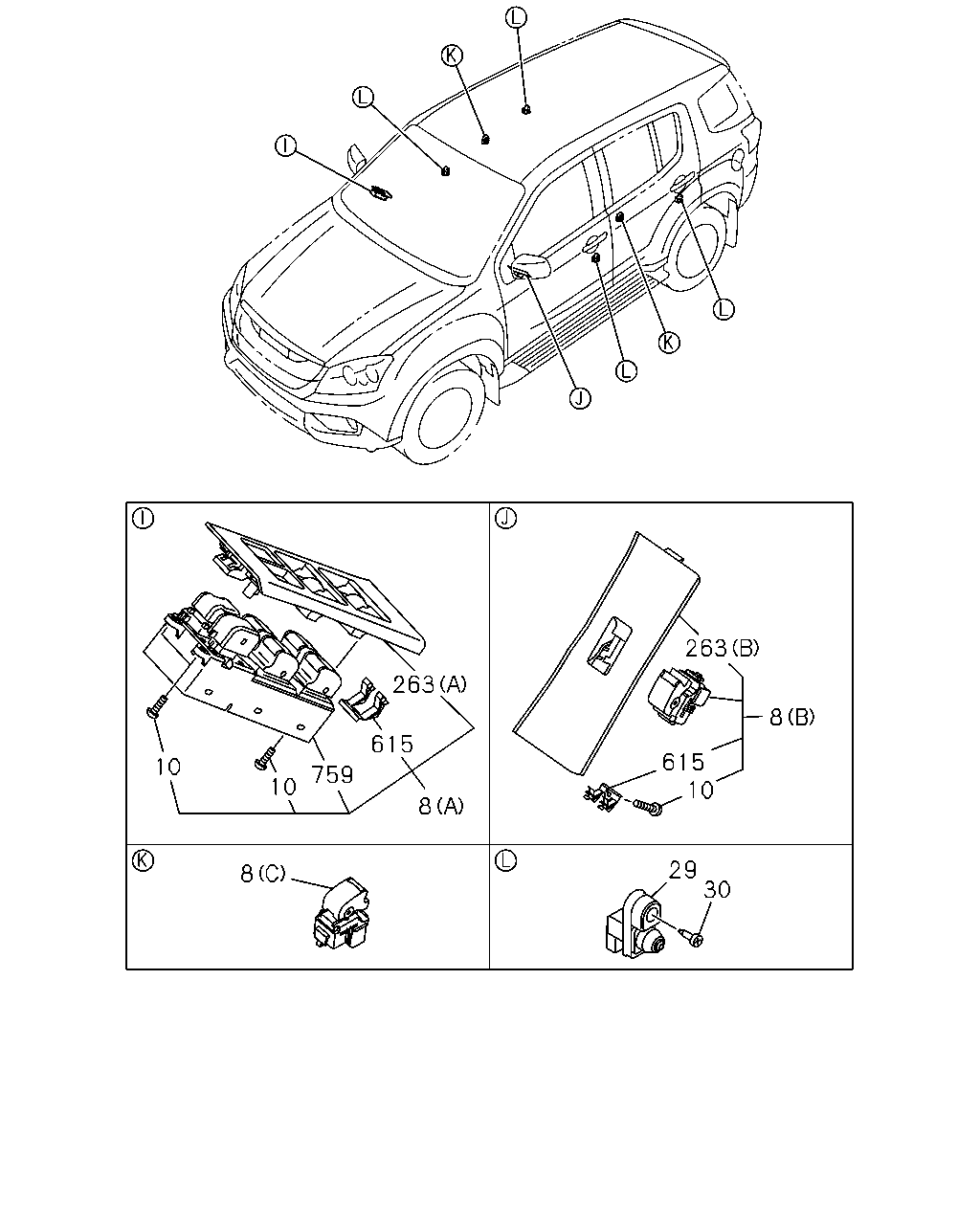

çizim 434313
10 10 759 615 263 8 8 30 29 10 615 8 263
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK 		8-97416-975-0 01 1 1407- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK 		8-97416-810-0 01 1 1407- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK 		8-97417-004-0 02 1 1407- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK 		8-97416-976-0 01 1 1407- ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-450-0 03 1 1407- ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-450-0 03 1 1407- ● ●
29 SWITCH; DOOR 8-97313-208-0 04 1 1407- ● ●
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 04 1 1407- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) 		8-98192-244-0 01 1 1407- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) 		8-98192-247-0 01 1 1407- ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-268-0 01 1 1407- ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-268-0 01 1 1407- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98192-251-0 01 1 1407- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-252-0 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
