◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#145265) — 19 parça

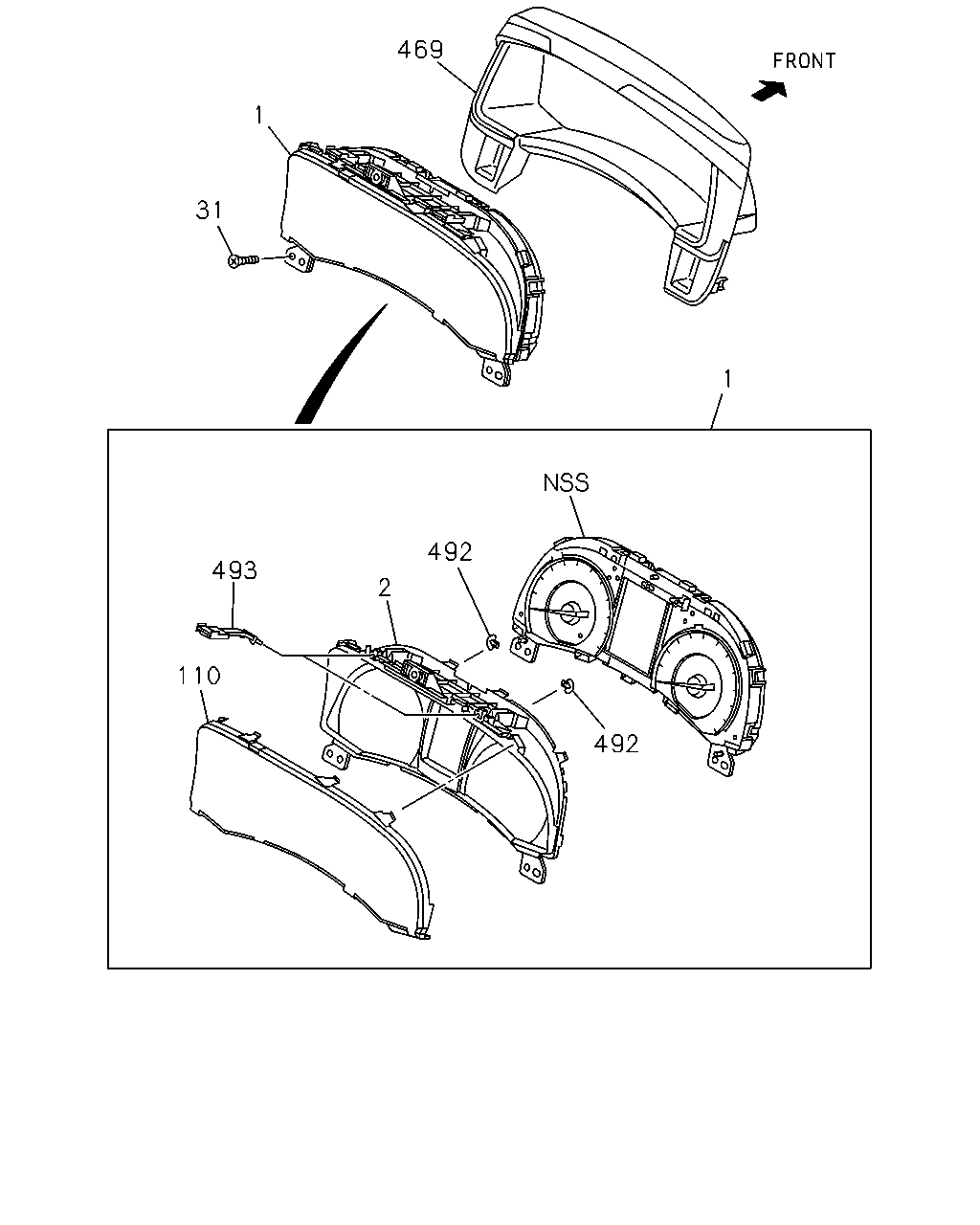

çizim 434107
469 1 31 1 492 2 492 493 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) 		8-98277-409-0 01 1 1407- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98277-409-0 01 1 1407- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98196-940-0 01 1 1407- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98277-410-0 01 1 1407- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98196-941-0 01 1 1407- ●
2 PANEL; CLUSTER
A/T 5 SPEED-AISIN(MA1) 		8-98270-046-0 01 1 1407- ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98270-046-0 01 1 1407- ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-885-0 01 1 1407- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		8-98167-449-0 03 1 1407- ● ●
110 GLASS; CLUSTER METER
A/T 5 SPEED-AISIN(MA1) 		8-98270-045-0 01 1 1407- ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98270-045-0 01 1 1407- ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-883-0 01 1 1407- ●
469 PLATE; INSTRUMENT PANEL
BLACK 		8-97424-331-0 01 1 1407- ●
469 PLATE; INSTRUMENT PANEL
INTERIOR CUSTOM(RBD) BLACK 		8-97424-331-0 01 1 1407- ●
469 PLATE; INSTRUMENT PANEL
INTERIOR BASIC(RBA) BLACK 		8-97416-628-1 01 1 1407- ●
492 PANEL; TURN LENS
A/T 5 SPEED-AISIN(MA1) 		8-98163-886-0 02 1 1407- ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-886-0 02 1 1407- ●
493 PANEL; TOP LIGHT PRISM
A/T 5 SPEED-AISIN(MA1) 		8-98163-887-0 02 1 1407- ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-887-0 02 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
