8-15 — FIXING PARTS; WIRING HARNESS (#145264) — 55 parça

459 408

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

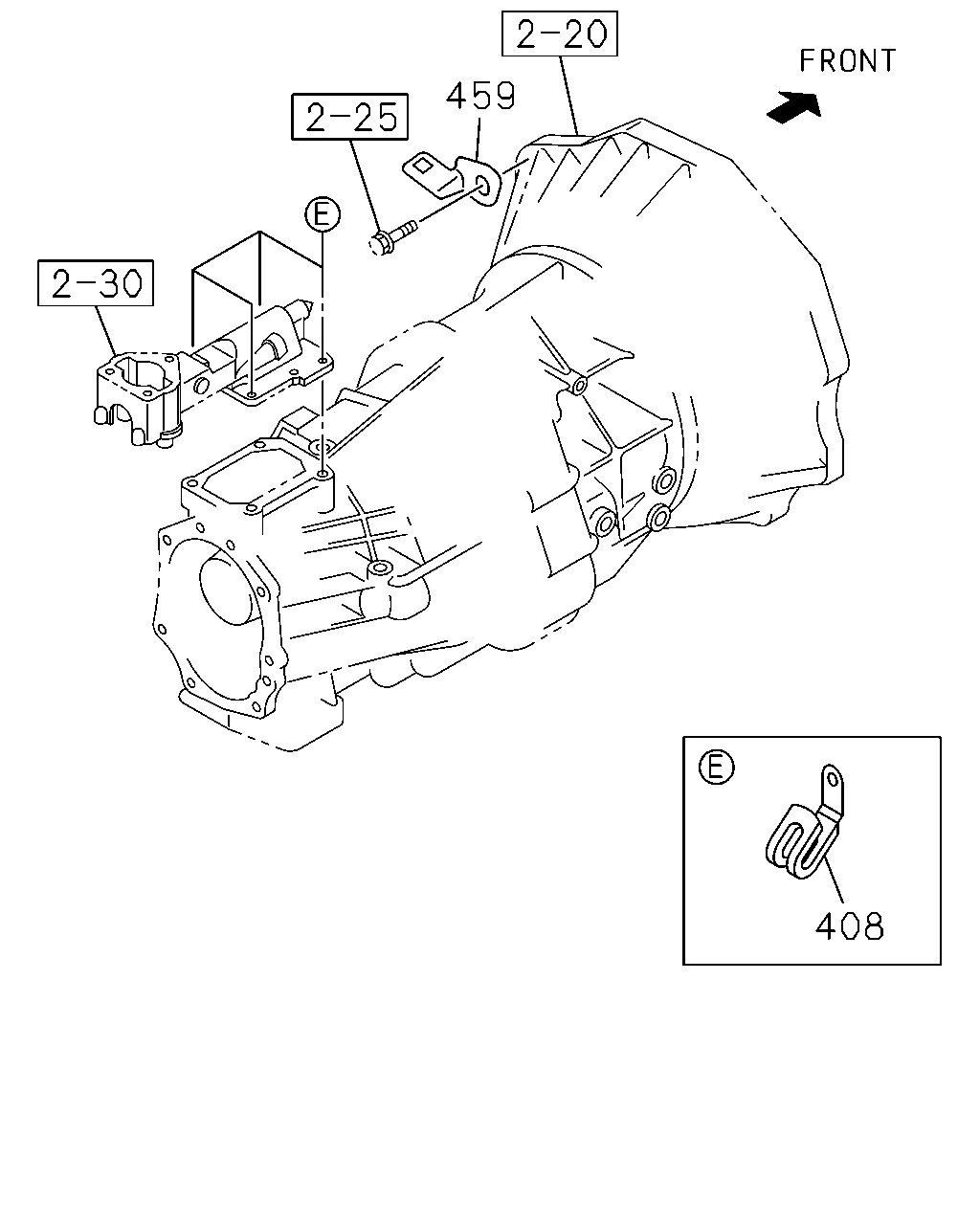

	408	CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H(MWQ) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1407-	●
	459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ)	8-98050-882-0	01	1	1407-	●

239 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

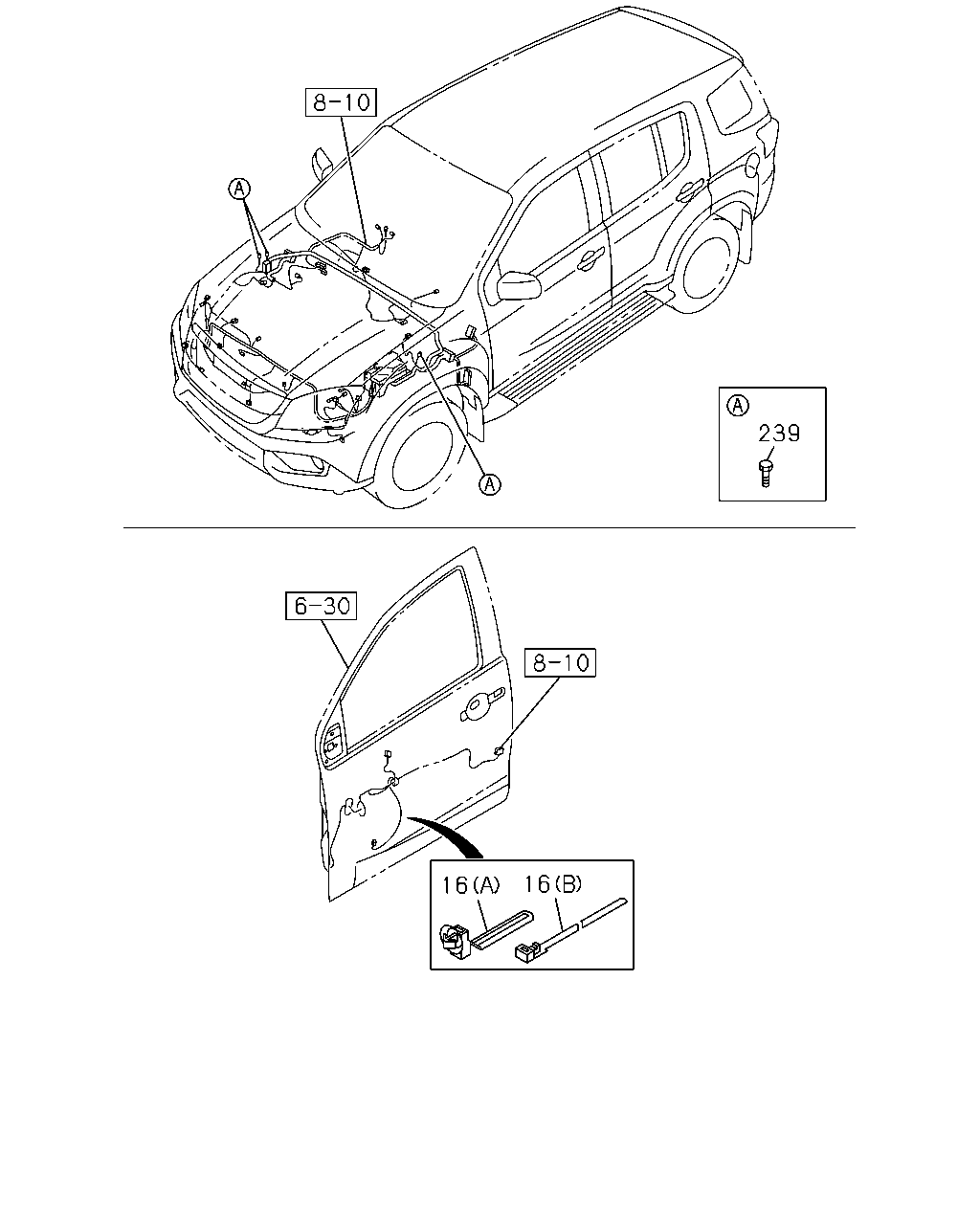

16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	01	1	1407-1408	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	01	1	1407-1408	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1407-1408	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1407-1408	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1407-1408	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	01	1	1409-	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	01	1	1409-	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1409-		●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1409-	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1409-	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>,DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1409-	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1407-1408	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	03	1	1407-1408	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1407-1408	●	●
16	CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1407-1408	●	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1409-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140	8-97378-707-0	03	1	1409-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1409-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155	8-97173-307-0	02	1	1407-1408	●	●
16	CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1408	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1408	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1408	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1407-1408	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1409-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155	8-97173-307-0	02	1	1409-	●	●
16	CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155	8-97173-307-0	02	1	1409-	●	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1409-	●
16	CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1409-	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	07	1	1407-1501	●	●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	07	1	1502-	●	●

22 524 38 22 38 38 38 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

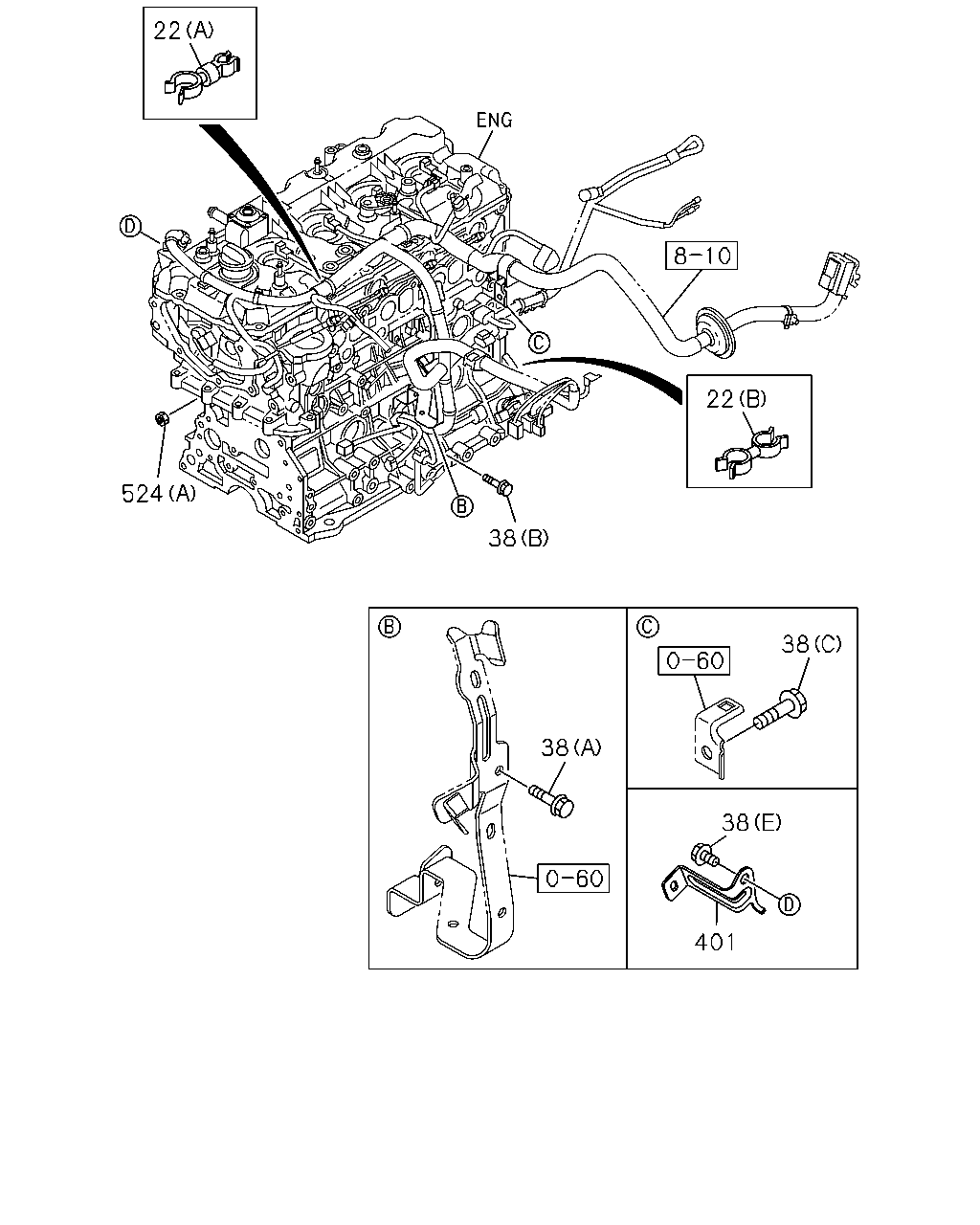

22	CLIP; ENG HARNESS (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1407-	●	●
22	CLIP; ENG HARNESS (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 FLANGE	0-28050-612-0	02	1	1407-	●	●
38	BOLT; CLIP,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS (E) M10X12 FLANGE	0-28151-012-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (D) M6X16 FLANGE	0-28650-616-0	05	1	1407-	●	●
401	BRACKET; HARNESS,GEN	8-98224-801-0	01	1	1407-	●	●
524	NUT; HARNESS (A) M8 FLANGE	0-91180-108-0	01	1	1407-	●	●
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	01	1	1407-	●	●

178 239 38 524 83 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

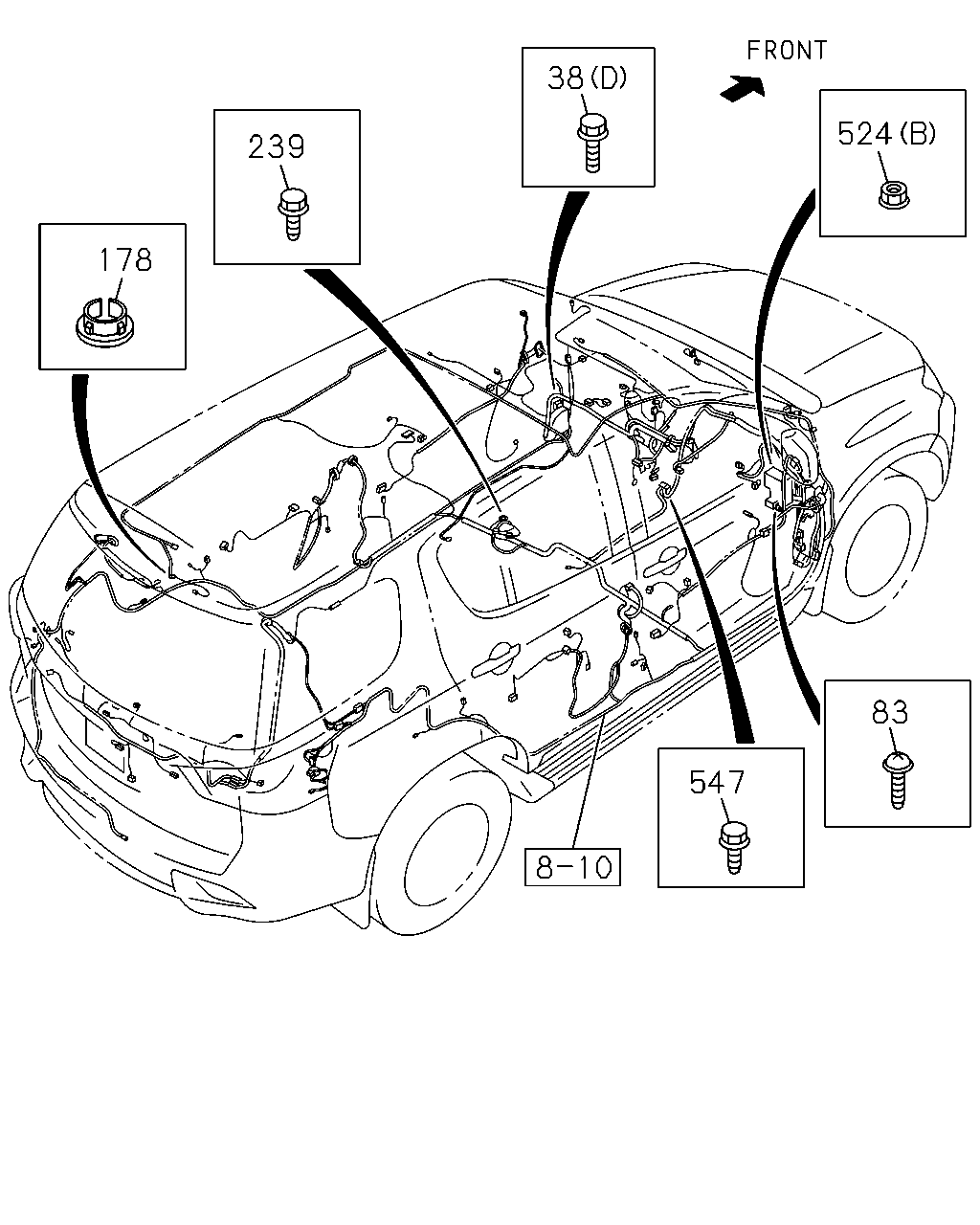

38	BOLT; CLIP,HARNESS (A) M6X12 FLANGE	0-28050-612-0	02	1	1407-	●	●
38	BOLT; CLIP,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS (E) M10X12 FLANGE	0-28151-012-0	01	1	1407-	●	●
38	BOLT; CLIP,HARNESS BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (D) M6X16 FLANGE	0-28650-616-0	05	1	1407-	●	●
83	SCREW; HARNESS M5X25 TAPPING W/PL WASHER	0-74360-525-0	01	1	1407-	●	●
178	GROMMET; HARNESS	8-97027-381-0	01	1	1407-	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	07	1	1407-1501	●	●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	07	1	1502-	●	●
524	NUT; HARNESS (A) M8 FLANGE	0-91180-108-0	01	1	1407-	●	●
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	01	1	1407-	●	●
547	BOLT M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1407-1501	●	●
547	BOLT M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●	●
