◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#145263) — 254 parça

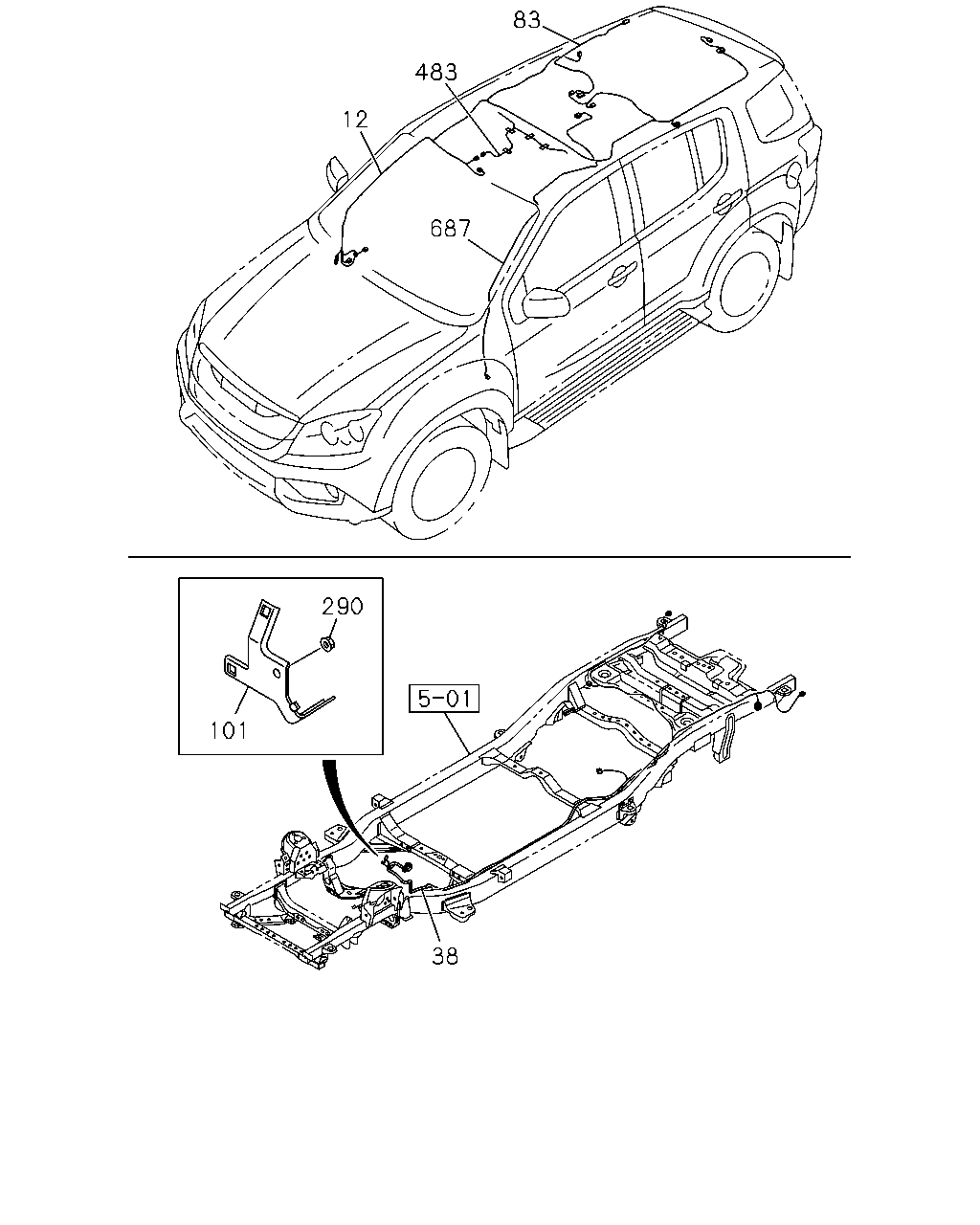

çizim 431684
83 483 12 687 290 101 38
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) 6-SPEAKER SYSTEM BASE<UW5> 		8-98229-297-3 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 		8-98229-297-3 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98198-181-3 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98198-181-3 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 6-SPEAKER SYSTEM BASE<UW5> 		8-98238-469-3 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 		8-98238-469-3 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98198-179-4 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98198-179-4 01 1 1407- ●
12 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> 		8-98229-296-3 01 1 1407- ●
38 HARNESS; CHAS 8-98198-065-2 01 1 1407- ●
38 HARNESS; CHAS
ABS W/EBD BRAKE ASSIST<JE5> 		8-98198-065-2 01 1 1407- ●
38 HARNESS; CHAS
EXC. ABS W/EBD BRAKE ASSIST<JE5> 		8-98198-063-2 01 1 1407- ●
83 HARNESS; AIR CONDITIONER 8-98198-188-2 01 1 1407- ●
83 HARNESS; AIR CONDITIONER
REAR COOLER WO/HEATER<C69> 		8-98198-188-2 01 1 1407- ●
101 BRACKET; HARNESS CONNECTOR 8-98102-999-0 01 1 1407- ● ●
290 NUT; BRKT
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M6 FLANGE 		0-91180-106-0 01 1 1407- ● ●
483 HARNESS; EXT,RADIO
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98201-891-0 01 1 1407- ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98201-891-0 01 1 1407- ●
687 HARNESS; VIDEO DISC PLYR
2ND SEAT DVD MONITOR<U48> 		8-98211-400-2 01 1 1407- ● ●
çizim 432339
588 430
BalonParca AdiParca NoAdetTipApplied Date A B
430 COVER ASM; SOCKET,ACCESSORY 8-98123-123-0 01 1 1407- ●
430 COVER ASM; SOCKET,ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1407- ●
430 COVER ASM; SOCKET,ACCESSORY
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1407- ●
588 SEAL; LOCATION HOLE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> OD=25 BLACK 		1-76798-019-0 03 1 1407-1408 ● ●
588 SEAL; LOCATION HOLE
RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=25 BLACK 		1-76798-019-0 03 1 1407-1408 ●
588 SEAL; LOCATION HOLE
CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=25 BLACK 		1-76798-019-0 03 1 1407-1408 ●
588 SEAL; LOCATION HOLE
EXC. 2ND SEAT DVD MONITOR<U48> OD=25 BLACK 		1-76798-019-0 03 1 1409- ● ●
588 SEAL; LOCATION HOLE
RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> OD=25 BLACK 		1-76798-019-0 03 1 1409- ●
588 SEAL; LOCATION HOLE
CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> OD=25 BLACK 		1-76798-019-0 03 1 1409- ●

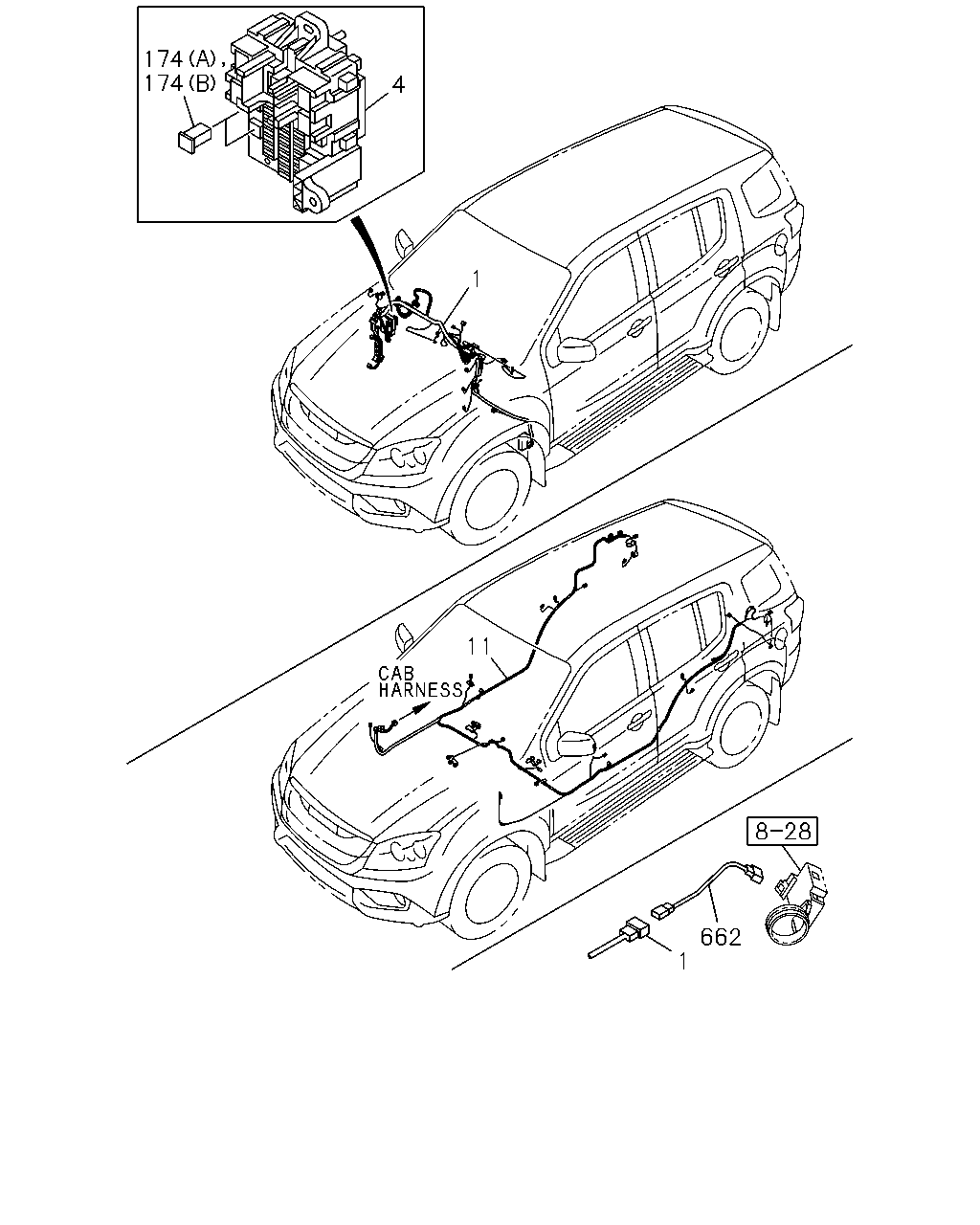

çizim 432840
4 174 1 174 11 662 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98281-587-1 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98281-588-1 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98281-590-1 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-330-2 01 1 1407-1408 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98250-335-2 01 1 1407-1408 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-333-2 01 1 1407-1408 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98250-337-2 01 1 1407-1408 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-752-2 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-164-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-149-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-151-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-168-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-170-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-756-2 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98220-978-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-757-2 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98220-979-5 01 1 1407- ● ●
1 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> EXC. CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-358-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-359-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR BASIC(RBA) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY> 		8-98198-171-5 01 1 1407-1408 ●
1 HARNESS; CAB
INTERIOR BASIC(RBA) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REAR COOLER WO/HEATER<C69> EXC. REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-171-5 01 1 1409- ●
1 HARNESS; CAB
INTERIOR BASIC(RBA) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-172-5 01 1 1407-1408 ●
1 HARNESS; CAB
INTERIOR BASIC(RBA) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-172-5 01 1 1409- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69> 		8-98250-331-2 01 1 1407-1408 ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98250-336-2 01 1 1407-1408 ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69> 		8-98250-334-2 01 1 1407-1408 ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98250-338-2 01 1 1407-1408 ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69> 		8-98247-741-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-742-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98247-745-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AUTO COOLER SYSTEM(CJ2) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-746-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69> 		8-98247-743-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-744-2 01 1 1407- ●
1 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98247-747-2 01 1 1407- ●
4 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1407- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> 		8-98198-028-4 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-028-4 01 1 1407-1408 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 		8-98198-030-4 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-030-4 01 1 1407-1408 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-032-5 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-032-5 01 1 1407-1408 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> 		8-98198-032-5 01 1 1409- ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-032-5 01 1 1409- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-033-5 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-033-5 01 1 1407-1408 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 		8-98198-033-5 01 1 1409- ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-033-5 01 1 1409- ●
11 HARNESS; BODY
PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98198-018-4 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-018-4 01 1 1407-1408 ●
11 HARNESS; BODY
PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98198-020-4 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-020-4 01 1 1407-1408 ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-024-5 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-024-5 01 1 1407-1408 ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98198-024-5 01 1 1409- ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98198-024-5 01 1 1409- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98221-398-5 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98221-398-5 01 1 1407-1408 ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98221-398-5 01 1 1409- ●
11 HARNESS; BODY
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98221-398-5 01 1 1409- ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98271-902-1 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98271-902-1 01 1 1409- ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69> 		8-98271-904-1 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> EXC. REAR COOLER WO/HEATER<C69> 		8-98271-904-1 01 1 1409- ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-903-1 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. CONTINUOUS REAR WIPER<CD6> 		8-98271-903-1 01 1 1409- ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69> 		8-98271-905-1 01 1 1407-1408 ●
11 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69> 		8-98271-905-1 01 1 1409- ●
174 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1407- ● ●
662 HARNESS; IMMOBILIZER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98163-074-0 01 1 1407-1408 ● ●
662 HARNESS; IMMOBILIZER 8-98163-074-0 01 1 1409- ● ●

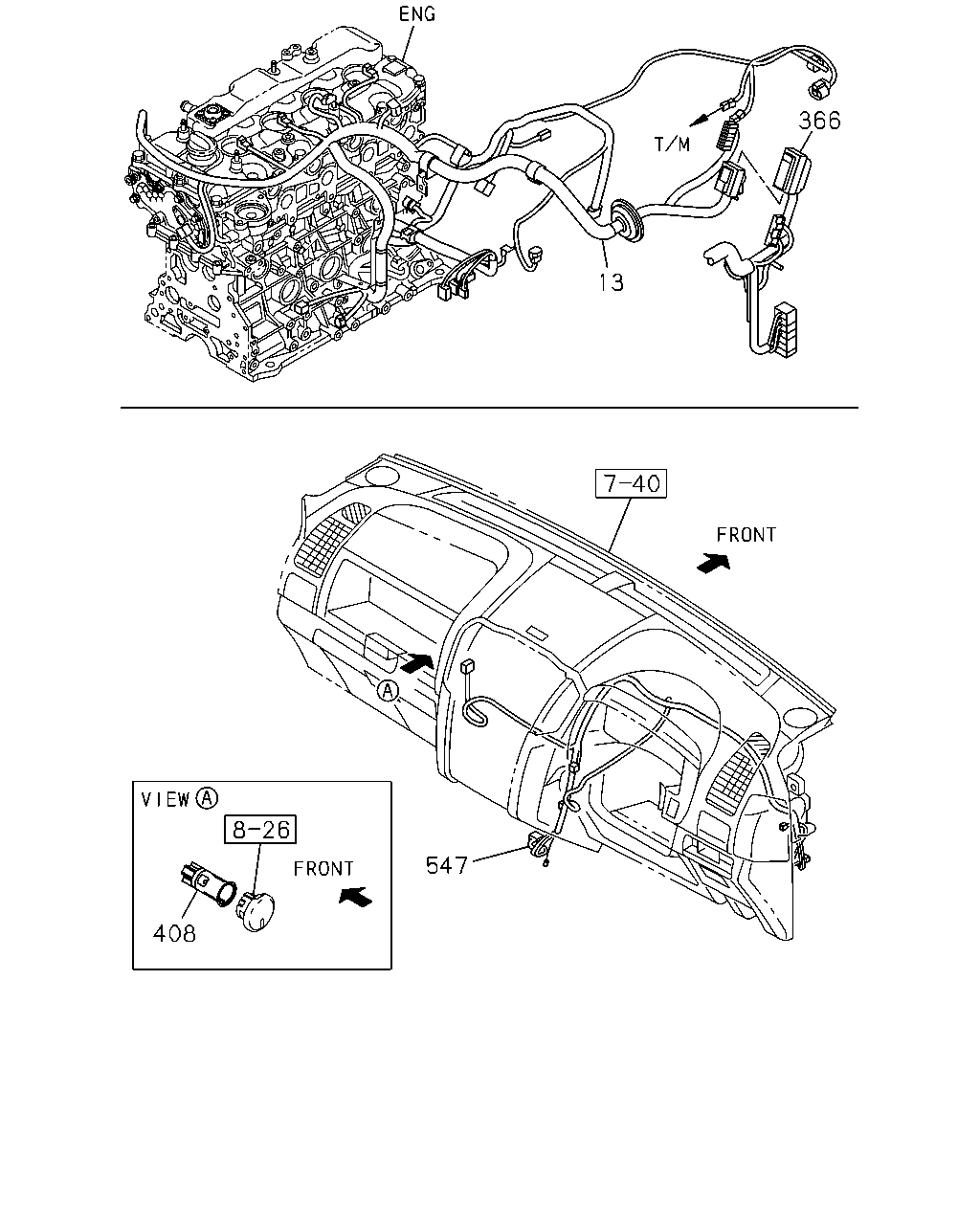

çizim 434038
13 366 547 408
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG 8-98206-415-3 01 1 1407- ●
13 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98260-518-0 01 1 1407- ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98260-516-0 01 1 1407- ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98250-392-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-590-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) 		8-98223-590-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98250-375-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-586-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98223-586-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-909-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. CONTINUOUS REAR WIPER<CD6> 		8-98271-909-2 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> 		8-98250-389-2 01 1 1407-1407 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-589-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> 		8-98223-589-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> 		8-98250-371-2 01 1 1407-1407 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-585-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> 		8-98223-585-5 01 1 1409- ●
408 SOCKET ASM; ACCESSORY 8-98123-115-0 02 1 1407- ●
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 02 1 1407- ●
547 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98258-880-1 01 1 1407- ● ●
547 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98224-083-2 01 1 1407- ● ●
çizim 434104
4 734 750 749 758 759 764 763 762 761
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1407- ● ●
734 RELAY; ACC SOCKET
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
749 RELAY; POWER WINDOW
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
750 RELAY; RR DEFOGGER
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
758 RELAY; RR WIPER
CONTINUOUS REAR WIPER<CD6> 12V YAZAKI 		8-97309-292-0 01 1 1407- ● ●
759 RELAY; RR COOLER
REAR COOLER WO/HEATER<C69> 12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
761 RELAY; ACC
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 12V YAZAKI 		8-97309-292-0 01 1 1407-1408 ● ●
761 RELAY; ACC
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI 		8-97309-292-0 01 1 1407-1408 ● ●
762 RELAY; IG2
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 12V YAZAKI 		8-97309-292-0 01 1 1407-1408 ● ●
762 RELAY; IG2
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI 		8-97309-292-0 01 1 1407-1408 ● ●
763 RELAY; IG1
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 12V YAZAKI 		8-98146-837-0 01 1 1407-1408 ● ●
763 RELAY; IG1
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI 		8-98146-837-0 01 1 1407-1408 ● ●
764 RELAY; FRT WIPER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 12V YAZAKI 		8-98146-837-0 01 1 1407-1408 ● ●
764 RELAY; FRT WIPER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI 		8-98146-837-0 01 1 1407-1408 ● ●
çizim 434165
366 736 738 739 741 743 742 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98250-392-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-590-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) 		8-98223-590-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98250-375-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-586-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98223-586-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-909-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. CONTINUOUS REAR WIPER<CD6> 		8-98271-909-2 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> 		8-98250-389-2 01 1 1407-1407 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-589-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> 		8-98223-589-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> 		8-98250-371-2 01 1 1407-1407 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-585-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> 		8-98223-585-5 01 1 1409- ●
736 RELAY; STARTER CUT
12V YAZAKI 		8-97309-292-0 01 1 1407- ● ●
737 RELAY; DIMMER
12V YAZAKI 		8-97309-292-0 01 1 1407- ● ●
738 RELAY; HEADLAMP
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
739 RELAY; TAIL LAMP
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
741 RELAY; HORN
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
742 RELAY; THERMO
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI 		8-97309-293-0 01 1 1407- ● ●
745 RELAY; HEATER
12V YAZAKI 		8-98146-834-0 01 1 1407- ● ●
746 RELAY; ECM,MAIN
12V YAZAKI 		8-98146-834-0 01 1 1407- ● ●
747 RELAY; GLOW
12V YAZAKI 		8-98146-837-0 01 1 1407- ● ●
748 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1407- ● ●

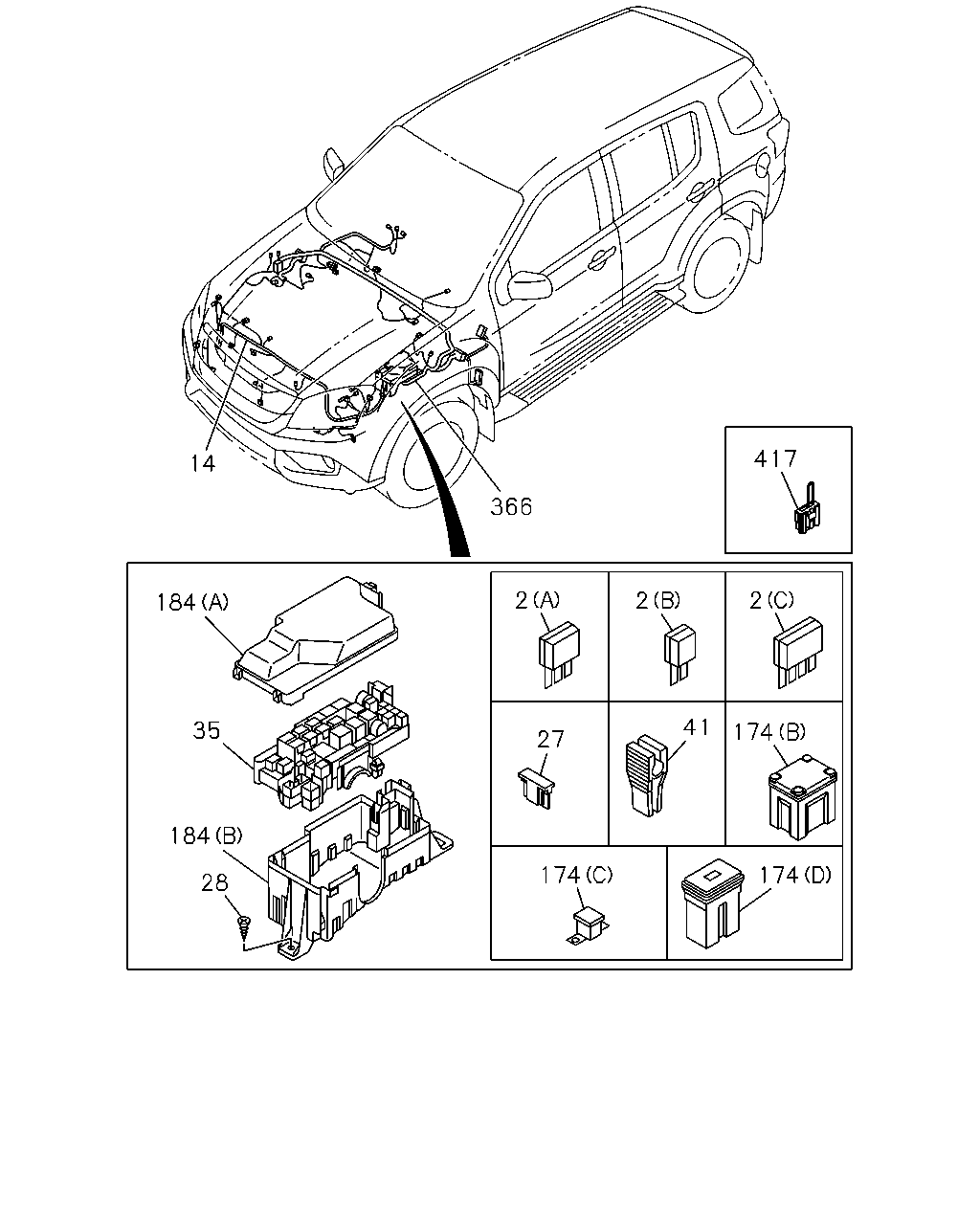

çizim 434332
417 2 2 2 27 41 174 174 174 28 184 35 184 366 14
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1407- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1407- ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 AR 1 1407- ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-349-1 01 1 1407- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-349-1 01 1 1407- ●
14 HARNESS; HEADLAMP
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1407- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1407- ●
14 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-346-1 01 1 1407- ●
27 FUSE UNIT
10A RED 		8-98054-257-0 AR 1 1407- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 AR 1 1407- ● ●
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 AR 1 1407- ● ●
27 FUSE UNIT
5A ORANGE 		8-98281-195-0 AR 1 1407- ● ●
28 SCREW; FUSE BOX 8-97249-192-0 02 1 1407- ● ●
35 BOX; RELAY & FUSE 8-98113-097-0 01 1 1407- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1407- ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1407- ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1407- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1407- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1407- ● ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98250-392-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-590-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER(AK5) 		8-98223-590-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98250-375-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-586-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98223-586-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-909-2 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. CONTINUOUS REAR WIPER<CD6> 		8-98271-909-2 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> 		8-98250-389-2 01 1 1407-1407 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-589-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> 		8-98223-589-5 01 1 1409- ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> 		8-98250-371-2 01 1 1407-1407 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98223-585-5 01 1 1407-1408 ●
366 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CONTINUOUS REAR WIPER<CD6> 		8-98223-585-5 01 1 1409- ●
417 CONNECTOR ASM; ENG HARNESS
COOLER W/FRESH AIR(C65) 		8-97362-918-0 01 1 1407- ●
417 CONNECTOR ASM; ENG HARNESS
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-97362-918-0 01 1 1407- ●

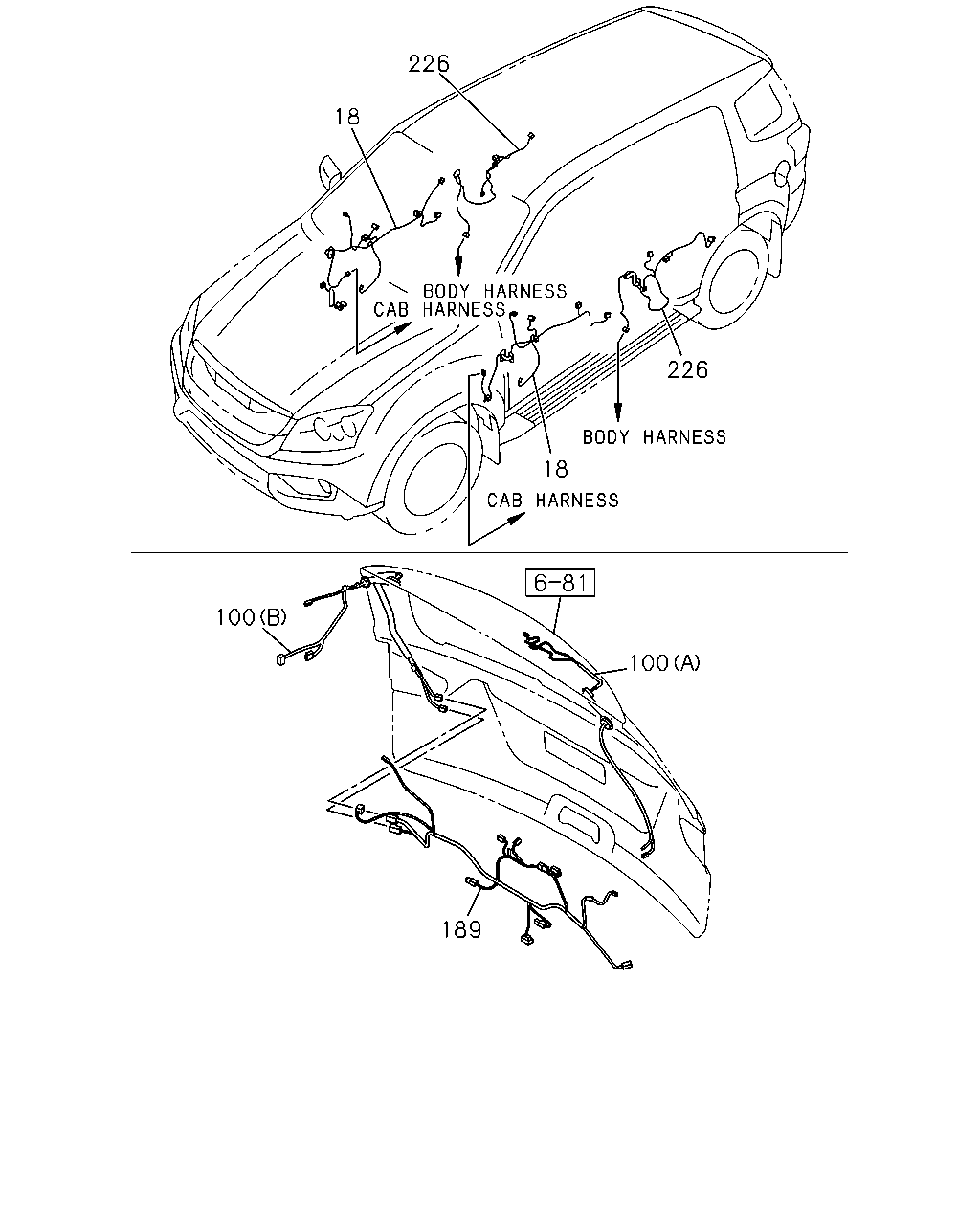

çizim 434479
18 226 226 18 100 100 189
BalonParca AdiParca NoAdetTipApplied Date A B
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98209-211-2 01 1 1407-1408 ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98225-362-1 01 1 1407- ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98225-364-1 01 1 1407- ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-486-4 01 1 1407- ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-506-5 01 1 1407-1408 ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-506-5 01 1 1409- ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-488-4 01 1 1407- ● ●
18 HARNESS; DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98209-213-2 01 1 1407-1408 ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98230-580-1 01 1 1407- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98230-581-1 01 1 1407- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98200-116-2 01 1 1407- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-505-3 01 1 1407-1408 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-505-3 01 1 1409- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-487-4 01 1 1407- ● ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98225-365-1 01 1 1407- ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-508-5 01 1 1407-1408 ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-508-5 01 1 1409- ●
18 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-490-3 01 1 1407- ●
100 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) 		8-98274-807-0 01 1 1407-1408 ●
100 HARNESS; RR GATE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98274-807-0 01 1 1407-1408 ●
100 HARNESS; RR GATE
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> (B) 		8-98274-807-0 01 1 1407-1408 ●
100 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) 		8-98274-807-0 01 1 1409- ●
100 HARNESS; RR GATE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> (B) 		8-98274-807-0 01 1 1409- ●
100 HARNESS; RR GATE
INTERIOR CUSTOM(RBD) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> (B) 		8-98274-807-0 01 1 1409- ●
100 HARNESS; RR GATE
RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> (A) 		8-98198-222-2 01 1 1407- ●
100 HARNESS; RR GATE
EXC. 2ND SEAT DVD MONITOR<U48> (A) 		8-98198-222-2 01 1 1407- ●
100 HARNESS; RR GATE
CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> (A) 		8-98198-222-2 01 1 1407- ●
100 HARNESS; RR GATE
CONTINUOUS REAR WIPER<CD6> EXC. 2ND SEAT DVD MONITOR<U48> (A) 		8-98198-222-2 01 1 1407- ●
100 HARNESS; RR GATE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69> (B) 		8-98274-808-0 01 1 1407-1408 ●
100 HARNESS; RR GATE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. REAR COOLER WO/HEATER<C69> (B) 		8-98274-808-0 01 1 1409- ●
100 HARNESS; RR GATE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48> (A) 		8-98206-101-2 01 1 1407-1408 ●
100 HARNESS; RR GATE
EXC. CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48> (A) 		8-98206-101-2 01 1 1409- ●
189 HARNESS; EXT
PASSIVE ENTRY AND START SYSTEM<AP3> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> 		8-98198-218-1 01 1 1407-1408 ●
189 HARNESS; EXT
PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> 		8-98198-218-1 01 1 1407-1408 ●
189 HARNESS; EXT
PASSIVE ENTRY AND START SYSTEM<AP3> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-219-1 01 1 1407-1408 ●
189 HARNESS; EXT
PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-219-1 01 1 1407-1408 ●
189 HARNESS; EXT
RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-220-1 01 1 1407-1408 ●
189 HARNESS; EXT
CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-220-1 01 1 1407-1408 ●
189 HARNESS; EXT
RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> 		8-98198-220-1 01 1 1409- ●
189 HARNESS; EXT
CONTINUOUS REAR WIPER<CD6> RADIO DELETE(UL5) 2ND SEAT DVD MONITOR<U48> 		8-98198-220-1 01 1 1409- ●
189 HARNESS; EXT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> 		8-98198-221-1 01 1 1407-1408 ●
189 HARNESS; EXT
CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> 		8-98198-221-1 01 1 1407-1408 ●
189 HARNESS; EXT
EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-221-1 01 1 1409- ●
189 HARNESS; EXT
CONTINUOUS REAR WIPER<CD6> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-221-1 01 1 1409- ●
189 HARNESS; EXT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48> 		8-98198-217-1 01 1 1407-1408 ●
189 HARNESS; EXT
EXC. CONTINUOUS REAR WIPER<CD6>,2ND SEAT DVD MONITOR<U48> 		8-98198-217-1 01 1 1409- ●
226 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-213-3 01 1 1407- ● ●
226 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-215-3 01 1 1407- ● ●
226 HARNESS; RR DOOR
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-212-3 01 1 1407- ● ●
226 HARNESS; RR DOOR
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-214-3 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
