7-60 — SEAT BELT (#145259) — 55 parça

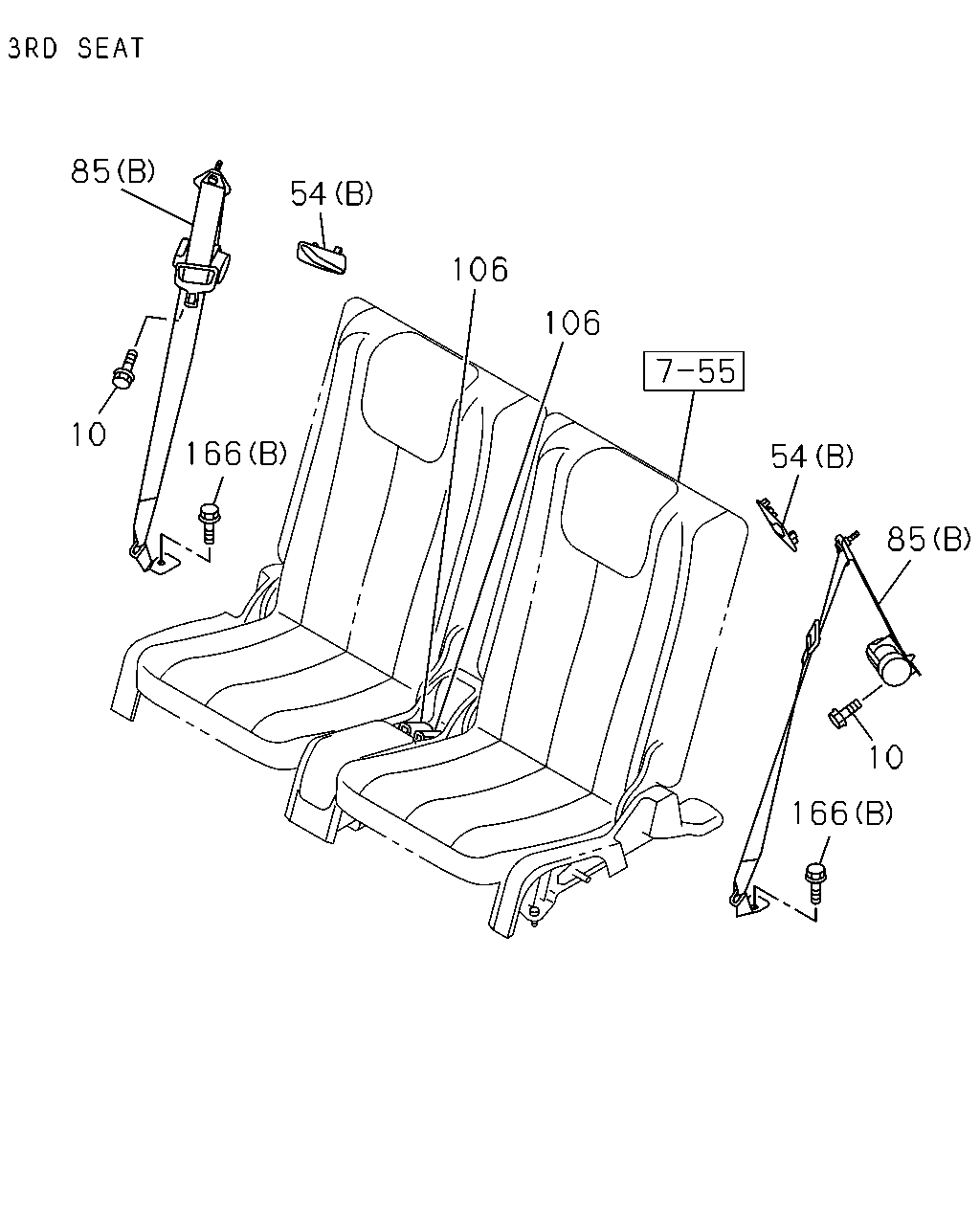

çizim 432775
85 54 106 106 54 85 166 10 166 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; RETRACTOR
3RD SEAT M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1407- ● ●
10 BOLT; RETRACTOR
2ND SEAT M14X32 FLANGE 		8-98056-276-0 02 1 1407- ● ●
54 BEZEL; SEAT BELT
(A) GRAY 		8-97424-343-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(A) GRAY 		8-97424-344-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(B) GRAY 		8-97424-353-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(B) GRAY 		8-97424-354-0 01 1 1407- ● ●
85 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-345-1 01 1 1407- ● ●
85 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-346-1 01 1 1407- ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-349-1 01 1 1407-1410 ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-246-0 01 1 1411- ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-350-1 01 1 1407-1410 ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-247-0 01 1 1411- ● ●
106 BELT; SEAT,3RD SEAT,BUCKLE SIDE
BLACK 		8-97425-499-1 02 1 1407- ● ●
166 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1407-1408 ● ●
166 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1407-1408 ● ●
166 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 02 1 1409- ● ●
166 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1407- ● ●
166 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1407- ● ●
166 BOLT; SEAT BELT ANCHOR
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1407- ● ●

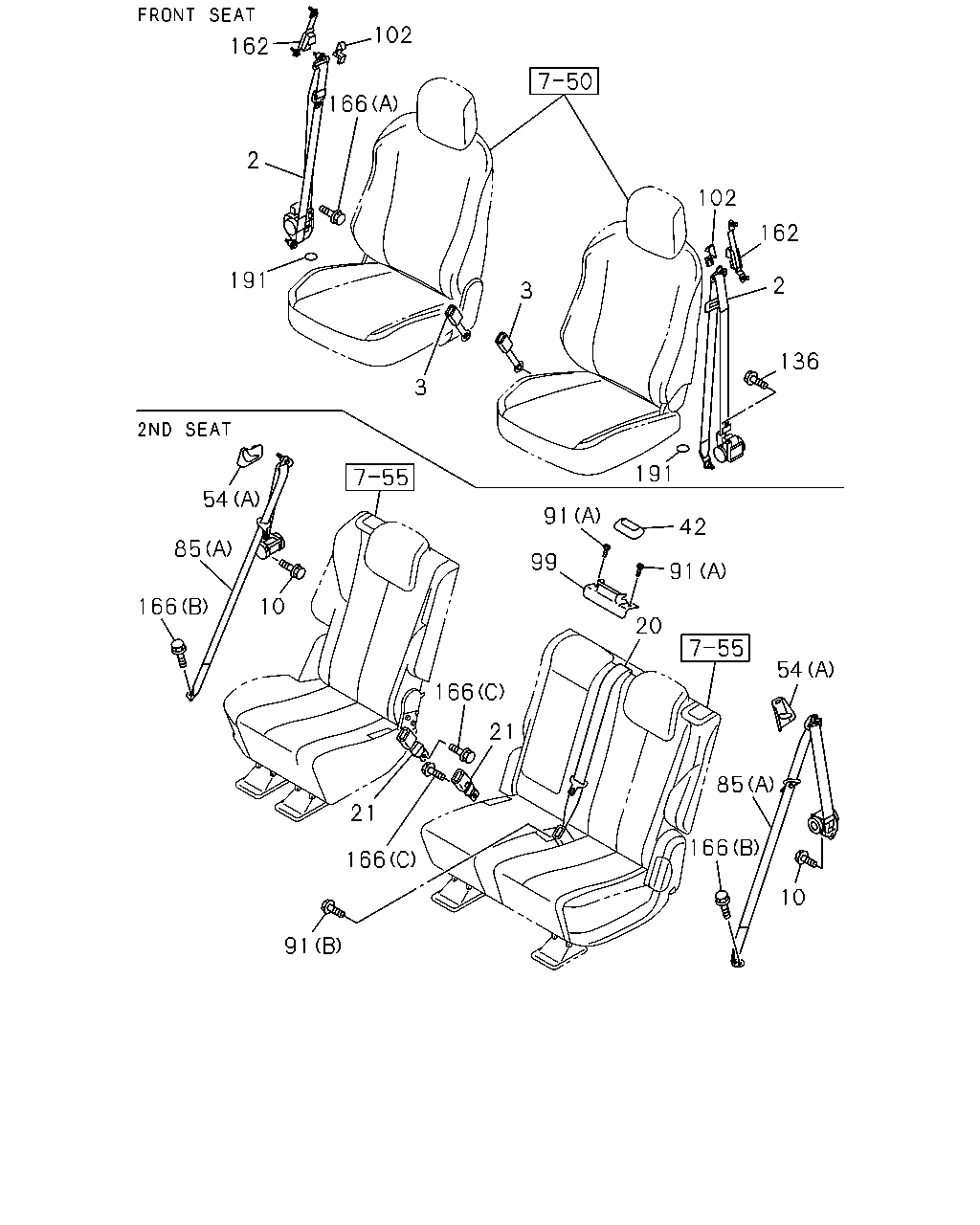

çizim 433773
102 162 2 136 191 42 91 91 99 20 54 85 166 10 21 166 21 166 91 166 85 54 10 3 3 191 2 162 166 102
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY 		8-97428-403-0 01 1 1407- ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY 		8-97428-402-0 01 1 1407- ● ●
3 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97426-632-0 01 1 1407- ● ●
3 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) BLACK 		8-97426-631-0 01 1 1407- ● ●
3 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-839-0 01 1 1407- ● ●
3 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) BLACK 		8-97426-630-0 01 1 1407- ● ●
10 BOLT; RETRACTOR
3RD SEAT M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1407- ● ●
10 BOLT; RETRACTOR
2ND SEAT M14X32 FLANGE 		8-98056-276-0 02 1 1407- ● ●
20 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97425-696-1 01 1 1407- ● ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97425-695-0 01 1 1407-1408 ● ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97425-695-0 01 1 1407-1408 ● ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97425-695-0 02 1 1409- ● ●
42 COVER; SEAT BELT
BLACK 		8-97429-757-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(A) GRAY 		8-97424-343-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(A) GRAY 		8-97424-344-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(B) GRAY 		8-97424-353-0 01 1 1407- ● ●
54 BEZEL; SEAT BELT
(B) GRAY 		8-97424-354-0 01 1 1407- ● ●
85 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-345-1 01 1 1407- ● ●
85 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-346-1 01 1 1407- ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-349-1 01 1 1407-1410 ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-246-0 01 1 1411- ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-350-1 01 1 1407-1410 ● ●
85 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-247-0 01 1 1411- ● ●
91 BOLT; RR SEAT BELT
(B) 		8-98253-633-0 01 1 1407- ● ●
91 BOLT; RR SEAT BELT
(A) 		8-98253-636-0 02 1 1407- ● ●
99 BRACKET; SEAT BELT 8-98253-602-0 01 1 1407- ● ●
102 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1407- ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE 		0-28650-616-0 01 1 1407- ● ●
162 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1407- ● ●
166 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1407-1408 ● ●
166 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1407-1408 ● ●
166 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 02 1 1409- ● ●
166 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1407- ● ●
166 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1407- ● ●
166 BOLT; SEAT BELT ANCHOR
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1407- ● ●
191 SEAL; SEAT BELT
OD=32 BLACK 		8-98031-126-0 02 1 1407- ● ●
