◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#145258) — 342 parça

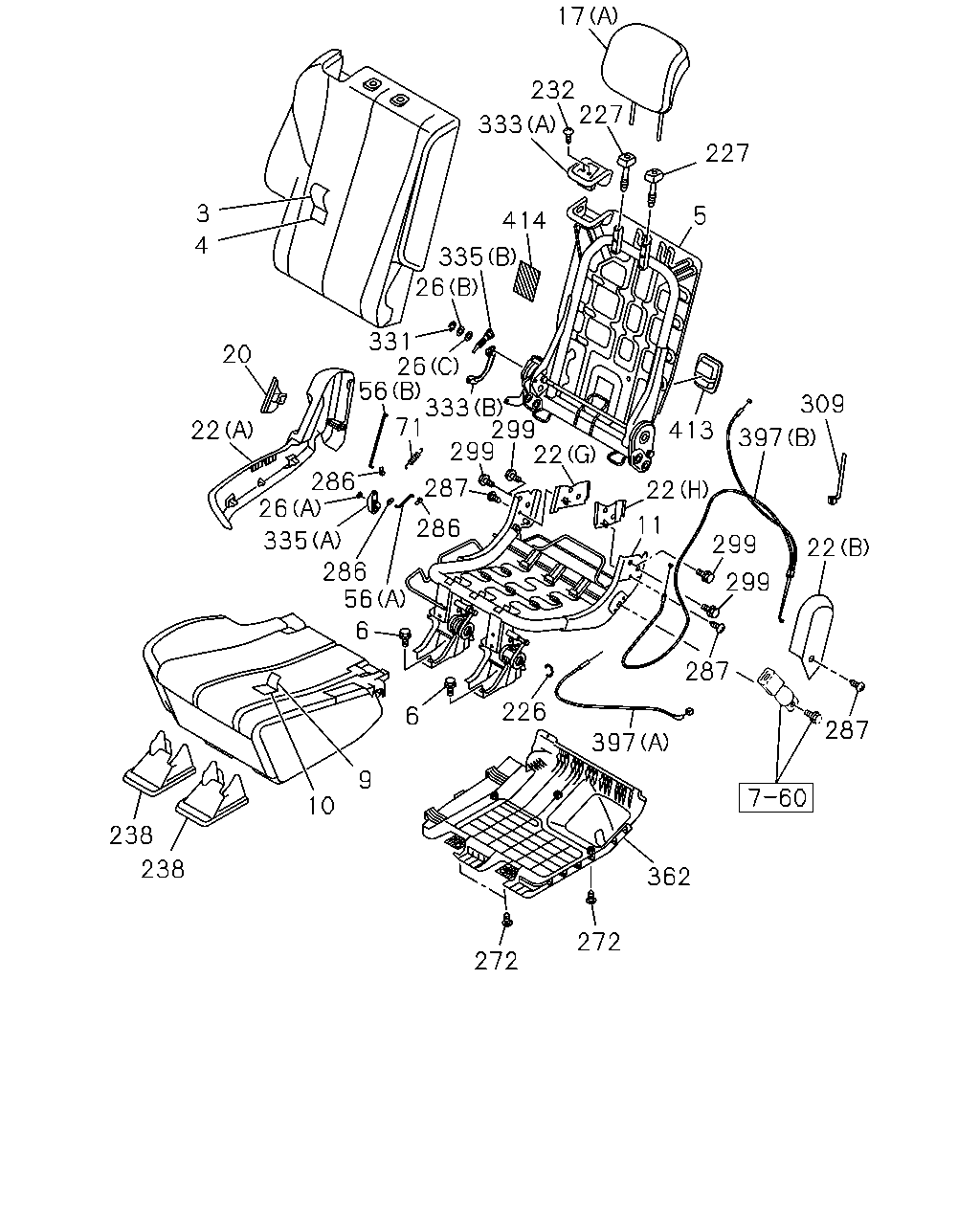

çizim 432047
17 227 227 232 333 3 4 414 5 309 397 22 287 362 272 272 397 287 299 299 22 413 11 226 6 9 10 238 238 6 56 286 335 26 286 22 20 331 56 26 71 287 286 22 299 333 299 26 335
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-260-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-261-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-243-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-244-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-230-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-231-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-202-0 01 1 1407- ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-203-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-599-0 01 1 1407- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-600-0 01 1 1407- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
5 FRAME ASM; RR SEAT BACK 8-98253-595-2 01 1 1407- ● ●
5 FRAME ASM; RR SEAT BACK 8-98253-596-2 01 1 1407- ● ●
6 BOLT; RR SEAT
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-215-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-255-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-237-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-238-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-224-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-225-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-196-1 01 1 1407- ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-197-1 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-546-0 01 1 1407- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-547-0 01 1 1407- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
11 FRAME ASM; CUSHION,RR SEAT 8-98253-542-1 01 1 1407- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98253-543-1 01 1 1407-1407 ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98288-447-0 01 1 1408- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 02 1 1409- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY 		8-97428-268-0 01 1 1407- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 02 1 1409- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK 		8-97428-251-0 01 1 1407- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-755-0 01 1 1407- ● ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-756-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(E) 3RD BLACK 		8-97428-149-0 02 1 1407- ● ●
22 COVER; RECLINING ADJ
(F) 3RD BLACK 		8-97428-150-0 02 1 1407- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1407- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 02 1 1409- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 02 1 1409- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 02 1 1409- ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 02 1 1409- ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 02 1 1409- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 02 1 1409- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 11 1 1407-1408 ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 27 1 1409- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 16 1 1407-1408 ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 12 1 1407-1408 ●
226 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 12 1 1407-1408 ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 29 1 1409- ●
226 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 29 1 1409- ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 17 1 1407-1408 ●
226 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 17 1 1407-1408 ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1407- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1407- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 01 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1409- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 02 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 01 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1409- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 02 1 1407-1408 ● ●
232 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 SCREW; RR SEAT 8-98253-634-0 04 1 1409- ● ●
238 COVER; LEG
BLACK 		8-97424-474-1 04 1 1407- ● ●
272 SCREW; COVER 8-98253-634-0 05 1 1407-1408 ● ●
272 SCREW; COVER 8-98253-634-0 11 1 1409- ● ●
272 SCREW; COVER 8-98253-634-0 06 1 1407-1408 ● ●
286 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 COVER; HINGE 8-98253-646-0 06 1 1409- ● ●
287 SCREW; COVER 8-98253-634-0 02 1 1407-1408 ● ●
287 SCREW; COVER 8-98253-634-0 06 1 1409- ● ●
287 SCREW; COVER 8-98253-634-0 04 1 1407-1408 ● ●
299 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 BOLT; LEG 8-98253-643-0 08 1 1409- ● ●
309 CLIP; SEAT 8-98220-048-0 01 1 1407-1408 ● ●
309 CLIP; SEAT 8-98220-048-0 01 1 1407-1408 ● ●
309 CLIP; SEAT 8-98220-048-0 02 1 1409- ● ●
331 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 RING; SNAP,PIN 8-98271-945-0 02 1 1409- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 02 1 1409- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-923-0 01 1 1407- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-924-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-647-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-648-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-616-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-617-0 01 1 1407- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-198-0 01 1 1407- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-199-0 01 1 1407- ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 02 1 1409- ● ●
397 CABLE; SEAT
(A) 		8-98253-553-0 01 1 1407- ● ●
397 CABLE; SEAT
(A) 		8-98253-554-0 01 1 1407- ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 01 1 1407-1408 ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 03 1 1409- ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 02 1 1407-1408 ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 02 1 1409- ● ●

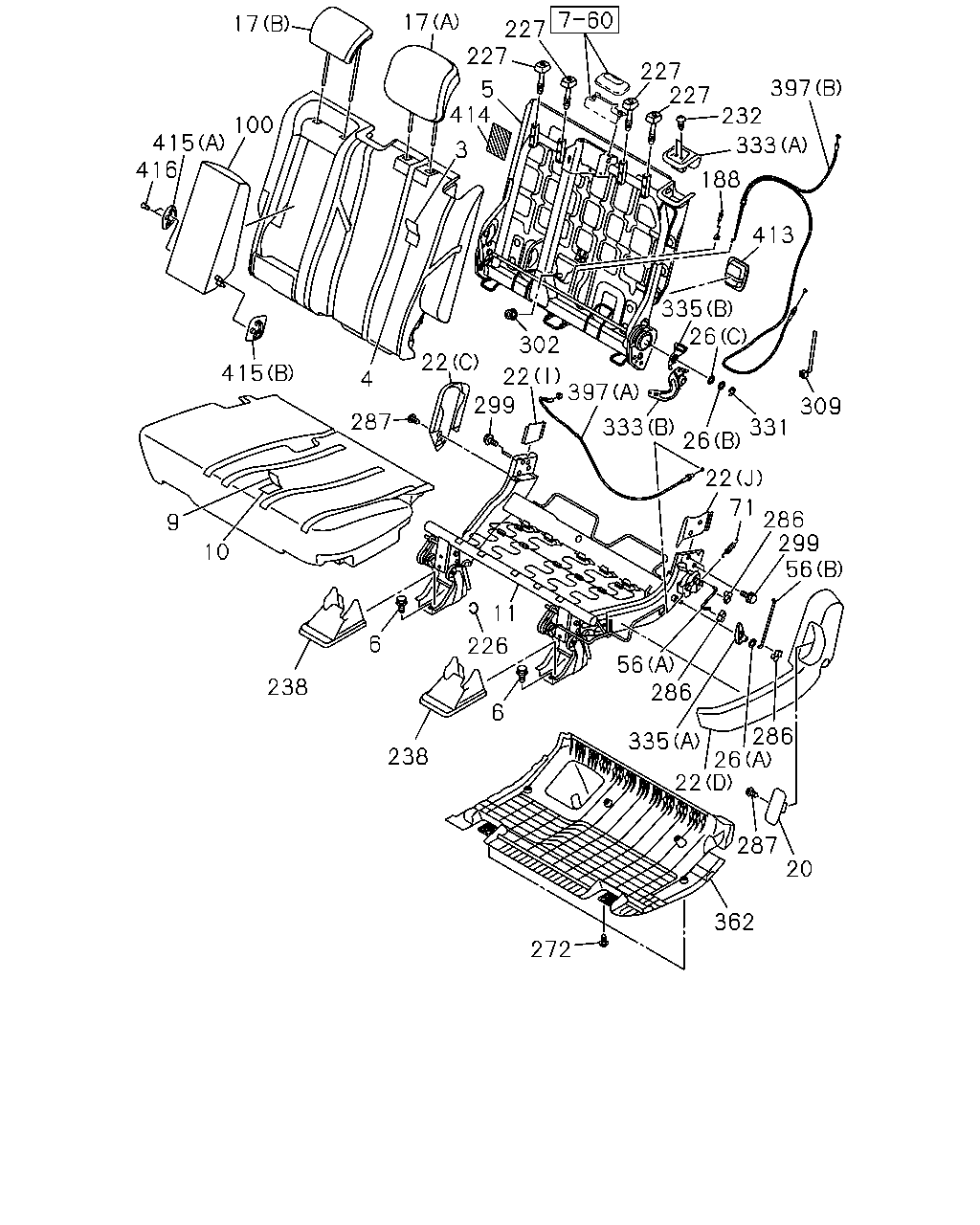

çizim 432634
397 333 232 227 227 188 413 335 26 309 331 22 71 286 299 56 286 26 22 287 20 362 272 335 286 56 26 333 397 22 302 299 22 287 4 11 6 226 238 6 238 10 9 415 416 415 100 17 17 227 227 5 414 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-260-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-261-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-243-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-244-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-230-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-231-0 01 1 1407- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-202-0 01 1 1407- ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-203-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-599-0 01 1 1407- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-600-0 01 1 1407- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
4 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
5 FRAME ASM; RR SEAT BACK 8-98253-595-2 01 1 1407- ● ●
5 FRAME ASM; RR SEAT BACK 8-98253-596-2 01 1 1407- ● ●
6 BOLT; RR SEAT
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-215-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-255-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-237-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-238-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-224-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-225-1 01 1 1407- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-196-1 01 1 1407- ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-197-1 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-546-0 01 1 1407- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-547-0 01 1 1407- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
11 FRAME ASM; CUSHION,RR SEAT 8-98253-542-1 01 1 1407- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98253-543-1 01 1 1407-1407 ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98288-447-0 01 1 1408- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 02 1 1409- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY 		8-97428-268-0 01 1 1407- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 02 1 1409- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK 		8-97428-251-0 01 1 1407- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
17 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-755-0 01 1 1407- ● ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-756-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(E) 3RD BLACK 		8-97428-149-0 02 1 1407- ● ●
22 COVER; RECLINING ADJ
(F) 3RD BLACK 		8-97428-150-0 02 1 1407- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1407- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 02 1 1409- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 02 1 1409- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 02 1 1409- ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 02 1 1409- ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 02 1 1409- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 02 1 1409- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-263-0 01 1 1407- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-246-0 01 1 1407- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97428-209-0 01 1 1407- ●
100 REST; ARM,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97428-209-0 01 1 1407- ●
188 WIRE ASM; RR SEAT 8-98253-613-1 01 1 1407- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 11 1 1407-1408 ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 27 1 1409- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 16 1 1407-1408 ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 12 1 1407-1408 ●
226 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 12 1 1407-1408 ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 29 1 1409- ●
226 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 29 1 1409- ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 17 1 1407-1408 ●
226 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 17 1 1407-1408 ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1407- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1407- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 01 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1409- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 02 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 01 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1409- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 02 1 1407-1408 ● ●
232 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 SCREW; RR SEAT 8-98253-634-0 04 1 1409- ● ●
238 COVER; LEG
BLACK 		8-97424-474-1 04 1 1407- ● ●
272 SCREW; COVER 8-98253-634-0 05 1 1407-1408 ● ●
272 SCREW; COVER 8-98253-634-0 11 1 1409- ● ●
272 SCREW; COVER 8-98253-634-0 06 1 1407-1408 ● ●
286 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 COVER; HINGE 8-98253-646-0 06 1 1409- ● ●
287 SCREW; COVER 8-98253-634-0 02 1 1407-1408 ● ●
287 SCREW; COVER 8-98253-634-0 06 1 1409- ● ●
287 SCREW; COVER 8-98253-634-0 04 1 1407-1408 ● ●
299 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 BOLT; LEG 8-98253-643-0 08 1 1409- ● ●
302 NUT; RR SEAT 8-98253-635-0 01 1 1407- ● ●
309 CLIP; SEAT 8-98220-048-0 01 1 1407-1408 ● ●
309 CLIP; SEAT 8-98220-048-0 01 1 1407-1408 ● ●
309 CLIP; SEAT 8-98220-048-0 02 1 1409- ● ●
331 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 RING; SNAP,PIN 8-98271-945-0 02 1 1409- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 02 1 1409- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-923-0 01 1 1407- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-924-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-647-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-648-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-616-0 01 1 1407- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-617-0 01 1 1407- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-198-0 01 1 1407- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-199-0 01 1 1407- ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 02 1 1409- ● ●
397 CABLE; SEAT
(A) 		8-98253-553-0 01 1 1407- ● ●
397 CABLE; SEAT
(A) 		8-98253-554-0 01 1 1407- ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 01 1 1407-1408 ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 03 1 1409- ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 02 1 1407-1408 ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 02 1 1409- ● ●
415 COVER; ARM REST
(A) 		8-98253-628-0 01 1 1407- ● ●
415 COVER; ARM REST
(B) 		8-98253-629-0 01 1 1407- ● ●
416 BOLT; ARM REST 8-98253-642-0 02 1 1407- ● ●

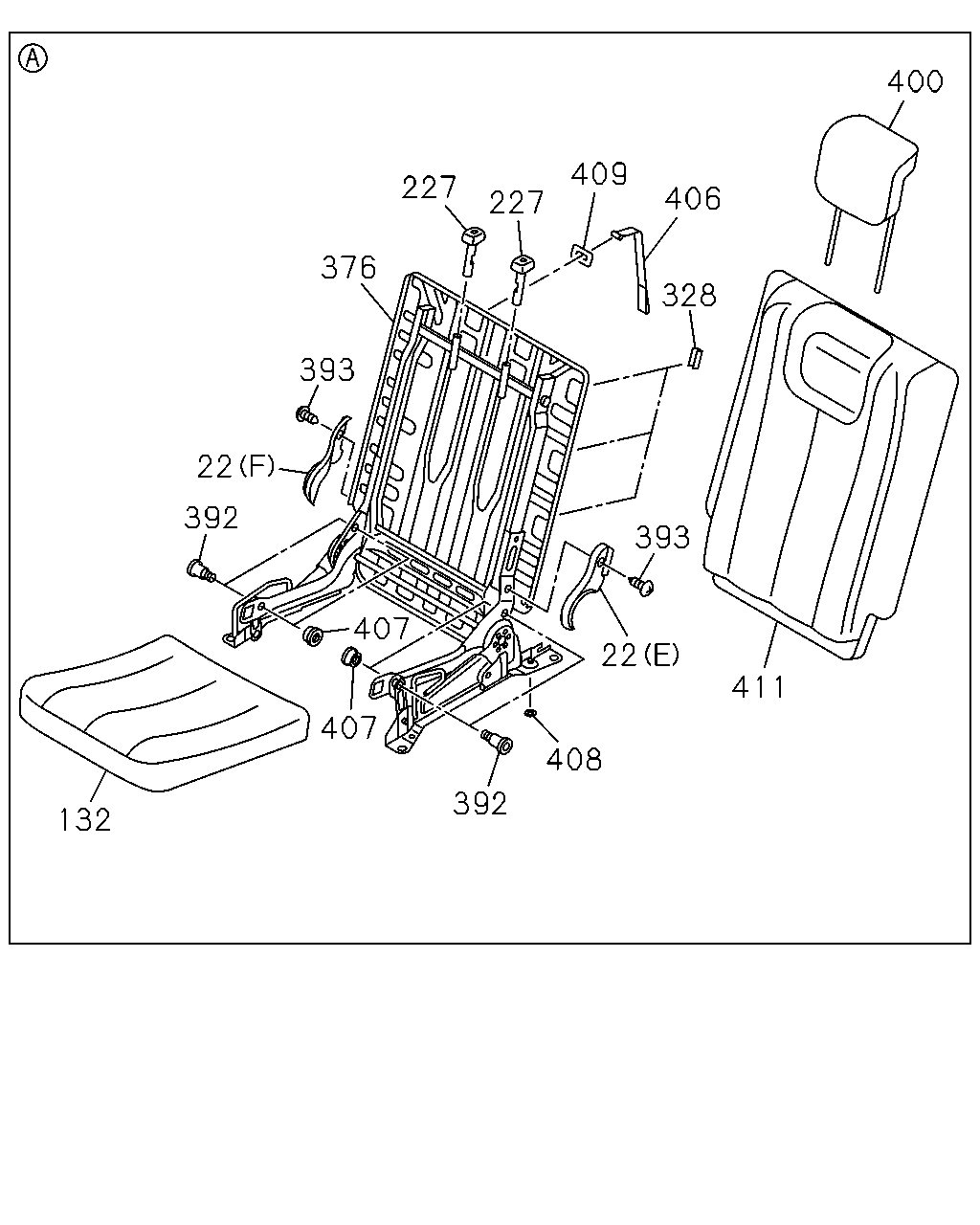

çizim 433453
22 392 132 407 407 393 376 227 227 409 406 328 393 22 408 392 411 400
BalonParca AdiParca NoAdetTipApplied Date A B
22 COVER; RECLINING ADJ
(E) 3RD BLACK 		8-97428-149-0 02 1 1407- ● ●
22 COVER; RECLINING ADJ
(F) 3RD BLACK 		8-97428-150-0 02 1 1407- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1407- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1407- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-171-0 02 1 1407- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-163-0 02 1 1407- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-157-0 02 1 1407- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-142-0 02 1 1407- ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1407- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1407- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 01 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1409- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 02 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 01 1 1407-1408 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1409- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 02 1 1407-1408 ● ●
328 FASTENER; MAGIC 8-98253-019-0 12 1 1407- ● ●
376 FRAME ASM; 3RD SEAT BACK 8-98253-001-0 01 1 1407- ● ●
376 FRAME ASM; 3RD SEAT BACK 8-98253-002-0 01 1 1407- ● ●
392 BOLT; 3RD SEAT 8-98253-079-0 08 1 1407- ● ●
393 SCREW; 3RD SEAT 8-98253-008-0 04 1 1407- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-166-0 02 1 1407- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-158-0 02 1 1407- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-152-0 02 1 1407- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-136-0 02 1 1407- ●
406 STRAP
BLACK 		8-97428-139-0 02 1 1407- ● ●
407 COLLAR; CUSHION
FRONT 		8-98253-021-0 04 1 1407- ● ●
407 COLLAR; CUSHION
REAR 		8-98253-022-0 04 1 1407- ● ●
408 SPONGE 8-98253-023-0 02 1 1407- ● ●
409 COVER; STRAP
BLACK 		8-97428-151-0 02 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-169-0 01 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-184-0 01 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-161-0 01 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-181-0 01 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-155-0 01 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-178-0 01 1 1407- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-140-0 01 1 1407- ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-175-0 01 1 1407- ●

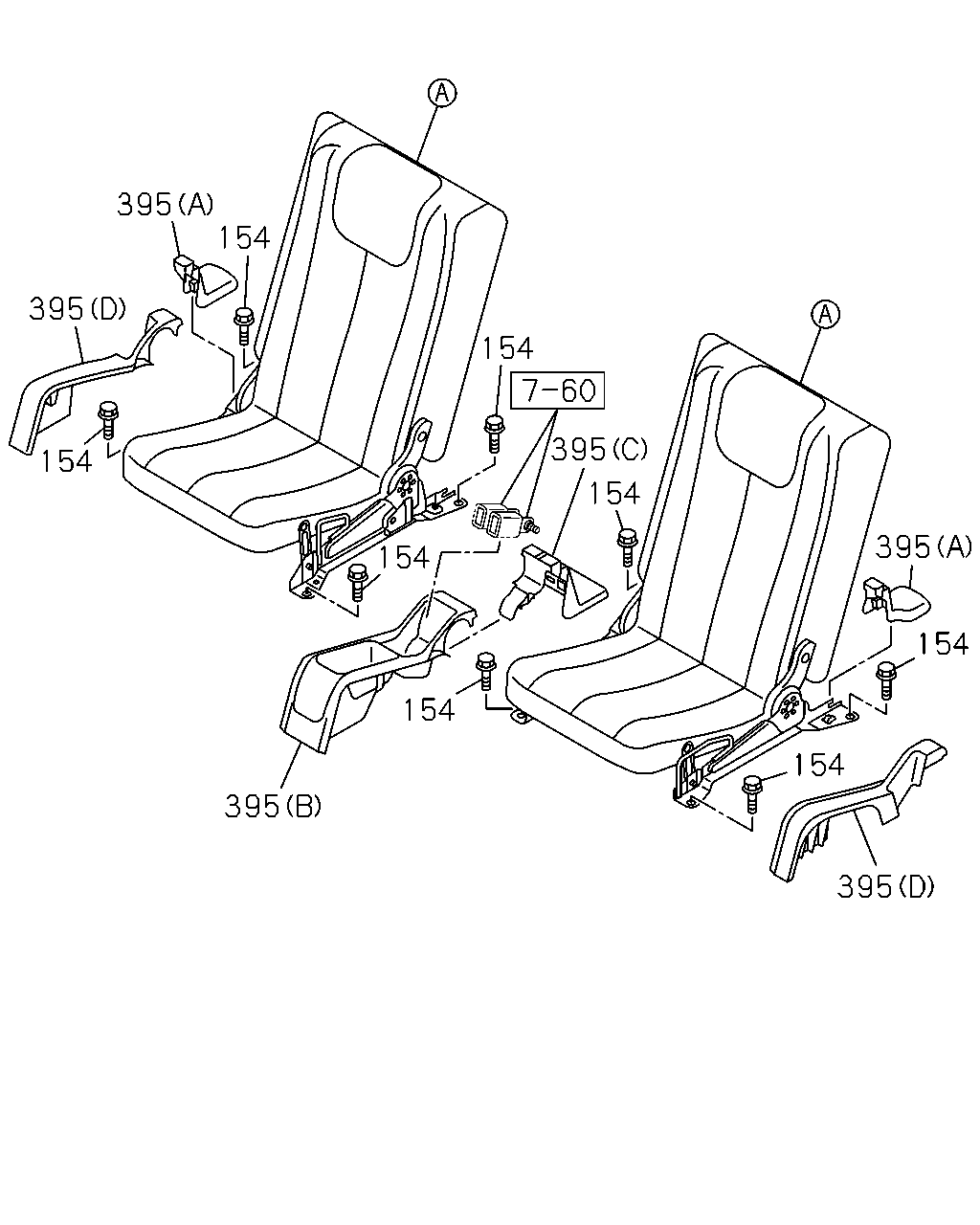

çizim 433968
395 395 154 154 154 154 154 395 154 395 154 395 154 395
BalonParca AdiParca NoAdetTipApplied Date A B
154 BOLT; STRIKER TO FLOOR
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1407- ● ●
395 COVER; 3RD SEAT
(A) BLACK 		8-97424-468-3 01 1 1407- ● ●
395 COVER; 3RD SEAT
(A) BLACK 		8-97424-469-3 01 1 1407- ● ●
395 COVER; 3RD SEAT
(B) BLACK 		8-97424-470-2 01 1 1407- ● ●
395 COVER; 3RD SEAT
(C) BLACK 		8-97424-471-2 01 1 1407- ● ●
395 COVER; 3RD SEAT
(D) BLACK 		8-97424-472-2 01 1 1407- ● ●
395 COVER; 3RD SEAT
(D) BLACK 		8-97424-473-2 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
