Sayfa 7-50 - Isuzu EPC

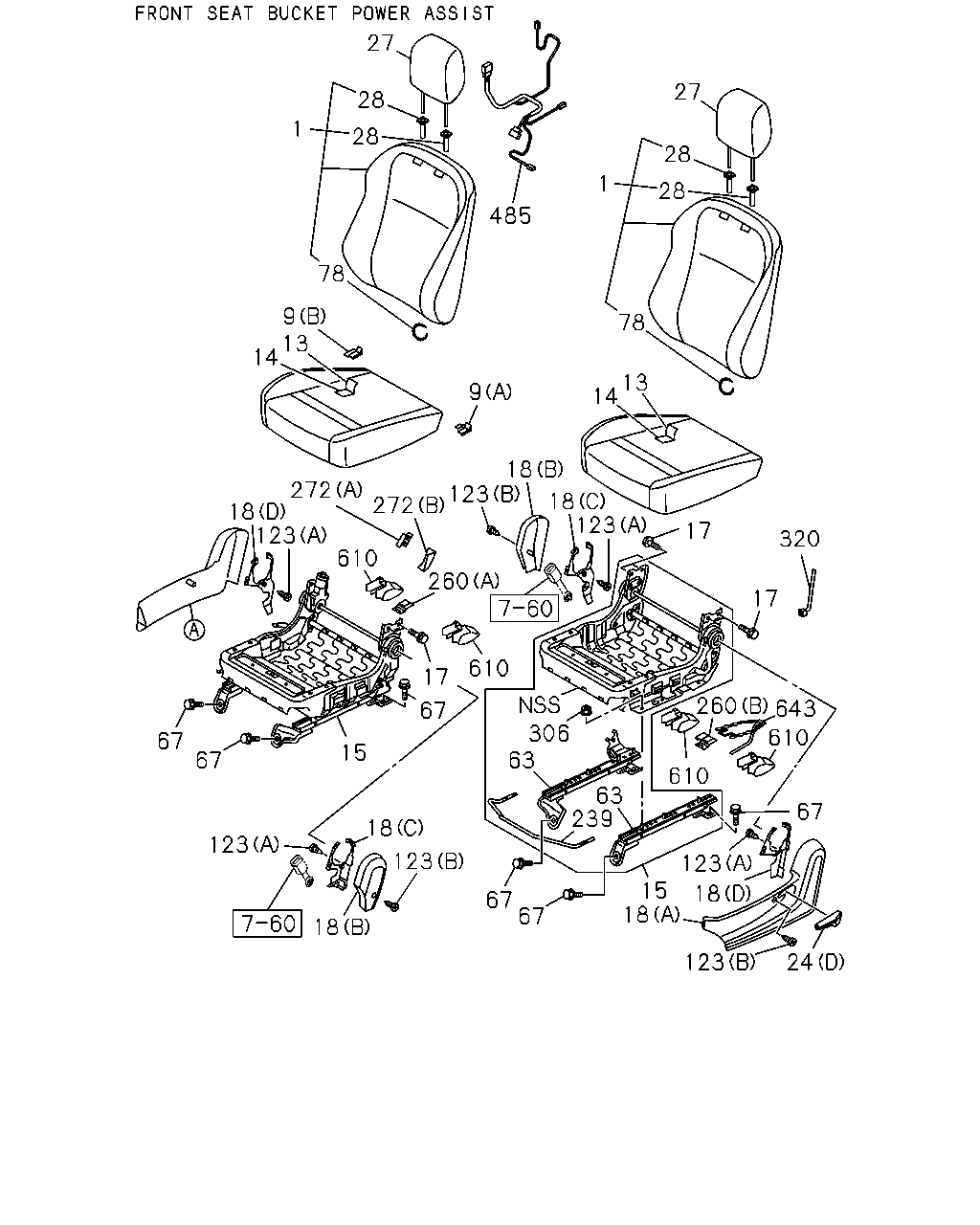

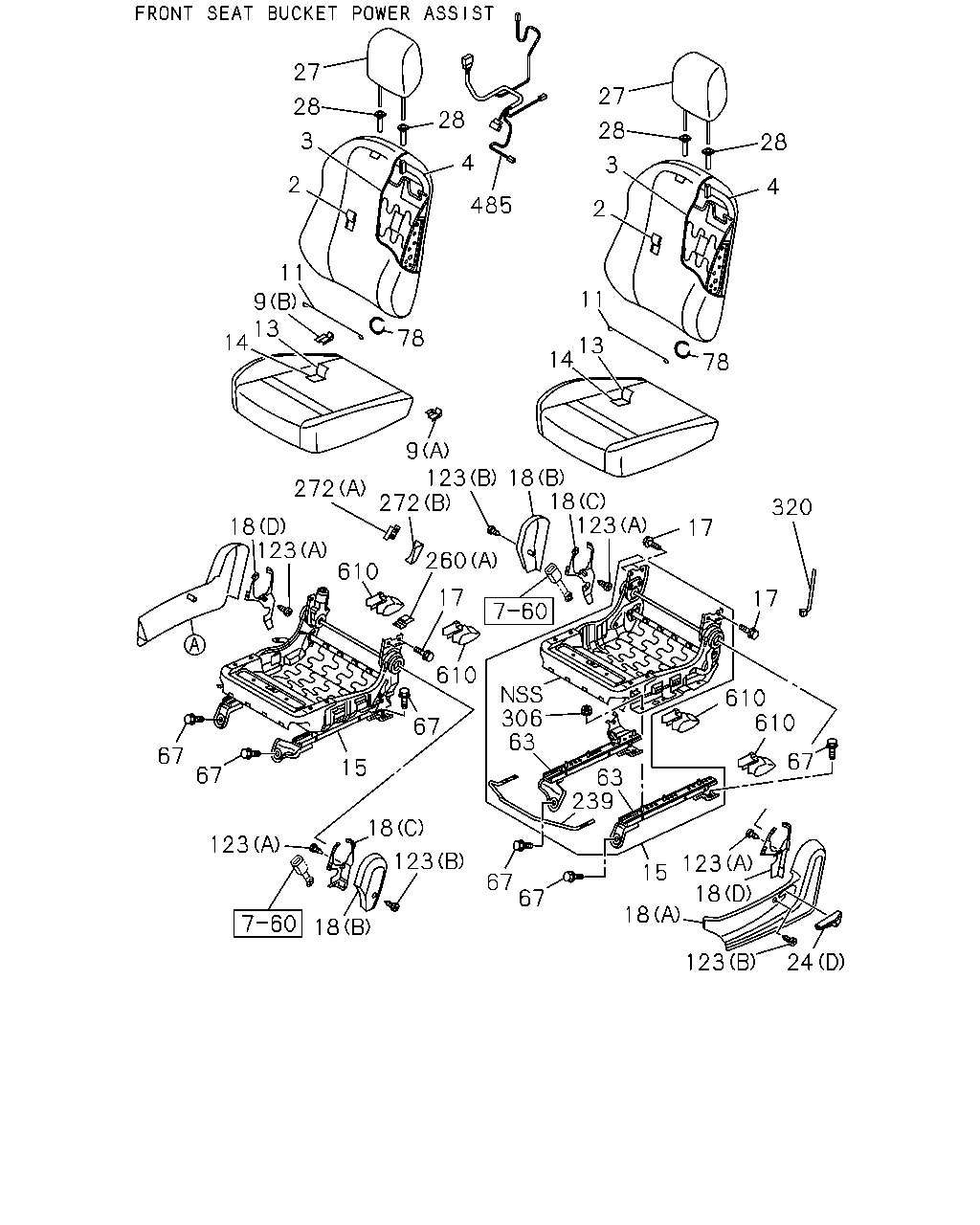

7-50 — FRONT SEAT (#145257) — 423 parça

24 123 18 15 123 18 67 610 610 260 643 17 320 63 239 67 67 123 18 18 123 67 67 15 67 17 63 306 610 260 610 123 18 272 272 123 18 123 18 17 13 14 9 13 14 9 78 485 1 28 28 27 27 28 28 1 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-323-0	01	1	1407-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-349-0	01	1	1407-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-324-0	01	1	1407-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-350-0	01	1	1407-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) BLACK	8-97428-293-0	01	1	1407-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) BLACK	8-97428-291-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (B) OUTER BLACK	8-97428-377-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (A) INNER BLACK	8-97428-379-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (B) OUTER BLACK	8-97428-373-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (A) INNER BLACK	8-97428-375-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-314-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-313-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-286-0	01	1	1407-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-287-0	01	1	1407-		●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98187-564-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB>	8-98187-561-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98187-711-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91)	8-98187-702-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB>	8-98187-718-2	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98239-095-1	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98187-715-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-716-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98239-094-1	01	1	1407-		●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-045-0	08	1	1407-		●
18	COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1407-	●	●
18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1407-	●	●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1407-		●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-595-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LOCK BLACK	8-97424-665-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) FREE BLACK	8-97424-666-0	02	1	1407-		●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98224-309-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> INNER	8-98224-313-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) INNER	8-98224-311-1	01	1	1407-		●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>	8-98220-068-0	16	1	1407-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	18	1	1407-	●	●
78	RING; SNAP SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-068-0	34	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) M4X8	8-98220-085-0	04	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	06	1	1407-		●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-104-0	02	1	1407-		●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B)	8-98224-497-0	01	1	1407-	●	●
272	COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97428-381-0	01	1	1407-	●	●
272	COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> (B) BLACK	8-97428-383-0	01	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	14	1	1407-		●
320	CLIP; BAND,SEAT	8-98220-048-0	02	1	1407-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98220-048-0	01	1	1407-	●	●
485	HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB>	8-98224-265-0	01	1	1407-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97416-785-4	04	1	1407-	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97416-785-4	04	1	1407-		●
643	SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98184-734-0	01	1	1407-	●	●

24 123 18 18 15 123 67 260 610 610 643 260 17 320 17 123 18 306 63 63 239 67 67 123 18 15 18 123 67 67 63 610 610 67 260 306 63 239 17 123 123 18 14 13 9 78 1 28 28 27 27 28 28 1 78 13 14 18 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-323-0	01	1	1407-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-349-0	01	1	1407-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-324-0	01	1	1407-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-350-0	01	1	1407-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) BLACK	8-97428-293-0	01	1	1407-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91) BLACK	8-97428-291-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (B) OUTER BLACK	8-97428-377-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (A) INNER BLACK	8-97428-379-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (B) OUTER BLACK	8-97428-373-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (A) INNER BLACK	8-97428-375-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-314-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-313-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-286-0	01	1	1407-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-287-0	01	1	1407-		●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98187-564-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB>	8-98187-561-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98187-711-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91)	8-98187-702-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB>	8-98187-718-2	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98239-095-1	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98187-715-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-716-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98239-094-1	01	1	1407-		●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-045-0	08	1	1407-		●
18	COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1407-	●	●
18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1407-	●	●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1407-		●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-595-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LOCK BLACK	8-97424-665-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) FREE BLACK	8-97424-666-0	02	1	1407-		●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98224-309-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> INNER	8-98224-313-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) INNER	8-98224-311-1	01	1	1407-		●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>	8-98220-068-0	16	1	1407-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	18	1	1407-	●	●
78	RING; SNAP SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-068-0	34	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) M4X8	8-98220-085-0	04	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	06	1	1407-		●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-104-0	02	1	1407-		●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B)	8-98224-497-0	01	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	14	1	1407-		●
320	CLIP; BAND,SEAT	8-98220-048-0	02	1	1407-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98220-048-0	01	1	1407-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97416-785-4	04	1	1407-	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97416-785-4	04	1	1407-		●
643	SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98184-734-0	01	1	1407-	●	●

27 28 4 28 2 11 13 14 78 320 17 17 610 610 67 24 123 123 18 15 18 67 67 63 239 306 63 123 18 18 123 67 67 15 610 67 17 272 272 18 123 9 78 28 485 4 27 3 28 2 11 9 14 13 18 123 18 123 260 3 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97429-044-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97429-039-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97429-043-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97429-038-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-298-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-296-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-278-0	01	1	1407-		●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-279-0	01	1	1407-		●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98259-974-0	01	1	1407-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98259-975-0	01	1	1407-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-380-0	01	1	1407-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-379-0	01	1	1407-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-496-0	01	1	1407-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-496-0	01	1	1407-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98224-496-0	02	1	1407-		●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (B) OUTER BLACK	8-97428-377-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (A) INNER BLACK	8-97428-379-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (B) OUTER BLACK	8-97428-373-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (A) INNER BLACK	8-97428-375-0	01	1	1407-	●	●
11	WIRE; SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98220-094-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-314-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-313-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-286-0	01	1	1407-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-287-0	01	1	1407-		●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98187-564-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB>	8-98187-561-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98187-711-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91)	8-98187-702-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB>	8-98187-718-2	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98239-095-1	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98187-715-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-716-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98239-094-1	01	1	1407-		●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-045-0	08	1	1407-		●
18	COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1407-	●	●
18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1407-	●	●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1407-		●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-595-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LOCK BLACK	8-97424-665-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) FREE BLACK	8-97424-666-0	02	1	1407-		●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98224-309-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> INNER	8-98224-313-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) INNER	8-98224-311-1	01	1	1407-		●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>	8-98220-068-0	16	1	1407-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	18	1	1407-	●	●
78	RING; SNAP SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-068-0	34	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) M4X8	8-98220-085-0	04	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	06	1	1407-		●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-104-0	02	1	1407-		●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS SEAT TRIM LEATHER<6TB> (A)	8-98224-267-0	01	1	1407-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B)	8-98224-497-0	01	1	1407-	●	●
272	COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97428-381-0	01	1	1407-	●	●
272	COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> (B) BLACK	8-97428-383-0	01	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	14	1	1407-		●
320	CLIP; BAND,SEAT	8-98220-048-0	02	1	1407-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98220-048-0	01	1	1407-	●	●
485	HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB>	8-98224-265-0	01	1	1407-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97416-785-4	04	1	1407-	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97416-785-4	04	1	1407-		●

24 123 18 15 123 18 67 610 610 63 239 67 67 123 18 15 67 610 63 306 18 610 63 123 67 67 63 306 239 17 123 18 18 123 17 320 17 123 18 14 13 9 2 3 28 27 28 4 3 28 27 28 4 2 78 13 14 9 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97429-044-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97429-039-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97429-043-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97429-038-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-298-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-296-0	01	1	1407-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-278-0	01	1	1407-		●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-279-0	01	1	1407-		●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98259-974-0	01	1	1407-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98259-975-0	01	1	1407-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-380-0	01	1	1407-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-379-0	01	1	1407-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-496-0	01	1	1407-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-496-0	01	1	1407-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98224-496-0	02	1	1407-		●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (B) OUTER BLACK	8-97428-377-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM LEATHER<6TB> (A) INNER BLACK	8-97428-379-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (B) OUTER BLACK	8-97428-373-0	01	1	1407-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> (A) INNER BLACK	8-97428-375-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-314-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-313-0	01	1	1407-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-286-0	01	1	1407-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) BLACK	8-97428-287-0	01	1	1407-		●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM LEATHER<6TB>	8-98187-564-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB>	8-98187-561-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98187-711-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER(AK5) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BACK POCKET(E91)	8-98187-702-0	01	1	1407-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB>	8-98187-718-2	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER(AK5)	8-98239-095-1	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98187-715-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-716-3	01	1	1407-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98239-094-1	01	1	1407-		●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-045-0	04	1	1407-	●	●
17	BOLT; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-045-0	08	1	1407-		●
18	COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1407-	●	●
18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1407-	●	●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1407-		●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-595-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1407-	●	●
27	REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1407-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) LOCK BLACK	8-97424-665-0	02	1	1407-		●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) FREE BLACK	8-97424-666-0	02	1	1407-		●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98224-309-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> INNER	8-98224-313-1	01	1	1407-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) INNER	8-98224-311-1	01	1	1407-		●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1407-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB>	8-98220-068-0	16	1	1407-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	18	1	1407-	●	●
78	RING; SNAP SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-068-0	34	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) M4X8	8-98220-085-0	04	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	06	1	1407-		●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91)	8-98220-104-0	02	1	1407-		●
306	NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	14	1	1407-		●
320	CLIP; BAND,SEAT	8-98220-048-0	02	1	1407-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SEAT TRIM LEATHER<6TB>	8-98220-048-0	01	1	1407-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97416-785-4	04	1	1407-	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97416-785-4	04	1	1407-		●

18 486 601 24 24 123 18 24 228 20 228 228 24 24 123 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1407-	●	●
18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1407-	●	●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1407-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1407-		●
20	CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-598-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-595-0	01	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) M4X8	8-98220-085-0	04	1	1407-		●
123	SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	06	1	1407-		●
228	SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> M5X10	8-98224-268-0	03	1	1407-	●	●
486	SWITCH; POWER SEAT SEAT TRIM LEATHER<6TB>	8-98224-262-0	01	1	1407-	●	●
601	SCREW; SWITCH SEAT TRIM LEATHER<6TB> M4X12	8-98224-269-0	02	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
