◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#145256) — 84 parça

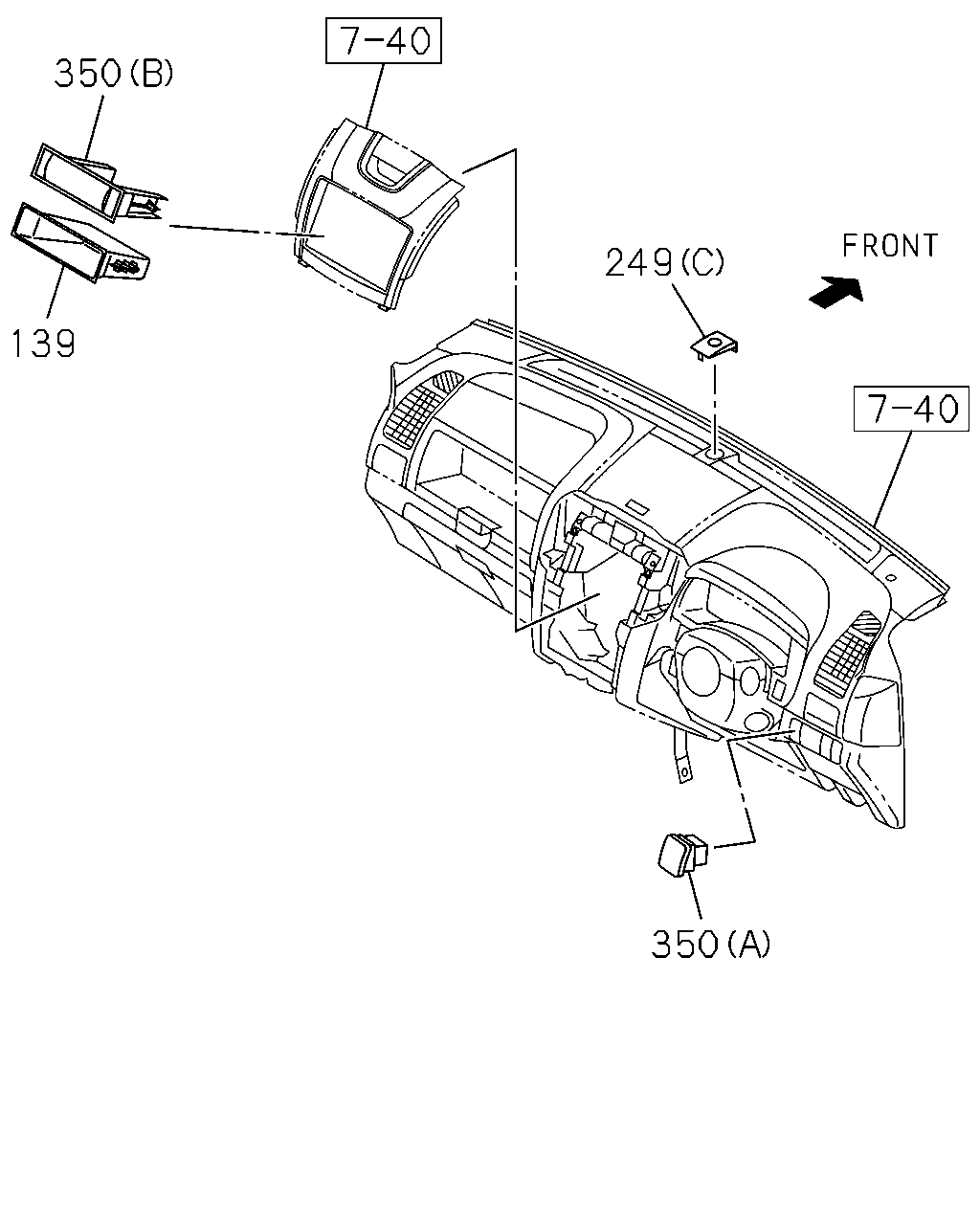

çizim 433521
350 139 249 350
BalonParca AdiParca NoAdetTipApplied Date A B
139 BOX; CONSOLE,UPR
RADIO DELETE(UL5) BLACK 		8-97416-619-0 01 1 1407- ● ●
249 COVER
AUTO COOLER SYSTEM(CJ2) (C) BLACK 		8-97416-614-2 01 1 1407- ● ●
249 COVER
COOLER W/FRESH AIR(C65) (C) BLACK 		8-97416-613-2 01 1 1407- ●
249 COVER
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (C) BLACK 		8-97416-613-2 01 1 1407- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 COVER
(D) BLACK 		8-97416-660-1 01 1 1407- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) (B) BLACK 		8-97417-153-1 01 1 1407- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR BASIC(RBA) (A) BLACK 		8-97417-151-2 01 1 1407- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR CUSTOM(RBD) (A) BLACK 		8-97417-150-2 01 1 1407- ●
249 COVER
(E) BLACK 		8-97416-659-2 01 1 1407- ●
350 COVER; CONSOLE
RADIO DELETE(UL5) (B) BLACK 		8-97416-806-0 01 1 1407- ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1407- ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1407- ● ●
350 COVER; CONSOLE
EXC. REAR COOLER WO/HEATER<C69> (A) 		8-98103-424-2 01 1 1407- ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 02 1 1407- ● ●

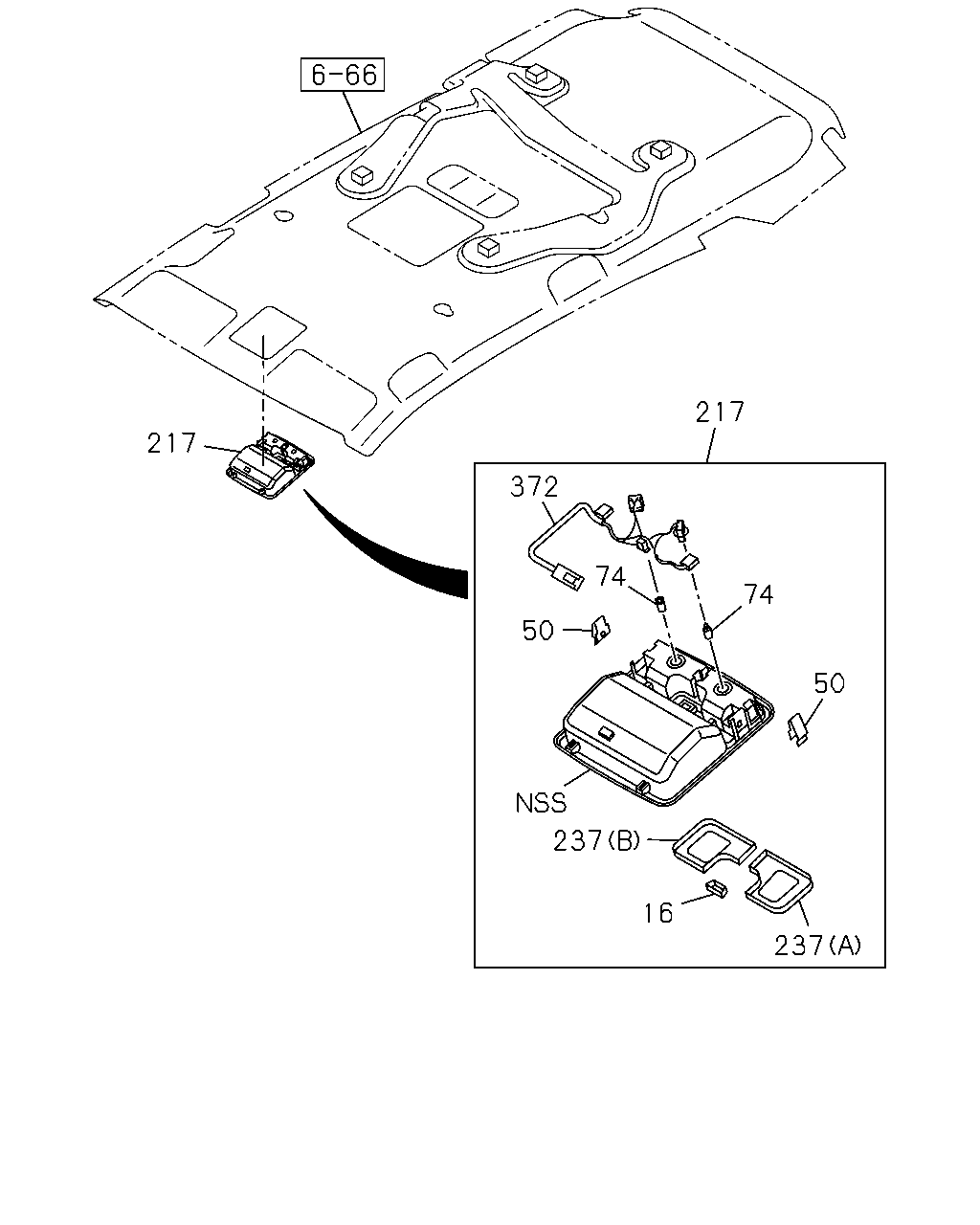

çizim 433636
217 217 372 74 50 74 237 16 50 237
BalonParca AdiParca NoAdetTipApplied Date A B
16 KNOB ASM
GRAY 		8-97423-261-0 01 1 1407- ●
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1407- ●
50 CLIP; CONSOLE 8-98192-891-0 02 1 1407- ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> 		8-98192-891-0 02 1 1407- ●
74 BULB; CONSOLE
12V 5W 		8-94124-595-0 02 1 1407- ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1407- ●
217 CONSOLE; HEADER
GRAY 		8-97416-690-5 01 1 1407- ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1407- ●
237 LENS; HEADER CONSOLE
(A) 		8-98192-893-0 01 1 1407- ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1407- ●
237 LENS; HEADER CONSOLE
(B) 		8-98192-894-0 01 1 1407- ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1407- ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE 8-98192-890-0 01 1 1407- ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1407- ●

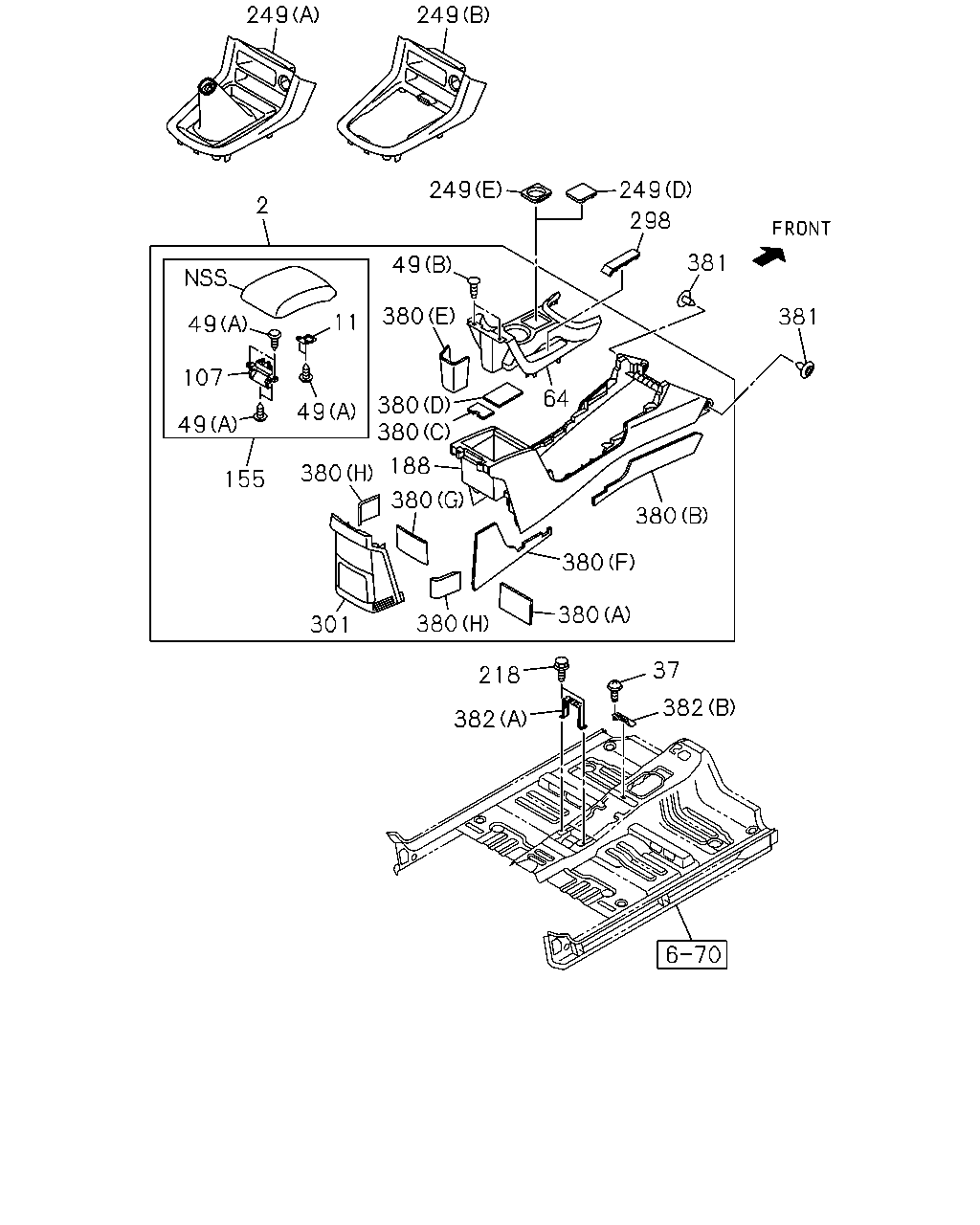

çizim 433700
249 249 249 249 298 381 381 2 49 107 49 11 49 155 380 301 49 380 380 380 188 380 380 64 380 380 380 218 382 37 382
BalonParca AdiParca NoAdetTipApplied Date A B
2 CONSOLE; CENTER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97427-528-0 01 1 1407- ●
2 CONSOLE; CENTER
FLOOR CONSOLE W/LID<D55> BLACK 		8-97427-528-0 01 1 1407- ●
11 HINGE; CONSOLE LID
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1407- ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1407- ●
37 SCREW; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1407- ●
37 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1407- ●
49 SCREW; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1407- ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1407- ●
49 SCREW; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1407- ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1407- ●
64 BEZEL; CENTER CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1407- ●
64 BEZEL; CENTER CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1407- ●
107 LOCK; LID,RR CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1407- ●
107 LOCK; LID,RR CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1407- ●
155 LID; PARCEL BOX
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1407- ●
155 LID; PARCEL BOX
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1407- ●
188 CONSOLE; RR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1407- ●
188 CONSOLE; RR
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1407- ●
218 BOLT; BRKT
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1407- ●
218 BOLT; BRKT
FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1407- ●
249 COVER
AUTO COOLER SYSTEM(CJ2) (C) BLACK 		8-97416-614-2 01 1 1407- ● ●
249 COVER
COOLER W/FRESH AIR(C65) (C) BLACK 		8-97416-613-2 01 1 1407- ●
249 COVER
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (C) BLACK 		8-97416-613-2 01 1 1407- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 COVER
(D) BLACK 		8-97416-660-1 01 1 1407- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) (B) BLACK 		8-97417-153-1 01 1 1407- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR BASIC(RBA) (A) BLACK 		8-97417-151-2 01 1 1407- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR CUSTOM(RBD) (A) BLACK 		8-97417-150-2 01 1 1407- ●
249 COVER
(E) BLACK 		8-97416-659-2 01 1 1407- ●
298 BEZEL; HAND BRAKE,CONSOLE
BLACK 		8-97416-651-2 01 1 1407- ● ●
301 BEZEL; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1407- ●
301 BEZEL; CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1407- ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (H) 		8-98245-194-0 02 1 1407- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (H) 		8-98245-194-0 02 1 1407- ●
381 RETAINER; FLOOR CONSOLE
BLACK 		8-97360-070-0 02 1 1407- ● ●
382 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1407- ●
382 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1407- ●
382 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1407- ●
382 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
