7-30 — LOCK CYLINDER SET (#145252) — 46 parça

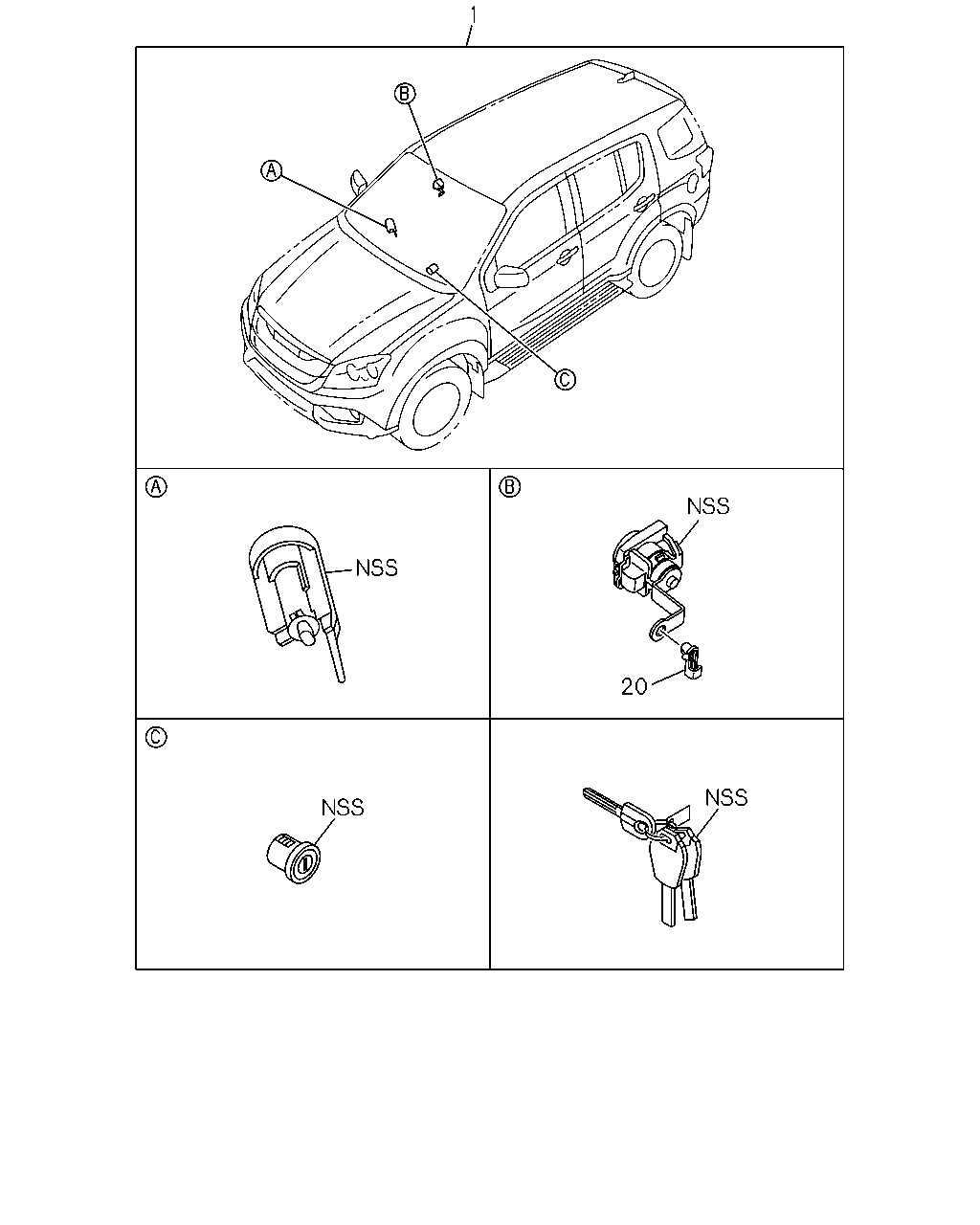

1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98247-636-0	01	1	1407-1408	●
1	CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> LOCK GLOVE BOX<A99>	8-98247-636-0	01	1	1407-1408		●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98103-098-0	01	1	1407-1408	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99>	8-98103-098-0	01	1	1407-1408		●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-584-0	01	1	1409-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99>	8-98274-584-0	01	1	1409-		●
1	CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98103-082-0	01	1	1407-1408	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98103-082-0	01	1	1407-1408		●
1	CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-575-0	01	1	1409-	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-575-0	01	1	1409-		●
1	CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> EXC. LOCK GLOVE BOX<A99>	8-98247-632-0	01	1	1407-1408		●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>	8-98251-890-0	01	1	1407-1408		●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>	8-98274-632-0	01	1	1409-		●
1	CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98103-076-0	01	1	1407-1408		●
1	CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98274-573-0	01	1	1409-		●
20	SNAP; DOOR LOCK CYL WHITE	8-97350-044-0	01	1	1407-	●	●
20	SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> YELLOW	8-97350-043-0	01	1	1407-1408	●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> YELLOW	8-97350-043-0	01	1	1409-	●	●

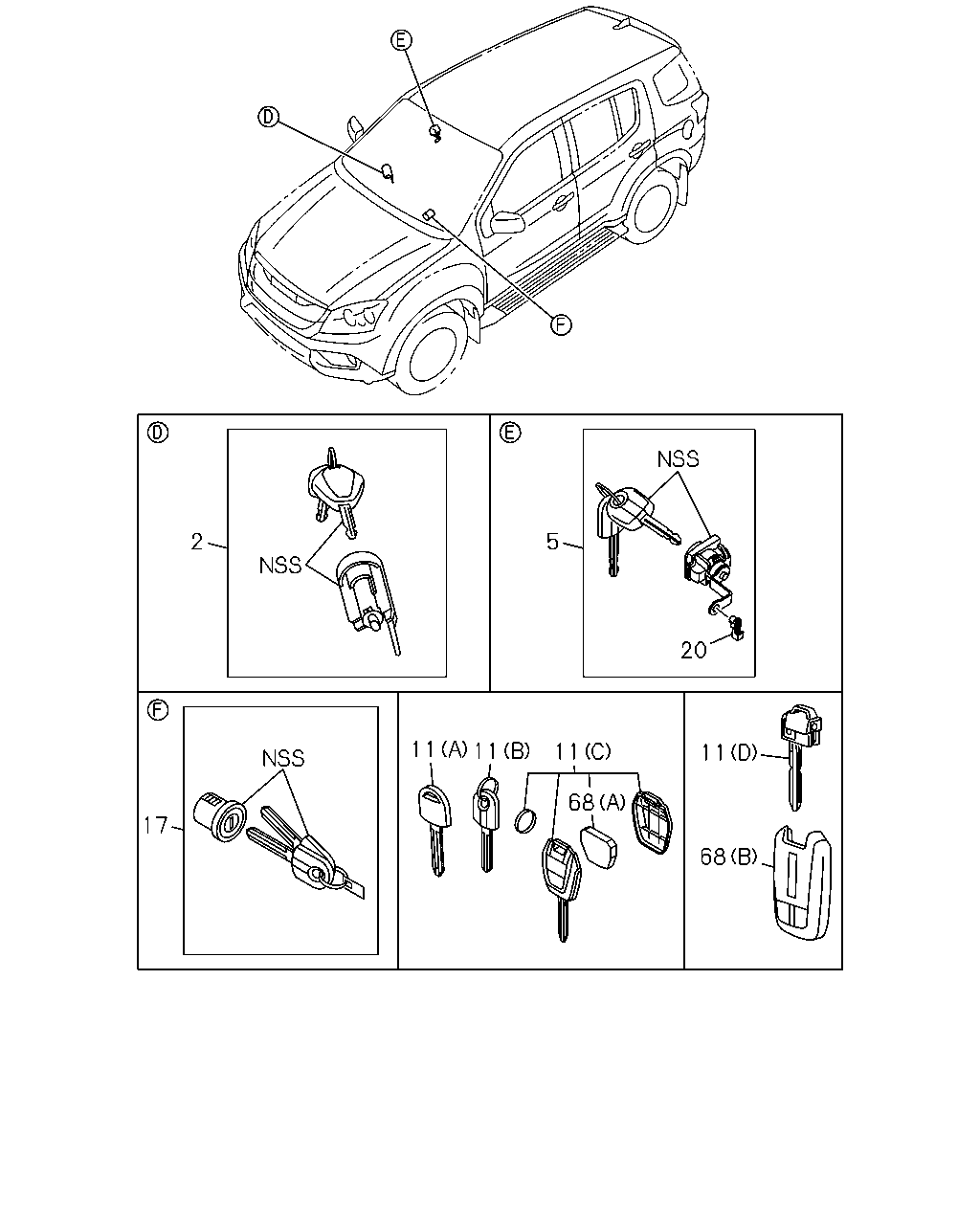

2 17 11 11 11 68 68 11 5 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1407-1408	●	●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-647-0	01	1	1409-	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1407-1408	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1409-	●	●
5	CYLINDER ASM; DOOR LOCK	8-98193-736-0	01	1	1407-1408	●	●
5	CYLINDER ASM; DOOR LOCK	8-98274-649-0	01	1	1409-	●	●
5	CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98193-737-0	01	1	1407-1408	●	●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-650-0	01	1	1409-	●	●
11	KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> (D)	8-98140-637-0	AR	1	1407-1408	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1407-1408	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1409-	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98007-939-1	AR	1	1407-1408	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98274-332-0	AR	1	1409-	●	●
11	KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)	8-97350-352-0	AR	1	1407-1408	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> (A)	8-97350-352-0	AR	1	1407-1408		●
11	KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-97350-352-0	AR	1	1407-1408		●
11	KEY; BLANK (A)	8-97350-352-0	AR	1	1409-	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> (A)	8-97350-352-0	AR	1	1409-		●
11	KEY; BLANK EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-97350-352-0	AR	1	1409-		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK	8-98193-735-0	01	1	1407-1408	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1407-1408		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK	8-98274-648-0	01	1	1409-	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99>	8-98274-648-0	01	1	1409-		●
20	SNAP; DOOR LOCK CYL WHITE	8-97350-044-0	01	1	1407-	●	●
20	SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> YELLOW	8-97350-043-0	01	1	1407-1408	●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> YELLOW	8-97350-043-0	01	1	1409-	●	●
68	TRANSMITTER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98243-995-0	02	1	1407-1407	●	●
68	TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-98102-844-1	01	1	1407-	●	●
