Sayfa 7-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶

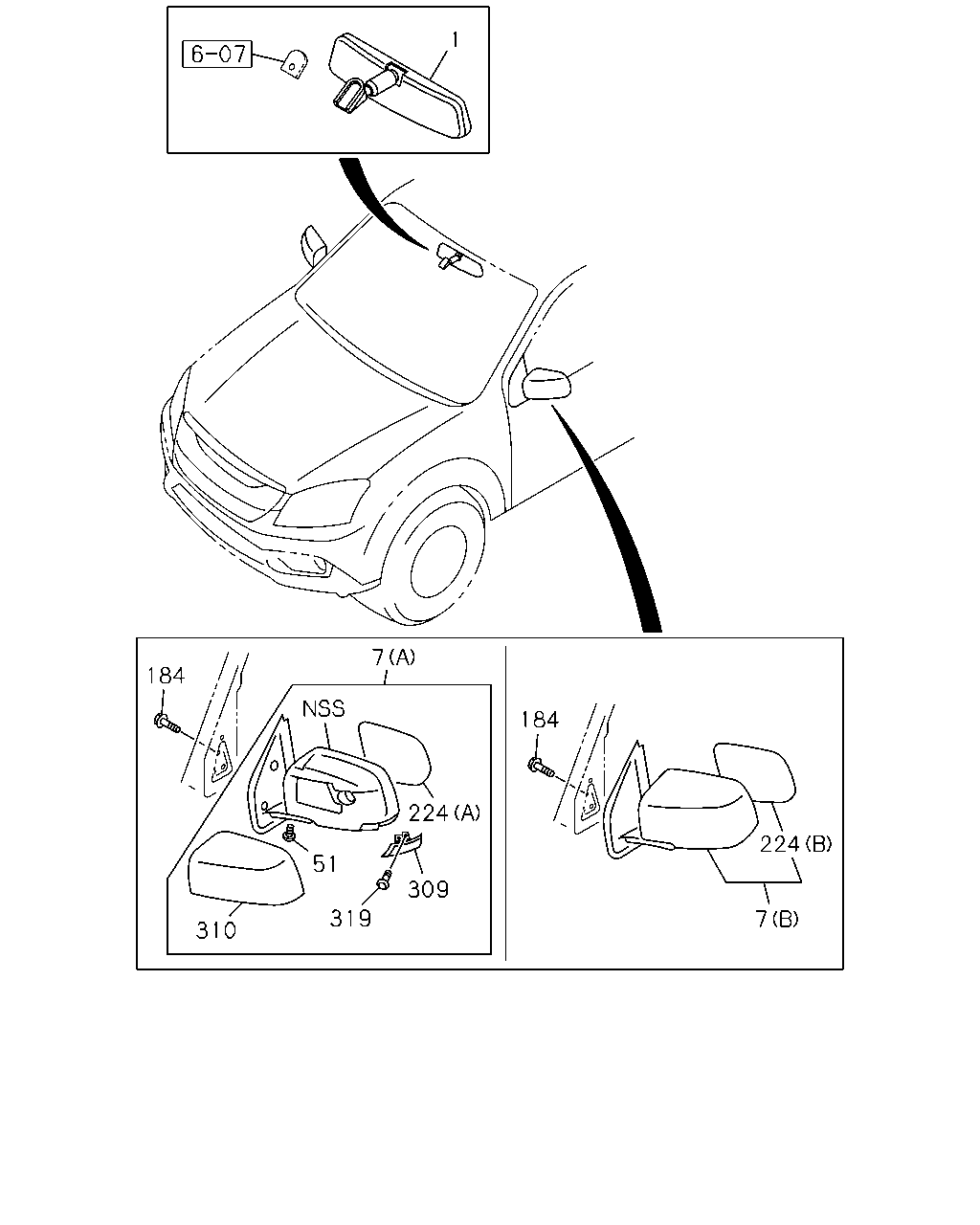

7-20 — MIRROR AND MIRROR STAY (#145251) — 29 parça

1 7 224 184 7 184 224 309 51 319 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	8-97237-560-0	01	1	1407-	●
1	MIRROR; ROOM RR VIEW MIRROR DAY & NIGHT<D31>	8-97237-560-0	01	1	1407-		●
1	MIRROR; ROOM EXC. RR VIEW MIRROR DAY & NIGHT<D31>	8-98053-645-0	01	1	1407-		●
7	MIRROR ASM; DOOR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> (A)	8-98065-333-4	01	1	1407-	●	●
7	MIRROR ASM; DOOR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> (A)	8-98065-334-4	01	1	1407-	●	●
7	MIRROR ASM; DOOR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)	8-98193-672-0	01	1	1407-	●	●
7	MIRROR ASM; DOOR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)	8-98200-733-0	01	1	1407-	●	●
7	MIRROR ASM; DOOR DOOR MIRROR MANUAL MATERIAL BLACK<RT9> (B)	8-98065-317-3	01	1	1407-		●
7	MIRROR ASM; DOOR DOOR MIRROR MANUAL MATERIAL BLACK<RT9> (B)	8-98065-318-3	01	1	1407-		●
51	SCREW; MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>	8-98193-685-0	02	1	1407-	●	●
51	SCREW; MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98193-685-0	02	1	1407-	●	●
184	BOLT; MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> M6X14 FLANGE	8-97247-698-0	06	1	1407-	●
184	BOLT; MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>,DOOR MIRROR MANUAL MATERIAL BLACK<RT9> M6X14 FLANGE	8-97247-698-0	06	1	1407-		●
224	MIRROR; DOOR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> (A)	8-98193-681-0	01	1	1407-	●	●
224	MIRROR; DOOR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)	8-98193-681-0	01	1	1407-	●	●
224	MIRROR; DOOR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> (A)	8-98193-682-0	01	1	1407-	●	●
224	MIRROR; DOOR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A)	8-98193-682-0	01	1	1407-	●	●
224	MIRROR; DOOR DOOR MIRROR MANUAL MATERIAL BLACK<RT9> (B)	8-98193-669-0	01	1	1407-		●
224	MIRROR; DOOR DOOR MIRROR MANUAL MATERIAL BLACK<RT9> (B)	8-98193-670-0	01	1	1407-		●
309	LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>	8-98193-683-0	01	1	1407-	●	●
309	LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98193-683-0	01	1	1407-	●	●
309	LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>	8-98193-684-0	01	1	1407-	●	●
309	LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98193-684-0	01	1	1407-	●	●
310	COVER; DOOR MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>	8-98193-686-0	01	1	1407-	●	●
310	COVER; DOOR MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>	8-98193-687-0	01	1	1407-	●	●
310	COVER; DOOR MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98203-335-0	01	1	1407-	●	●
310	COVER; DOOR MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98203-336-0	01	1	1407-	●	●
319	SCREW; SIDE TURN LAMP DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>	8-98193-685-0	02	1	1407-	●	●
319	SCREW; SIDE TURN LAMP DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98193-685-0	02	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
