51518 - UCR/UCS(MALAYSIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

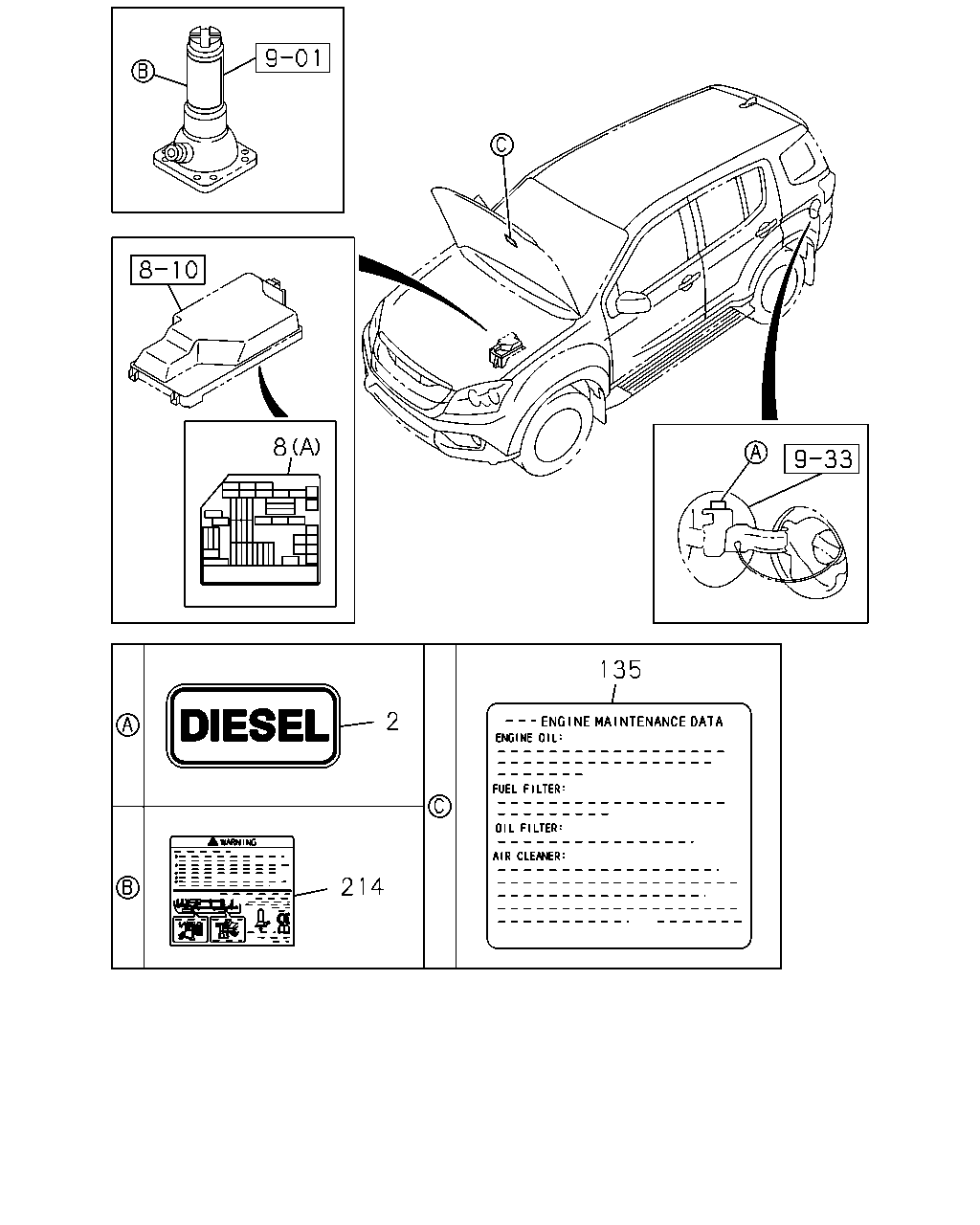

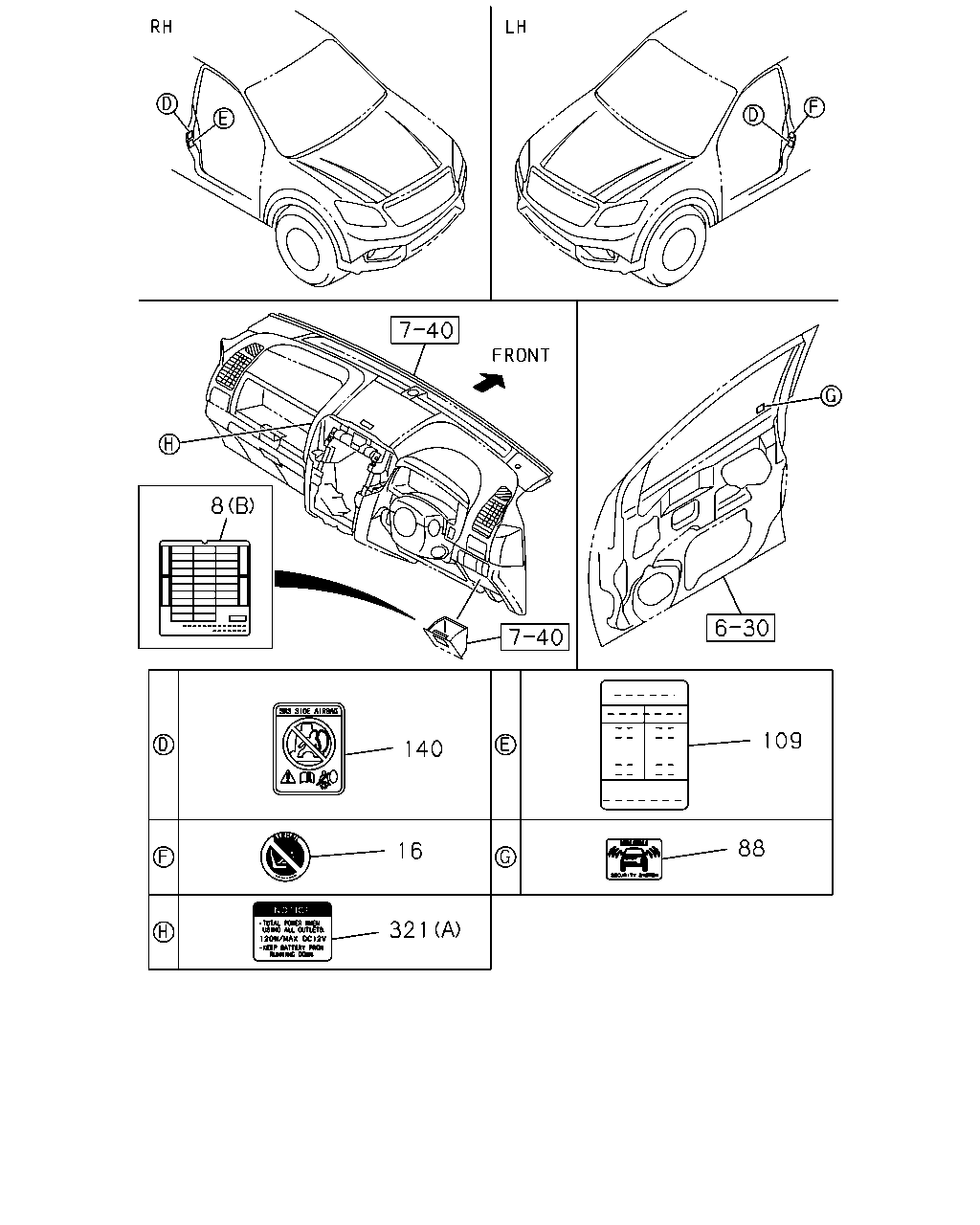

7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#145250) — 30 parça
Tümü
A - UCB5VC
B - UCS5VC
◀
[710A] NO.1 (11 parça)
[710A] NO.3 (4 parça)
[710A] NO.2 (15 parça)
▶
8
2
214
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LABEL; FUEL CAUTION
8-98147-133-0
01
1
1407-1510
●
●
8
LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-136-0
01
1
1407-1408
●
●
8
LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1407-1407
●
●
8
LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1408-1408
●
8
LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-132-0
01
1
1407-1408
●
●
8
LABEL; FUSE
(A)
8-98281-132-0
01
1
1409-
●
●
8
LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98239-994-0
01
1
1407-1408
●
●
8
LABEL; FUSE
(B)
8-98281-097-0
01
1
1409-
●
●
135
PLATE; CAUTION,ENGINE
8-98200-831-0
01
1
1407-
●
●
214
LABEL; JACK
8-98245-069-0
01
1
1407-1501
●
●
214
LABEL; JACK
8-98304-658-0
01
1
1502-
●
●
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
321
LABEL; WARNING,POWER
(A)
8-98183-494-1
01
1
1407-
●
321
LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> (A)
8-98183-494-1
01
1
1407-
●
321
LABEL; WARNING,POWER
(B)
8-98215-396-0
01
1
1407-
●
321
LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> (B)
8-98215-396-0
01
1
1407-
●
8
109
88
140
16
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98281-136-0
01
1
1407-1408
●
●
8
LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1407-1407
●
●
8
LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-134-0
01
1
1408-1408
●
8
LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98281-132-0
01
1
1407-1408
●
●
8
LABEL; FUSE
(A)
8-98281-132-0
01
1
1409-
●
●
8
LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98239-994-0
01
1
1407-1408
●
●
8
LABEL; FUSE
(B)
8-98281-097-0
01
1
1409-
●
●
16
PLATE; CAUTION,SIR
8-97378-569-0
01
1
1407-
●
●
88
LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98141-993-2
02
1
1407-
●
●
109
PLATE; CAUTION,TIRE PLACARD
8-98197-215-0
01
1
1407-
●
●
140
PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)
8-98179-251-2
02
1
1407-
●
●
321
LABEL; WARNING,POWER
(A)
8-98183-494-1
01
1
1407-
●
321
LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> (A)
8-98183-494-1
01
1
1407-
●
321
LABEL; WARNING,POWER
(B)
8-98215-396-0
01
1
1407-
●
321
LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> (B)
8-98215-396-0
01
1
1407-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
