6-83 — BACK DOOR LOCK AND HANDLE (#145244) — 22 parça

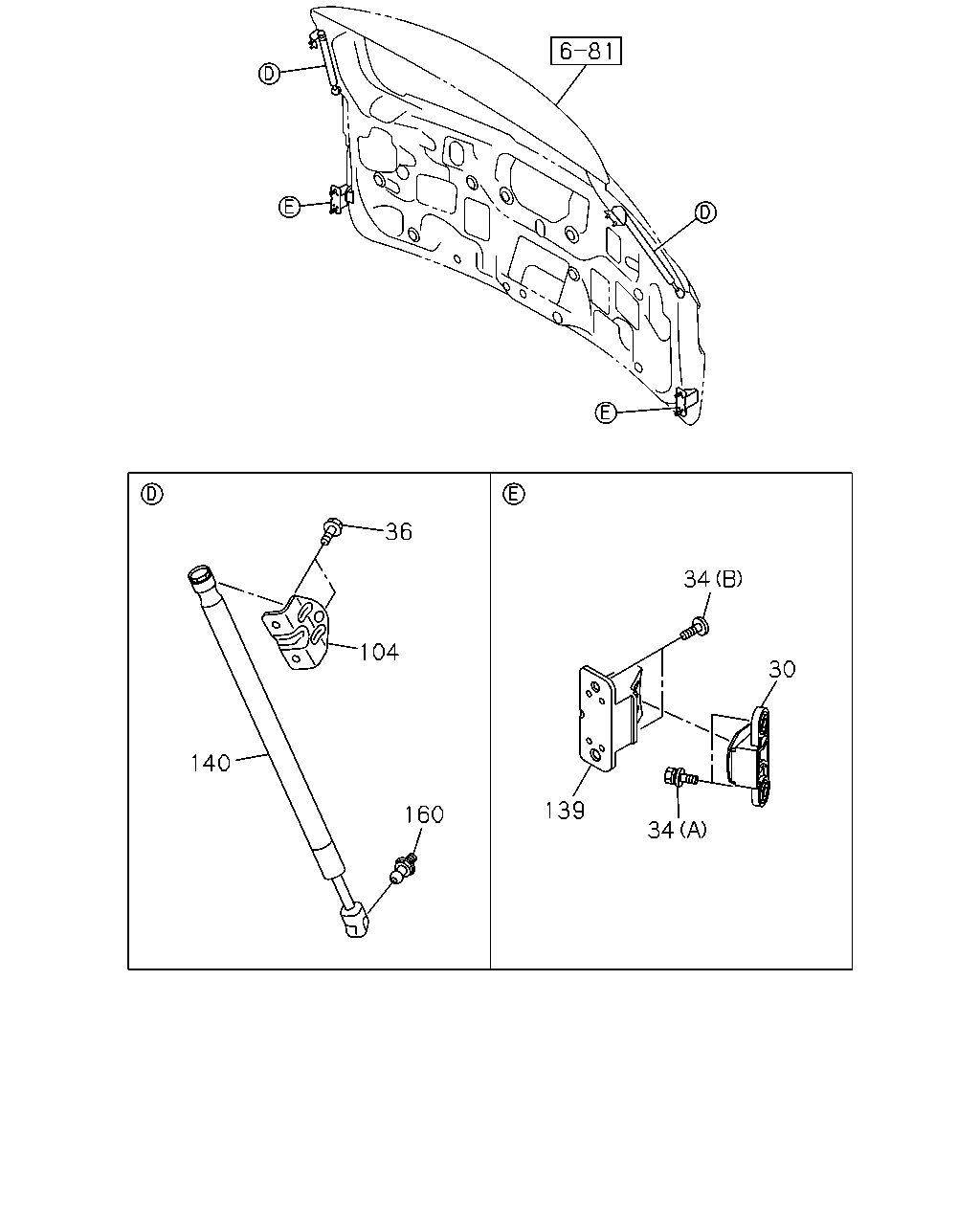

çizim 431787
36 104 140 160 139 34 30 34
BalonParca AdiParca NoAdetTipApplied Date A B
30 DOVETAIL; BACK DOOR 8-98189-933-2 02 1 1407- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-98125-360-0 04 1 1407- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) 		8-98228-811-0 04 1 1407- ● ●
36 BOLT; LINK
M6X16 FLANGE 		8-98049-357-0 04 1 1407- ● ●
104 BRACKET 8-98220-920-0 02 1 1407- ● ●
139 DOVETAIL; BODY 8-98189-854-1 02 1 1407- ● ●
140 STAY; TAIL GATE 8-98188-524-1 01 1 1407- ● ●
140 STAY; TAIL GATE 8-98188-525-1 01 1 1407- ● ●
160 STUD; BACK DOOR 8-98220-953-0 02 1 1407- ● ●

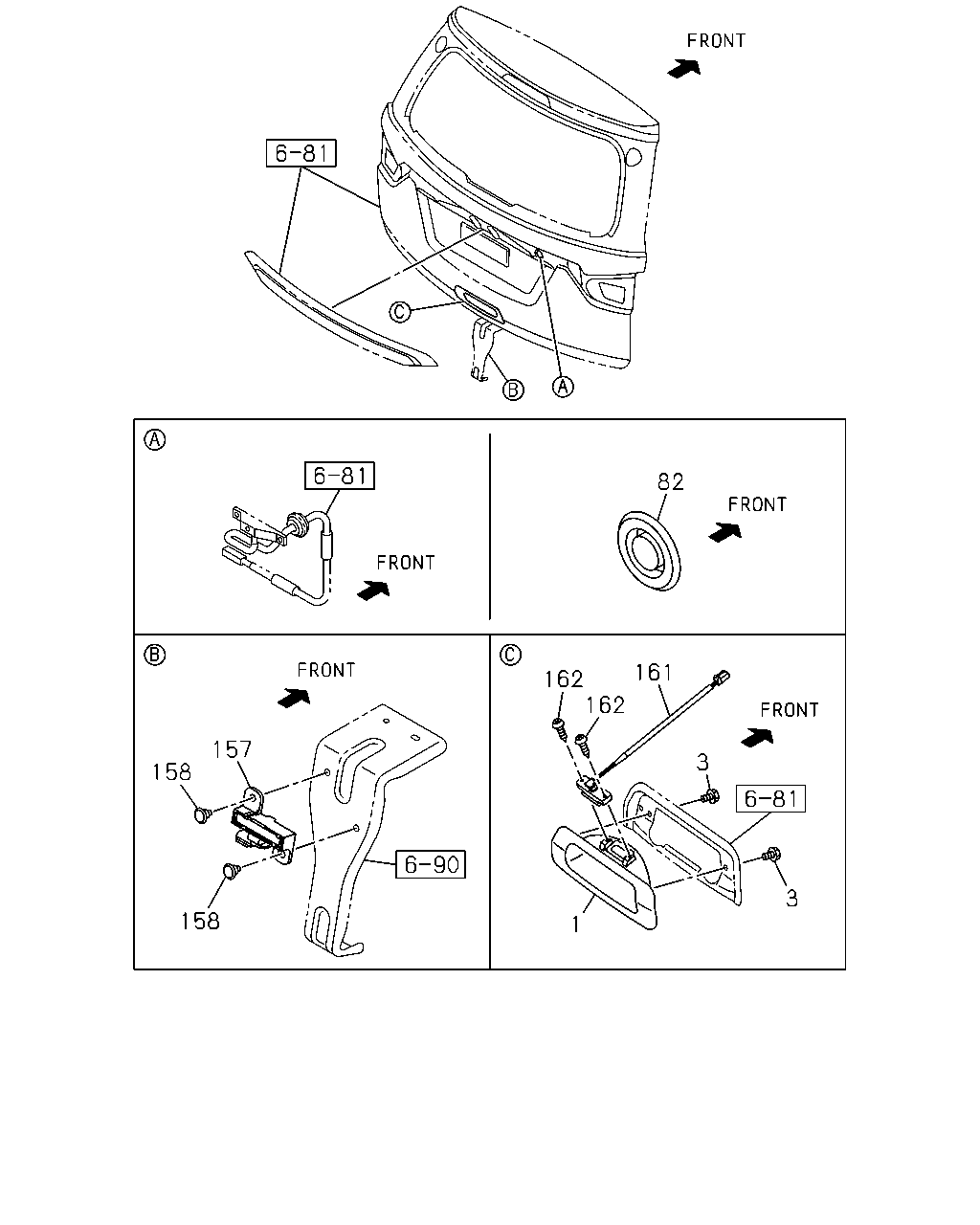

çizim 433480
158 158 157 82 161 162 162 3 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR COSMIC BLACK MICA(523) BLACK 		8-97425-503-0 01 1 1407- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR SPLASH WHITE(527) WHITE 		8-97425-504-0 01 1 1407- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR TITANIUM SILVER MET(529) SILVER 		8-97425-505-0 01 1 1407- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97425-506-0 01 1 1407- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ULURU BROWN MET(544) BROWN 		8-97425-507-0 01 1 1407- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR FJORD BLUE MET(545) LIGHT BLUE 		8-97425-508-0 01 1 1407- ● ●
3 BOLT; TAIL GATE HANDLE
M6X8 FLANGE 		8-98048-996-0 02 1 1407- ● ●
82 PLUG; BACK DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=30 		8-94107-655-0 01 1 1407-1408 ● ●
82 PLUG; BACK DOOR
OD=30 		8-94107-655-0 01 1 1409- ● ●
157 ANTENNA; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-526-1 01 1 1407-1408 ● ●
158 FASTENER; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-97372-006-0 02 1 1407-1408 ● ●
161 SWITCH; BACK DOOR LK 8-98211-442-0 01 1 1407- ● ●
162 SCREW; SWITCH, BACK DOOR LK 8-98235-426-0 02 1 1407- ● ●
