Sayfa 6-82 - Isuzu EPC

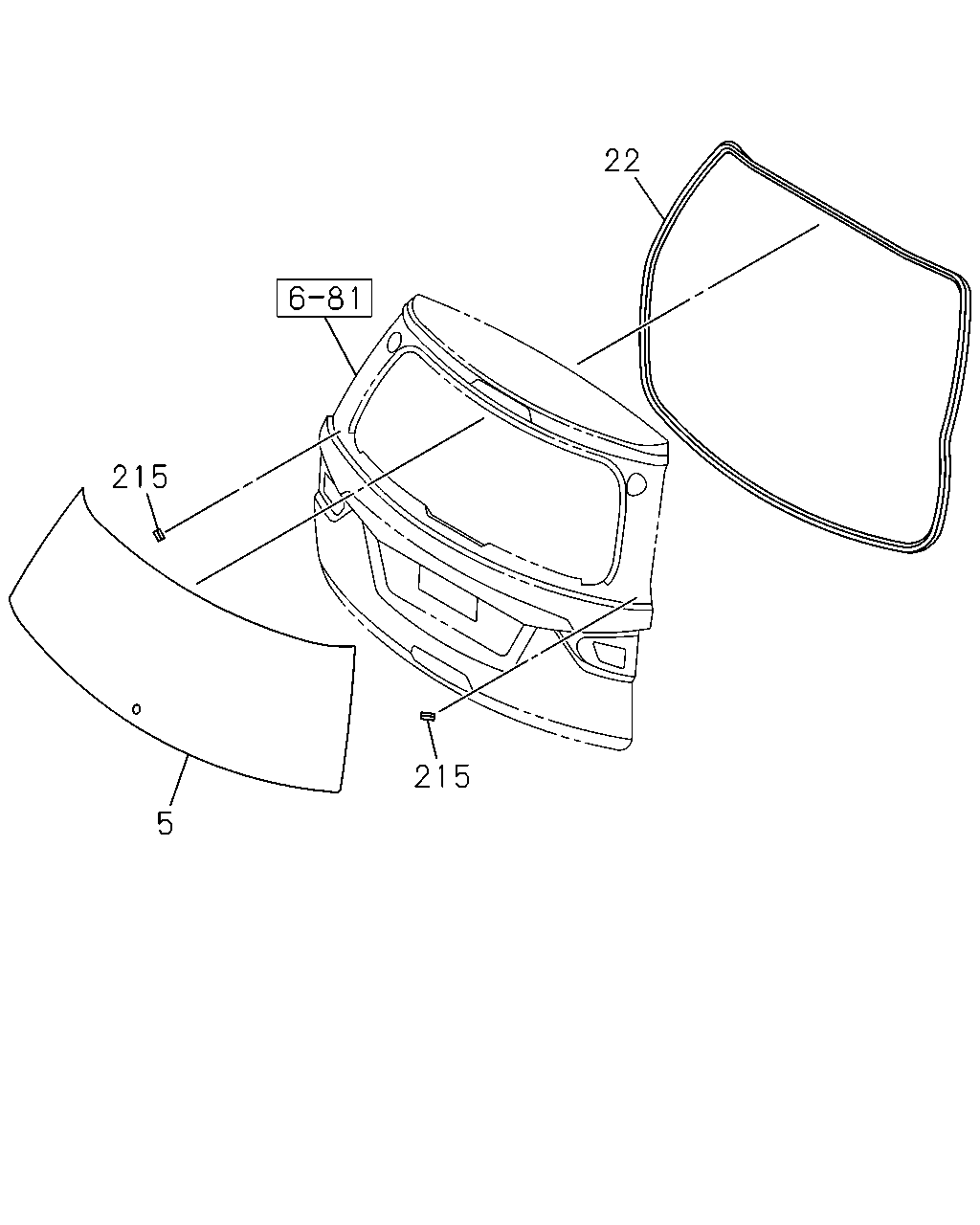

6-82 — BACK GLASS AND WEATHERSTRIP (#145243) — 7 parça

22 215 5 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	GLASS; TAIL GATE WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73>	8-98188-914-4	01	1	1407-	●
5	GLASS; TAIL GATE WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> CONTINUOUS REAR WIPER<CD6>	8-98188-914-4	01	1	1407-		●
5	GLASS; TAIL GATE EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73>	8-98188-913-4	01	1	1407-	●
5	GLASS; TAIL GATE CONTINUOUS REAR WIPER<CD6> EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73>	8-98188-913-4	01	1	1407-		●
5	GLASS; TAIL GATE EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73>,CONTINUOUS REAR WIPER<CD6>	8-98188-912-4	01	1	1407-		●
22	WEATHERSTRIP; BACK DOOR	8-98188-333-0	01	1	1407-	●	●
215	FASTENER; GLASS	8-98189-961-0	04	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
