6-81 — BACK DOOR AND HINGE (#145242) — 31 parça

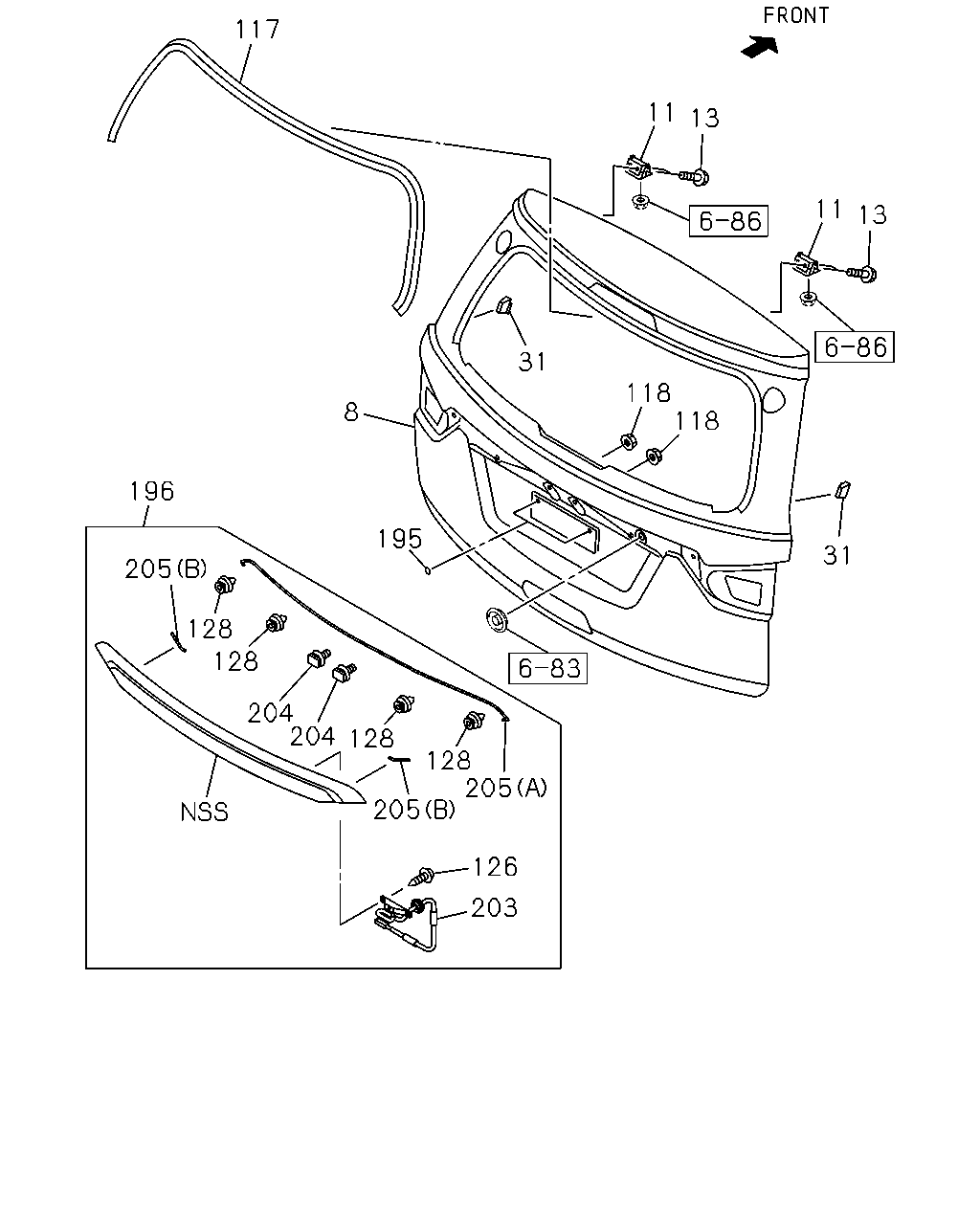

çizim 433445
117 8 195 31 11 13 11 13 118 118 31 196 205 128 128 204 204 128 128 205 205 126 203
BalonParca AdiParca NoAdetTipApplied Date A B
8 PANEL; TAIL GATE 8-98208-954-2 01 1 1407- ●
8 PANEL; TAIL GATE
CONTINUOUS REAR WIPER<CD6> 		8-98208-954-2 01 1 1407- ●
8 PANEL; TAIL GATE
EXC. CONTINUOUS REAR WIPER<CD6> 		8-98211-090-2 01 1 1407- ●
11 HINGE; TAIL GATE 8-98189-934-0 01 1 1407- ● ●
11 HINGE; TAIL GATE 8-98189-935-0 01 1 1407- ● ●
13 BOLT; HINGE TO TAIL GATE
M8X20 FLANGE 		0-28650-820-0 04 1 1407- ● ●
31 BUFFER; BACK DOOR 8-98239-418-0 01 1 1407- ● ●
31 BUFFER; BACK DOOR 8-98239-419-0 01 1 1407- ● ●
117 GARNISH 8-98200-429-2 01 1 1407- ● ●
118 NUT; GARNISH
M6 FLANGE 		8-97065-431-0 02 1 1407- ● ●
126 SCREW; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3> M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1407-1408 ● ●
128 CLIP; GARNISH 8-97359-942-0 04 1 1407- ● ●
195 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1407- ● ●
196 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-291-2 01 1 1407-1408 ● ●
196 MOLDING; TAIL GATE
INTERIOR CUSTOM(RBD) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98188-916-2 01 1 1407-1408 ● ●
196 MOLDING; TAIL GATE 8-98188-916-2 01 1 1409-1511 ●
196 MOLDING; TAIL GATE
INTERIOR CUSTOM(RBD) 		8-98188-916-2 01 1 1409-1511 ●
196 MOLDING; TAIL GATE 8-98295-830-0 01 1 1512- ●
196 MOLDING; TAIL GATE
INTERIOR CUSTOM(RBD) 		8-98295-830-0 01 1 1512- ●
196 MOLDING; TAIL GATE
INTERIOR BASIC(RBA) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98188-915-2 01 1 1407-1408 ●
196 MOLDING; TAIL GATE
INTERIOR BASIC(RBA) 		8-98188-915-2 01 1 1409- ●
203 SWITCH; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-563-2 01 1 1407-1408 ● ●
204 STUD; GARNISH 8-98250-593-0 02 1 1407- ● ●
205 SPONGE; GARNISH
(A) 		8-98296-179-0 01 1 1512- ●
205 SPONGE; GARNISH
INTERIOR CUSTOM(RBD) (A) 		8-98296-179-0 01 1 1512- ●
205 SPONGE; GARNISH
(B) 		8-98296-180-0 02 1 1512- ●
205 SPONGE; GARNISH
INTERIOR CUSTOM(RBD) (B) 		8-98296-180-0 02 1 1512- ●
205 SPONGE; GARNISH
(A) 		8-98250-590-0 01 1 1407-1511 ● ●
205 SPONGE; GARNISH
INTERIOR BASIC(RBA) (A) 		8-98250-590-0 01 1 1512- ●
205 SPONGE; GARNISH
(B) 		8-98250-591-0 02 1 1407-1511 ● ●
205 SPONGE; GARNISH
INTERIOR BASIC(RBA) (B) 		8-98250-591-0 02 1 1512- ●
