Isuzu WW
▶
SUV
▶
UCR
▶
51518 - UCR/UCS(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#145240) — 32 parça
Tümü
A - UCB5VC
B - UCS5VC
◀
[678A] GROMMET;FLOOR PANEL (13 parça)
[678A] GROMMET;LOWER PANEL (13 parça)
[678A] SEAL (6 parça)
▶
12
12
12
12
12
12
12
12
12
12
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

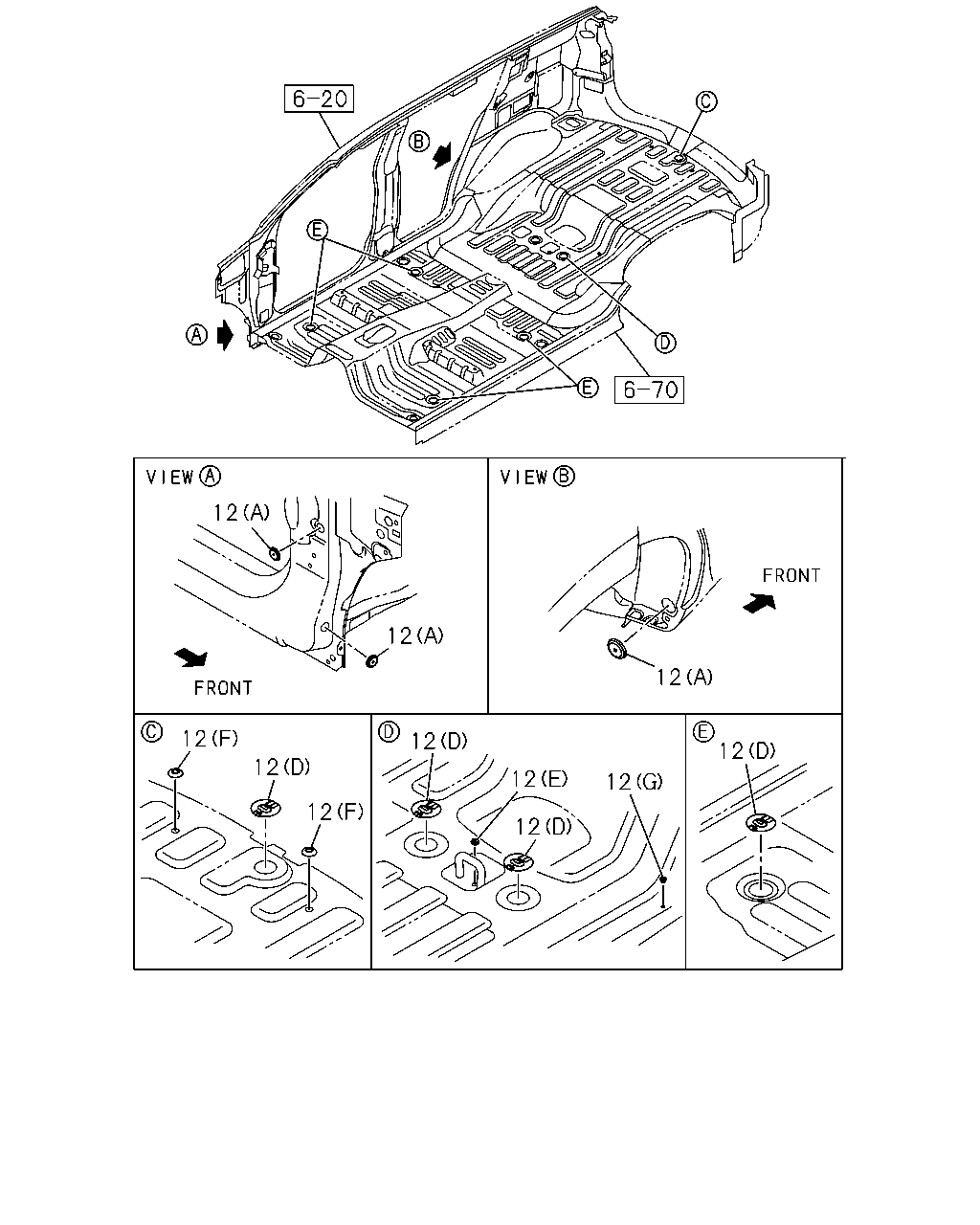

12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (B) OD=15.0
8-94279-040-0
04
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(B) OD=15.0
8-94279-040-0
04
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (C) OD=35
8-97320-908-0
10
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(C) OD=35
8-97320-908-0
10
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (D)
8-97324-563-0
07
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(D)
8-97324-563-0
07
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (E)
8-98233-151-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(E)
8-98233-151-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (F)
8-98233-595-1
02
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(F)
8-98233-595-1
02
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (G) OD=12
9-09956-122-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(G) OD=12
9-09956-122-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(A) OD=35
8-97320-908-0
06
1
1407-
●
●
12
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (B) OD=15.0
8-94279-040-0
04
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(B) OD=15.0
8-94279-040-0
04
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (C) OD=35
8-97320-908-0
10
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(C) OD=35
8-97320-908-0
10
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (D)
8-97324-563-0
07
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(D)
8-97324-563-0
07
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (E)
8-98233-151-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(E)
8-98233-151-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (F)
8-98233-595-1
02
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(F)
8-98233-595-1
02
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
A/T 5 SPEED-AISIN(MA1) (G) OD=12
9-09956-122-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(G) OD=12
9-09956-122-0
01
1
1407-
●
12
GROMMET; DRAIN HOLE,ROCKER RR
(A) OD=35
8-97320-908-0
06
1
1407-
●
●
176
176
176
176
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

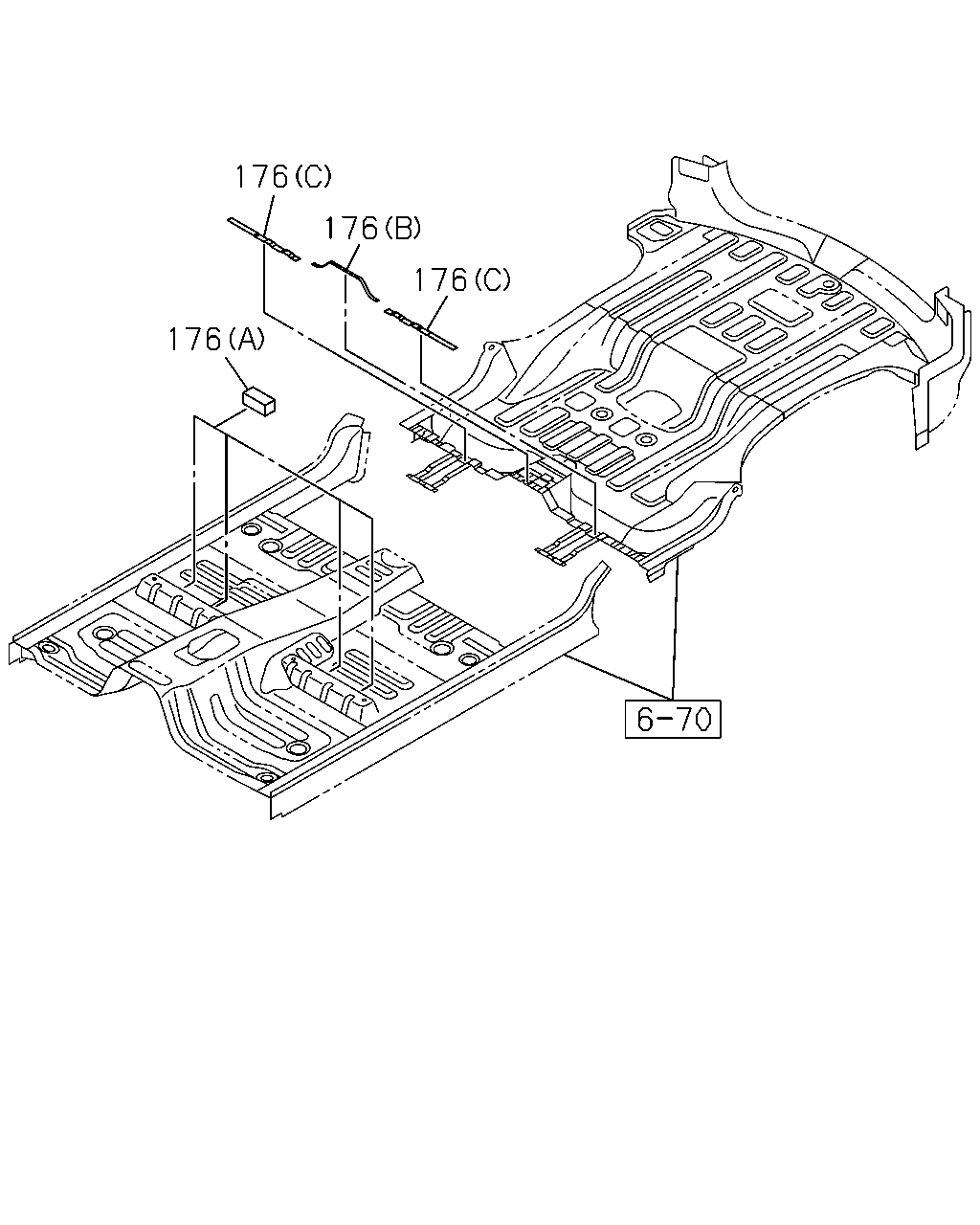

176
SEAL; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (B)
8-94336-915-0
01
1
1407-
●
176
SEAL; FLOOR PANEL
(B)
8-94336-915-0
01
1
1407-
●
176
SEAL; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (C)
8-98178-885-0
02
1
1407-
●
176
SEAL; FLOOR PANEL
(C)
8-98178-885-0
02
1
1407-
●
176
SEAL; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (A)
8-98244-503-0
04
1
1407-
●
176
SEAL; FLOOR PANEL
(A)
8-98244-503-0
04
1
1407-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
