Isuzu WW
▶
SUV
▶
UCR
▶
51518 - UCR/UCS(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

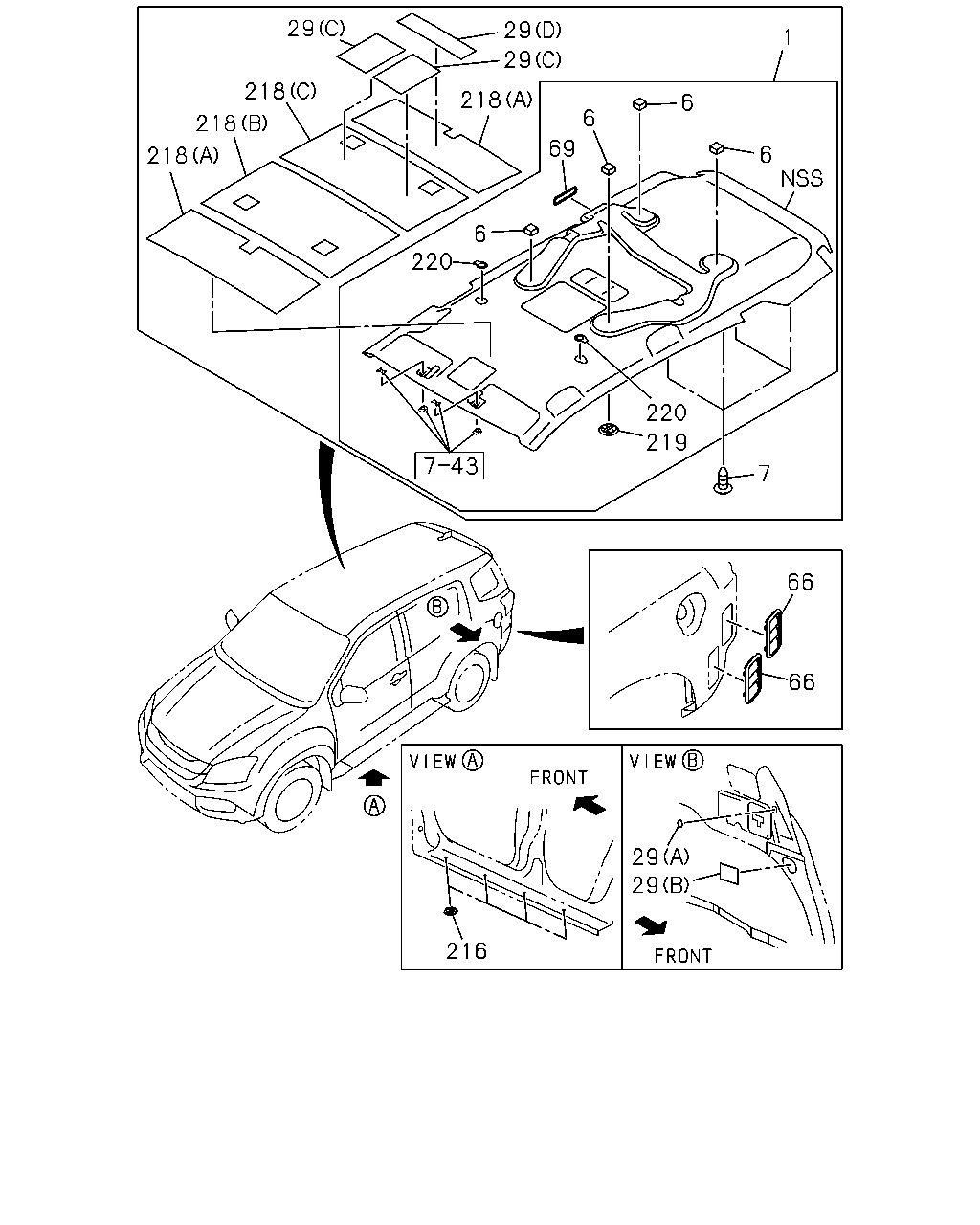

6-66 — HEAD LINING AND TRIM
(#145236) — 28 parça
Tümü
A - UCB5VC
B - UCS5VC
1
6
6
6
69
6
220
219
220
7
66
66
29
29
216
218
218
218
29
218
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY
8-97427-815-2
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY
8-97427-814-2
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY
8-97427-816-2
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY
8-97427-817-2
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY
8-97424-375-5
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY
8-97424-374-5
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY
8-97424-376-5
01
1
1407-
●
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY
8-97424-377-5
01
1
1407-
●
●
1
LINING; HD
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> GRAY
8-97424-378-6
01
1
1407-
●
1
LINING; HD
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) 6-SPEAKER SYSTEM BASE<UW5> EXC. REAR COOLER WO/HEATER<C69>,HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> GRAY
8-97424-373-6
01
1
1407-
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69> GRAY
8-97427-667-2
01
1
1407-
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> GRAY
8-97427-665-2
01
1
1407-
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEADER CONSOLE<DK6> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REAR COOLER WO/HEATER<C69> GRAY
8-97427-668-2
01
1
1407-
●
1
LINING; HD
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> GRAY
8-97427-666-2
01
1
1407-
●
6
SPACER; HD LINING
8-98244-491-0
04
1
1407-
●
●
7
RETAINER; HEADLINING RAIL
GRAY
8-97416-696-0
04
1
1407-
●
●
29
DEADENER; ROOF PANEL
(C)
8-98253-366-0
02
1
1509-
●
●
29
DEADENER; ROOF PANEL
(D)
8-98253-367-0
01
1
1509-
●
●
29
DEADENER; ROOF PANEL
(A)
8-98244-526-0
02
1
1407-
●
●
29
DEADENER; ROOF PANEL
(B)
8-98244-527-0
02
1
1407-
●
●
66
GRILLE; AIR OUTLET
8-98190-079-2
02
1
1407-
●
●
69
SEAL; AIR OUTLET DUCT
8-98226-169-0
01
1
1407-
●
●
216
GROMMET; HOLE
OD=19
8-97365-823-0
08
1
1407-
●
●
218
INSULATOR; ROOF
(A)
8-98228-817-3
02
1
1407-
●
●
218
INSULATOR; ROOF
(B)
8-98228-818-3
01
1
1407-
●
●
218
INSULATOR; ROOF
(C)
8-98228-819-3
01
1
1407-
●
●
219
GRILLE; RR COOLER
GRAY
8-97425-070-0
04
1
1407-
●
●
220
BRACKET; SPEAKER
8-SPEAKER SYSTEM CUSTOM<U87>
8-98128-570-0
02
1
1407-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
