◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#145232) — 22 parça

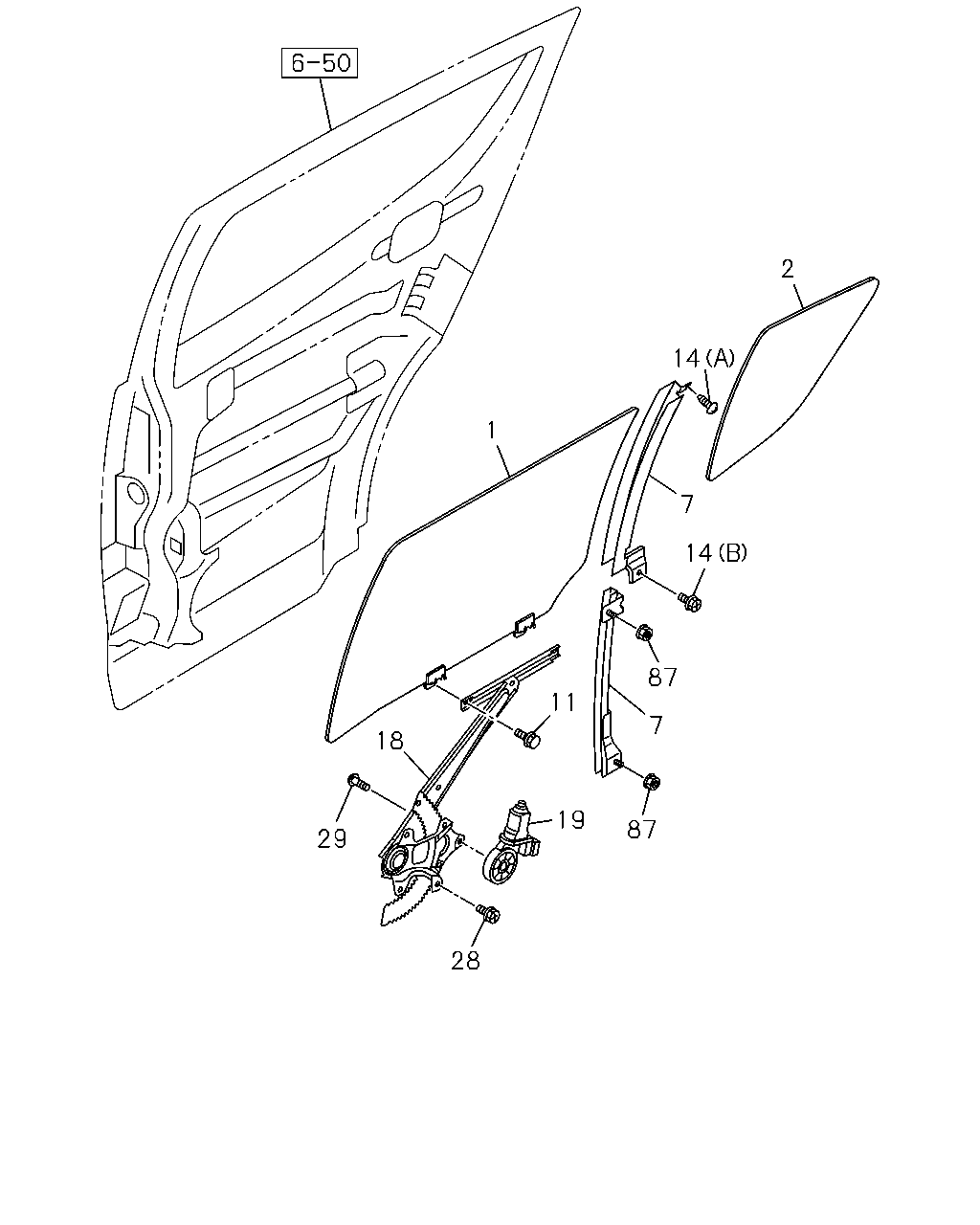

çizim 433442
2 14 7 1 14 87 11 7 87 19 18 29 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; RR DOOR
WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-288-1 01 1 1407- ● ●
1 GLASS; RR DOOR
WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-289-1 01 1 1407- ● ●
1 GLASS; RR DOOR
EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-286-1 01 1 1407- ● ●
1 GLASS; RR DOOR
EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-287-1 01 1 1407- ● ●
2 GLASS; RR DOOR,RR
WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-364-0 01 1 1407- ● ●
2 GLASS; RR DOOR,RR
WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-365-0 01 1 1407- ● ●
2 GLASS; RR DOOR,RR
EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-362-0 01 1 1407- ● ●
2 GLASS; RR DOOR,RR
EXC. WINDOW TINTED DEEP,RR DOOR,QTR PNL,RR END<A73> 		8-98189-363-0 01 1 1407- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
UPPER 		8-98202-651-1 01 1 1407- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
UPPER 		8-98202-652-1 01 1 1407- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
LOWER 		8-98203-623-0 01 1 1407- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
LOWER 		8-98203-624-0 01 1 1407- ● ●
11 BOLT; GLASS
M6X10 FLANGE 		8-98188-381-0 04 1 1407- ● ●
14 BOLT; RR DOOR GLASS
(A) M4X8 TAPPING 		0-71240-408-0 02 1 1407- ● ●
14 BOLT; RR DOOR GLASS
(B) M6X8 FLANGE 		8-98048-996-0 02 1 1407- ● ●
18 REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98211-011-1 01 1 1407- ● ●
18 REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98211-013-1 01 1 1407- ● ●
19 MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98167-091-1 01 1 1407- ● ●
19 MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98167-092-1 01 1 1407- ● ●
28 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1407- ● ●
29 SCREW; WINDOW REG
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 06 1 1407- ● ●
87 NUT; WINDOW
M6 FLANGE 		8-98049-362-0 04 1 1407- ● ●
