6-50 — REAR DOOR AND HINGE (#145231) — 10 parça

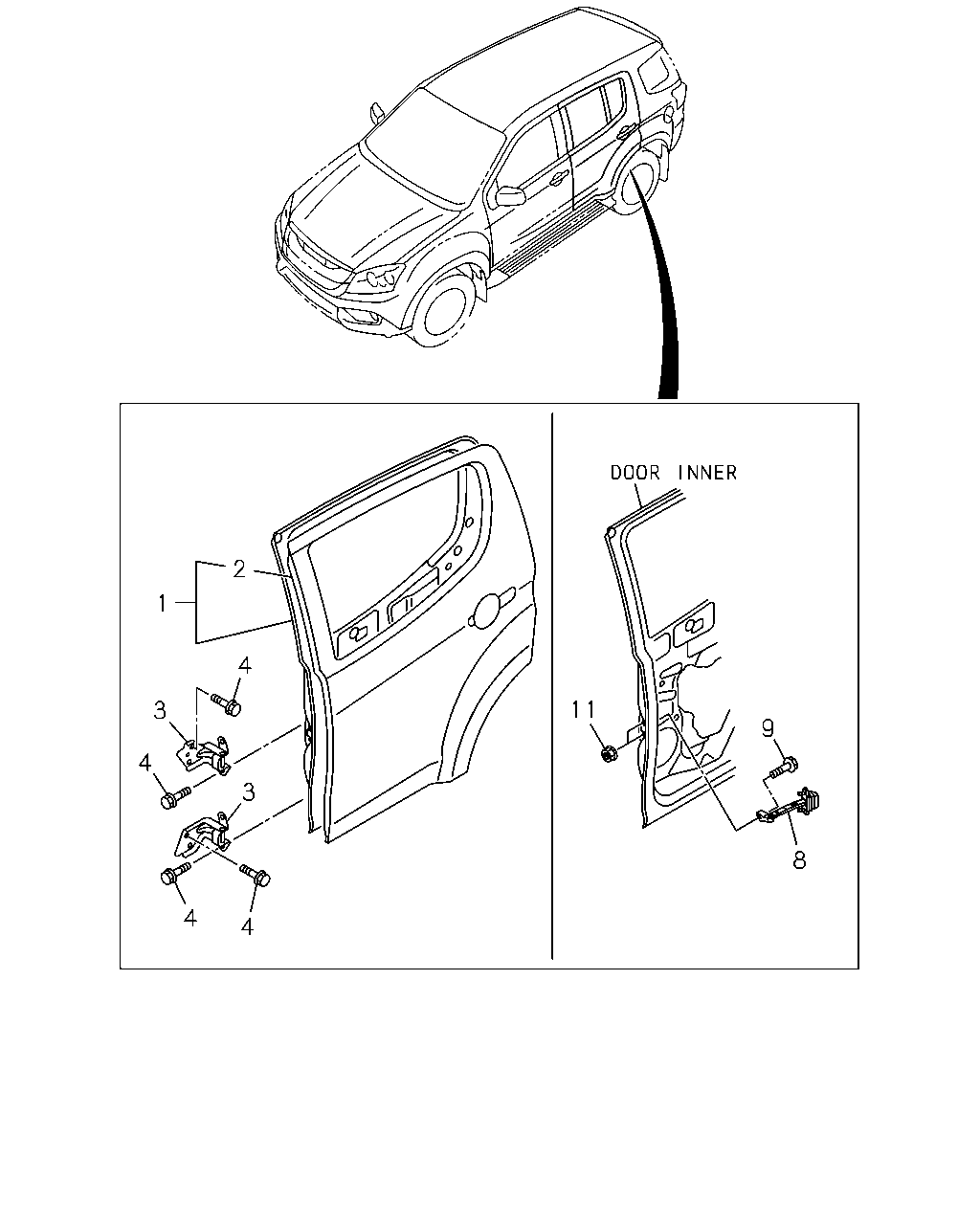

çizim 433948
1 4 2 3 4 3 4 4 11 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; REAR 8-98208-993-0 01 1 1407- ● ●
1 DOOR ASM; REAR 8-98208-994-0 01 1 1407- ● ●
2 PANEL; RR DOOR OUTER 8-98206-072-1 01 1 1407- ● ●
2 PANEL; RR DOOR OUTER 8-98206-073-1 01 1 1407- ● ●
3 HINGE; RR DOOR
UPR RH & LWR LH 		8-98105-280-1 02 1 1407- ● ●
3 HINGE; RR DOOR
LWR RH & UPR LH 		8-98105-281-1 02 1 1407- ● ●
4 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 16 1 1407- ● ●
8 ARM; CHECK,RR DOOR 8-98227-238-1 02 1 1407- ● ●
9 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1407- ● ●
11 NUT
M6 FLANGE 		8-98049-362-0 04 1 1407- ● ●
