51518 - UCR/UCS(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#145230) — 31 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

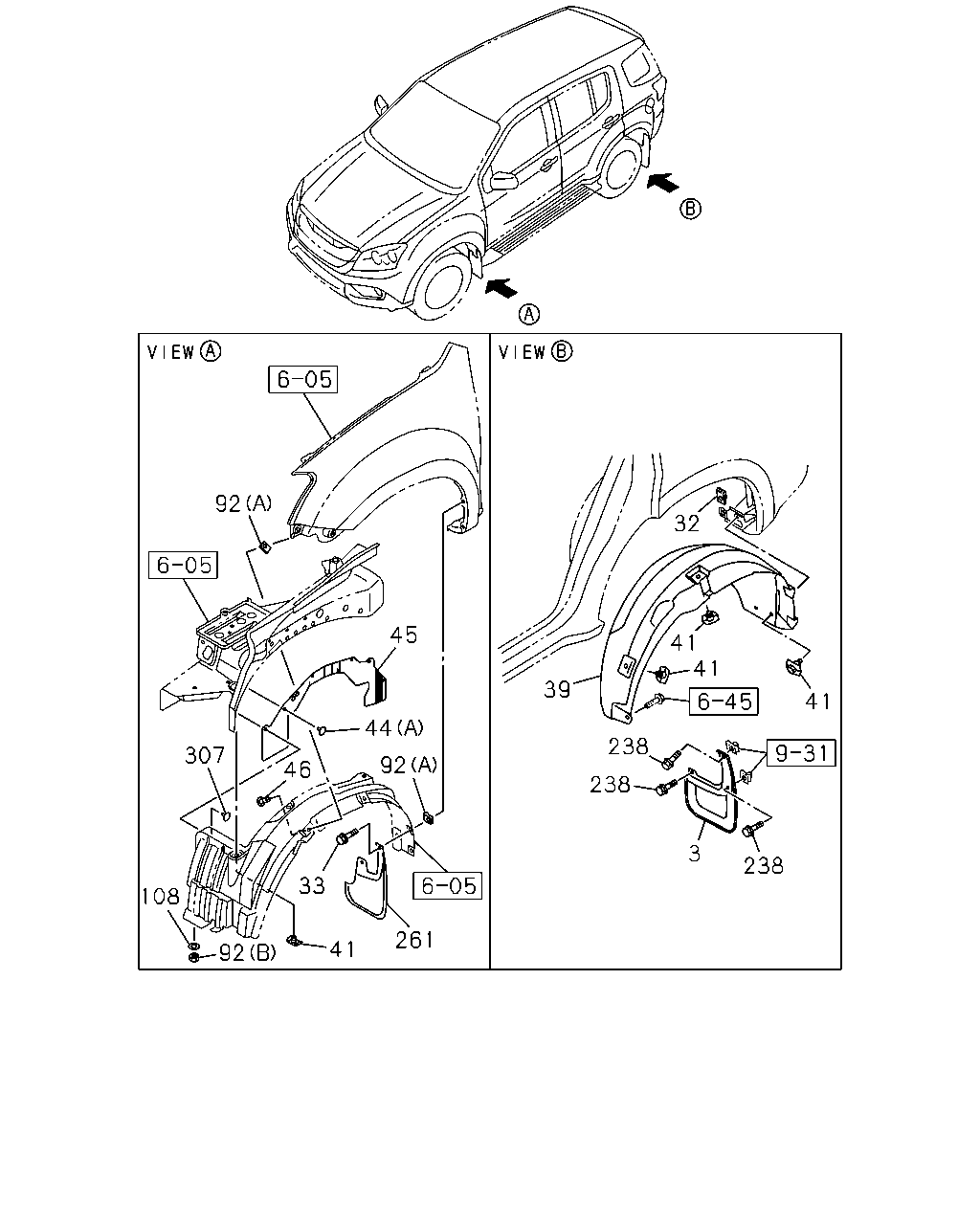

[647A] MUD GUARD (23 parça)

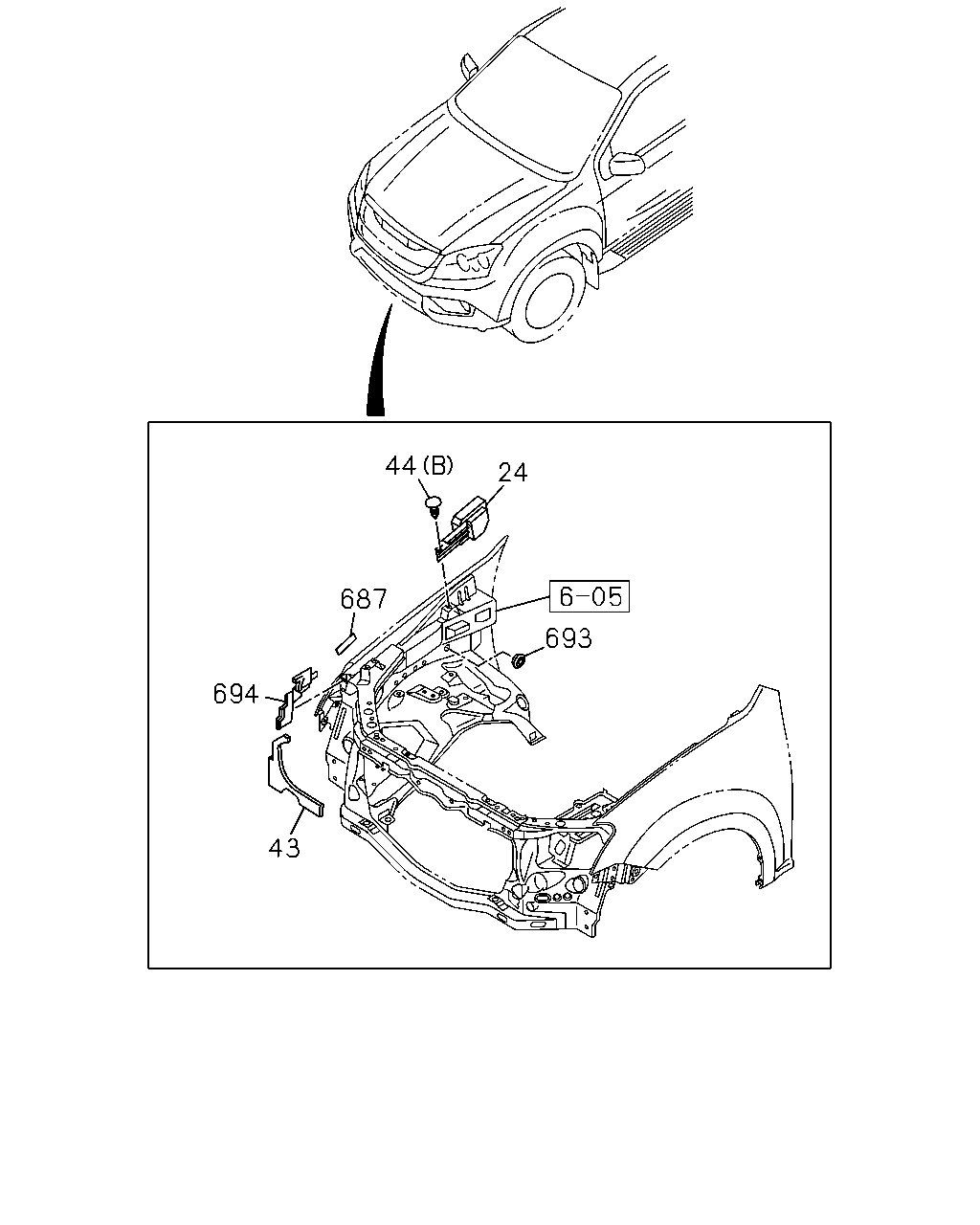

[647A] INSULATION AND PROTECTOR (8 parça)
▶
45
307
46
44
92
33
41
108
92
92
261
39
32
41
41
238
238
238
41
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
GUARD; MUD,RR
8-98189-866-1
01
1
1407-
●
●
3
GUARD; MUD,RR
8-98189-867-1
01
1
1407-
●
●
32
NUT; MUD GUARD
8-97125-519-0
02
1
1407-
●
●
33
BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER
8-98167-444-0
06
1
1407-
●
●
39
LINER; FENDER
8-98190-330-1
01
1
1407-
●
●
39
LINER; FENDER
8-98190-331-1
01
1
1407-
●
●
41
RIVET; INNER LINER
8-94221-150-0
24
1
1407-
●
●
41
RIVET; INNER LINER
8-94221-150-0
02
1
1407-
●
●
44
CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (A) OD=22 L=10.7
8-94215-211-0
10
1
1407-
●
44
CLIP; ANCHOR
(A) OD=22 L=10.7
8-94215-211-0
10
1
1407-
●
44
CLIP; ANCHOR
(B) OD=12 L=14.8
8-94279-921-0
01
1
1407-
●
●
45
COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1)
8-98077-268-1
01
1
1407-
●
45
COVER; MUD,FENDER SKIRT
8-98077-268-1
01
1
1407-
●
45
COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1)
8-98077-270-0
01
1
1407-
●
45
COVER; MUD,FENDER SKIRT
8-98077-270-0
01
1
1407-
●
46
SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER
8-98167-444-0
04
1
1407-
●
●
92
NUT; MUD COVER
(A)
8-97125-519-0
10
1
1407-
●
●
92
NUT; MUD COVER
(B) M6 CAP NUT
8-98049-850-0
02
1
1407-
●
●
108
WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6
8-98049-851-0
02
1
1407-
●
●
238
SCREW; MUD GUARD
M6X20 TAPPING W/PL WASHER
8-98167-444-0
06
1
1407-
●
●
261
RUBBER; FRT,MUD GUARD
8-98077-272-0
01
1
1407-
●
●
261
RUBBER; FRT,MUD GUARD
8-98077-274-0
01
1
1407-
●
●
307
RETAINER
8-98050-462-0
02
1
1407-
●
●
44
24
687
694
43
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
PLATE; MUD COVER
8-98187-805-0
01
1
1407-
●
●
43
INSULATION; FENDER SIDE
8-98189-338-2
01
1
1407-
●
●
44
CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (A) OD=22 L=10.7
8-94215-211-0
10
1
1407-
●
44
CLIP; ANCHOR
(A) OD=22 L=10.7
8-94215-211-0
10
1
1407-
●
44
CLIP; ANCHOR
(B) OD=12 L=14.8
8-94279-921-0
01
1
1407-
●
●
687
TAPE; PROTECT
8-98191-602-1
02
1
1407-
●
●
693
GROMMET; ACCESSORY HOLE
8-98191-606-0
01
1
1407-
●
●
694
PROTECTOR; WHEEL HOUSE
8-98187-814-0
01
1
1407-
●
●
