Isuzu WW
▶
SUV
▶
UCR
▶
51518 - UCR/UCS(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-45 - MOLDING AND STRIPE
▶

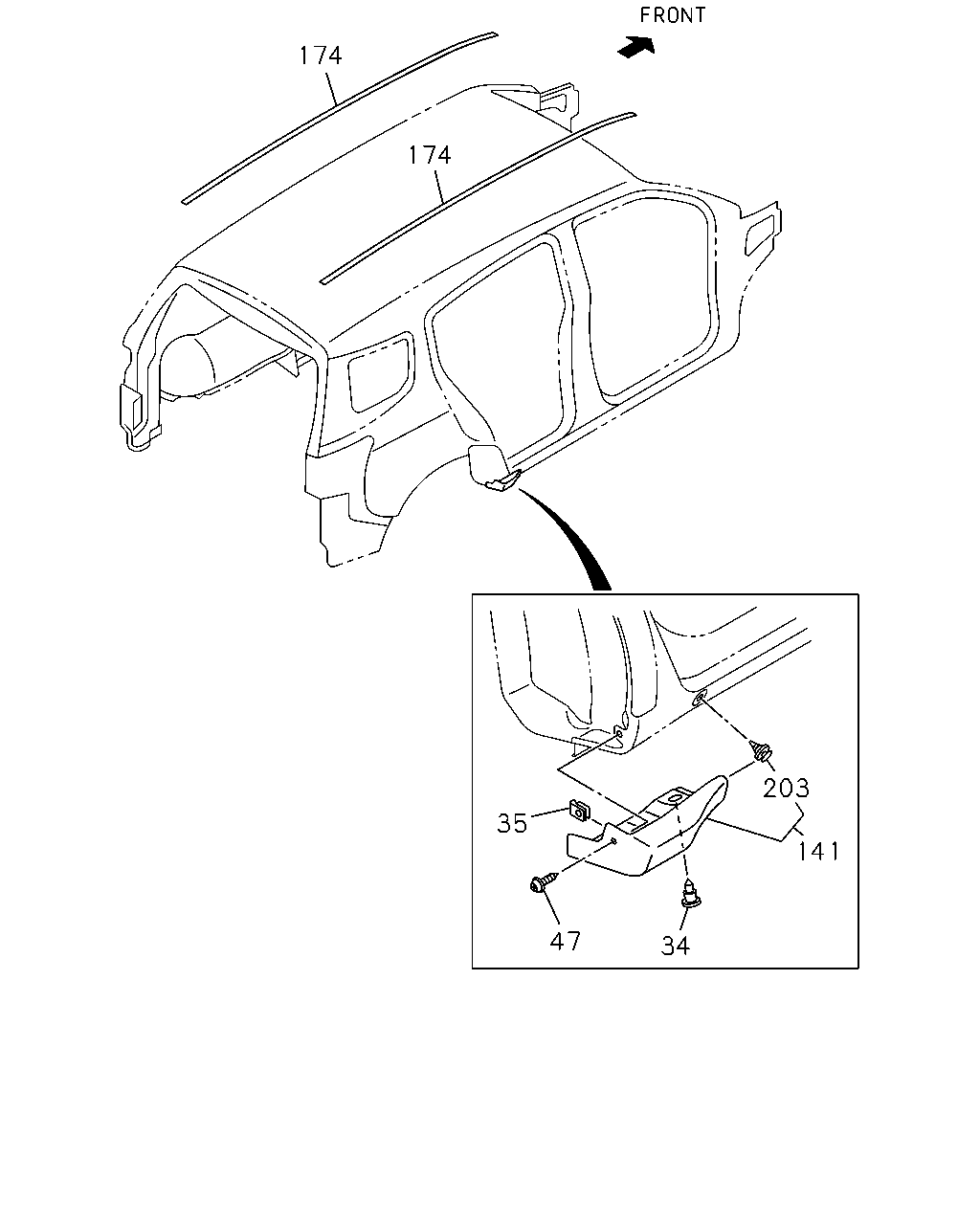

6-45 — MOLDING AND STRIPE
(#145229) — 12 parça
Tümü
A - UCB5VC
B - UCS5VC
174
174
35
47
34
141
203
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
CLIP; ROCKER MOLDING
8-97301-188-0
02
1
1407-
●
●
35
NUT; EXPANSION,ROCKER MOLDING
8-97125-519-0
02
1
1407-
●
●
47
SCREW; ROCKER MOLDING
M6X20 TAPPING W/PL WASHER
8-98167-444-0
02
1
1407-
●
●
141
COVER; ROCKER,RR
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98208-180-0
01
1
1407-
●
●
141
COVER; ROCKER,RR
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98208-181-0
01
1
1407-
●
●
141
COVER; ROCKER,RR
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98260-806-0
01
1
1407-
●
●
141
COVER; ROCKER,RR
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98260-807-0
01
1
1407-
●
●
174
MOLDING; ROOF
EXC. ROOF RAIL<7LC>
8-98189-366-0
01
1
1407-
●
174
MOLDING; ROOF
EXC. ROOF RAIL<7LC>
8-98189-367-0
01
1
1407-
●
203
FASTENER; COVER
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-97359-942-0
02
1
1407-
●
●
203
FASTENER; COVER
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-97359-942-0
02
1
1407-
●
●
203
FASTENER; COVER
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-97359-942-0
04
1
1407-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
