6-43 — SIDE TRIM (#145228) — 68 parça

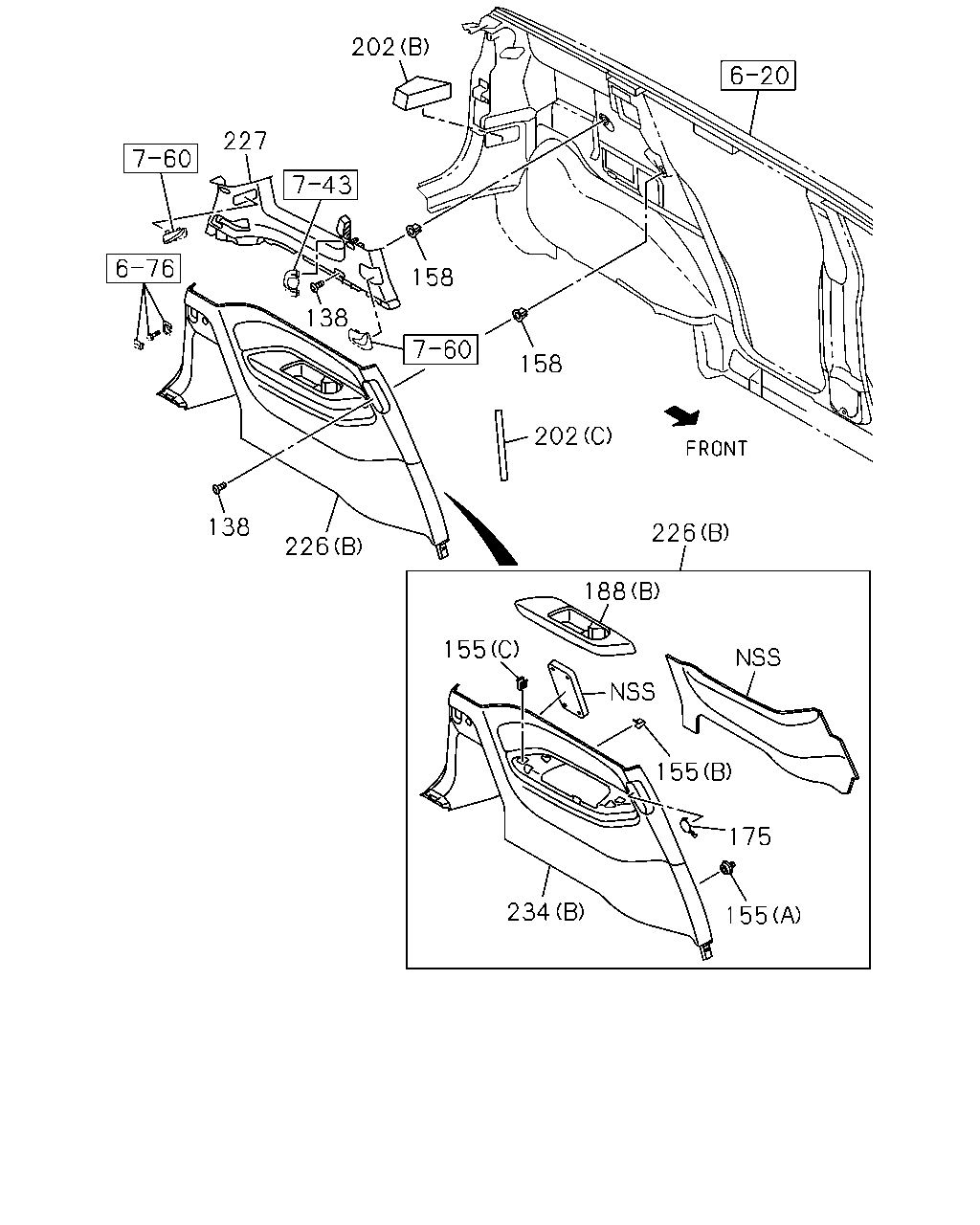

çizim 433441
202 227 138 158 158 202 226 226 138 188 155 155 175 155 234
BalonParca AdiParca NoAdetTipApplied Date A B
138 SCREW; TRIM COVER
M5X14 TAPPING 		8-98184-363-0 04 1 1407- ● ●
155 CLIP; TRIM,QUARTER
(A) 		8-97351-983-0 11 1 1407- ● ●
155 CLIP; TRIM,QUARTER
(B) 		8-98164-677-0 10 1 1407- ● ●
155 CLIP; TRIM,QUARTER
(C) 		8-98217-477-0 09 1 1407- ● ●
158 GROMMET; SCREW,TRIM 8-94152-494-0 04 1 1407- ● ●
175 COVER; TRIM,SIDE
BLACK 		8-97416-610-0 02 1 1407- ● ●
188 BAR; GUARD
(B) BLACK 		8-97427-709-0 01 1 1407- ● ●
188 BAR; GUARD
(A) BLACK 		8-97427-711-0 01 1 1407- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-97350-306-0 02 1 1407- ● ●
202 SEAL; CENTER PILLAR
(C) 		8-98179-381-3 02 1 1407- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1407- ● ●
226 TRIM ASM; QTR LWR
(B) BLACK 		8-97424-386-2 01 1 1407- ● ●
226 TRIM ASM; QTR LWR
(A) BLACK 		8-97424-387-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97424-389-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97424-390-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY 		8-97424-391-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY 		8-97424-392-2 01 1 1407- ● ●
234 TRIM; QTR
(B) BLACK 		8-97427-708-0 01 1 1407- ● ●
234 TRIM; QTR
(A) BLACK 		8-97427-710-0 01 1 1407- ● ●

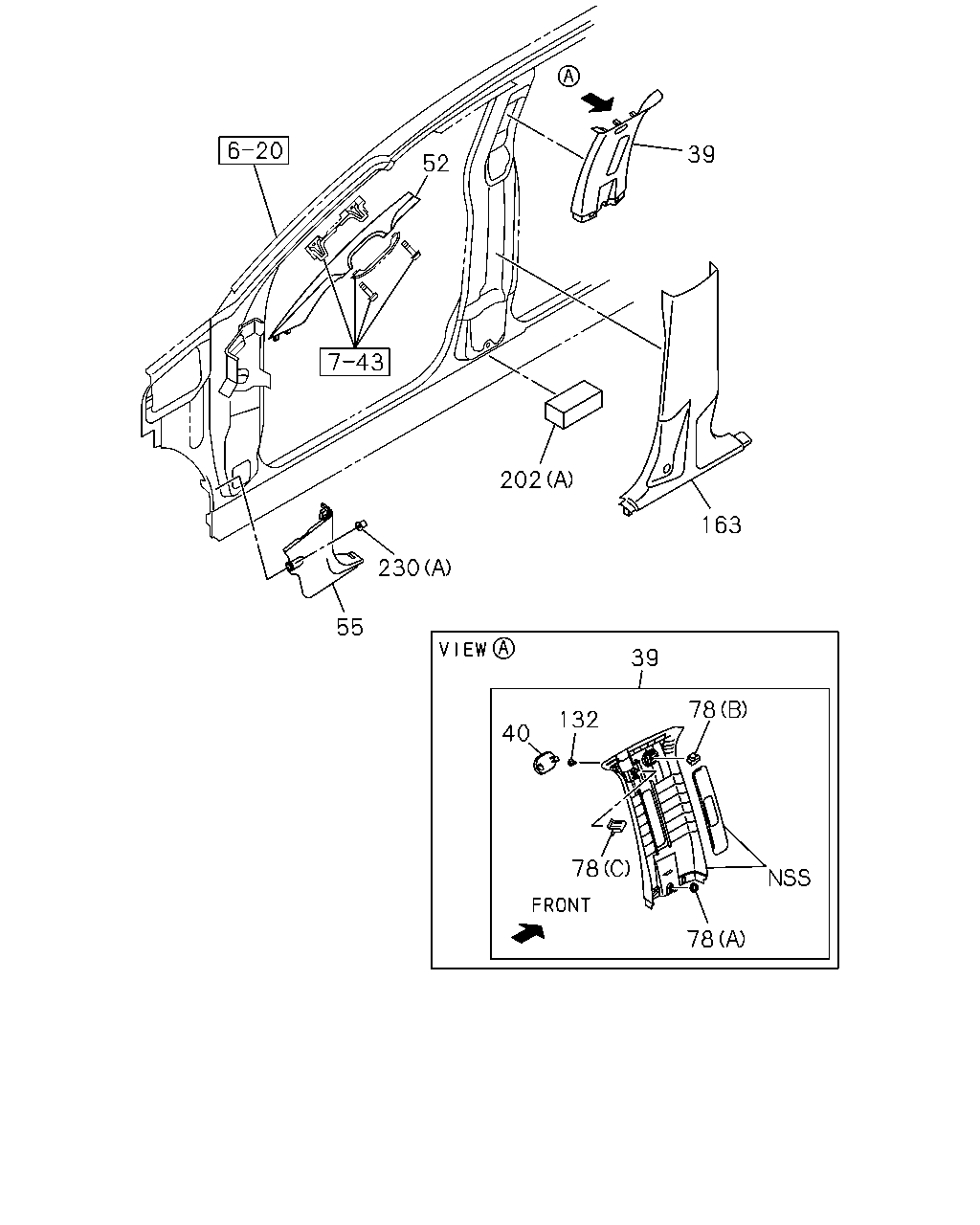

çizim 433904
52 39 230 55 163 39 132 40 78 78 78 202
BalonParca AdiParca NoAdetTipApplied Date A B
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97424-382-1 01 1 1407- ● ●
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97424-383-1 01 1 1407- ● ●
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY 		8-97424-932-1 01 1 1407- ● ●
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY 		8-97424-933-1 01 1 1407- ● ●
40 COVER; TRIM,CENTER PILLAR,CTR
AIR BAG DRIVER & PASSENGER(AK5) W/O MARK GRAY 		8-97427-705-0 02 1 1407- ● ●
40 COVER; TRIM,CENTER PILLAR,CTR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) W/ MARK GRAY 		8-97427-707-0 02 1 1407- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97424-370-1 01 1 1407- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97424-371-1 01 1 1407- ● ●
55 PAD; TRIM,DASH SIDE
BLACK 		8-97416-673-3 01 1 1407- ● ●
55 PAD; TRIM,DASH SIDE
BLACK 		8-97424-004-0 01 1 1407- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(A) 		8-97351-983-0 02 1 1407- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(B) 		8-98215-475-0 02 1 1407- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(C) 		8-98215-476-0 02 1 1407- ● ●
132 SCREW; COVER 8-98216-145-0 02 1 1407- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-961-4 01 1 1407- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-963-4 01 1 1407- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-97350-306-0 02 1 1407- ● ●
202 SEAL; CENTER PILLAR
(C) 		8-98179-381-3 02 1 1407- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1407- ● ●
230 RETAINER; TRIM
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) GRAY 		8-97416-696-0 04 1 1407- ●
230 RETAINER; TRIM
REAR COOLER WO/HEATER<C69> (B) GRAY 		8-97416-696-0 04 1 1407- ●
230 RETAINER; TRIM
(A) BLACK 		8-97416-808-0 02 1 1407- ● ●

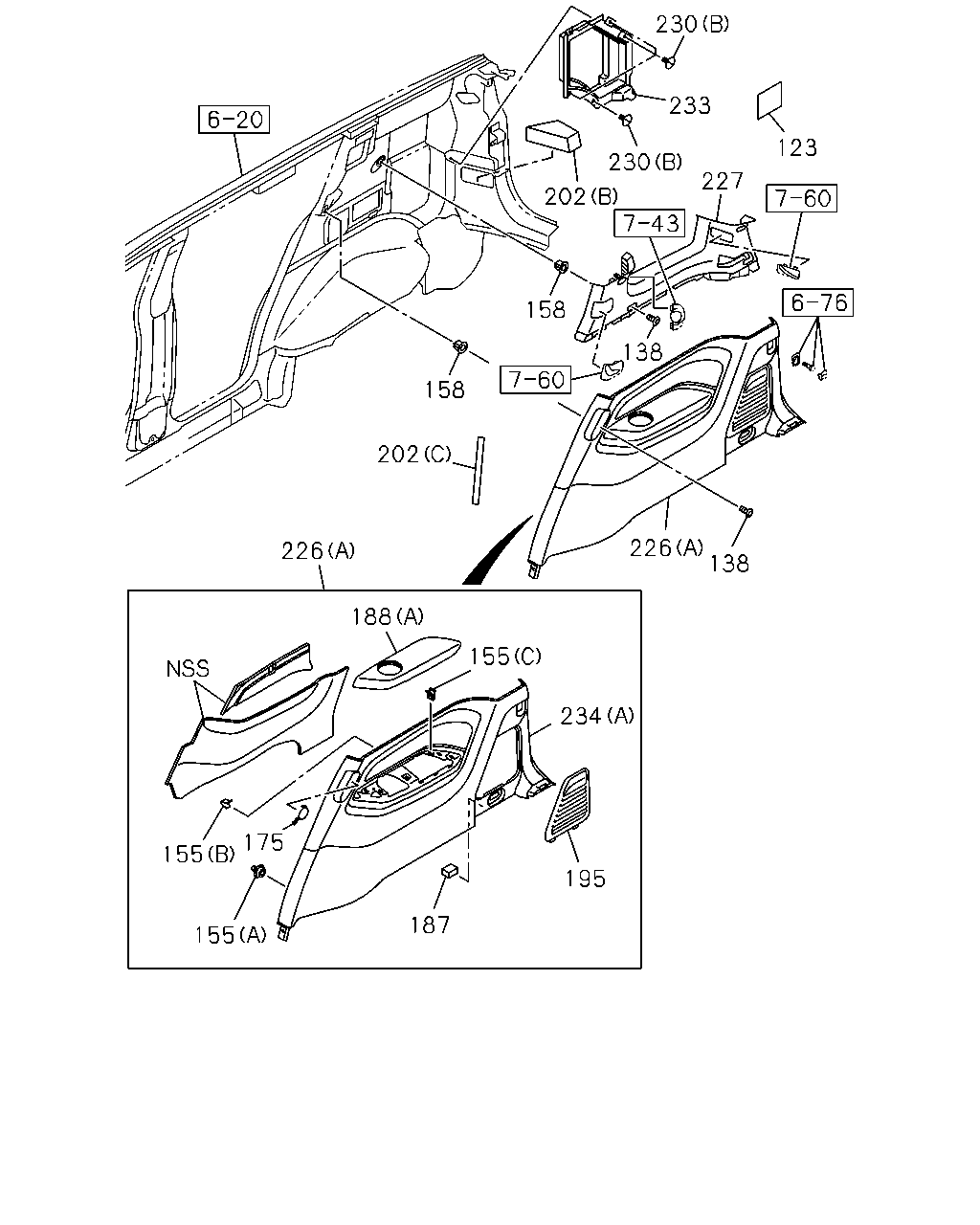

çizim 433986
202 226 158 158 202 230 233 230 227 123 138 226 138 188 155 234 195 187 155 155 175
BalonParca AdiParca NoAdetTipApplied Date A B
123 SEAL; RR QUARTER 8-98317-384-0 01 1 1506- ● ●
138 SCREW; TRIM COVER
M5X14 TAPPING 		8-98184-363-0 04 1 1407- ● ●
155 CLIP; TRIM,QUARTER
(A) 		8-97351-983-0 11 1 1407- ● ●
155 CLIP; TRIM,QUARTER
(B) 		8-98164-677-0 10 1 1407- ● ●
155 CLIP; TRIM,QUARTER
(C) 		8-98217-477-0 09 1 1407- ● ●
158 GROMMET; SCREW,TRIM 8-94152-494-0 04 1 1407- ● ●
175 COVER; TRIM,SIDE
BLACK 		8-97416-610-0 02 1 1407- ● ●
187 SPACER 8-98249-760-0 01 1 1407- ● ●
188 BAR; GUARD
(B) BLACK 		8-97427-709-0 01 1 1407- ● ●
188 BAR; GUARD
(A) BLACK 		8-97427-711-0 01 1 1407- ● ●
195 LID; JACK & TOOL
BLACK 		8-97427-712-0 01 1 1407- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-97350-306-0 02 1 1407- ● ●
202 SEAL; CENTER PILLAR
(C) 		8-98179-381-3 02 1 1407- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1407- ● ●
226 TRIM ASM; QTR LWR
(B) BLACK 		8-97424-386-2 01 1 1407- ● ●
226 TRIM ASM; QTR LWR
(A) BLACK 		8-97424-387-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97424-389-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97424-390-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY 		8-97424-391-2 01 1 1407- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY 		8-97424-392-2 01 1 1407- ● ●
230 RETAINER; TRIM
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) (B) GRAY 		8-97416-696-0 04 1 1407- ●
230 RETAINER; TRIM
REAR COOLER WO/HEATER<C69> (B) GRAY 		8-97416-696-0 04 1 1407- ●
230 RETAINER; TRIM
(A) BLACK 		8-97416-808-0 02 1 1407- ● ●
233 COVER; COOLER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98231-991-2 01 1 1407- ●
233 COVER; COOLER
REAR COOLER WO/HEATER<C69> 		8-98231-991-2 01 1 1407- ●
234 TRIM; QTR
(B) BLACK 		8-97427-708-0 01 1 1407- ● ●
234 TRIM; QTR
(A) BLACK 		8-97427-710-0 01 1 1407- ● ●
