◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51518 - UCR/UCS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#145224) — 38 parça
çizim 433787
91 11 1 26 25 21 19 22 27 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR 8-98073-843-2 01 1 1407- ● ●
1 GLASS; FRT DOOR 8-98073-844-2 01 1 1407- ● ●
11 RAIL; RR GUIDE,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98100-794-6 01 1 1407-1408 ● ●
11 RAIL; RR GUIDE,FRT DOOR 8-98100-793-5 01 1 1407- ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98100-792-5 01 1 1407-1408 ● ●
11 RAIL; RR GUIDE,FRT DOOR 8-98100-792-5 01 1 1409- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98093-555-1 01 1 1407- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98093-554-1 01 1 1407- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98093-553-1 01 1 1407- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98160-725-0 01 1 1407- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98160-724-0 01 1 1407- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98160-723-0 01 1 1407- ● ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 03 1 1407- ● ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 03 1 1407- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1407- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		8-98049-362-0 04 1 1407- ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-107-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-108-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1407- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE 		8-98048-996-0 02 1 1407- ● ●

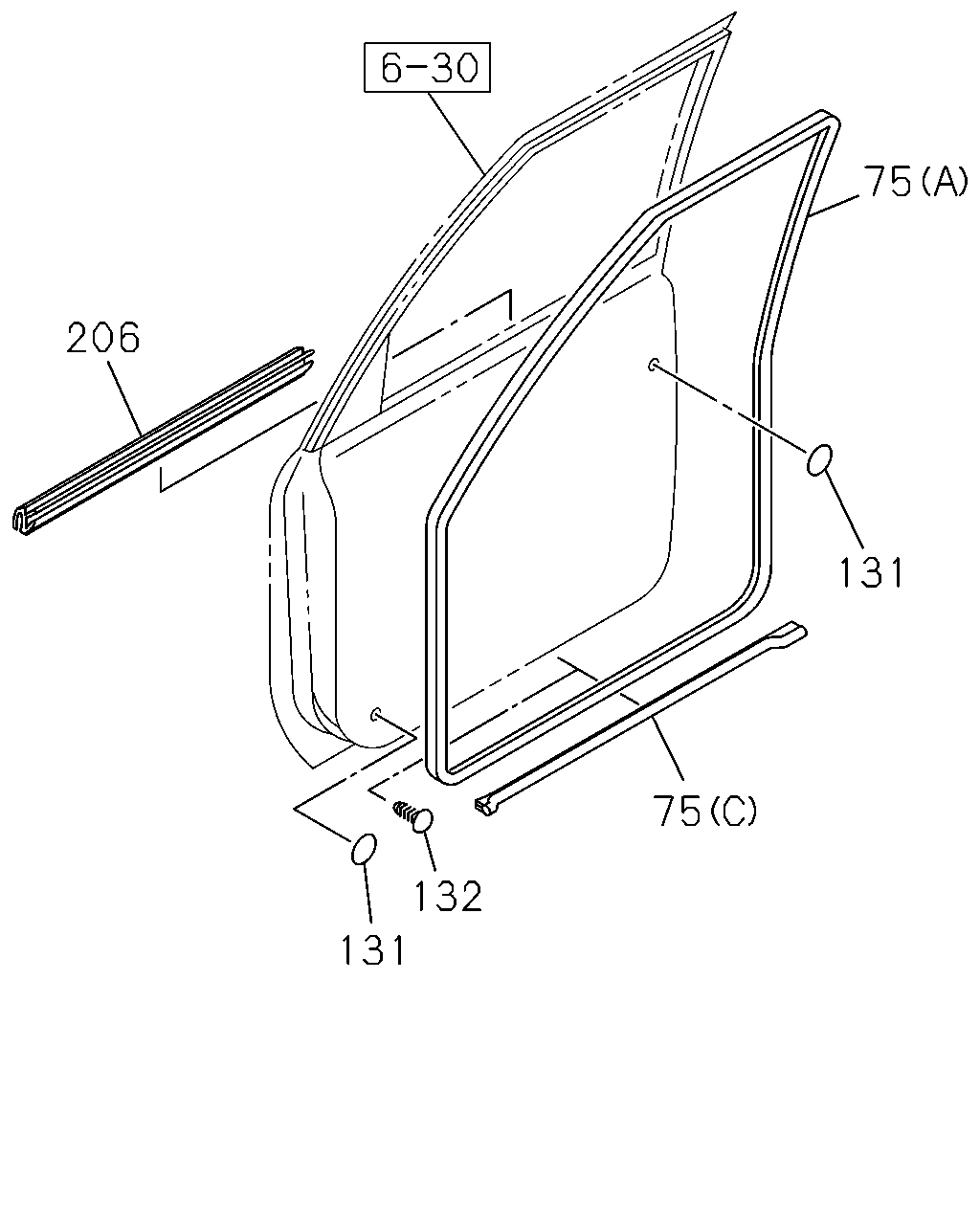

çizim 433983
75 132 131 206 75 131
BalonParca AdiParca NoAdetTipApplied Date A B
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-107-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-108-0 01 1 1407- ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1407- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1407- ● ●
131 SEAL; FRT DOOR
OD=25 BLACK 		1-76798-019-0 04 1 1407- ● ●
132 CLIP; SEAL,DOOR
INTERIOR BASIC(RBA) 		8-94279-922-0 14 1 1407- ●
206 WEATHERSTRIP; FRT DOOR GLASS 8-98052-197-2 01 1 1407- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS 8-98052-198-2 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
