6-20 — SIDE PANEL AND STEP (#145222) — 103 parça

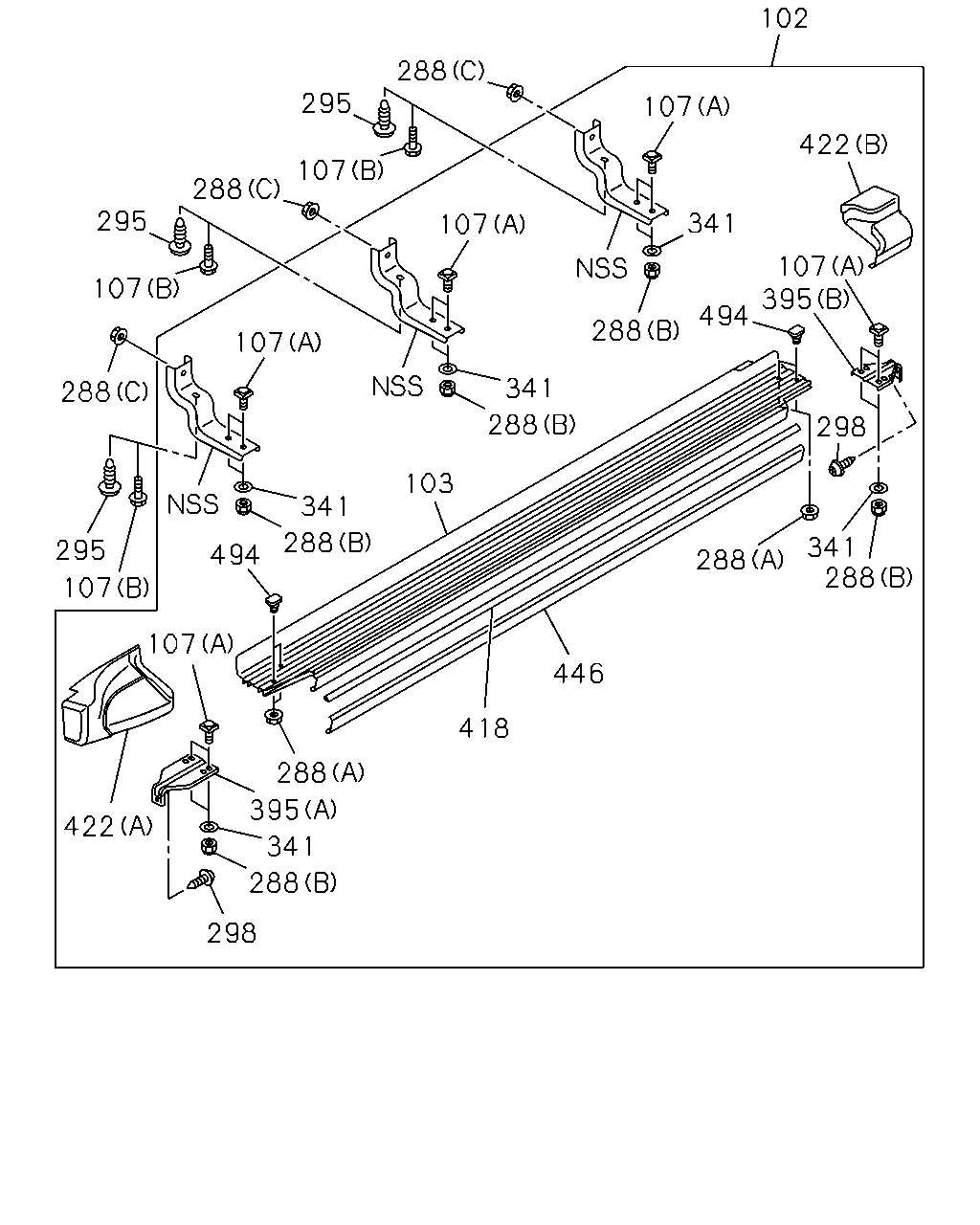

102 288 295 107 288 295 107 288 295 107 422 107 494 107 107 107 341 422 288 341 288 103 341 288 288 395 341 288 298 418 446 107 395 494 298 288 341 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> PRIMER	8-98253-444-1	01	1	1407-	●	●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> PRIMER	8-98253-445-1	01	1	1407-	●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>	8-98251-434-0	01	1	1407-	●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>	8-98251-435-0	01	1	1407-	●	●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) M8X25 FLANGE	8-98048-998-0	06	1	1407-	●	●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A)	8-98251-460-0	20	1	1407-	●	●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) M6 FLANGE	0-91180-106-0	08	1	1407-	●	●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) M8 FLANGE	0-91180-108-0	20	1	1407-	●	●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (C) M8 FLANGE	0-91180-208-0	06	1	1407-	●	●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> OD=18	8-94269-290-0	06	1	1407-	●	●
298	SCREW; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> M5X16	8-98073-081-0	04	1	1407-	●	●
341	WASHER; PL,STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> ID=8.4 OD=18	0-91614-608-0	20	1	1407-	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) FRONT	8-98251-452-0	02	1	1407-	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) REAR	8-98251-453-0	02	1	1407-	●	●
418	RUBBER; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>	8-98251-462-1	02	1	1407-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) FRONT PRIMER	8-98253-375-1	01	1	1407-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) REAR PRIMER	8-98253-377-1	01	1	1407-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) FRONT PRIMER	8-98253-376-1	01	1	1407-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) REAR PRIMER	8-98253-378-1	01	1	1407-	●	●
446	FINISHER; STEP SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> PRIMER	8-98253-379-0	02	1	1407-	●	●
494	STUD; BRKT SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>	8-98056-035-0	08	1	1407-	●	●

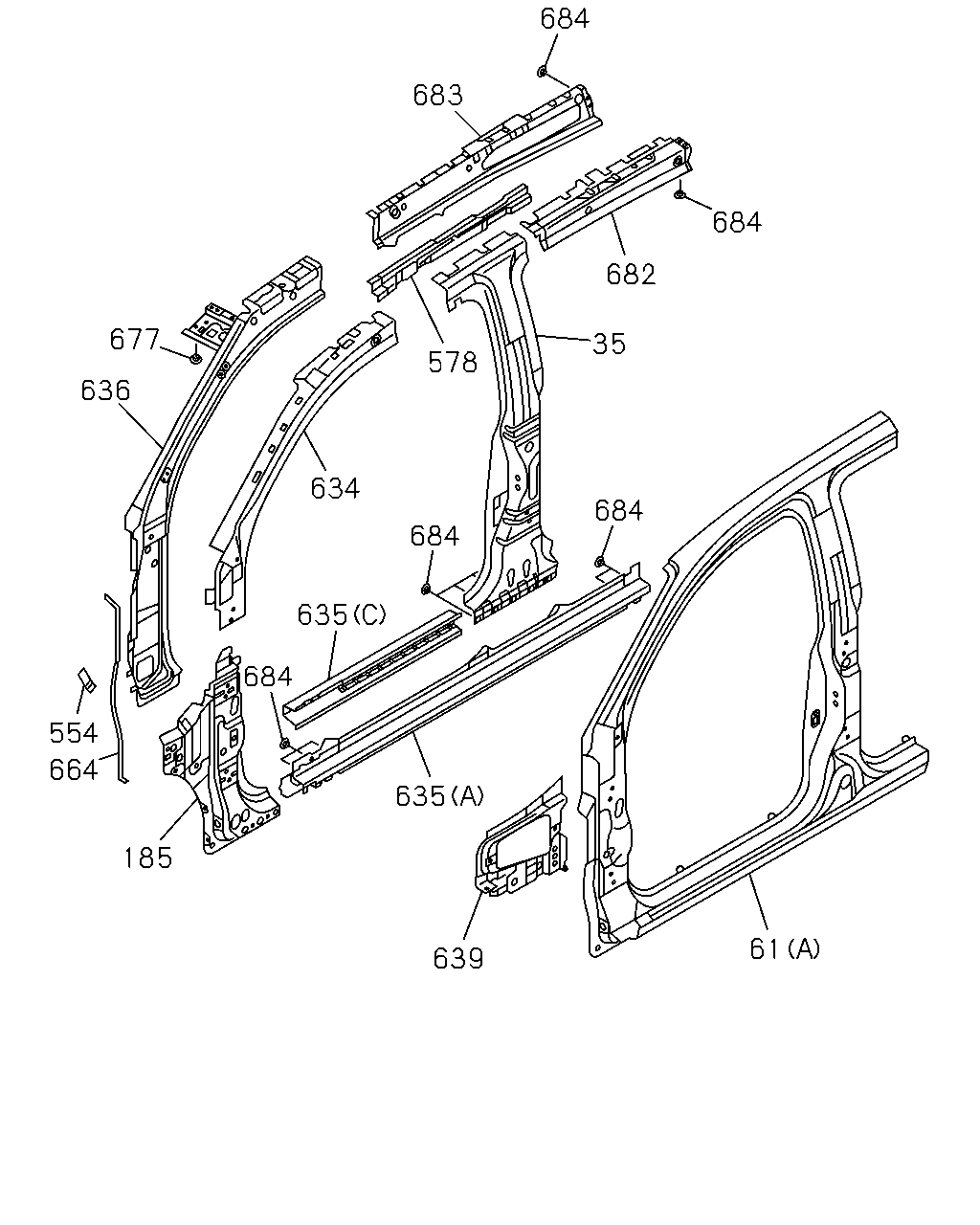

684 683 684 682 35 578 677 636 634 684 684 635 684 554 664 185 635 639 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	PANEL; CENTER PILLAR,INNER	8-98200-511-0	01	1	1407-	●	●
35	PANEL; CENTER PILLAR,INNER	8-98200-542-0	01	1	1407-	●	●
61	PANEL; SIDE OUTER (A)	8-98254-287-1	01	1	1407-	●	●
61	PANEL; SIDE OUTER (B)	8-98254-288-1	01	1	1407-	●	●
61	PANEL; SIDE OUTER (A)	8-98254-289-1	01	1	1407-	●	●
61	PANEL; SIDE OUTER (B)	8-98254-290-1	01	1	1407-	●	●
185	REINFORCEMENT; SIDE INNER LWR	8-98214-680-0	01	1	1407-	●	●
185	REINFORCEMENT; SIDE INNER LWR	8-98214-681-0	01	1	1407-	●	●
554	SEAL; INNER BODY 115X25	8-98178-886-0	02	1	1407-	●	●
578	PATCH; REINF,ROCKER OUTER	8-98206-330-0	01	1	1407-	●	●
578	PATCH; REINF,ROCKER OUTER	8-98206-331-0	01	1	1407-	●	●
634	REINFORCEMENT; BODY SIDE INNER	8-98206-296-2	01	1	1407-	●	●
634	REINFORCEMENT; BODY SIDE INNER	8-98206-297-2	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (B)	8-98200-431-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (A)	8-98200-614-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (A)	8-98200-615-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (B)	8-98200-632-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (C)	8-98206-306-1	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (C)	8-98206-307-1	01	1	1407-	●	●
636	PANEL; FRONT PILLAR INNER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-420-3	01	1	1407-	●	●
636	PANEL; FRONT PILLAR INNER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-546-3	01	1	1407-	●	●
636	PANEL; FRONT PILLAR INNER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-549-3	01	1	1407-	●	●
636	PANEL; FRONT PILLAR INNER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-550-3	01	1	1407-	●	●
639	REINFORCEMENT; COWL SIDE	8-98104-055-0	01	1	1407-	●	●
639	REINFORCEMENT; COWL SIDE	8-98185-421-0	01	1	1407-	●	●
664	SEAL; TAPE	8-98193-408-2	01	1	1407-	●	●
664	SEAL; TAPE	8-98193-408-2	01	1	1407-	●	●
677	RIVET; PANEL	8-98057-864-0	08	1	1407-	●	●
682	REINFORCEMENT; ROOF SIDE	8-98200-633-0	01	1	1407-	●	●
682	REINFORCEMENT; ROOF SIDE	8-98200-634-0	01	1	1407-	●	●
683	PANEL; HEADER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-482-0	01	1	1407-	●	●
683	PANEL; HEADER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-573-0	01	1	1407-	●	●
683	PANEL; HEADER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-574-0	01	1	1407-	●	●
683	PANEL; HEADER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-575-0	01	1	1407-	●	●
684	FASTENER	8-98057-864-0	14	1	1407-	●	●
684	FASTENER	8-98057-864-0	14	1	1407-	●	●

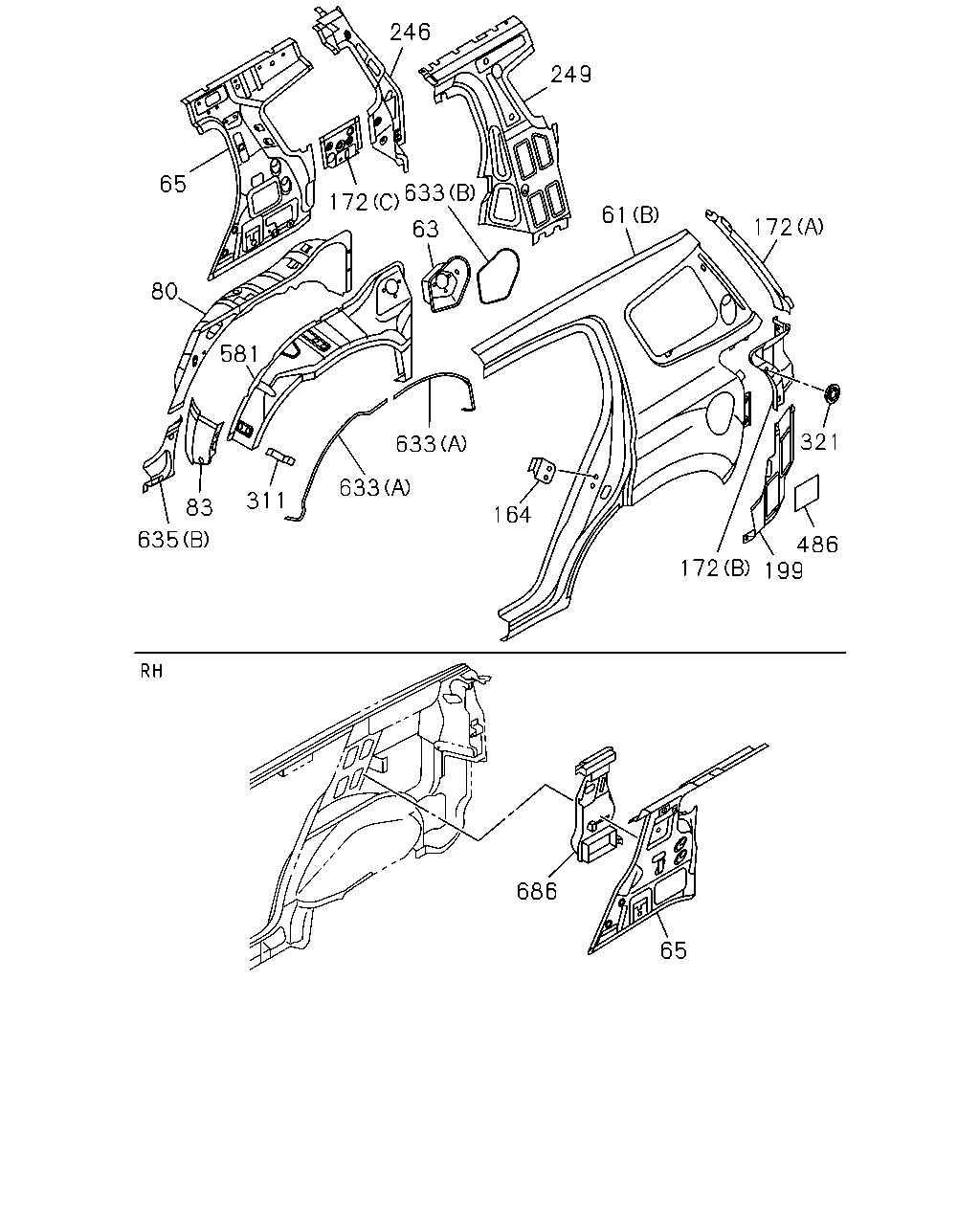

246 65 249 172 633 63 61 172 80 581 83 311 635 633 633 164 321 486 199 172 686 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	PANEL; SIDE OUTER (A)	8-98254-287-1	01	1	1407-	●	●
61	PANEL; SIDE OUTER (B)	8-98254-288-1	01	1	1407-	●	●
61	PANEL; SIDE OUTER (A)	8-98254-289-1	01	1	1407-	●	●
61	PANEL; SIDE OUTER (B)	8-98254-290-1	01	1	1407-	●	●
63	PANEL; FUEL FILLER RECESS	8-98200-487-0	01	1	1407-	●	●
65	PANEL; QUARTER,INNER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-437-2	01	1	1407-	●	●
65	PANEL; QUARTER,INNER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-562-2	01	1	1407-	●	●
65	PANEL; QUARTER,INNER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-563-2	01	1	1407-	●	●
65	PANEL; QUARTER,INNER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-564-2	01	1	1407-	●	●
80	PANEL; WHEEL HOUSE,INNER	8-98200-427-0	01	1	1407-	●	●
80	PANEL; WHEEL HOUSE,INNER	8-98200-578-2	01	1	1407-	●	●
83	COVER; ROCKER RR	8-98200-432-0	01	1	1407-	●	●
83	COVER; ROCKER RR	8-98200-528-0	01	1	1407-	●	●
164	PLATE; SIDE PNL OUTER	8-98200-523-1	01	1	1407-	●	●
164	PLATE; SIDE PNL OUTER	8-98200-641-1	01	1	1407-	●	●
172	EXTENSION; QUARTER PANEL (C)	8-98200-436-0	01	1	1407-	●	●
172	EXTENSION; QUARTER PANEL (B)	8-98200-485-0	01	1	1407-	●	●
172	EXTENSION; QUARTER PANEL (A)	8-98200-489-1	01	1	1407-	●	●
172	EXTENSION; QUARTER PANEL (C)	8-98200-529-3	01	1	1407-	●	●
172	EXTENSION; QUARTER PANEL (A)	8-98200-530-1	01	1	1407-	●	●
172	EXTENSION; QUARTER PANEL (B)	8-98200-531-0	01	1	1407-	●	●
199	PANEL; RR SIDE	8-98200-484-0	01	1	1407-	●	●
199	PANEL; RR SIDE	8-98200-536-0	01	1	1407-	●	●
246	PANEL; RR PILLAR,INNER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-445-5	01	1	1407-	●	●
246	PANEL; RR PILLAR,INNER AIR BAG DRIVER & PASSENGER(AK5)	8-98200-567-6	01	1	1407-	●	●
246	PANEL; RR PILLAR,INNER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-568-5	01	1	1407-	●	●
246	PANEL; RR PILLAR,INNER AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98200-569-6	01	1	1407-	●	●
249	REINFORCEMENT; RR PILLAR	8-98200-425-2	01	1	1407-	●	●
249	REINFORCEMENT; RR PILLAR	8-98200-627-2	01	1	1407-	●	●
311	SEAL; WHEEL HOUSE	8-98200-636-0	01	1	1407-	●	●
311	SEAL; WHEEL HOUSE	8-98200-636-0	01	1	1407-	●	●
321	PLUG; HOLE OD=15.0	8-94279-040-0	02	1	1407-	●	●
486	SEAL; BODY SIDE	8-98317-385-0	01	1	1506-	●	●
581	PANEL; WHEEL HOUSE,OUTER	8-98200-433-1	01	1	1407-	●	●
581	PANEL; WHEEL HOUSE,OUTER	8-98200-579-2	01	1	1407-	●	●
633	SEALER (A)	8-98200-638-2	02	1	1407-	●	●
633	SEALER (A)	8-98200-638-2	02	1	1407-	●	●
633	SEALER (B)	8-98200-488-1	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (B)	8-98200-431-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (A)	8-98200-614-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (A)	8-98200-615-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (B)	8-98200-632-0	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (C)	8-98206-306-1	01	1	1407-	●	●
635	REINFORCEMENT; ROCKER (C)	8-98206-307-1	01	1	1407-	●	●
686	DUCT; AIR OUTLET	8-98192-299-1	01	1	1407-	●
686	DUCT; AIR OUTLET REAR COOLER WO/HEATER<C69>	8-98192-299-1	01	1	1407-		●
