6-10 — ENGINE HOOD AND LOCK (#145220) — 27 parça

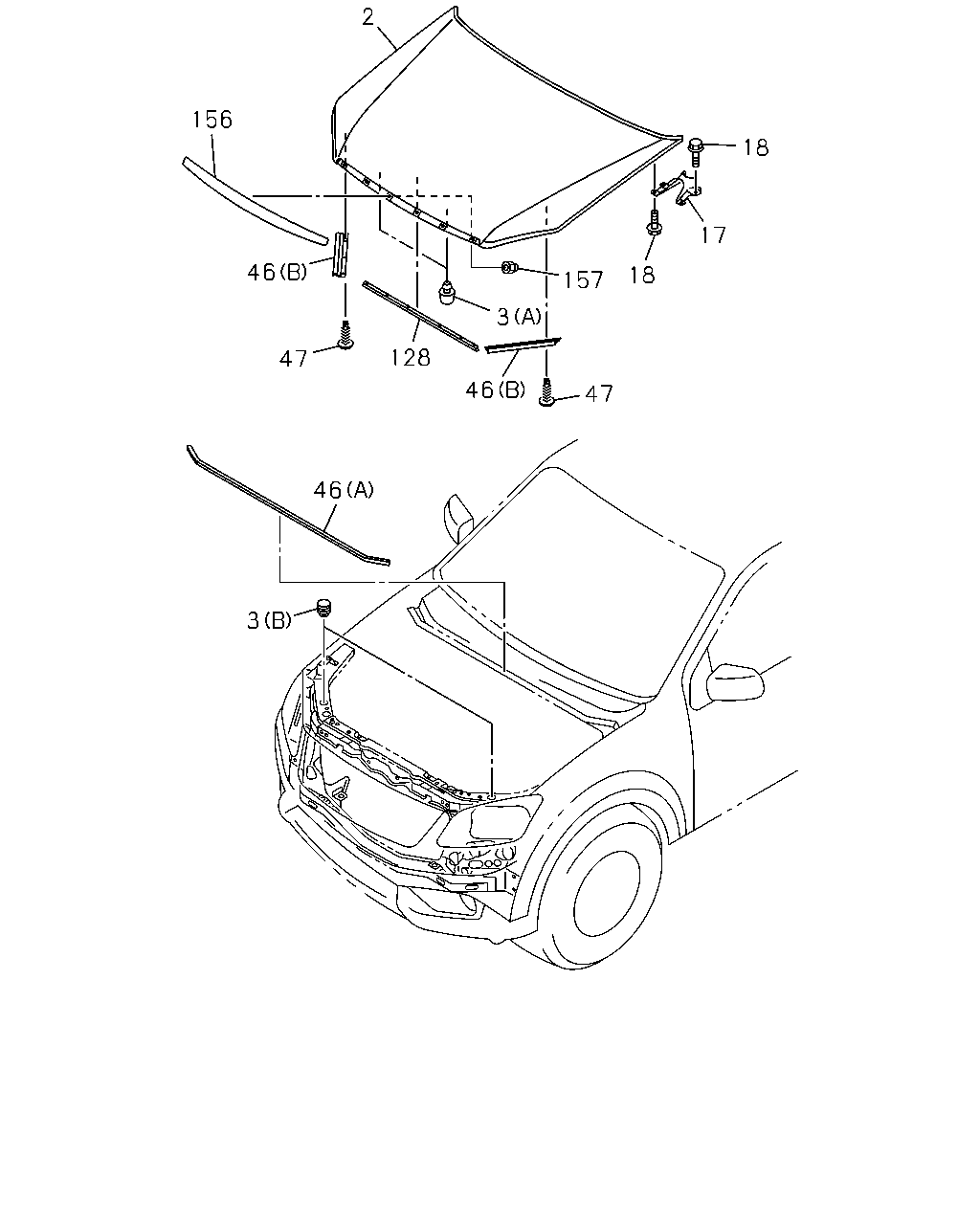

çizim 433535
156 46 47 128 3 157 18 17 18 2 46 47 3 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 PANEL; ENG HOOD 8-98193-817-0 01 1 1407- ● ●
3 BUFFER; ENG HOOD,FRT
(A) 		8-97948-266-0 02 1 1407- ● ●
3 BUFFER; ENG HOOD,FRT
(B) 		8-98195-454-0 02 1 1407- ● ●
17 HINGE; ENG HOOD 8-98104-099-2 01 1 1407- ● ●
17 HINGE; ENG HOOD 8-98104-100-2 01 1 1407- ● ●
18 BOLT; HINGE
M8X16 		8-98056-122-0 08 1 1407- ● ●
46 SEAL; ENG HOOD
(A) 		8-98065-805-1 01 1 1407- ● ●
46 SEAL; ENG HOOD
(B) 		8-98160-815-1 01 1 1407- ● ●
46 SEAL; ENG HOOD
(B) 		8-98165-802-1 01 1 1407- ● ●
47 CLIP; HOOD SEAL
OD=12 L=14.8 		8-94279-921-0 06 1 1407- ● ●
128 SEAL; PLATFORM
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98102-230-0 01 1 1407- ●
128 SEAL; PLATFORM 8-98102-230-0 01 1 1407- ●
156 MOLDING; HOOD
BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED 		8-98269-566-0 01 1 1407- ● ●
156 MOLDING; HOOD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> 		8-98181-163-3 01 1 1407- ● ●
157 NUT; MOLDING
M6 CAP NUT 		8-98049-850-0 06 1 1407- ● ●

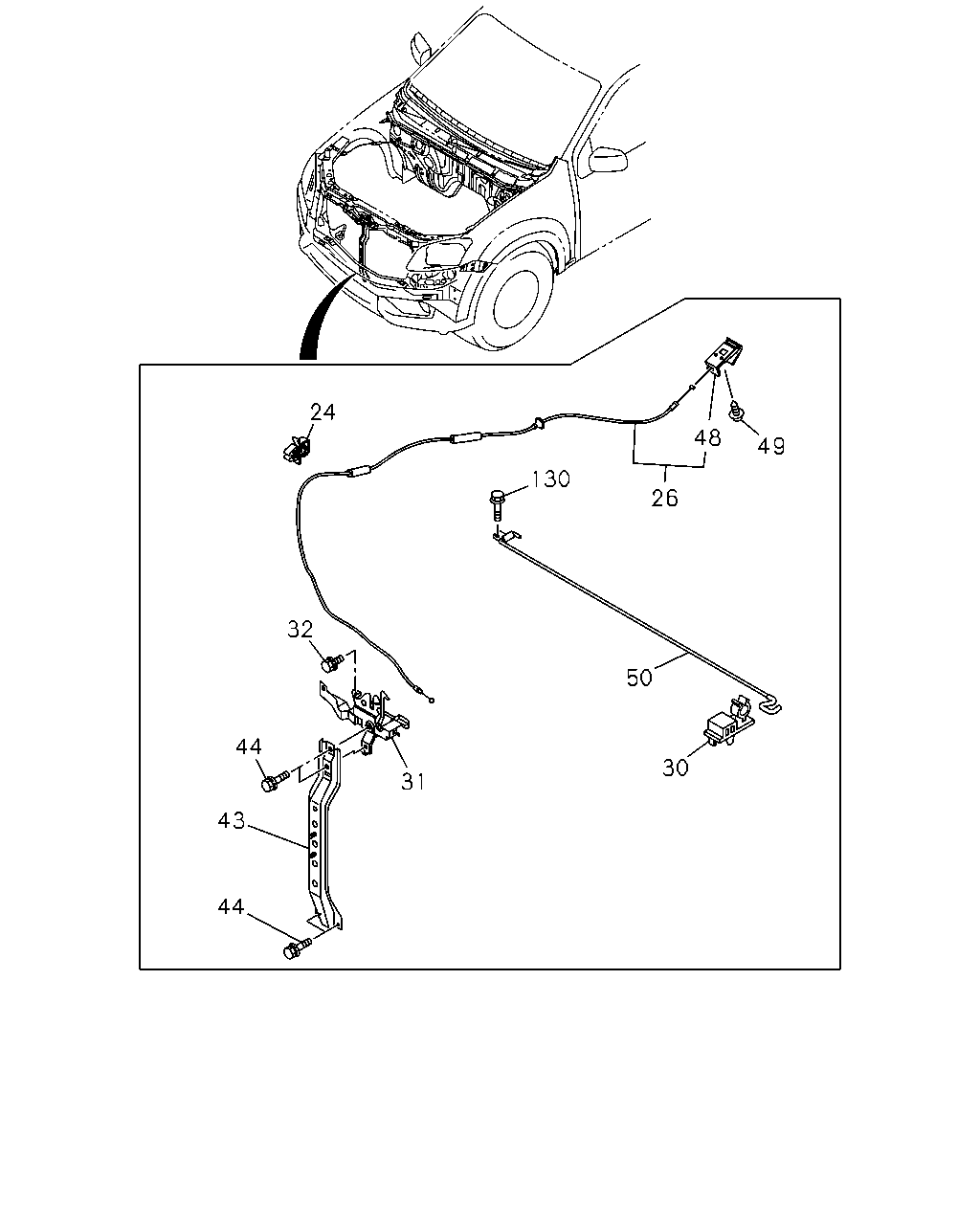

çizim 433574
44 43 31 44 32 24 130 26 50 30 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; CONT CABLE 8-97182-405-0 03 1 1407- ● ●
26 CABLE; ENG HOOD CONT 8-98071-759-1 01 1 1407- ● ●
30 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 1407- ● ●
31 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98074-562-4 01 1 1407- ● ●
31 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98074-561-4 01 1 1407- ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 1407- ● ●
43 STAY; ENG HOOD,FRT END 8-98165-341-0 01 1 1407- ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97370-668-0 04 1 1407- ● ●
48 LEVER; ENG HOOD 8-98204-979-0 01 1 1407- ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98167-449-0 02 1 1407- ● ●
50 ROD; SUPPORT,ENG HOOD 8-98101-948-1 01 1 1407- ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE 		0-28650-625-0 01 1 1407- ● ●
