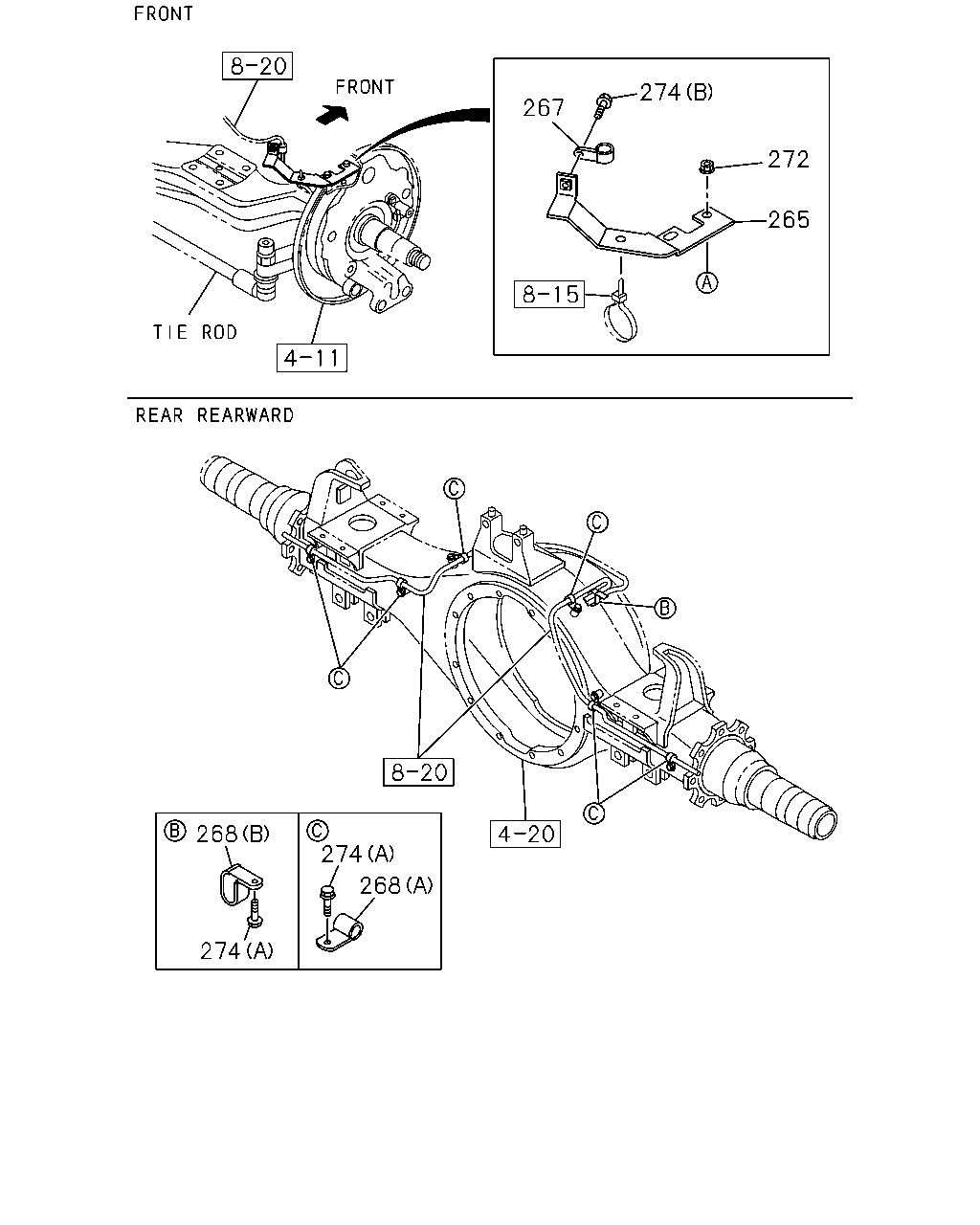

4-10 — FRONT AXLE (#14522) — 149 parça

274 267 272 265 274 268 268 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	0611-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	0611-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0611-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	0611-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	0611-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	0611-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	07	1	0611-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0611-

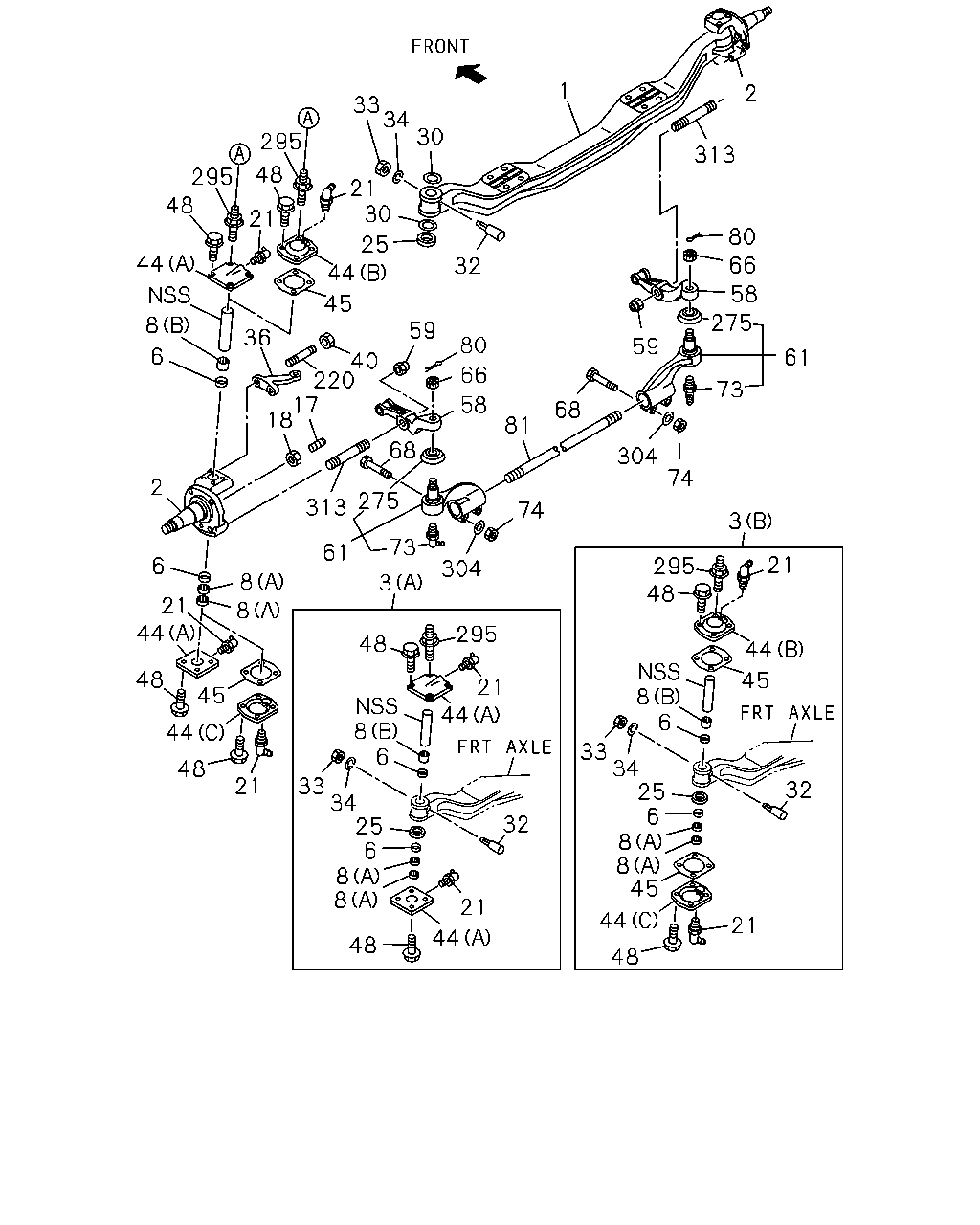

1 2 33 34 30 295 313 295 48 21 30 48 21 80 25 44 66 32 44 58 45 36 8 59 59 80 6 275 40 220 17 18 68 66 61 58 81 74 2 313 304 3 68 21 6 295 48 61 8 3 21 44 8 295 48 44 8 6 48 45 21 44 45 8 6 44 33 34 25 6 8 8 45 48 32 21 33 34 25 6 8 8 32 44 21 44 21 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-170-2	01	1	0611-0805
1	AXLE; FRT	8-98116-056-4	01	1	0806-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	0611-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	0611-
3	KING PIN SET (A)	1-87831-111-7	02	1	0611-0801
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-
6	SEAL; KING PIN	9-09926-024-0	04	1	0611-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0611-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0611-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0611-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	0611-
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0611-
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0611-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0611-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0611-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0611-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0611-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0611-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0611-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0611-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0611-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0611-0801
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	0611-
58	ARM; TIE ROD	1-43134-049-4	01	1	0611-
58	ARM; TIE ROD	1-43135-049-4	01	1	0611-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0611-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
61	ROD END; TIE ROD	1-43150-856-0	01	1	0611-1009
61	ROD END; TIE ROD	8-98105-073-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-100-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-857-0	01	1	0611-1009
61	ROD END; TIE ROD	8-98105-074-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-101-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0611-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0611-0709
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0611-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0611-
81	ROD; TIE	1-43151-154-0	01	1	0611-
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0611-0704
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0611-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0611-0704
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0705-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0611-0709
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0710-
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0611-0704
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-

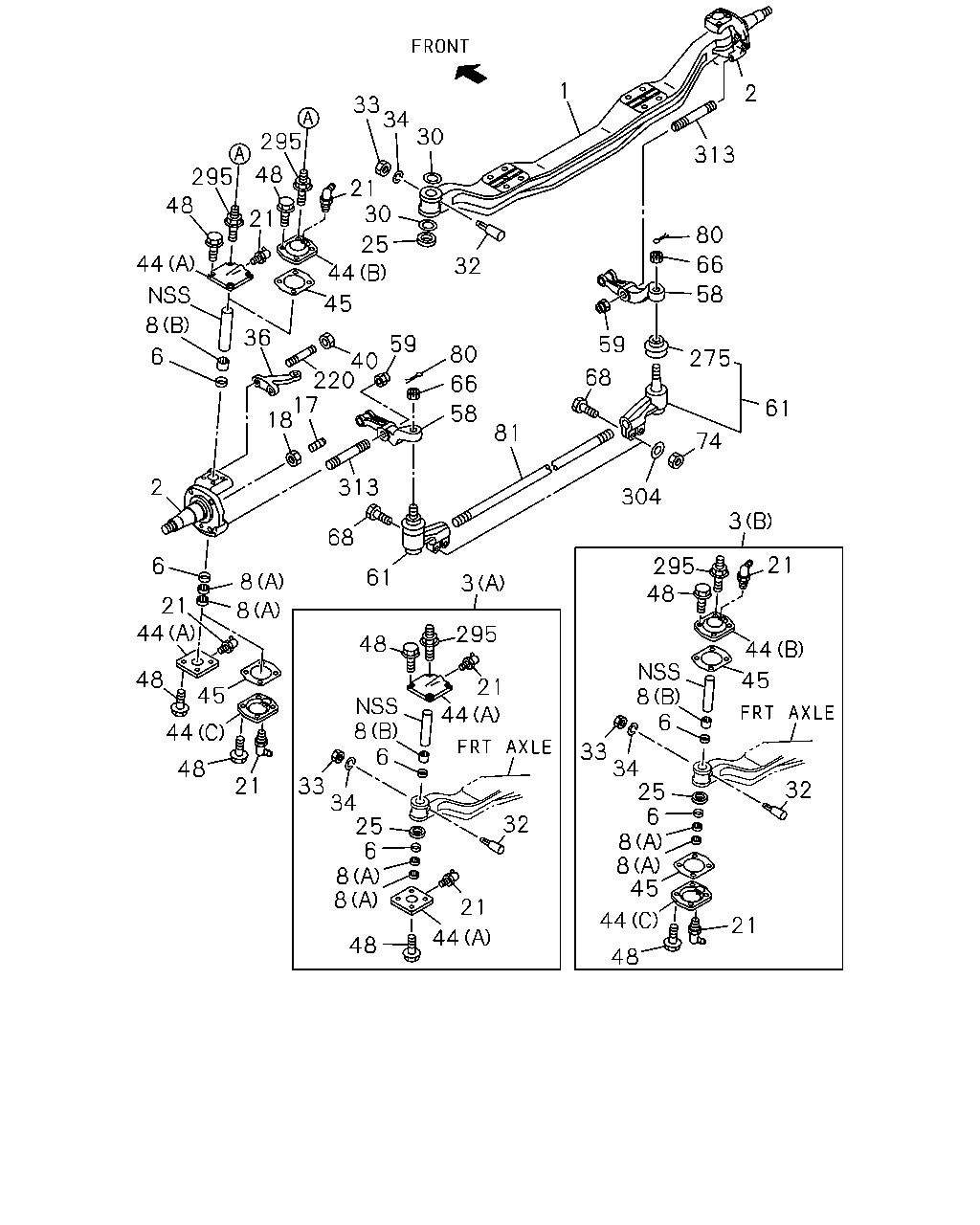

1 2 33 34 30 295 313 295 48 21 30 48 21 80 25 44 66 32 44 58 275 45 36 8 59 80 59 6 61 40 220 17 18 66 73 58 68 81 68 304 74 2 275 313 74 3 73 61 21 6 295 48 304 8 3 21 44 8 295 48 44 8 6 48 45 21 44 45 8 6 44 33 34 25 6 8 8 45 48 32 21 33 34 25 6 8 8 32 44 21 44 21 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-170-2	01	1	0611-0805
1	AXLE; FRT	8-98116-056-4	01	1	0806-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	0611-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	0611-
3	KING PIN SET (A)	1-87831-111-7	02	1	0611-0801
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-
6	SEAL; KING PIN	9-09926-024-0	04	1	0611-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0611-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0611-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0611-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	0611-
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0611-
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0611-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0611-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0611-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0611-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0611-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0611-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0611-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0611-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0611-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0611-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0611-0801
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	0611-
58	ARM; TIE ROD	1-43134-049-4	01	1	0611-
58	ARM; TIE ROD	1-43135-049-4	01	1	0611-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0611-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
61	ROD END; TIE ROD	1-43150-856-0	01	1	0611-1009
61	ROD END; TIE ROD	8-98105-073-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-100-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-857-0	01	1	0611-1009
61	ROD END; TIE ROD	8-98105-074-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-101-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0611-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0611-0709
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0611-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0611-
81	ROD; TIE	1-43151-154-0	01	1	0611-
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0611-0704
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0611-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0611-0704
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0705-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0611-0709
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0710-
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0611-0704
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-
