6-05 — FRONT PANEL (#145218) — 34 parça

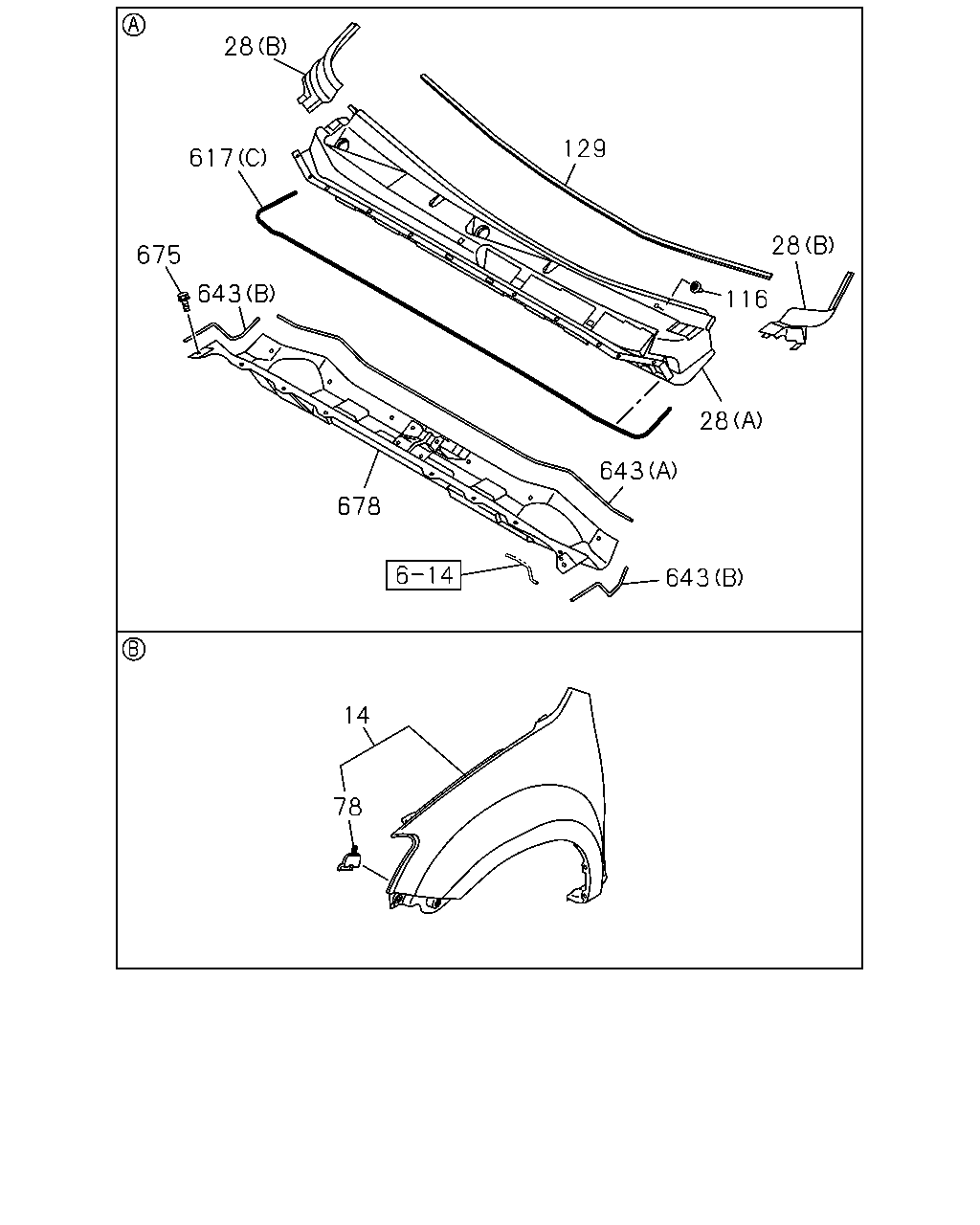

çizim 433494
28 617 675 678 129 28 116 28 643 643 14 78 643
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 8-98103-207-0 01 1 1407- ● ●
14 FENDER; FRT 8-98103-209-0 01 1 1407- ● ●
28 COVER; DASH COWL
(B) 		8-98133-981-6 01 1 1407- ● ●
28 COVER; DASH COWL
(B) 		8-98133-982-5 01 1 1407- ● ●
28 COVER; DASH COWL
(A) 		8-98133-983-0 01 1 1407- ● ●
78 BRACKET; FENDER 8-98104-033-1 01 1 1407- ● ●
78 BRACKET; FENDER 8-98104-034-1 01 1 1407- ● ●
116 CLIP; COWL COVER 8-98134-004-1 06 1 1407- ● ●
129 FINISHER; COWL COVER 8-98133-991-0 01 1 1407- ● ●
617 SEAL; DASH
(A) OD=25 BLACK 		1-76798-019-0 04 1 1407- ● ●
617 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1407- ● ●
617 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1407- ● ●
643 SEAL; COWL
(A) 		8-98110-283-1 01 1 1407- ● ●
643 SEAL; COWL
(B) 		8-98110-284-1 02 1 1407- ● ●
675 BOLT; PANEL
M6X12 W/PL WASHER 		8-98180-459-2 08 1 1407- ● ●
678 PANEL; COWL 8-98065-803-3 01 1 1407- ● ●

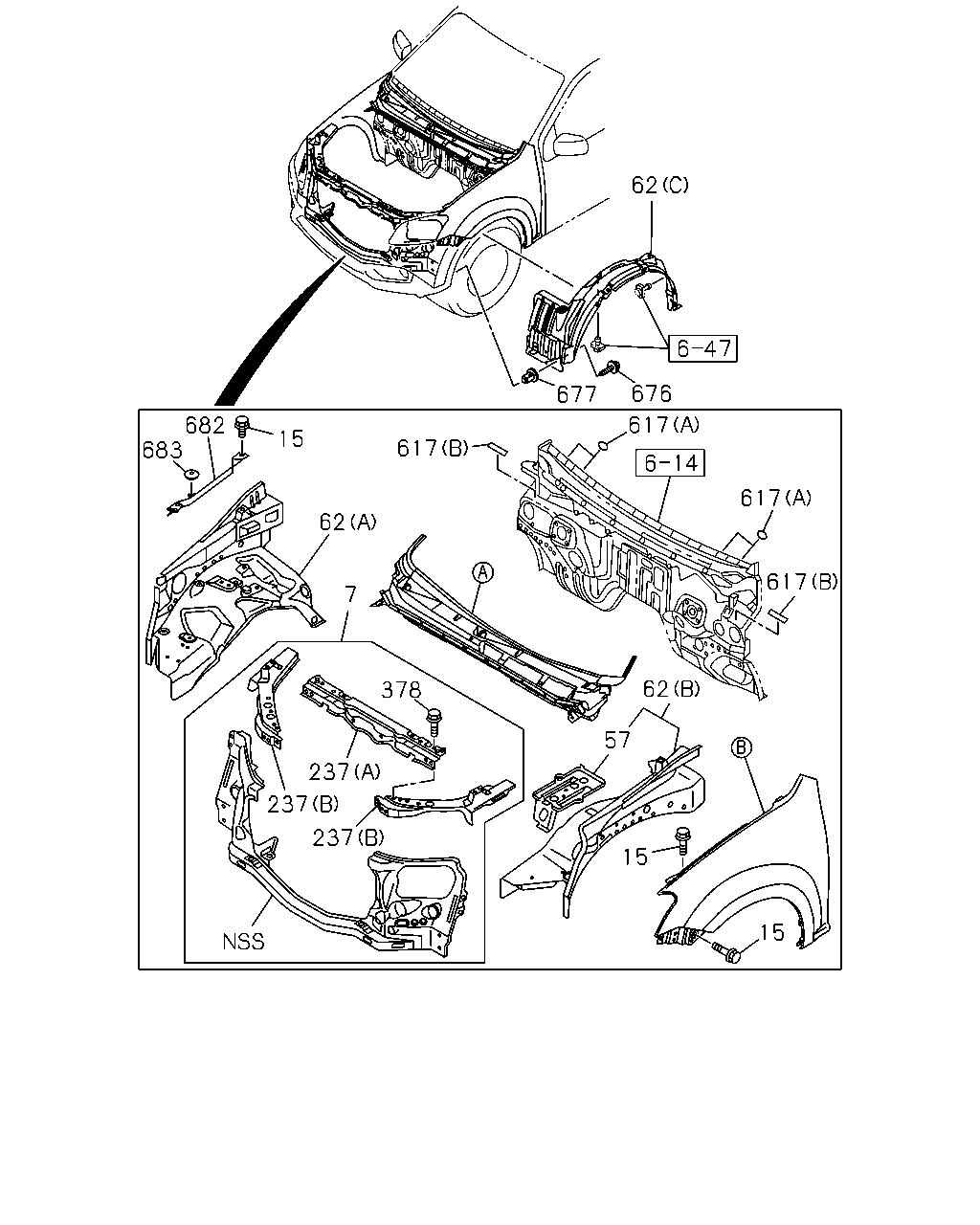

çizim 433897
62 676 677 617 617 62 57 15 15 237 237 237 378 7 683 682 62 617 617 15
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR 8-98103-202-0 01 1 1407- ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98167-615-0 12 1 1407- ● ●
57 TRAY; BATTERY 8-98104-480-5 01 1 1407- ● ●
62 PANEL; WHEEL HOUSE
(C) 		8-98077-254-7 01 1 1407- ● ●
62 PANEL; WHEEL HOUSE
(C) 		8-98077-256-6 01 1 1407- ● ●
62 PANEL; WHEEL HOUSE
(A) 		8-98222-295-4 01 1 1407- ● ●
62 PANEL; WHEEL HOUSE
(B) 		8-98226-409-3 01 1 1407- ● ●
237 SUPPORT; DEFLECTOR
(A) 		8-98104-224-4 01 1 1407- ● ●
237 SUPPORT; DEFLECTOR
(B) 		8-98104-244-4 01 1 1407- ● ●
237 SUPPORT; DEFLECTOR
(B) 		8-98104-253-4 01 1 1407- ● ●
378 BOLT; SUPPORT
M6X12 FLANGE 		0-28060-612-0 08 1 1407- ● ●
617 SEAL; DASH
(A) OD=25 BLACK 		1-76798-019-0 04 1 1407- ● ●
617 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1407- ● ●
617 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1407- ● ●
676 BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1407- ● ●
677 NUT; WHEEL HOUSE
D=9.7X9.7 L=8 		8-94222-314-0 02 1 1407- ● ●
682 PROTECTOR; HEAT,ENG 8-98139-849-3 01 1 1407- ● ●
683 RIVET; PROTECTOR,HEAT 8-98057-864-0 02 1 1407- ● ●
